Research the 2014 BRZ
Please
read - this independent, unofficial, unauthorized
Subaru research site is happily created and maintained by Joe Spitz. It
is designed to help you learn about Subarus. It is not sponsored, authorized,
supported or approved by Subaru or any dealer and is not connected to,
affiliated with, or supported by a dealer. Always contact your local dealer.
Information always subject to change.
2.0L 4 cylinder
start photos- want more? check out these 2014 and 2013 photo pages exterior photos, interior photos

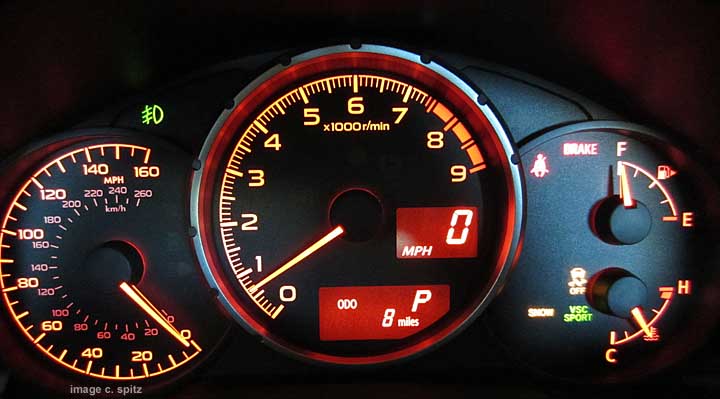

2013 instrument panel with center tachometer, 7400rpm redline. Shown with speedometer in miles
-

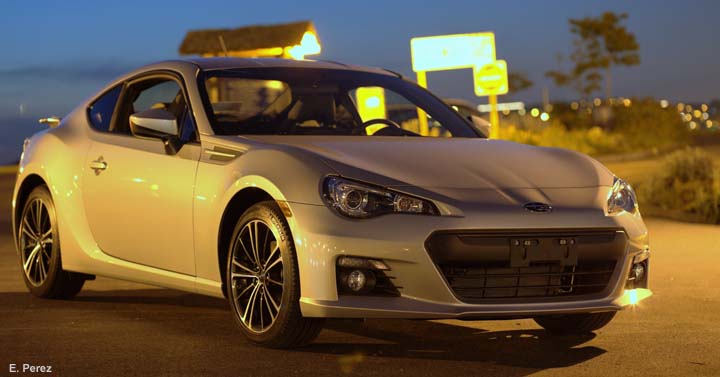

this silver 2013 BRZ Limited was one of
the first to be purchased in the country, purchased by Elbert Perez from
me and is featured in Subaru's Drive Performance magazine issue #9.2,
summer 2012
-

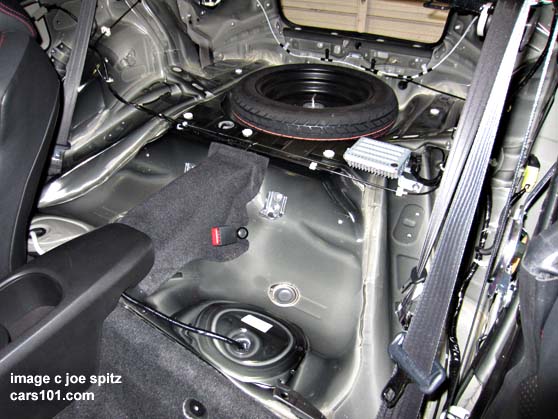

looking out through the trunk with the rear seat and carpet removed
-

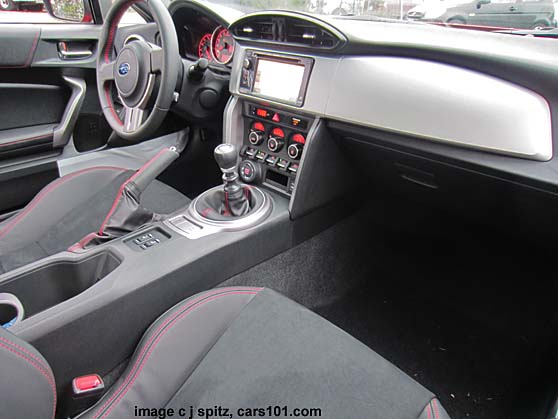

BRZ Limited, manual transmission |
BRZ Limited, automatic transmission |

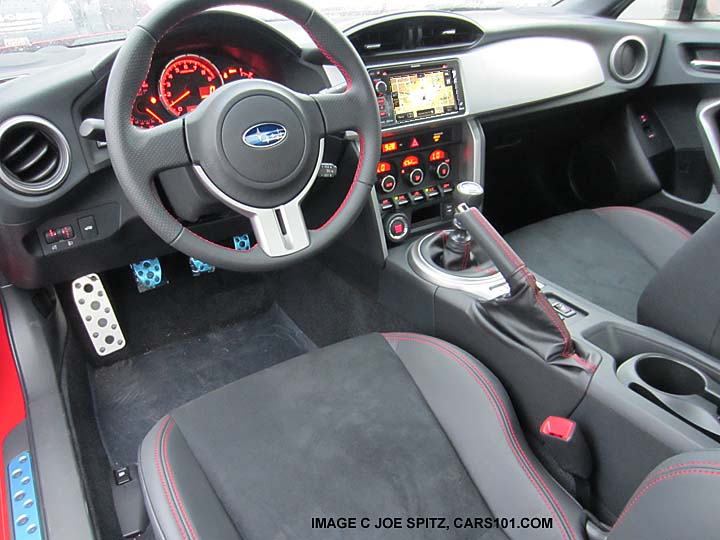

BRZ interior |
|

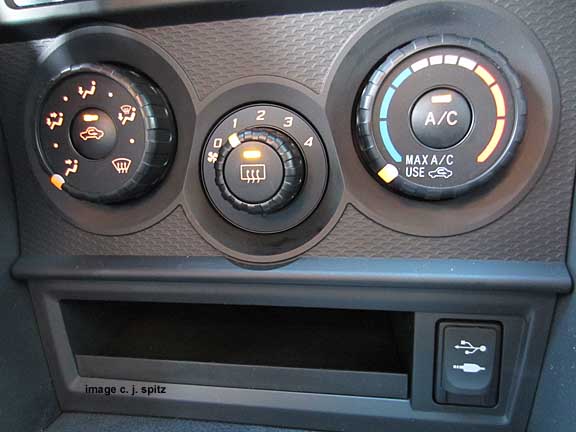

heater control- Premium model has manual control, 4 fan speeds |
Limited has pushbutton start and climate control with dual front zones, digital temperature and fan speed readout, a 7 speed fan, The rear defroster button also turns on the outside mirror heaters. The temperature setting range is from Lo-61 to 89-Hi |
NEW FOR 2014 blue steering wheel logo (replaces black)
|

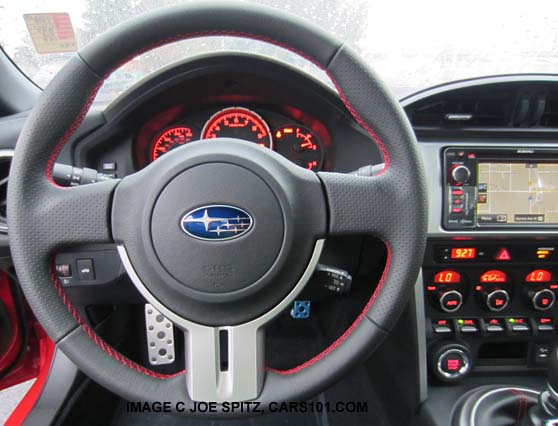

2014 Limited BRZ steering wheel with new blue center logo. All are leather wrapped with red stitching |

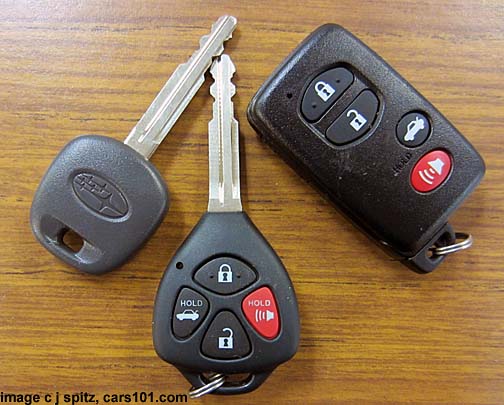

2014 BRZ keys- Premiums gets 3 standard keys (2 with remotes) Limited gets 2 keyless access keys |
Premium has a standard key with an illuminated ignition key cylinder, Limited has pushbutton start |
Premium turn signal stalk has headlight controls- Auto (dusk-to-dawn), parking lights. Shown on Auto |
Limited turn signal stalk has headlight and fog light controls- Auto (dusk-to-dawn), parking lights. Shown on Auto, with fog lights on. fog lights are optional on the Premium, standard on the Limited |
BRZ controls by driver's knee for dash lights, headlight aiming, trunk release |
|
Premium sunvisors are not illuminated |
Limited has illuminated sunvisors. Premium sunvisors are not lit |
available starting late August 2013 the optional rear subwoofer takes up room in the trunk but puts out volume. |
if you don't want to use the front license plate bracket from Subaru, this one from GrimmSpeed bolts into the tow hook |
optional trunk tray helps keep the trunk clean and dry. shown with rear seat flat |
optional trunk tray, good to have if you carry wet or dirty things |

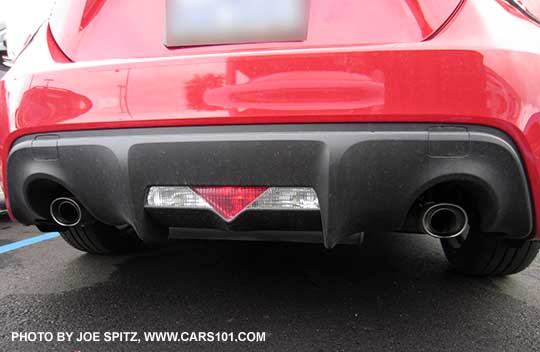

2014 and 2013 Subaru dual exhaust |
close-up of the 2014, 2013 Subaru BRZ exhaust tip |
2014 BRZ PRICES
Notes: prices are 2014 MSRP suggested list price. Your actual purchase price might be higher or lower depending on your dealers mark-up or discounts.
Prices announced 8.23.13 $100 increase on all models Cars expected late September Option Code or package code: all 2014 BRZs are Option Code #01 Destination is now $795 (was $770 on 13s). Destination to Ak is $945. Varies in the NY/NJ and New England area. subject to change, correction |
|||||||||||
model |
Premium |
. |
Limited |
||||||||
transmission |
model code |
opt code |
MSRP |
dest |
Total MSRP |
. |
model code |
opt code |
MSRP |
dest |
total MSRP |
manual transmission |
FZA |
01 |
$25,595 |
$795 |
$26,390 |
. |
FZE |
01 |
$27,595 |
$795 |
$28,390 |
automatic transmission |
- |
- |
- |
- |
- |
. |
FZF |
01 |
$28,695 |
$795 |
$29.490 |
subject to change, correction |
|
Overall length | 166.7" |
Width | 69.9" |
Height | 50.6" at roof |
Wheelbase | 101.2" |
Weight | Manual- Premium 2762 lbs, Limited 2776 Automatic- Premium 2809 lbs, Limited 2822 |
Track front/rear | 59.8/60.6 |
Turning radius |
35.4ft |
Trunk cargo space |
rear seat up 6.9cf |
Ground clearance |
4.9" |
MEASUREMENTS
cargo area measurements, hand measured
subject to change, correction |
|
cargo area measurements, hand measured |
A: width at lower opening 26" B: floor width side-to-side inside opening 55" C: floor width side-to-side between wheel wells 42" D: maximum opening width 36" E: opening height 15.5" F: floor length to top of seat, folded down 53.5" G: floor length from opening to center console 88" H: floor length to back of seat when up 32" I: height from floor to top of trunk 15". minimum height by rear seat opening 13.5" |
from the front seat looking into the trunk |
J floor length to top of seat, folded down 53.5" (same as F above) K floor length to back of seat when up 32" (same as H above) L width of rear seat opening 40.5" M height of rear seat opening 13.25" |
room for more than one set of clubs
|
lots of luggage in the trunk. |
a 2014 BRZ with rear seats and cargo interior removed |
blank for now |
2014 Maintenance schedule subject to change, correction |
the full maintenance schedule > Break-in period: drive the car nicely for the first 1000 miles, with a mix of city and highway driving. Keep RPMs under 4000 except in an emergency, and avoid fast or high revving starts and hard sudden braking and stops. Don't use cruise control except for very short periods. You might notice a slight minor hot smell as the engine heats up for the first time or two. This is a common smell in a new machine as they get used the first time. > First oil and filter change required at 7500 miles or by 7.5 months using the required 0w-20 synthetic oil Oil changes required at least every 7500 miles or 7.5 months Rotate tires every 7500 miles or 7.5 months Engine coolant is Subaru long life coolant and should be checked, but the replacement interval is 11 years 0r 137,000 miles. Timing chain: no replacement schedule > 15,000 miles or 15 months: oil/filter change, rotate tires, replace cabin air filter. Check, inspect, and replace as needed- the rear differential gear oil, automatic transmission fluid, engine coolant, brake system, steering, suspension, clutch operation, engine coolant > 30,000 miles or 30 months: oil/filter change, rotate tires, replace engine air filter, cabin air filter, brake fluid, and clutch fluid. Check, inspect, and replace as needed- belts, hoses, all gear and transmission fluids, brake and steering systems, suspension, clutch operation, engine coolant. > 45,000 miles or 45 months: repeat the 15000 mile service above > 60,000 miles or 60 months: oil/filter change, rotate tires, replace spark plugs, replace automatic transmission fluid, engine air filter, replace cabin air filter, brake fluid, clutch fluid. Check, inspect, and replace as needed belts, hoses, all gear oils, engine coolant (top off if needed), brake, steering, suspension, clutch lines, fluids, and operation. > 75,000 miles or 75 months- repeat the 15000 mile service above > 90,000 miles or 90 months: oil/filter change, rotate tires, replace engine air filter, cabin air filter, brake fluid, and clutch fluid. Check, inspect, and replace as needed- belts, hoses, all gear and transmission fluids, brake and steering systems, suspension, clutch operation, engine coolant > 120,000 miles or 120 months: repeat 60,000 mile service > 137,000 miles or 132 months (11 years)- replace engine coolant |
SAFETY Emergency roadside assistance standard for 3 years, 36000 miles. call 800-261-2155
subject to change, correction, updatingSubaru's Mobile-It-Ease program helps modify vehicles for special needs drivers. More info here |
|
2014 BRZ standard safety equipment includes... VDC vehicle dynamics control, electronic stability control TCS traction control system, all wheel all speed Airbags: Driver's knee airbag Airbags: Front airbags Airbags: Side airbags front Airbags: Side Curtain Airbags, front and rear Front passenger airbag- All 2014 and 2013 BRZs, Crosstreks and Imprezas use a front passenger seat Occupant Detection System called Electrostatic Capacitance Sensor ODS. When anyone is seated or when anything is placed on the front passenger seat, there is a change to that capacitance value. This change in capacitance value is what the Electrostatic Capacitance Sensor ODS uses to determine whether the front passenger seat airbag (SRS) will be ON or OFF. When water or anything with high moisture content is spilled on the front passenger seat cushion, the airbag is designed to remain OFF until the seat cushion is dry. This will also be the case if the passenger has moisture on their clothing, such as rain-soaked pants or rain gear. In each of these situations, the airbag status may remain OFF even if a passenger is seated. Everything that is placed on the seat will affect a change in capacitance value. Plastic, metals and other substances, even if at a heavy weight, will not change the OFF status of an airbag. A false electrical charge, for example, those caused by laptops that are processing data, cellphones that are on or even an electric device connected to a car charger can cause the airbag status to switch to ON |
> Whiplash protection front seats
> Tire Pressure Monitoring System (TPMS) on all models > Headrests- front headrests are height adjustable > Steering wheel tilt and telescoping function to get a comfortable position > Headlights are Auto-off with ignition key removal, warning chime with lights back on > Brake assist increases the brake power when the driver initiates hard emergency pressure on the pedal. Brake assist generates the brake power according to the speed at which the driver depresses the brake pedal. Brakes: anti-lock 4 wheel disc brakes with EBD electronic brake force distribution, Brake assists for maximum brake pressure, and brake pad release return springs to prolong pad life. > Brakes- 4 wheel disc > Brake Override System, if gas and brake pedals are pressed at the same time, the brakes stop the car Brakes: brake return springs, helps eliminate some brake wear Brakes: EBD, electronic brake force distribution varies front/rear brake power 3 point lap and shoulder belts. Internal Trunk Release, sedan, emergency inside-trunk release LATCH Child seat Tethers and Uniform Mounting Clips Daytime running lights Crumple zones: front and rear Drop-down motor mounts Reinforced door beams: Dual front, single rear A Pillar reinforcing beam |
subject to change and updating. corrections and comments are welcomed Built by Subaru for both Subaru and Toyota/Scion in Gunma, Japan
|
||
model | Premium model code: manual EZA |
Limited model code: manual EZE, automatic EZF |
Engine | FA20 2.0L 4
cylinder
(122cu, 1995cc) 16 valve, DOHC DAVCS dual active valve control system, variable valve timing D-4S port/direct injection Compression 12.5:1 Bore x stroke 3.4 in. x 3.4 in (86mm x 86mm) Oil: 0w-20 synthetic, 5.8qts Spark plugs: Iridium tipped Denso ZXE27HBR8 (gap 0.031 in) |
|
Horsepower
Torque |
200hp@7000rpm
150lb-ft@64-6600rpm. Redline is 7400 fuel cutoff |
|
Transmission | standard: 6 speed close-ratio manual.
gears: 1st 3.626, 2nd 2.188, 3rd 1.541, 4th 1.213, 5th 1.0, 6th 0.767 optional: 6 speed automatic with Paddle Shifters, and Sport or Winter mode. Final drive ratio: 4.10:1 Rev indicator and alarm - light and optional buzzer when exceeding a RPM that you determine |
|
Fuel Economy Premium 93 octane gas required 13.2 US gallon tank, (50 L, 11.0 Imp. gal) Use a maximum of 10% ethanol |
MPG city/highway, combined manual transmission 22/30, 25 automatic transmission 25/34, 28 |
|
Rear wheel drive | S | |
Limited slip rear differential, Torsen (torque sensing). Both rear wheels are powered |
S | |
VSC and Traction TCS- vehicle stability control and traction control system (note- all other Subarus have VDC- Vehicle Dynamics Control) |
S, with 5 settings TCS 'Off" setting allows wheel spin when accelerating. it reactivates over 31mph unless the VSC is also off. VSC and TCS has 'Sport' and 'Off' settings. Sport allows some slipping before the VSC and TCS activates. Off shuts both VSC and TCS off for complete driver control. |
|
Steering |
electric power assisted steering (epas). lock-to lock 2.48 turns. turning circle 35.4ft |
|
Steering ratio |
13:1 |
|
Wheels | 17x7J alloy, gray, 15 spoke |
|
Tires note- tires chains cannot be used due to a lack of clearance |
Michelin Primacy HP 215/45RW 17" summer performance tires | |
Brakes | front 11.6:
vented disc
rear 11.4 vented disc |
|
Suspension | 4-wheel independent Front: MacPherson-type struts, lower L-arms, coil springs, stabilizer bar Rear: Double wishbone, coil springs, stabilizer bar Strut town brace |
|
EDR- Event Data Recorder |
The BRZ is
equipped with a EDR. In the event of an major accident, the EDR will
freeze around 30 seconds of information, including brake and gas pedal
positions, seatbelt use, speed, steering wheel direction etc. There is
no personal information (no name, location, age etc). Subaru has strict
rules regarding the use of this information and it cannot be released
without the owners express consent or if officially required by a court. |
-
subject to change and updating. corrections and comments are welcomed |
||
model | Premium |
Limited |
model code |
manual EZA | manual EZE, automatic EZF |
Automatic 6 speed transmission with paddle shifters, sport and snow mode |
automatic is not available on the 2014 Premium |
O |
Power windows, power-off delay so they work for 45 seconds after turning off |
S |
S |
Power door locks |
S |
S |
Power mirrors, body colored, break-away |
S |
S- heated |
Rear defroster (no wiper) |
S |
S |
Key- remote lock/unlock, immobilizer system (all keys have a transponder chip) |
S, remote lock/unlock, battery CR2016 |
bluetooth key, keyless access, pushbutton start, battery CR1632 |
Lights: Headlights- standard HID headlights power height aiming adjustment. Auto dusk-to-dawn setting. Daytime Running Lights. |
S | S |
Fog lights | O |
S |
Rear spoiler, body colored |
O | S |
Heated
front seats and defrosting outside mirrors (note: doesn't include wiper deicers and not called the All Weather Pkg) |
- |
S |
Steering wheel- tilt and telescope, leather wrapped | S | S |
Air conditioning, manual control, 4 speed fan |
S |
S |
Climate control, dual front zone automatic control, digital display, 7 speed fan | - | S- dual front zone |
Cabin air filter |
S |
S |
Cruise control | S | S |
Instrument panel - speedometer, tachometer, fuel gauge, coolant temperature gauge, 2 resettable trip odometers |
S |
S |
Digital display- outside temperature, instant and average fuel economy |
S |
S |
Illuminated ignition keyring on steering column |
S |
-- |
Illuminated start/stop push button on dashboard |
-- |
S |
Cupholders, 4, 2 in center console, 1 in each door |
S |
S |
Vanity mirrors, 2, one in each sun visor |
S, not illuminated |
S, illuminated |
Carpeted floor mats, embroidered |
S |
S |
Height adjustable driver seat, manual (not power) | S |
S |
Door courtesy lights |
reflector, no lights |
S |
Power outlets, 12volt. 1 in center console, 1 in the glovebox |
S |
S |
Trunk release with disable function in the left side of the trunk |
S |
S |
Interior- Cloth interior | S | - |
Interior- Leather trimmed with Alcantara seating surfaces | - | S |
Navigation/GPS. 6.1" touchscreen. Voice activated. Nav traffic free for 4 months | S | S |
Stereo: AM/FM/HD, XM
radio, single CD, wireless audio streaming,
hands free cell phone bluetooth
with contact download, USB, aux jack, 196 watts, 8 speakers. XM is free
for 4 months. Roof antenna. new for 2014 Aha by harman/kardon. You put the Aha app on your Android or iPhone phone (not Blackberry or Windows, though that can change) and it channels content to your navigation. |
S | S |
standard features |
Premium |
Limited |
- 2014 BRZ STANDARD FEATURES subject to change and correction. tips and comments welcomed |
||
PREMIUM MODEL BRZ model codes: manual transmission EZA |
LIMITED ADDS TO PREMIUM Limited model codes: manual transmission EZE; automatic EZF |
|
-
Engine: 2.0L DOHC 4 cylinder, 200hp, Rear wheel drive with Torsen Limited slip 6 speed close ratio manual transmission. new for 2014 steering wheel center logo has a blue background new for 2014 no automatic transmission is available on the Premium new for 2014 Aha included with navigation. Aha is by Harman Kardon. You put the Aha app on your Android or iPhone phone (not Blackberry or Windows, though that can change) and it channels content to your navigation. Safety Brakes: 4 wheel disc, anti-lock, with EBD, brake assist, and brake override Airbags: driver and passenger front, front side, and front side pelvis/torso Tire Pressure monitoring system Safety pedal system (designed to give in the event of an accident) Whiplash protection front seats Front headrests- height adjustable Child seat: rear LATCH system Daytime running lights, LED (DRL) Front wipers- variable speeds Front crumple zones Lights: HID low beam/high beam, power aiming adjustment, Daytime running lights. Features Power windows Power locks Driver's window one-touch auto up/down Power mirrors, body colored, break-away Cruise control Remote lock/unlock Engine immobilizer chipped key anti-theft system Illuminated key ring Air conditioning and heated controls: manual controls, 4 speed fan Cabin air filtration system Outside door handles- body colored Inside door handles- chrome Outside mirrors- body colored Front fender garnish- body colored with black insert |
- Interior Cloth interior with red stitching Drivers seat, manual height adjustment Rear seats fold flat, one piece Carpeted floor mats Tilt and Telescoping steering wheel Leather wrapped steering wheel with red stitching Leather wrapped shift knob Dual vanity mirrors (not illuminated) Door sill plates with aluminum alloy insert Foot pedals- aluminum alloy, incl foot rest Cupholders 4- 2 removable cupholders in the center console, 1 in each door 12v power outlets- 1 in center console, 1 in glove box Trip computer with instant, average fuel economy, outside temperature Map pocket on front passenger seat back Passenger seat slides forward for rear seat access Dome light 2 map lights Stereo new for 2014 Aha by harman/kardon. You put the Aha app on your Android or iPhone phone (not Blackberry or Windows though that can change) and it channels content to your navigation. Navigation/GPS, 6.1" LCD touchscreen, voice activated Handsfree cell phone bluetooth, 8 speakers, 196 watts amp CD single disc, USB auxiliary, Aux jack, Wireless audio streaming (do you have music on your phone?), MP3/WMA AM/FM/HD radio, iTune tagging, XM satellite with 4 mos free All Access (All Access starting 6/17/13), Antenna- roof mounted |
-
The Limited model has everything the Premium has,plus..... Fog lights Heated front seats Heated outside mirrors Security alarm system Front door courtesy lights Vanity mirrors- illuminated Trunk spoiler- body colored Keyless access door and pushbutton start Illuminated keyless start/stop push button Leather trimmed with Alcantara seating surfaces Air conditioning and heated controls: automatic climate control with temperatures from Lo-61 to 89-Hi, dual front zones, digital display, 7 speed fan, rear defroster button turns on the outside mirror heaters. |
Note: prices are MSRP suggested list price. Your actual purchase price might be higher or lower depending on your dealers mark-up or discounts. subject to change and updating. corrections and comments are welcomed |
||
OPTION PACKAGES prices are MSRP suggested list installed price. Your actual purchase price might be higher or lower depending on your dealers mark-up or discounts. subject to change and updating. |
Premium model code: manual EZA |
Limited model code: manual EZE, automatic EZF |
Protection Package 1 (code B2N). rear bumper applique, chrome fender trim, cargo tray, wheels locks $337 |
O |
O |
Popular Package 1A (code B1A). Includes Auto dimming mirror/compass/Homelink, Rear bumper applique, Wheel locks. $426 |
O |
O |
Popular Package 1B (code
B1E). Includes Auto dimming mirror/compass/Homelink, Rear bumper
applique', Chrome fender trim, Wheel locks $619 |
O |
O |
Popular Package 2A (code
B1C). Includes Auto dimming mirror/compass/Homelink, Rear bumper
applique, Interior Illumination kit RED, Wheel locks. $749 |
O |
O |
Popular Package 2B (code B1D), Auto dimming mirror/compass/Homelink, Rear bumper applique', Cargo tray, Interior illumination kit BLUE, Wheel locks. $749 | O |
O |
Popular Package 2C (code B1F). Includes Auto dimming mirror/compass/Homelink, Rear bumper applique, Chrome fender trim, Wheel locks. $547 | O |
O |
INDIVIDUAL OPTIONS prices are MSRP suggested list installed price. Your actual purchase price might be higher or lower depending on your dealers mark-up or discounts. subject to change and updating |
Premium |
Limited |
Automatic 6 speed transmission with paddle shifters |
- |
O |
Fog lights (code QEM) $390 |
O | S |
Interior illumination footwell LEDs, red code NEA or blue code NEB. $222 |
O |
O |
Stereo: 10" powered Kicker subwoofer, trunk mounted 100w amp (DEA) $646 | O |
O |
Rear bumper diffuser/underskirt (code QEX) $803 | O | O |
Chrome fender trim (code QER) $121 |
O | O |
Wheel locks (code H8B) $52 | O | O |
Chrome fuel door cover (code QES) $101 | O | O |
Trunk cargo tray (code MEA) $72- Note na with subwoofer |
O |
O |
Rear bumper paint protector applique (code QEV) $92 | O | O |
Auto dimming rear view mirror with compass (code KEA) $207 | O |
O |
Auto dimming rear view mirror with compass and Homelink garage door opener (code KEB) $282 | O |
O |
Rear spoiler, body colored $571 | O | S |
ACCESSORIES accessories are parts that are available from your dealer. Prices here are MSRP without installation. Contact your local parts dept for their price. subject to change and updating |
Premium |
Limited |
Engine block heater - dealer only, $149.95 |
O |
O |
Chrome fender trim $99 (also available port installed) |
O |
O |
Rear decklid spoiler, pre-painted -$499. |
O |
S |
Rear underskirt/diffuser $749 (also available port installed) |
O |
O |
Battery warmer - dealer only, $54.95 |
O | O |
Smoking accessories: ash tray, $19.95; requires ashtray holder/sleeve $12.95; cigarette lighter $69 (needs to be installed, replaces 12v outlet). dealer only | O | O |
SPT battery tie down- dealer only, gray or blue - $45 |
O | O |
SPT Oil filler cap - dealer only, gray or blue, $45 |
O |
O |
Wheel locks $29.95 (also available port installed) |
||
Car cover, $139 |
O |
O |
Severe weather companion (emergency kit) flashlight, blanket, first aid etc $44.50, dealer only |
O |
O |
BRZ logo License plate- polished stainless $34.95; Matte Black $31.95 |
O |
O |
BRZ logo key fob, carbon fiber $19.95 |
O |
O |
top
start colors and interiors
Limited, manual transmission, with new blue center steering wheel logo (2013 model was black)
-
Limited

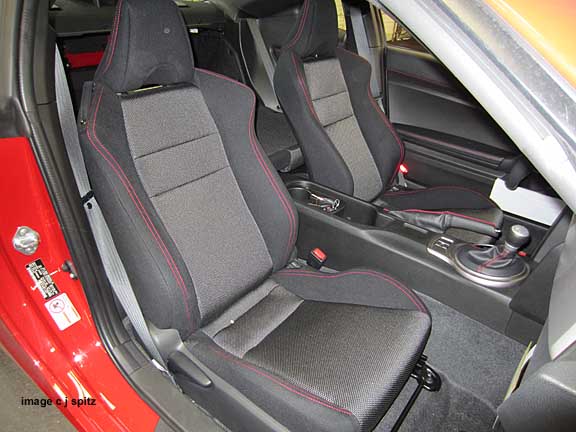

all Premiums have black cloth with red stitching |

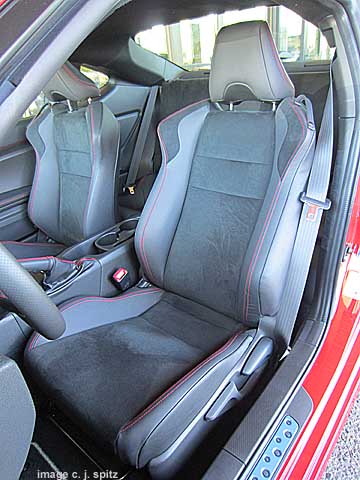

Limiteds have black leather and alcantara seating surfaces, with red stitching |
-
Premium- cloth interior |
Limited- leather with alcantara interior |
2014 BRZ COLOR SAMPLES its hard to get accurate colors subject to change, correction |
||
|
Sterling Silver Metallic |

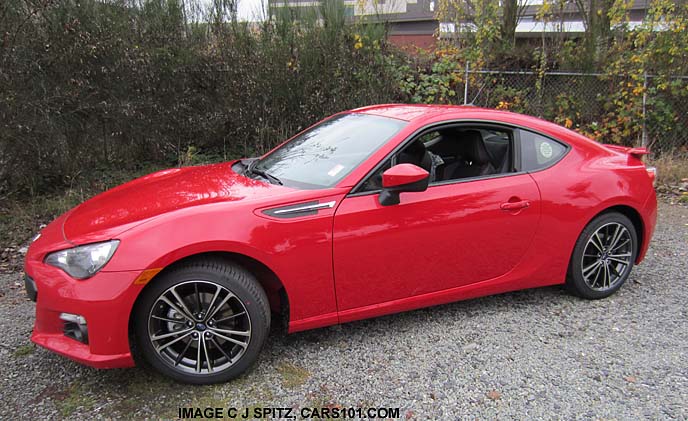

lightning red |
satin white pearl |
dark gray metallic |
obsidian black pearl |
top
-
2014 BRZ COLORS Notes
All Premiums have black cloth and All Limiteds have black leather with Alcantara Gone- Galaxy Blue is not available on the 2014 BRZ subject to change and correction
|
||||||
model |
WR Blue Pearl |
Lightning Red |
Crystal Black Silica |
Sterling Silver Metallic |
Dark Gray Metallic |
Satin White Pearl |
Premium with black cloth |
A |
A |
A |
A |
A |
A |
Limited with black leather/alcantara | A |
A |
A |
A |
A |
A |
2013 BRZ speed tests a few speed tests from various websites and car magazines |
|||||||||||||||||||||||||||||
0-30 mph- 2.7 seconds 0-45- 4.8 0-60- 7.3 0-60 with 1 foot of rollout- 7.0 0-75 10.4 1/4 mile- 153.3 at 91.1 MPH 0-30 mph, trac ON- 3.0 0-45 mph, trac ON- 5.2 0-60 mph, trac ON- 8.0 0-60, trac ON with 1 foot of rollout- 7.7 0-75 mph, trac ON - 11.1 1/4-mile, trac ON- 15.7 sec @ 90.5 mph Braking, 30-0 mph - 28ft 60-0 mph- 114ft Slalom, 6 x 100 - 69.1 MPH Slalom, 6 x 100 ft. ESC ON- 66.6 MPH Sound level @ idle- 44.3 dB @ Full throttle- 81.6 dB @ 70 mph cruise 69.0 dB Engine speed @ 70 mph- 3.050 RPM - |
|
- Car and Driver, June 2012 issue
0-30 2.3 seconds
0-40 3.3 0-50 4.7 0-60 6.3 0-70 8.2 0-90 13.2 0-100 16.4 0-110 21.2 0-120 26.6 5-60 8.0 quarter mile 14.9 seconds @ 95mph Braking 70-0 165ft Interior sound idling 42 dba full throttle 85 dba 70mph cruising 73dba |
The end
