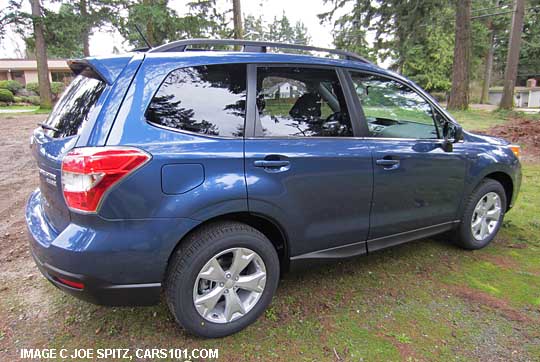

Marine blue pearl Limited (notice- not turn signals in the mirrors so it can't be a Touring) |
2.5i Limited, marine blue pearl. Spoiler is on Limited, Touring, and XT models |
2.5i base model with stamped steel wheels, and no roof rails or privacy window tint |

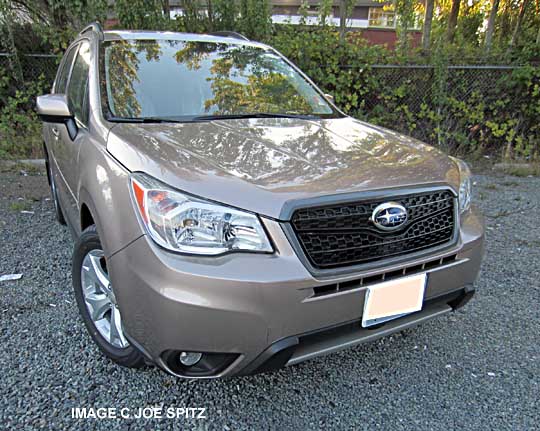

burnished bronze with optional Sport grill and front bumper underguard |

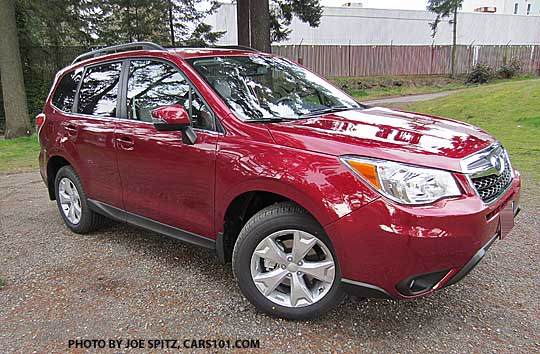

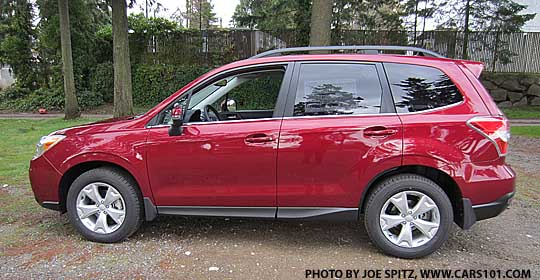

venetian red Touring model (notice- turn signals in the outside mirrors) |
venetian red Touring (notice rear spoiler and turn signals in the mirrors) |

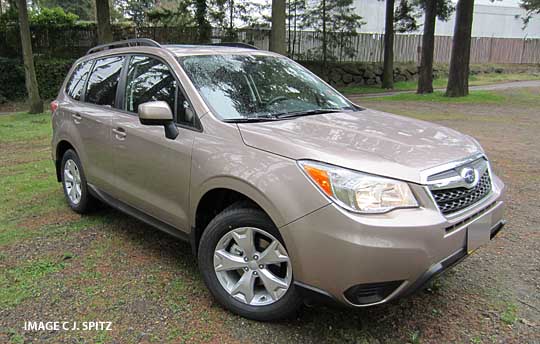

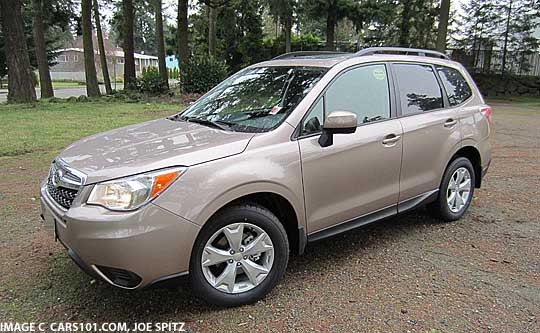

burnished bronze Premium (notice- no fog lights). many more exterior photos |
burnished bronze Premium (notice, no rear spoiler) |

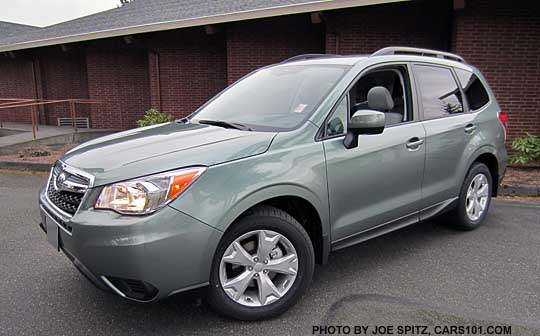

Jasmine green Premium (notice- painted mirrors, privacy glass, alloy wheels but no rear spoiler) |
Jasmine green Premium (notice no fog lights but it does have painted mirrors and privacy glass) |

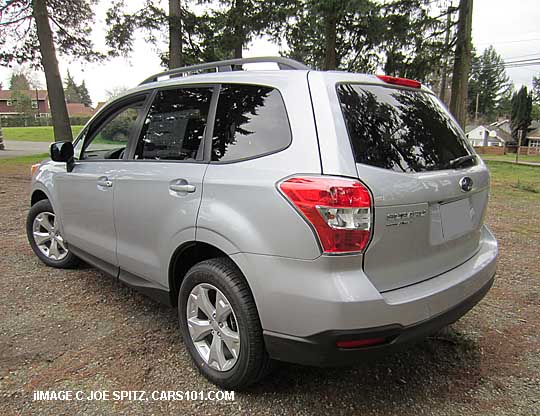

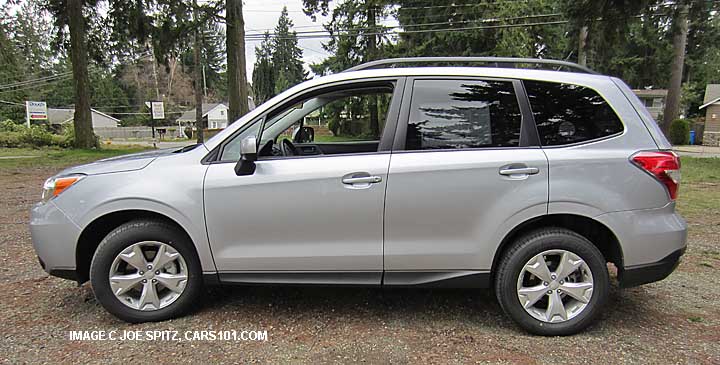

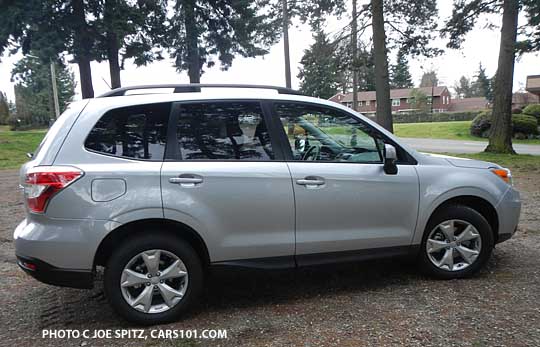

ice silver Premium (notice- no rear spoiler) |
ice silver Premium (notice- alloy wheels, privacy glass, tinted mirrors, no rear spoiler) |

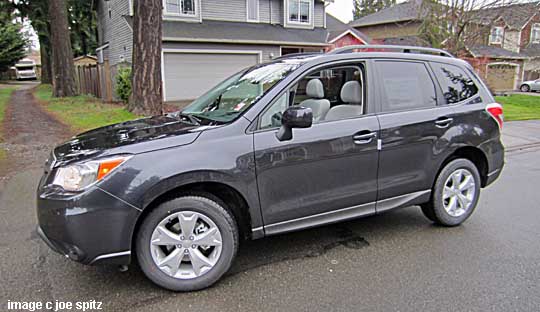

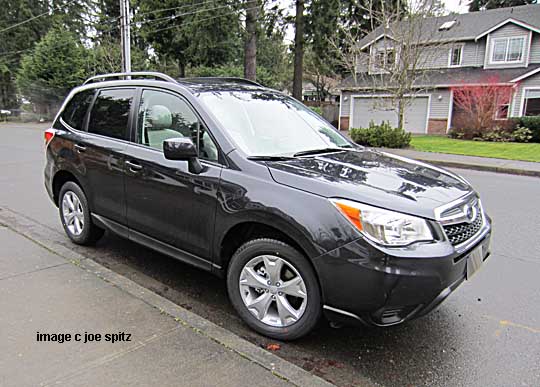

dark gray Premium (notice- alloy wheels, privacy glass, no fog lights) |
dark gray Premium (privacy glass, alloy wheels, no rear spoiler) |

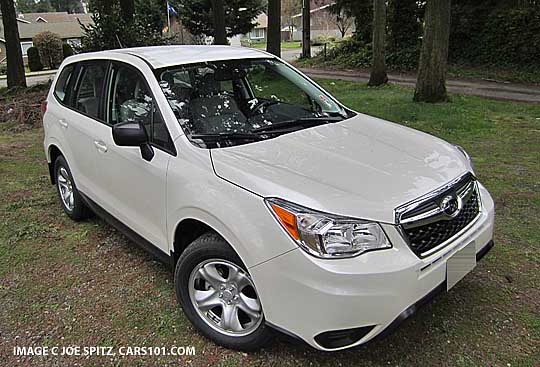

2.5i, the base model is still well equipped. (Notice no roof rails or privacy glass, and the stamped steel wheels) |

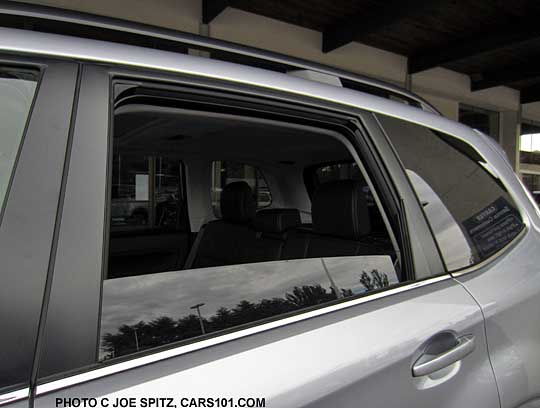

the back windows don't open all the way |

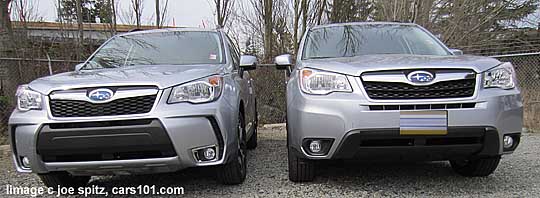

2014 Foresters grill to grill- 2.0XT is on the left and the 2.5i on the right many more exterior photos |

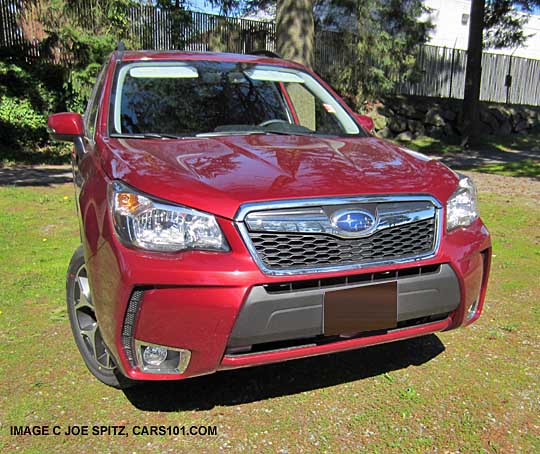

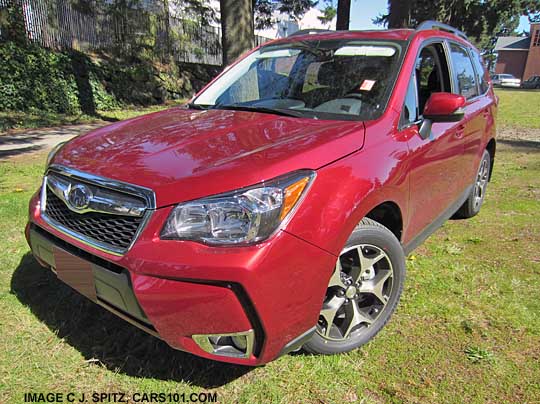

Venetian Red 2.0XT Touring |

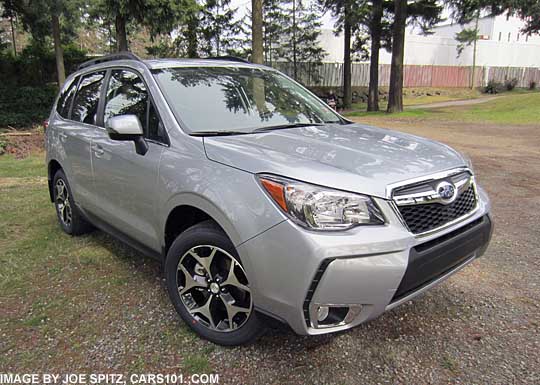

ice silver 2.0XT turbo Touring |
venetian red 2.0XT Touring |

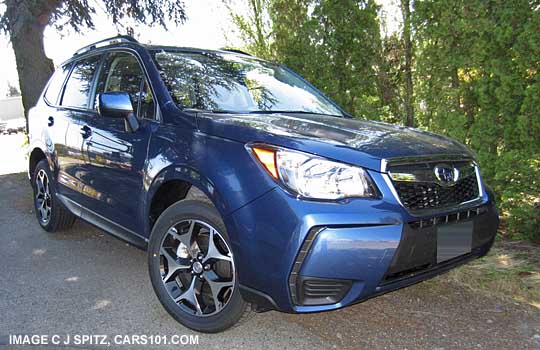

XT Premium (notice no fog lights). Marine Blue |

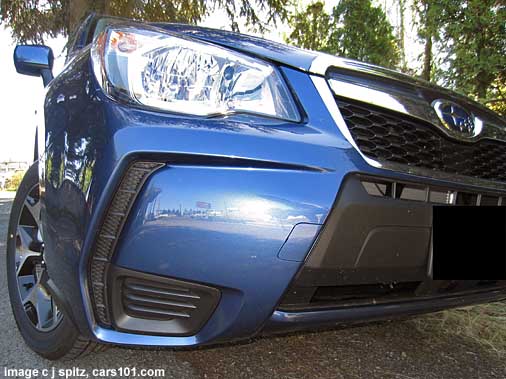

closeup of the fog light blank on the XT Premium. |

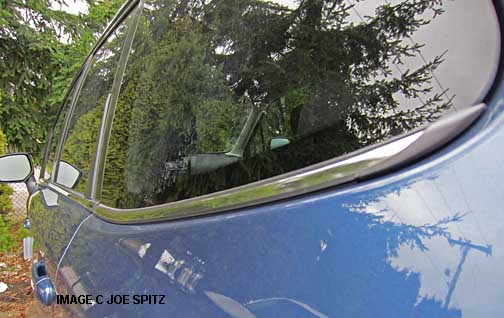

bright window trim is on Limited and Touring models. 2.5i and Premium have black trim |

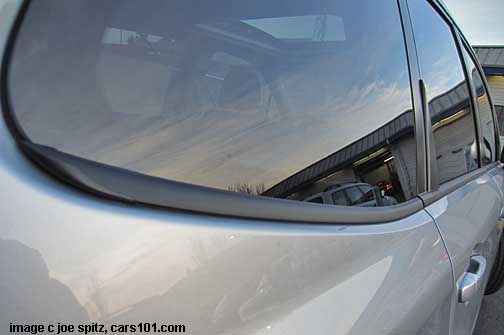

2.5i, Premium have black window trim, shown. Limited, Touring models have bright window trim |

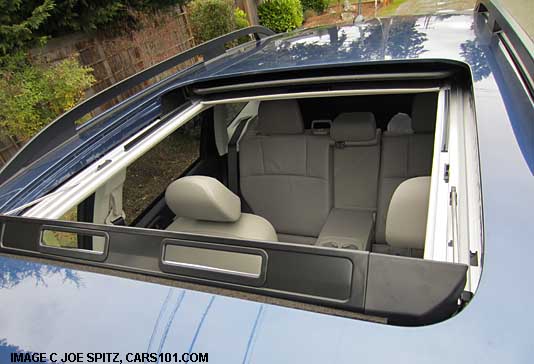

Panoramic moonroof on all X CVT, Limited and Touring |
The rear seats- pull the
strap in the outside corner to recline the seatbacks when you're sitting
in the seat (all except base 2.5). Black
arrows point at the anchors for the LATCH child seat system, shown with
one cover pulled open to access the hook you would attach a child seat
anchor to. The cover pulls open from the top
|
2.5i model has a 17" stamped steel wheel with plastic center cap |

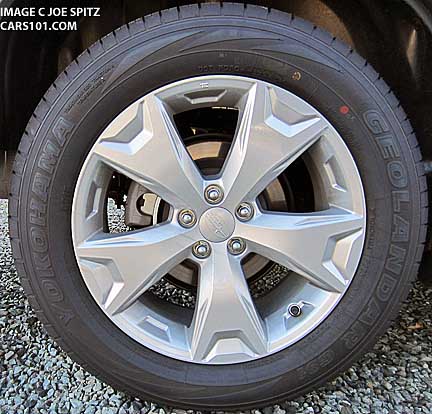

17" alloy wheel on the 2.5 Premium, Limited, and Touring |

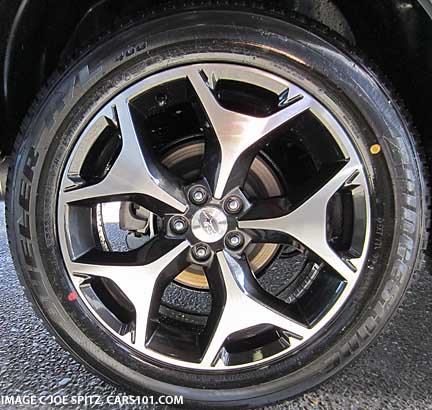

XT Premium and Touring 18" machined alloy |

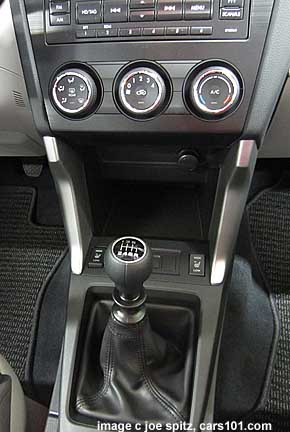

close-up of the new for 2014 6 speed manual transmission and standard shift knob. The manual is standard on 2.5i and Premium. Premium with all weather pkg shown. To shift into reverse, pull up the collar. |

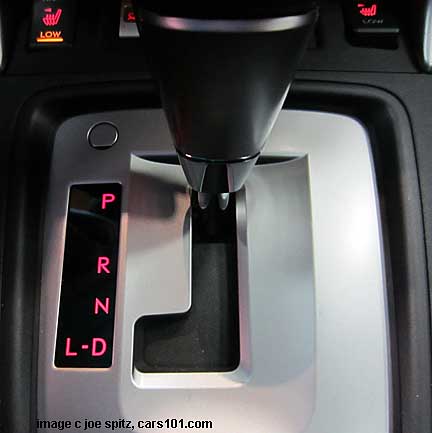

All 2.5 model CVTs have L-D transmission control. L is Low mode, and is the only option other than Drive. There is no manual control available on 2.5 models, and is the first Forester without it. It means the driver can't control or get more power when needed for passing on hills or 2 lane roads, or for towing a trailer, driving on camping or snowy roads etc. All previous year Foresters have had controllable transmissions for safety and performance. If you think Subaru should put Paddle Shifters with manual control back on the 2.5 model, please voice your concern to Subaru's customer support at 800 SUBARU3 (800 782-2783) |

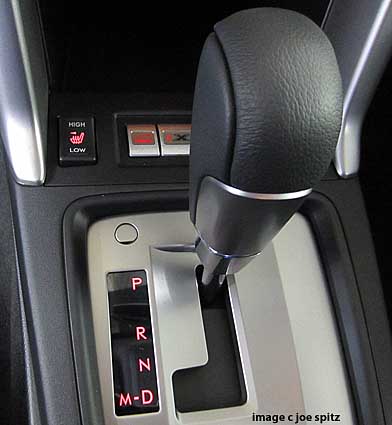

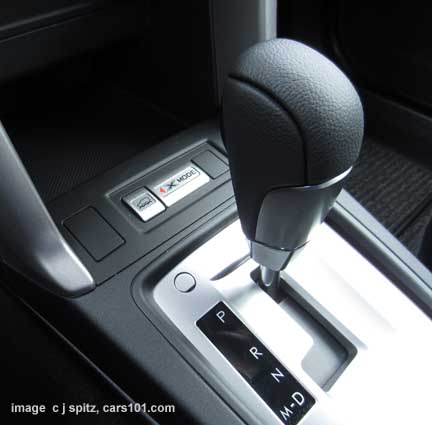

2.0 XT CVTs have M-D for Manual and Drive modes, giving the driver the option of full transmission control for those times when more power is needed, or more control for snowy or logging roads. It is used with the standard Paddle Shifters. This very important safety feature is on XT models only, and not available on 2.5 models at all. |

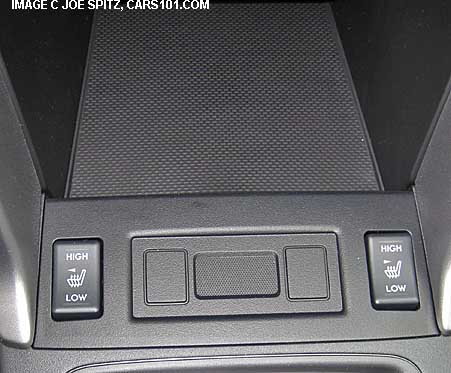

heated seats (all weather pkg) on a Premium. |

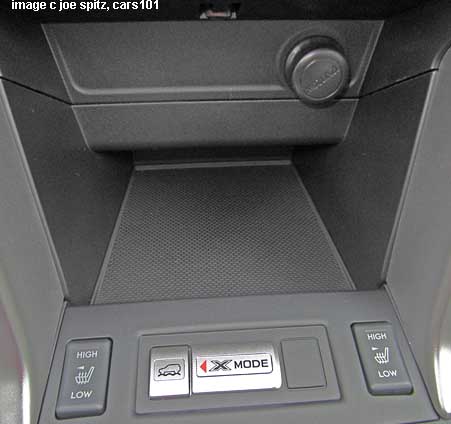

Limited and Touring models have new for 2014 X-mode
with hill descent, and heated seats (all weather pkg). X-mode is a
low speed computer controlled program for slippery roads and must be
turned on under 12mph, and turns off over 25mph.
|

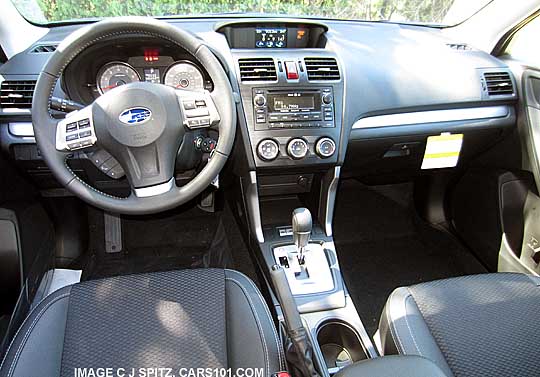

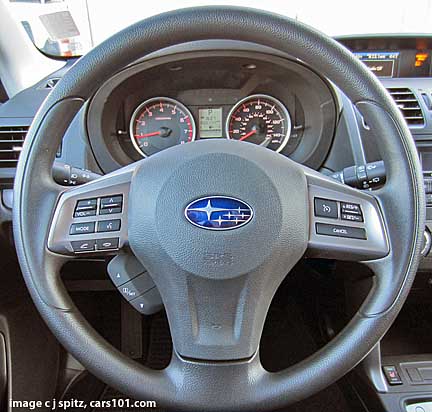

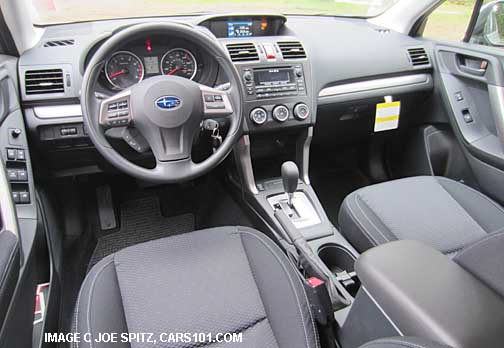

2.5 Premium steering wheel, vinyl |
2.5 Limited and Touring leather wrapped steering wheel |

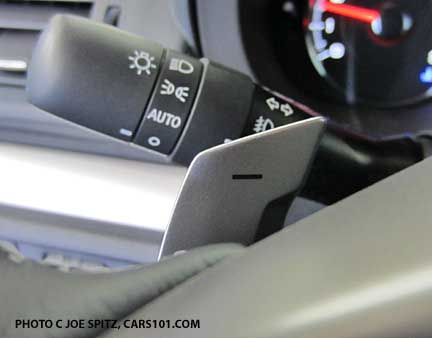

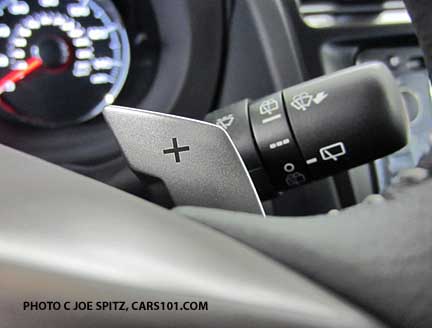

2.0XT Premium, Limited leather wrapped steering wheel has Paddle Shifters and SI drive controls (on right) |

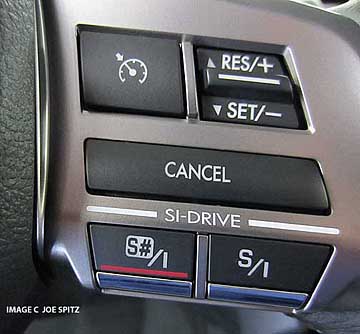

Forester XT SI Drive and cruise controls are on the steering wheel. All models have cruise control.
SI drive has 3 settings on 2 buttons- I intelligent, S sport, and S#
sport sharp. Sport# is for sportiest driving and quickest engine and
transmission response.
SI drive also determines whether the CVT has 6 speeds (in S/I mode), or 8 speeds (in S#/I mode)
|
The 2.0XT turbo CVT is fully controllable when needed for safety and performance, via steering wheel paddle shifters. There are 6 or 8 speeds, determined by SI Drive I/S (6) and S# (8). Downshift paddle shift shown. Unfortunately the 2.5 X model CVT is not fully driver controllable. |
Only the 2.0XT CVT is driver controllable when needed, via steering wheel paddle shifters. Up paddle shift shown |
headlight switch and turn signals on 2.5 and Premium. No fog lights or auto dusk-to-dawn headlight setting |
2.5 Limited and Touring and 2.0XT Touring model headlight switch with auto dusk-to-dawn setting, fog light on/off. Shown with headlights on, fog lights off. |
2014 XT Premium shift knob, leather wrapped. Showing Xmode but no heated seats buttons on either side |

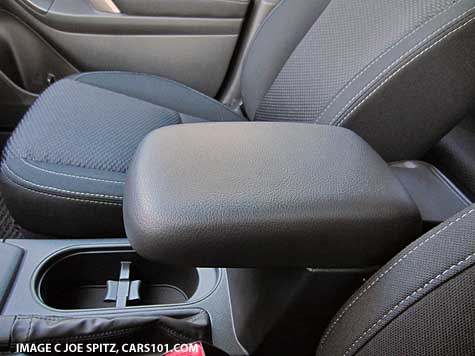

adjustable center armrest is standard on 2.5i Premium CVT and higher models. USB, aux, and 12v power outlet are in the storage bin. Premium with black cloth shown |

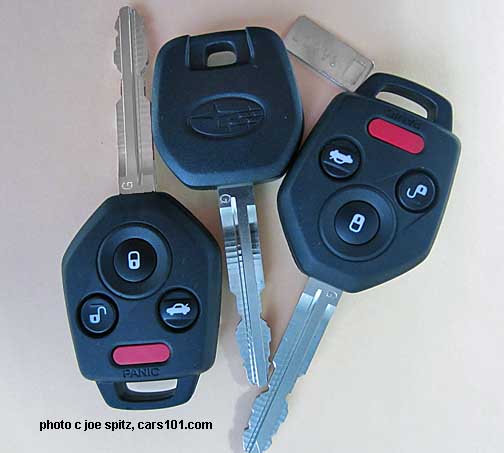

3 keys- 2 with remote, 1 valet key. new for 2014 standard cut key, replacing the laser cut of previous years. Its now easy to make a spare emergency key that opens the door. You still need a programmed key to drive the car. |
optional remote engine start fob, shown with a regular key. 2 remote start fobs supplied. Plus 3 keys |

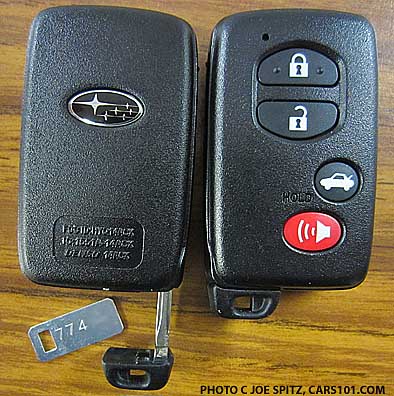

all new for 2014 Keyless access pushbutton start keys, available on Touring models only part of the Keyless
Access & Start, Eyesight Drive Assist Technology, HID headlight
package. Shown with emergency door key partly removed. The optional
remote engine start can be added, it works with this key so a separate start remote fob is not needed
|
disable the Forester's keyless
access proximity key in order to hide it in the car when camping,
swimming, skiing, biking: remove the emergency key to carry with you to
get back in the car (yes the alarm will go off when you open the door
until you unwrap the proximity key), wrap the proximity key in foil,
then hide it and hope no one finds it and steals the car.
|

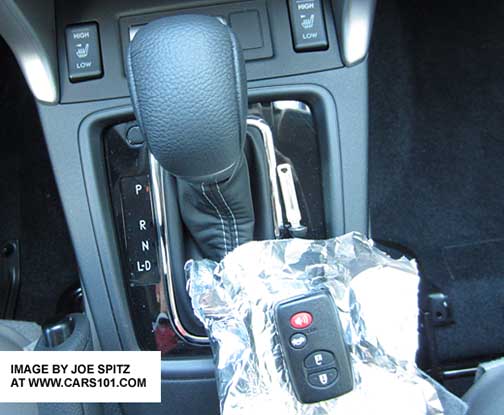

the 2014 and 2015 Forester's keyless access proximity key wrapped in tin foil |

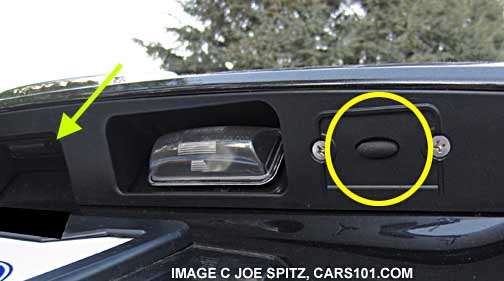

Touring models with optional keyless access have a power lock button on the right of the license plate (circled). The yellow arrow points at the normal gate release button |

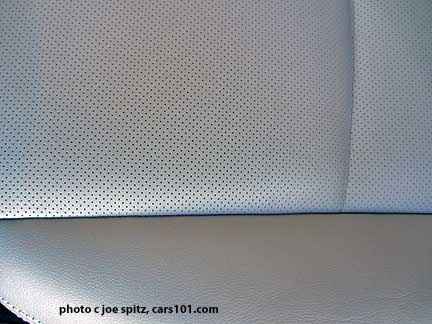

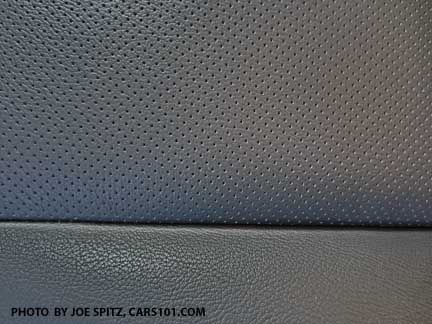

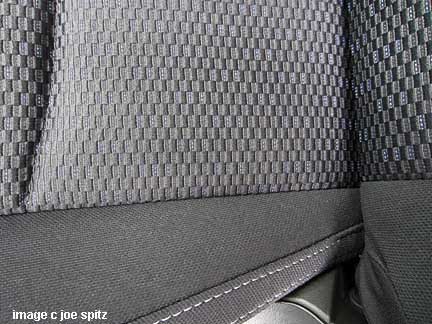

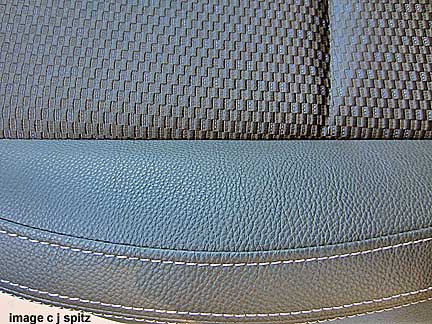

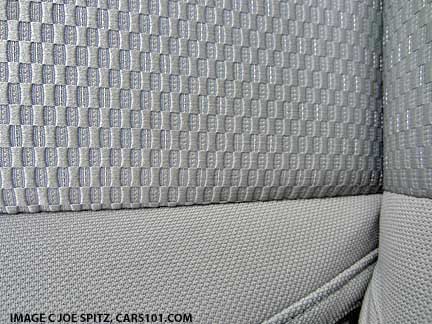

2014 ice silver forester with either black or gray leather or cloth seat material - black shown. See a lot more interior photos |

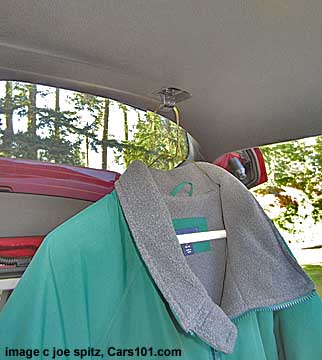

there's a hook inside of the rear gate, so when the gate is open you can hang clothes etc |
2015 and 2014 Subaru Forester has 2 audio displays (except with navigation). There's the audio unit and the upper info screen. 2015 Touring shown with dual front climate control zones |
check the main photo pages exterior I interior I exterior #2 options and upgrades page |

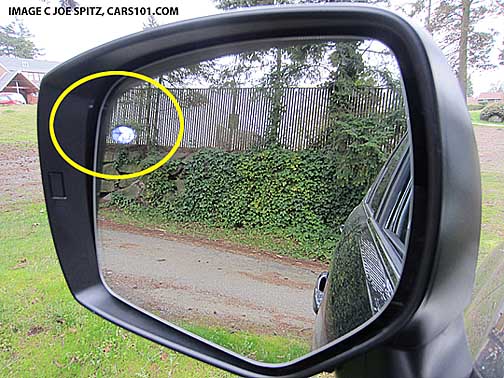

the new for 2014 optional approach lighting is a little LED light in the 2 outside mirrors that illuminates the side of the car and the door handle. It comes on when the car is unlocked or a door is opened. In this image the interior map light is on for reference, but you can see how the door and handle is lit |
new for 2014
Here's the approach light on during the day because a
door is open. Its a small but bright LED that's on when a door is opened
or unlocked with the remote. It even actually has a small Subaru logo
on the glass.
The outside mirrors also automatically darken when the bright lights from a following car hits the auto dimming rear view mirror. The dimming function of the outside side view mirrors is activated by the rear view mirror. |
ALL NEW FOR SUBARU the
entire center is dark! This a really nice option for those of us who don't like bright
lights in their eyes at night, and is a first for Subaru. The center of

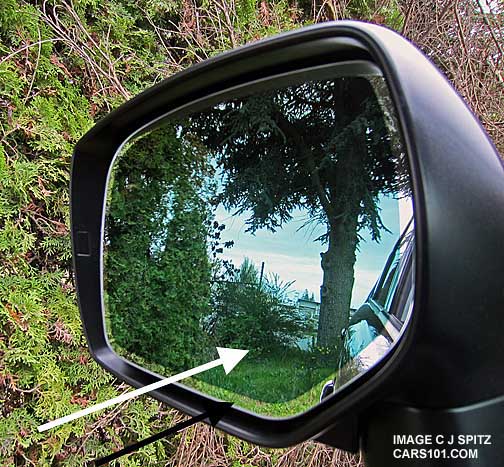

the dimming outside side view mirror with approach
lighting darkens automatically when the rear view mirror detects a
bright light approaching from behind at night. In this photo the white
arrow point to the darkened area, the black arrow points to the mirror's
edge which doesn't darken
|

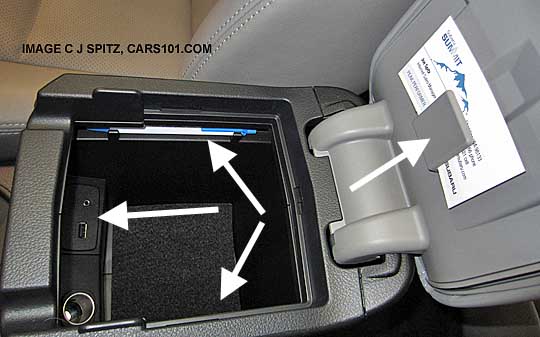

center console storage- white arrows point at the pen clips on both sides, the business card/pad/parking sticker holder, USB/aux jacks. Shown with storage tray removed. |

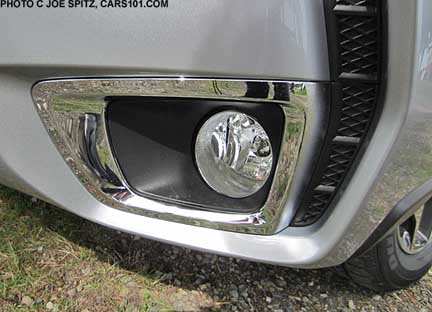

Fog lights are standard on Limited, Touring, XT. Optional on 2.5i, Premium. XT model shown with chrome surround |
close-up of the Forester's optional 1 /14" trailer hitch. Its not an option found on many cars unless special ordered but can be dealer installed (higher cost). See photo page #3 for more photos of the hitch |

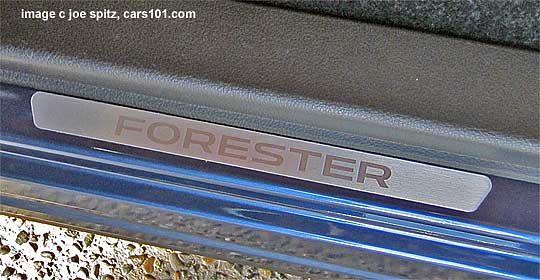

close-up of the optional front door etched sill plates on 2014 Forester. Its on both driver and passenger doors |
only the Touring model with optional Eyesight package has HIDs and the LED lights. 2.5i shown with silver interior bezel. All 2.0XT models have black interior bezel. The LEDs are on with headlights and parking lights, but not daytime running lights. many more exterior photos |

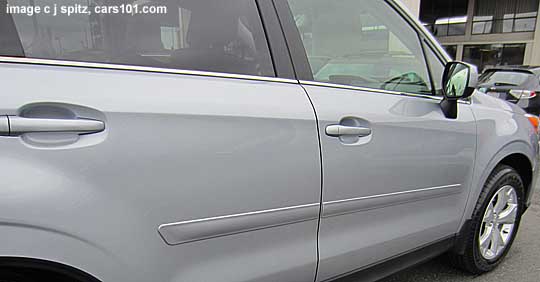

optional side moldings |

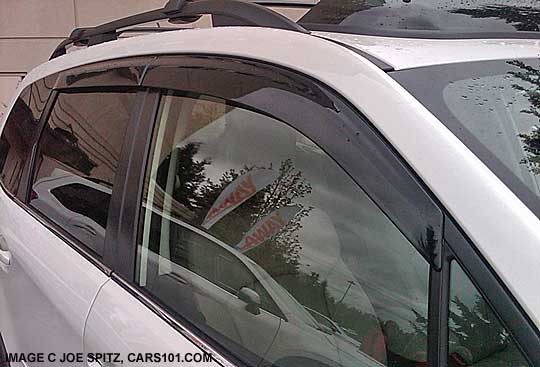

optional side window rain drip deflectors, and moonroof air defector. The side window deflectors are not available from the port or factory installed. |

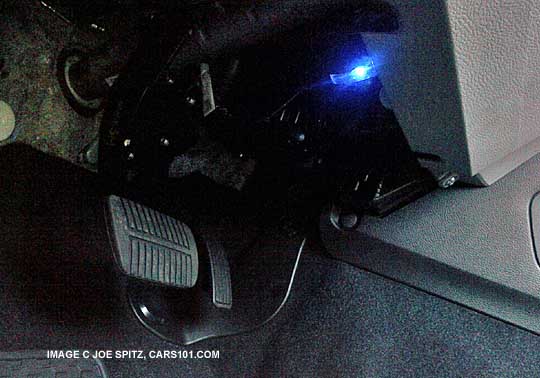

the optional footwell interior illumination kit ambient light. Available in either blue or red. Softly illuminates both the driver and passenger footwells. Blue shown on the driver's side |
all 4 optional cargo nets- seatback, the 2 side nets, and the one by the gate. with rear bumper cover |
Forester with optional rear corner moldings (not available from the factory). Also on this car, rear bumper protector and side moldings |

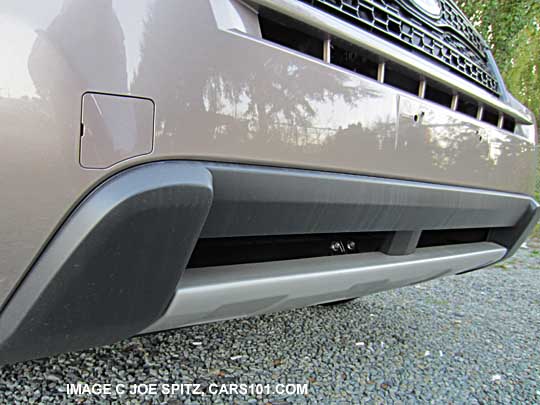

optional front bumper underguard, not available on XTs |
dog guard, compartment separator. it is well built and sturdy. It uses the cargo cover slot so you cant have both the cargo cover and the Subaru dog guard |

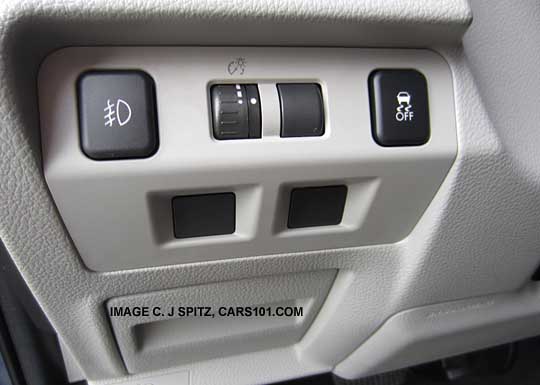

controls by drivers knee, with fog light switch on base and Premium models. On Limited and Touring the fog light switch is on the turn signal stalk with the headlight switch. |

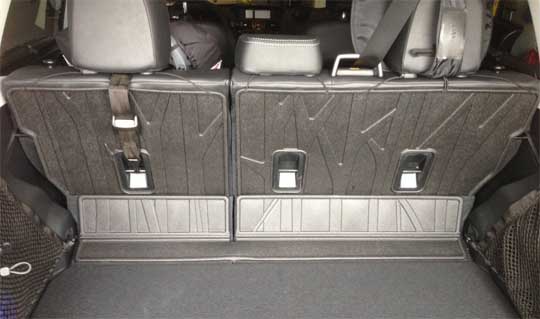

The optional rear seatback
protector available for the 2015 Forester wasn't available on the 2014
model. But Joe G in Pa installed one on his
14 and says it's... "An easy 10 minute install. I probably took longer
to vacuum the hatch area before I did this." Its available from your
local parts dept, part #J501SSG400
|
blank |
2015 Forester MSRP prices including $850 destination (to Ak $1000) |
2.5i manual -$23045 |
2.5i CVT- $24,045; with 17" alloys and roof rails $24,645 |
2.5i Premium manual with all weather pkg- $25,445 |
2.5i Premium CVT $25, 945; with all weather pkg $26,495; with AWP and Eyesight $26,790; with AWP, Eyesight, Nav $28340 |
2.5i Limited $28,095; with Nav and Harman Kardon audio $30,795; Nav, Harman Kardon audio and Eyesight $31,590 |
2.5i Touring 430,945; with Eyesight and Nav $32,840 |
2.0XT Premium $29,345 |
2.0XT Touring $33,956; with Eyesight and Nav $35,851 |
compare 2014 and 2013 Forester MSRP prices MSRP prices include destination. All 2014s have upgrades and features not on the 13s, especially Touring and XT models. |
|||||||
model |
2014 |
2013 |
. |
model |
2014 |
2013 |
|
2.5i X, manual |
$22,820 |
$22,090 |
. |
2.5i X Limited CVT |
$28,820 |
$27,790 |
|
2.5i X CVT |
$23,820 |
$23,290 |
. |
2.5i X Touring CVT |
$30,820 |
$29,190 |
|
2.5i X manual |
$24,320 |
$25,090 |
. |
2.0 XT Premium, CVT |
$28,820 |
$28,090 |
|
2.5i X Premium CVT |
$25,820 |
$25,590 |
. |
2.0XT Touring, CVT |
$33,820 |
$30,790 |
COMPARE THE 2014 AND 2013 SUBARU FORESTER this is early incomplete information. More details are expected late November when the car is shown at the LA auto show. subject to change and correction |
||
feature |
2014 Forester |
2013 Forester |
engine standard models |
2.5-liter 4-cylinder,170 hp @ 5,800 rpm 174 lb.-ft. peak torque @ 4,100 rpm. Chain drive |
|
standard model transmission |
6-speed manual optional Lineartronic CVT |
5 speed manual optional 4 speed automatic with Sportshift |
turbo model engine |
new 2.0-liter 4-cylinder,
direct fuel injection, turbocharging, intercooler250 hp @ 5,600 rpm* 258
lb.-ft. peak torque @ 2,000-4,800 rpm. Premium gas recommended but not required
|
2.5L 4
cylinder, multiport fuel injection, DOHC, turbocharged with intercooler,
with 224hp @ 5200rpm, and 226lb-ft torque @ 2800rpm. Premium gas required. |
turbo model transmission |
new high-torque CVT with 6-speed and 8-speed manual modes and Hill Descent Control no manual available |
4 speed automatic with Sportshift, no manual available |
fuel economy |
2.5L- 24/32 regular gas (estimated) 2.0 XT turbo- 23/28 premium gas recommended but not required (estimated) |
2.5 X- 21/27/23, regular gas 2.5 XT- 19/24/21, premium gas required |
all wheel drive |
Standard on all models | standard on all models- continuous awd on manual models, active awd on CVT or automatic (XT) models |
wheelbase |
103.9 in. (+.9" over 2013) |
103.0 |
length |
180.9 in. (+ 1.4" over 2013) |
179.5" |
height |
68.2 including roof rails, (+1.3" over 2013) |
66.9" including roof rails |
width |
70.7 in. (+ .6' over 2013) |
70.1 |
wheels, tires |
2.5L- 17x7" alloy with 225/60 R17 all-season
2.0L turbo: 18x7" alloy with 225/55 R18 all-season
|
X 16x6.5" steel wheel with 215/65 R16 all season tires X Premium, X Limited, X Touring, XT Premium, XT Touring: 17x7 alloy with 225/55 R17 all season tires |
A BRIEF 2014 FORESTER MODEL SNAPSHOT SUMMARY scroll down for full model details and mechanical specs subject to change, correction |
||
model |
code |
brief summary of features |
2.5i, 6 spd manual transmission |
EFA |
2.5L
4 cylinder, 170hp, all wheel drive, VDC stability, traction control,
power windows, power locks, power mirrors, cruise control, AC, remote
lock/unlock, immobilizer key, 17" steel wheels, all season tires,
tilt/telescoping steering wheel, cell phone bluetooth, am/fm single CD
stereo, 4 speakers, USB, wireless auto streaming, manual height
adjustable driver's seat, |
2.5i CVT transmission with low mode |
EFB |
|
2.5i Premium, 6 speed manual transmission |
EFE |
adds All Weather
Package (heated front seats etc), roof rails for cross bars, alloy
wheels, 10 way power driver's seat, HD radio, 6 speakers, rear view
back-up camera, dark tinted glass (no windshield tint band), reclining rear seats. No moonroof is available |
2.5i Premium, CVT transmission with low mode |
EFF |
adds power glass moonroof with sunshade, roof rails for cross bars, alloy wheels, 10 way power driver's seat, HD
radio, 6 speakers, rear view back-up camera, dark tinted glass (no windshield tint band),
reclining rear seats with center armrest with cupholders. All weather package is optional |
2.5i Limited, CVT transmission with low mode |
EFI |
adds to X Premium- All
Weather Package, perforated leather seating surfaces, steering wheel and
shift knob, fog lights, cargo tray, single zone climate control, cargo
tray, rear spoiler, upgraded dash display, power rear gate with auto
close and height memeory, Xmode hill descent transmission |
2.5i Touring, CVT transmission with low mode |
EFJ |
adds to X Limited- navigation/GPS,
upgraded harman/kardon speakers (8) and 440watt amp, electroluminescent
dash display, turn signals in the outside mirrors, one touch folding
rear seats, dual zone climate control, optional keyless start with Eyesight driver assist, HID headlights |
2.0XT Premium, CVT transmission with paddle shifters |
EFM |
2.0L 250hp turbo engine with
SI Drive for driver controllable engine performance and paddle shifter
management, sport tuned suspension, 18" alloy wheels, high torque CVT
transmission with multi-mode Paddle Shifters with both 6 and 8 gearlike
settings depending on the SI drive setting, alloy pedal covers, upgraded dash display, dual exhaust
tips, |
2.0XT Touring, CVT transmission with paddle shifters |
EFN |
adds to XT Premium- navigation/GPS, upgraded harman/kardon speakers (8) and 440watt
amp, electroluminescent dash display, turn signals in the outside
mirrors, one touch folding rear seats, dual zone climate control, fog lights with chrome trim rings optional Keyless start with Eyesight driver assist, HID headlights |
2014 SUBARU FORESTER DIMENSIONS subject to change, correction |
||||||
model |
2.5i |
2.5i Premium |
2.5i Limited |
2.5i Touring |
2.0XT Premium |
2.0XT Touring |
Passenger volume |
no moonroof 113.1cf with moonroof 107.8cf |
|||||
Cargo volume |
no moonroof- rear seatbacks up 34.4cf, rear seatbacks folded down 74.7cf with moonroof- rear seatbacks up 31.5cf, rear seatbacks folded down 68.5cf |
|||||
Wheelbase |
103.9" |
|||||
Length |
180.9" |
|||||
Width |
70.7" with mirrors folded in; 80" with mirrors folded out |
|||||
Height |
2.5 X without roof rails- 66.4" all other models have roof rails- 68.2" |
|||||
Track, front/rear |
60.9"/621.1" |
|||||
Ground clearance |
8.7" |
|||||
Angle of approach |
23.0* |
|||||
Angle of departure |
25.0* |
|||||
Ramp breakover angle |
21.0* | |||||
Headroom, front/rear |
no moonroof 41.4/39.8" with moonroof 40.0/37.5" |
|||||
Legroom front/rear |
43.0/41.7" |
|||||
Hip room front/rear |
53.9"/53.0" |
|||||
Shoulder room front/rear |
57.0"/56.5" |
|||||
Cargo area height |
no moonroof 34.8" with moonroof 31.9" |
|||||
Cargo area lift over height |
28.6" |
|||||
Curb Weight |
manual 3296 CVT 3366 |
manual 3285 CVT 3391 |
CVT 3419 |
CVT 3433 |
3624 |
CVT 3651 |
model |
2.5i |
Premium |
Limited |
Touring |
2.0XT Premium |
2.0XT Touring |
2014 FORESTER CARGO MEASUREMENTS hand measured, subject to change, corrections. comments welcomed |
|
. |

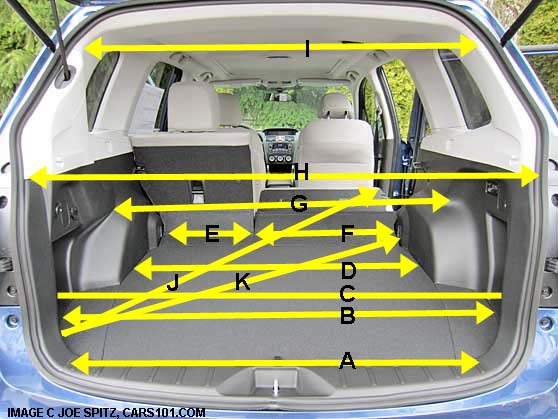

CARGO MEASUREMENTS hand measured and subject to change A- rear gate width at bottom of gate 40"
B- cargo width by rear gate 51" C- cargo width by rear gate including side storage bins 50" D- cargo width between wheel wells 42" E- left rear seat width 16" F- right rear seat width 24.75 G- cargo with top of wheel wells 47" H- rear gate width in middle 43" I- rear gate width at top 38" J- angle from left rear cargo hook to front of right rear door with passenger seat folded down 80" K- angle from left rear cargo hook to front right (passenger side) cargo hook, with seat up 52.25" L- width of gate opening from lower left to upper right 50.5' M- cargo floor length to back of rear seats 34" N- height of rear seat 17.5" O- cargo door height 35" P- cargo floor length to center dash console 102"
Q- height center of floor to ceiling 32" R- cargo floor length to top of rear seat folded down 60" (not to back of front seat, see V) S- height to bottom of cargo area luggage cover (not shown) 16.75 T- height to from rear of wheel well to the bottom of the window 20.5" U- length to rear of wheel well 14" V- cargo floor length to back of front passenger seat moved all the way forward and upright 79" |

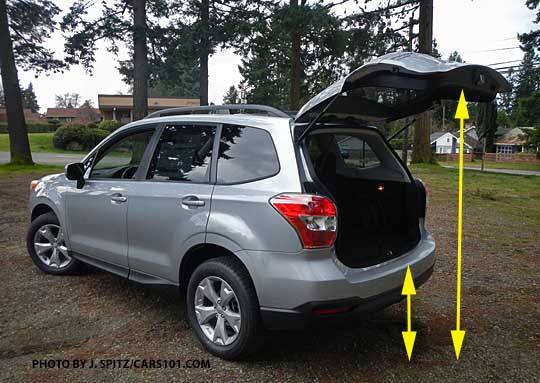

the top of the rear bumper is 25 1/4" high. The manual rear gate on X & Premium opens to 70.5" high. Hand measured |

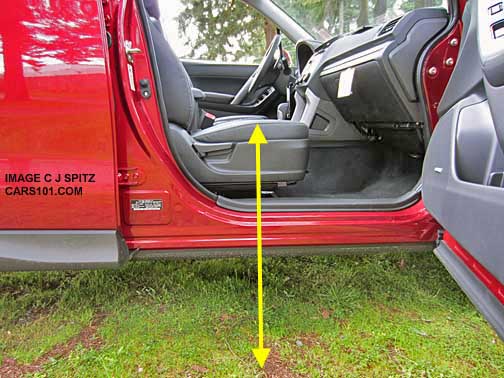

the passenger seat is fixed at 28" high. Very tall passengers might find headroom tight, esp on moonroof models. There is no height adjustment on the 2014 passenger seat like there was on the 2013. Hand measured. |

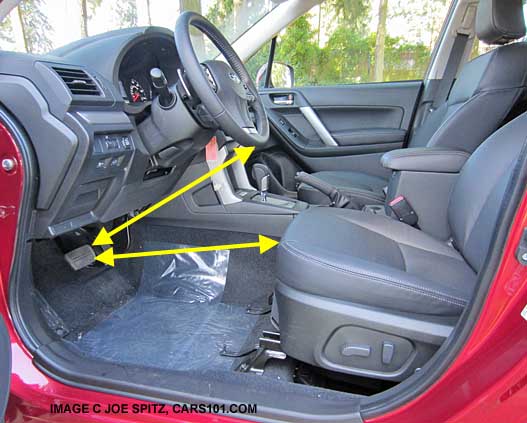

The driver's seat goes 14.5"-24" from the brake pedal. Shown at 14.5" which is really close. Hand measured. |
Even the longest legs will be comfortable. The front seat to the brake pedal is 14.5"-24". Shown at 24" The steering wheel telescopes in/out from 25.25- 26.5", and tilts up/down from 19-21" high. All hand measured. |

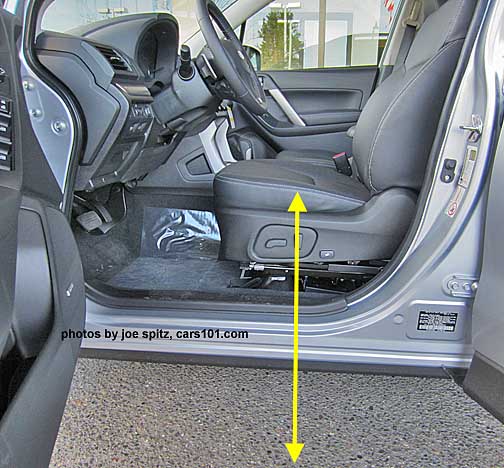

power driver's seat adjusts from 26.5-28.25" high, shown at lowest position. Hand measured. |
power driver's seat adjusts from 26.5-28.25" high, shown at 28.5". Hand measured. |

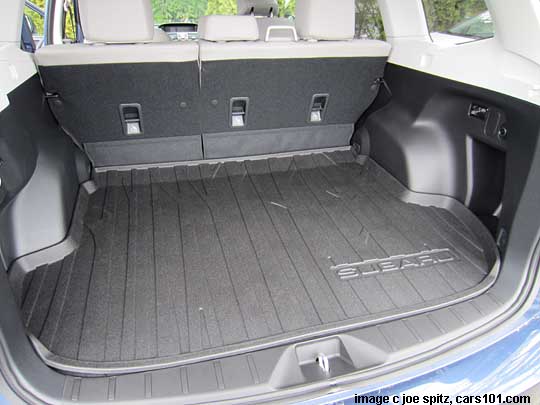

cargo tray, optional on X and Premium, standard on Limited and Touring models |

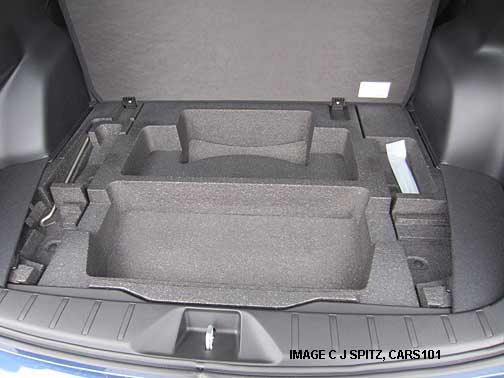

very practical cargo sub-floor storage, standard on all models. the spare tire is below. |

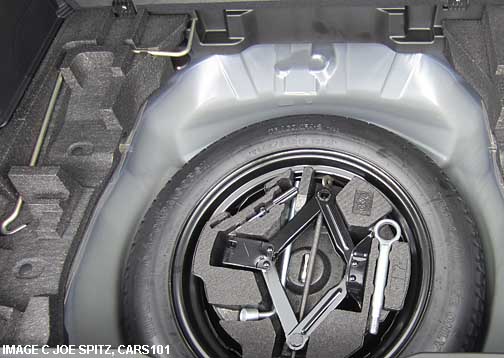

temporary spare tire is under the cargo sub-floor storage bin |
the standard cargo area 12v power outlet and cargo hook. The Touring model is shown with the rear seat fold button that's only on Touring models. |
golf clubs easily fit in the back |

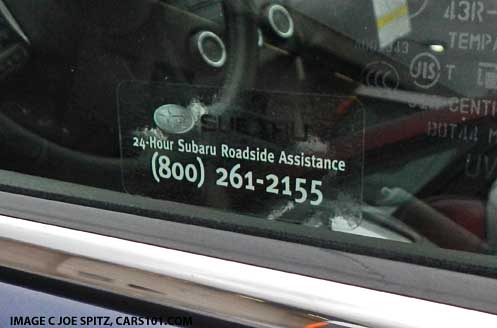

the roadside assistance phone number is on drivers window, also on 2 wallet cards included with the owners manual. Good for 36months, 36000 miles Bumper to bumper:
3 year/36,000 miles.
subject to change, correction |
|
full 2014 maintenance schedule and service intervals - 2.5L models: 0w-20
synthetic oil. CVT uses C-30 CVT fluid (blue) all 2014 Foresters have a timing chain - no replacement needed 2.5 X models Synthetic
0w-20 oil only.
Tire rotations:
every
6-10,000 miles. Equal tread required at all corners. Tires,
wheels FAQ
subject to change, correction |
subject to change, correction 8/24/13 2014 Forester NHTSA Crash Test results
5 STAR Overall and Side Crash tests 4 STAR Frontal and Rollover 5/15/13 SAFETY NEWS the 2014 Forester gets top crash test rating from the IIHS in all five tests- Front moderate overlap, Side, Rollover, Rear and the new Front small overlap. The IIHS rates vehicles as Good, Acceptable, Marginal, and Poor. Of the vehicles tested in all 5 crash tests (Front moderate overlap, Side, Rollover, Rear and the new Front small overlap) only the 2014 Subaru Forester was rated Good in all tests. Be sure to check out the IIHS press release with video of the crash test. The 2nd best rated was the Mitsubishi Outlander with Good on all except the Front small overlap with a rating of Acceptable. BMW X1, Honda CR-V, Mazda CX5, VW Tiguan, Buick Encore, Ford Escape, Hyundai Tucson, Jeep Patriot, Kia Sportage all were also rated Good on all except the Front small overlap but they all received a lower safety rating of Marginal. The Nissan Rogue received a good rating in 3 or 5 test, Acceptable in the rollover test, and Marginal in the Front small overlap test. |
|
all 2014 Forester models have... All Wheel Drive- full time, all wheel, all speed VDC, Vehicle Dynamics Control stability control system TCS traction control system is standard on all models Disc brakes, rear disc brakes Tire Pressure Monitoring on all models (re-sync whenever tires or wheels are replaced). Height and tilt adjustable front headrests Brake Assist for maximum braking Electronic Brake Distribution Collapsable foot pedals to help minimize injury Crumple zones front and rear Side impact door beams Child seat anchors (latch system) Child seat tethers (latch system) Tinted safety glass. Daytime running lights Child safety rear door locks Anti-lock disc brakes, 4 wheel discs Front brake return springs, Touring models only. Helps front brake pads release faster Airbags new for 2014 driver's knee airbag plus dual front, dual front side, and front and rear side curtain Front Driver Airbag: Dual stage driver airbag deploys according to the driver’s distance to the steering wheel, measured by a sensor on the seat track. Front Passenger Airbag: Dual stage passenger airbag deploys according to occupant etc. A light by the upper console indicates on or off. Back-up camera- standard
on 2.5 Premium, Limited, and Touring, and 2.0XT Premium and Touring models | airbag warning on driver's sun visor, in English and French (for Quebec) |

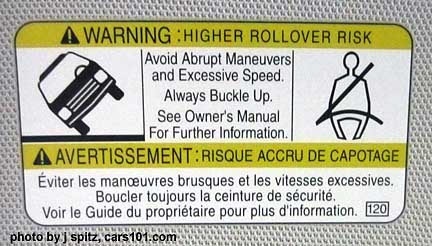

Forester's rollover warning sticker on driver's sun visor |

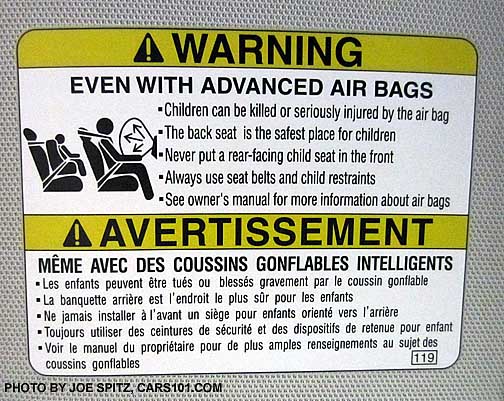

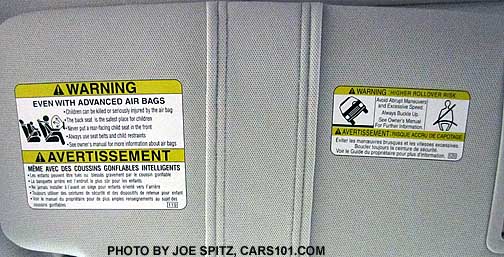

the driver's sun visor with both warning stickers |
2014 Forester Major Option Packages These are the factory installed Model Option Packages that determine the features on the car. The individual options and packages are below. Prices here are MSRP, your actual selling price may be less subject to change, correction, updating |
||
model (model code) |
package code |
Option Package |
2.5i, manual trans (EFA) |
#01 |
Standard |
2.5i, CVT (EFB) |
#01 |
Standard |
2.5i Premium, manual trans (EFE) |
#02 |
All Weather Package, standard. With heated front seats, defrosting outside mirror, front wiper deicers. Included |
2.5i Premium, CVT (EFF) | #01 |
Standard |
#02 |
#02- All Weather Package (AWP). With heated front seats, defrosting outside mirrors, front wiper deicers. MSRP $500 |
|
#12 |
All Weather Package and Navigation. Includes AWP and Navigation/GPS 6.1" LCD touch screen, cell phone bluetooth, AM/FM/HD radio, XM satellite radio (4 mos free All Access), single disc CD, wireless audio streaming, USB, 3.5mm jack, XM satellite radio (subscription req), XM Nav traffic (subscription req). iTunes tagging. 6 speakers. new Aha smart phone integration MSRP $1,600 |
|
2.5i Limited, CVT (EFI) |
#01 |
Standard |
#10 |
Navigation/GPS 6.1" LCD touch screen, cell phone bluetooth, AM/FM/HD radio, XM satellite radio (4 mos free All Access), single disc CD, wireless audio streaming, USB, 3.5mm jack, XM satellite radio (subscription req), XM Nav traffic (subscription req). iTunes tagging. 6 speakers. new Aha smart phone integration MSRP $1,100 update 11/16/13 2014 Forester navigation SD update on Forester built before June 20, 2013 Available on 2014 Foresters with navigation built before June 20, 2013 - check the VIN plate on the driver's door jam - there's a free SD card update. Make an appointment with your dealer service dept. It's service bulletin 15-166-13R Customer Satisfaction Navigation SD card Update Program for 2014 Forester, |
|
2.5i Touring, CVT (EFJ) |
#01 |
Standard, includes Navigation |
#30 |
new package for 2014- Keyless Access & Start, Eyesight Drive Assist Technology, HID headlights new Proximity key with pushbutton start, door lock/unlock, rear gate lock button. new Eyesight Driver Assist, an advance collision active warning system, with dual front facing cameras on either side of the the rear view mirror. Functions are adaptive cruise control, lane sway and departure warning, pre-collision braking with pedestrian/object detection, warning when traffic starts moving at a stop light. Eyesight cars have three windshield washer squirters, with the middle one to clean in front of the cameras. HID Headlights, with HID low beam, halogen high beam, automatic HID headlight height adjustment MSRP $2,400 update 11/16/13 2014 Forester navigation SD update on Forester built before June 20, 2013 Available on 2014 Foresters with navigation built before June 20, 2013 - check the VIN plate on the driver's door jam - there's a free SD card update. Make an appointment with your dealer service dept. It's service bulletin 15-166-13R Customer Satisfaction Navigation SD card Update Program for 2014 Forester, |
|
2.0XT Premium turbo, CVT (EFM) |
#01 |
Standard |
2.0XT Touring turbo, CVT (EFN) |
#01 |
Standard, includes Navigation |
#30 |
new for 2014 Keyless Access & Start, Eyesight Drive Assist Technology, HID headlights new Proximity key with pushbutton start, door lock/unlock, rear gate lock button. new Eyesight Driver Assist, an advance collision active warning system, with dual front facing cameras on either side of the the rear view mirror. Functions are adaptive cruise control, lane sway and departure warning, pre-collision braking with pedestrian/object detection, warning when traffic starts moving at a stop light. Eyesight cars have three windshield washer squirters, with the middle one to clean in front of the cameras. HID Headlights, with HID low beam, halogen high beam, automatic HID headlight height adjustment MSRP $2,400 update 11/16/13 2014 Forester navigation SD update on Forester built before June 20, 2013 Available on 2014 Foresters with navigation built before June 20, 2013 - check the VIN plate on the driver's door jam - there's a free SD card update. Make an appointment with your dealer service dept. It's service bulletin 15-166-13R Customer Satisfaction Navigation SD card Update Program for 2014 Forester, |
Note: these are factory List MSRP prices. Your purchase price may vary. Contact your local dealer. subject to change and correction. - |
|||||||||||||
Notes 1/1813- prices announced. Destination now $825, was $795. Alaska $975 * Always include destination
when discussing price or calculating
payments.
These are suggest List prices. Always contact your local dealer for prices. Your final price may vary due to discounts, mark-up, customer and dealer incentives. subject to change, updating, correction |
|||||||||||||
2014 model with model code - |
your actual price may vary. Please contact your local dealer |
. |
|
||||||||||
MODEL |
|
|
|
|
|
pkg #02 - All Weather Pkg $500 |
#10 Navigation $1,100 |
#12 All Weather Pkg and Navigation $1,600 |
#30 Keyless access/start, with Eyesight, HIDs, $2400 |
blank |
blank | ||
2.5i, manual transmission, 6speed |
EFA | $21.995 | $825 | $22,820 | . |
-- |
-- |
-- |
-- |
-- |
-- | ||
2.5i, CVT |
EFB |
$22,995 |
$825 |
$23,820 |
. |
-- |
-- |
-- |
-- |
-- |
-- | ||
2.5i Premium, manual transmission, 6 speed |
EFE | $23,495 | $825 |
$24,320 |
. |
included |
-- |
-- |
-- |
-- | -- | ||
2.5i Premium, CVT |
EFF | $24,995 | $825 |
$25,820 |
. |
$26,320 |
-- |
$27,420 | -- |
-- |
-- |
||
2.5i Limited, CVT | EFI | $27,995 |
$825
|
$28,820 |
. |
-- |
$29,920 |
-- |
-- |
-- |
-- | ||
2.5i Touring, CVT | EFJ | $29,995 | $825 |
$30,820 |
. |
-- |
included |
-- |
$33,200 |
-- |
-- | ||
2.0XT Premium CVT with paddle shifters |
EFM | $27,995 | $825 |
$28,820 |
. |
-- |
-- |
-- |
-- |
-- | -- | ||
2.0XT Touring CVT with paddle shifters | EFN | $32,995 | $825 | $33,820 | . |
-- |
included |
-- |
$36,220 |
-- |
-- | ||
MODEL |
code | base | dest | MSRP | . |
Pkg #02 |
Pkg #10 | Pkg #12 | #30 |
blank |
blank |
2014 SUBARU FORESTER MECHANICAL SPECIFICATIONS subject to change, correction |
||||||
engine size |
2.5L |
2.0L turbo |
||||
model |
2.5i |
2.5i Premium |
2.5i Limited |
2.5i Touring |
2.0XT Premium |
2.0XT Touring |
model code |
EFA manual, EFB CVT |
EFE manual, EFF CVT |
EFI, CVT |
EFJ, CVT |
EFM, CVT |
EFN, CVT |
engine |
all new transmission 2.5L 2498cc 4 cylinder boxer engine DOHC- double overhead cam 16 valves with Active valve control system Variable Valve Control Sequential multi-port fuel injection Cylinder head mounted injectors Electronic throttle control Timing chain Compression 10.0:1 bore/stroke 94mm/90mm |
all new engine and transmission 2.0L 1998cc 4 cylinder boxer engine Turbocharged with intercooler DOHC- double overhead cam 16 valves Dual active valve control system Variable valve timing on intake and exhaust Gasoline direct fuel injection (GDI) Electronic throttle control Timing chain Compression 10.6:1 bore/stroke 86mm/86mm SI-Drive |
||||
Horsepower, torque | 170 @5800 rpm, 174@4100 rpm | 250@5600 rpm (premium fuel), 258@2000-4800 rpm | ||||
Fuel economy- city/highway/combined 15.9 gallon tank |
Manual transmission 22/29/24 CVT 24/32/27 regular (87 octane) fuel recommended |
CVT 23/28/25 Premium (93 or 91 octane) fuel is recommended for best performance, economy, and engine smoothness but not required. Regular (87 octane) gas is acceptable though there will be slightly less power and economy, and it could increase engine vibration. |
||||
Impact sensing fuel cutoff |
S |
|||||
Oil- new for 2014 low oil indicator light | 0w-20 synthetic oil | 5-30 synthetic oil |
||||
Transmission all are new for 2014. |
6 speed manual with incline start assist Optional CVT with Low mode (no paddle shifters are available. There is no transmission control) |
CVT with Low mode (no paddle shifters are available, only Low mode. There is no transmission control) | high torque CVT with 6 and 8 speed manual modes with Paddle Shifters ( 6 or 8 is determined by SI drive setting). With SI-Drive for performance and CVT control to determine whether the CVT acts likes it's 6 or 8 settings (S# setting). This CVT requires special CVT oil (orange color). |
|||
Transmission ratios |
manual , 2.5i, Premium only 1st 3.454, 2nd 1.888, 3rd 1.296, 4th 0.972, 5th 0.780, 6th 0.695. R 3.686, Final 4.444:1 CVT with Low mode 3.581-0.570, R 3.667, Final 3.70:1 |
CVT with paddle shifters 3.505-0.544 R 2.345, final 4.11:1 |
||||
All wheel drive 2.5i, Premium with manual trans |
Continuous AWD with 50/50 front back power split. viscous center differential. |
|||||
All wheel drive- 2.5i, Premium with CVT trans |
Active AWD, mostly front wheel drive, electronically controlled front/back power split | |||||
All wheel drive- 2.5i Limited & Touring, and XT Premium & Touring: |
Active AWD, mostly front wheel drive, electronically controlled front/back power split with X-Mode and Hill descent control | |||||
X-Mode with Hill Descent Control all new for 2014. |
standard on 2.5i Limited and Touring, 2.0XT Premium and Touring (its not available on 2.5i or 2.5i Premium) X-mode has to be activated under 12mph, and cuts off over 25mph. X-mode is a low speed system activated by the driver. It's a computerized management system that controls the engine, CVT transmission, AWD system, brakes, and VDC to help maintain control on slippery surfaces or steep hills. Its combined with hill descent, and only works at low speeds. Hill descent control is activated with X-mode and uses VDC engine throttle management and brakes to help maintain vehicle speed when going downhill at low speed. When activated, the system will maintain the speed it was set at. |
|||||
VDC (vehicle dynamics control) stability control system with Traction Control System (TCS) |
Standard on all models |
|||||
Brakes |
4 wheel disc, Anti lock, 4 channel Electric Brake Force distribution (EBD) new Brake override system (BOS) Brake Assist front- 11.6 vented discs, dual caliper piston rear- 10.8 solid discs, single caliper piston |
4 wheel disc, Anti lock, 4 channel Electric Brake Force distribution (EBD) new Brake override system (BOS) Brake Assist front- 12.4 vented discs, dual caliper piston rear- 10.9 vented discs, single caliper piston |
||||
Wheels all: inset (48 (1.94), P.C.D 100 (3.94) |
17x7" stamped steel wheel with center cap |
17x7" alloy wheel, 5 spoke |
18x7" gray finish alloy wheels with machined silver accents |
|||
Tires |
225/60 R17 98H Yokohama Geolander G91 M&S all season |
225/55 R18 97H Bridgestone Dueler H/L 400 M&S all season |
||||
Steering |
Electric power assisted rack and pinion steering Ratio 15.5:1 Turns, lock ton lock 3.1 Turning circle 34.8ft |
|||||
Suspension | 4 wheel independent front- Mcpherson type strut, lower L arms, with coil springs and stabilizer bar rear- independent, double wishbone rear with coil springs and stabilizer bar |
|||||
Suspension- Sport Tuned all new for 2014 | na |
Sport tuned suspension with 10% stiffer front and 20% stiffer rear springs | ||||
Trailer Towing |
Trailer towing with the Forester: up to 1500 pounds, tongue weight 176lbs. Trailer brakes are required when towing over 1000lbs note the 2.5i models don't allow the driver to control the transmission (no paddle shifters) which means it is not a good vehicle for towing a trailer. towing the Forester: manual transmission 2.5i, 2.5i Premium can be flat towed with all wheels on the ground) behind a motorhome. All CVT models must be towed with all wheels off the ground. |
|||||
Model |
2.5i |
2.5i Premium |
2.5i Limited |
2.5i Touring |
2.0XT Premium |
2.0XT Touring |
all information and details subject to change, updating. corrections welcomed |
|
2014 2.5i models include scroll down for all other models model codes: manual trans EFA, automatic trans EFB Standard on all 2.5i models the 2014 Forester is all new. Its 0.9" longer wheelbase, overall 1.4" longer, .6" wider, 1.3" taller new standard- manual transmission is now a 6 speed (replaces 5 speed). With incline start assist. new optional- CVT transmission with low mode (replaces 4 speed automatic with Sportshift manual mode). Note: the 2014 2.5i CVT doesn't have paddle shifters or any way to fully control the transmission. It does have Low mode for a bit of slow speed snow driving only. new Fuel economy: manual 22/29/24; CVT 24/32/27 new Chrome inner headlight bezel new Electric power assisted steering new Lower black body side cladding, new Single tailpipe tip (replaces dual) new standard cut keys replaces laser cut new Illuminated power mirror switch (replaces unlit) new Body colored door handles now on base models (replaces black) new 17" steel wheels (replaces 16") with 225/60R 17 all season tires new Tilt and Telescoping steering wheel now on base model (replaces tilt only) new 4.3" back & white display on upper dashboard with fuel economy readings and outside temperature new Driver's knee airbag new Whiplash protection front seats. new Impact sensing fuel system cutoff new BOS, Brake Override system when both brake and gas pedals are pressed, the car stops GONE Manual height adjustable front passenger seat Driver controllable Sportshift transmission, replaced by CVT with low mode. Roof rails are no longer available on the base 2.5i though they might be available soon just like they were on the 2013s where they were part of the optional Alloy Wheel value package. Roof rails are on all other models 2.5L 4 cylinder 16 valve DOHC with timing chain, and direct ignition multi-spray fuel injector, ACVS active valve control system. Horsepower 170@5800rpm Torque, now 174lbft @4100 rpm Requires 0w-20 synthetic oil Standard- Manual 6 speed transmission with incline assist is standard Optional - CVT automatic with low mode is optional. No manual CVT controls are available on any 2.5i 8.7" ground clearance All Wheel Drive, full time, all wheel, all speed VDC (Vehicle Dynamic Control) electronic stability control with off switch TCS Traction Control system, full time, with off switch Electronic Throttle Control (ETC) Airbags: dual stage front airbags Passenger airbag- automatically on with occupant or weight detection Airbags- driver's knee Airbags: front side (seat mounted for correct positioning) Airbags: front and rear side curtain with Roll Over Sensor (helps pre-deploy them) Daytime running lights 4 wheel disc Anti-Lock brakes, 4 wheel, 4 channel Brake Assist (helps in emergency braking) Brake pad return spring to reduce brake drag EBD electronic brake force distribution Safety Pedal system (for foot safety in an accident) EDR, Event Data Recorder information. In the event of an impact, the EDR will freeze data including how various systems were operating, for example if seatbelts were buckled, if the gas or brake pedals were pressed, and vehicle speed. No personal data is stored. To read data, special equipment is required. In addition to the vehicle manufacturer (Subaru), other parties such as law enforcement that have the equipment can read the information if they have access to the vehicle or EDR. Existing laws generally provide that information in an EDR is confidential and is the property of the owner of the motor vehicle. Information is accessed through the airbag system using a Subaru service computer. |
X standard features, continued Tire Pressure Monitoring System (TPMS) Cargo area carpeting is dark with all colors Incline Assist clutch, manual trans only (minimizes rollback when stopped on a hill) 17" stamped steel wheel with center cap All Season tires, 225/60R 17 98H 16.9 US gallon fuel tank (low fuel warning light at app 2.5-3.5 gals left) Automatic off headlights with ignition key removal (turn off-on for parking lights) Air filtration system cabin air filter. Replace filter every 1-2 yrs, it's behind the glovebox Power Windows with illuminated switch Power door locks, illuminated on driver's door Power outside mirrors (unpainted black), with new for 2014 illuminated control switch Cruise control with steering wheel controls Air conditioning 2 sunvisors, with pull out extensions and vanity mirrors, not lit. Body colored outside door handles Driver seat height adjustment- manual Keys, 3 keys are supplied when new. Remote entry, lock/unlock, car finder and panic modes. 2 remotes supplied new. Immobilizer anti-theft system: a chipped and programmed key is required to start the engine. Alarm, ignition disabling alarm with flashing red light on instrument panel (impact sensor optional) Illuminated ignition key ring. Passenger front seatback map pocket Variable speed intermittent front wipers Rear defroster Rear wiper- 2 speed with fixed intermittent, rear wiper blade de-icer Height adjustable drivers seat, manual 5 shoulder seatbelts, 2 front and 3 rear 3 rear headrests- large size Power Outlets, 12V- dashboard, center console, rear cargo area. No cigarette lighter outlet (and no ashtray) Cupholders, 6: 2 in center console, 1 bottle holder in each door. Leather shift boot (manual only) Interior dome light (delayed off) Rear cargo light 2 overhead Map lights Door light, courtesy light in front doors Double wishbone rear suspension Single tailpipe, no exhaust tip Cargo area- under floor storage bin Cargo area- 4 tie-down hooks on floor Cargo area- 2 pop-out hooks by gate (for grocery bags etc) Spare tire, temporary, under cargo floor Trip computer- Clock, Outside Temperature, avg economy for trip odometers Overhead console with 2 map lights, sunglass holder Headlights- Automatic off with ignition key removal (turn off-on for parking lights) Headlights- Halogen multi reflector headlights with new Chrome inner bezel Floor mats, carpeted Split folding rear seats Plastic headlight lens, chip resistant lexan Hood strut, single left side strut opens hood (no manual prop) Engine Coolant, extended life. replace 11 yrs.137,500 miles or 220,000Km Stereo Steering wheel mounted controls, AM/FM radio, single CD, 4 speakers (1 in each door), cell phone bluetooth, bluetooth wireless audio streaming MP3/WMA capable, pty/cat (program type/category) radio station search function, USB, auxiliary jack, 2 front 12v outlets, iPod capable, roof antenna, MP3, Fixed position roof antenna. optional Sirius satellite Request a free Subaru 'Badge of Ownership' Here's my webpage with photos of the badges and links. |
standard features subject to change and updating. comments, corrections welcomed |
|
2.5i PREMIUM adds over the 2.5i model - everything the 2.5i has, plus... new Standard- 6 speed manual transmission replaces 5 speed. With incline assist. new Manual transmission models include the All Weather Package (awp) with heated front seats, defrosting outside mirrors, front wiper de-icers. No moonroof is available on the manual transmission model new Optional- CVT transmission with low mode replaces 4 speed automatic with manual Sportshift controls Note: the All Weather Package is standard on the Premium manual transmission model and optional on CVT. The moonroof is standard on CVT models but not available at all with manual transmission. new 4.3" color information display on upper dashboard with fuel economy readings, outside temperature, climate control information, vehicle systems check, maintenance reminders, rear view camera display new Rear view back up camera is now standard on all models except base 2.5, displays in the 4.3" color display Gone manual transmission model (code EFE) no longer has a power moonroof 17x7" alloy wheels, silver new Rear view back up camera Body colored outside mirrors Chrome Inside door handles Front console with adjustable armrest Rear seat reclines back Rear seat center armrest with 2 cupholders Roof rails, raised (cross bars are optional) 10 way power drivers seat with power lumbar support Drivers power window auto up/down (replaces down only) Dark Privacy tinted glass. Note- there is no tinted upper windshield band but that can be added aftermarket Power glass sunroof with sunshade, standard on the CVT model only. Not available with the manual trans. All Weather Package (awp) with heated front seats, defrosting outside mirrors, front wiper de-icers. Standard on manual model but optional on CVT Stereo upgrades to 6 speakers, HD radio, Bluetooth with hands-free steering wheel controls, wireless audio streaming, AM/FM HD radio, single CD MP3/WMA, pty/cat program type/category radio station search function, USB, auxiliary jack, two front 12v outlets, iPod capable, roof antenna, MP3. Option Packages #02 All Weather Package- CVT only, model EFF |
2.5i LIMITED adds over the 2.5i Premium - everything the Premium has plus... model code, CVT transmission EFI new CVT with low mode is standard on the 2.5i Limited. No manual transmission is available new Xmode with Hill Descent Control - activated by the driver, this is a computerized management of the engine, CVT transmission, Vehicle Dynamics Control, Traction Control, and the All Wheel Drive system to help with slippery road or downhill control. Video on X mode http://m.youtube.com/watch?v=FeYbm7VzU6E&desktop_uri=%2Fwatch%3Fv%3DFeYbm7VzU6E new Rear spoiler, body colored new Chrome lower window trim new Power rear gate open/close, with height memory. note- the memory height control instructions are 4 pages in the owner's manual! Hopefully next year, there will be a simple knob with low, medium and high height settings. new Single stainless tailpipe exhaust tip (replaces dual tips) Cargo tray Fog Lights Auto dusk-to-dawn headlights Leather wrapped steering wheel Leather wrapped automatic shift knob Driver's seat back map pocket plus passenger side Automatic Single Zone Climate Control with 7 speed fan Stainless single tail pipe exhaust tip (was dual tips on 2013) Leather interior- perforated leather seating surfaces with vinyl trim All Weather Package includes heated front seats (2 settings), and One Touch defrosting outside mirrors and front wiper de-icer (heats lower front windshield). Stereo 6 speakers, HD radio, Bluetooth with hands-free steering wheel controls, wireless audio streaming, AM/FM HD radio, single CD MP3/WMA, pty/cat program type/category radio station search function, USB, auxiliary jack, two from 12v outlets, iPod capable, roof antenna, MP3, Fixed position roof antenna.optional Sirius satellite Option Packages #10 Navigation/GPS/Aha |
top Standard Features subject to change, updates. comments, corrections welcomed. |
|
Code EFJ 2.5i Touring adds over 2.5i Limited Dual Zone climate control,
7 speed fan
all new Upgraded
stereo with voice activated Navigation/GPS: 6.1" LCD touch screen, 8 harman/kardon speakers, 440watt harman/kardon amplifier, voice activation, cell phone bluetooth, AM/FM HD radio, XM satellite radio (4 mos free All Access), single disc
CD, wireless audio streaming, USB, 3.5mm jack, XM satellite radio (subscription req), XM Nav traffic
(subscription req). iTunes tagging. new Aha smart phone
integration. The backup camera displays in the navigation screen Option
Package |
|
subject to change, updates. comments, corrections welcomed |
|
2014 XT turbo adds over 2.5i Premium (not X Limited) model code EFM all new 2.0L, boxer 4 cylinder turbo
intercooled DOHC engine. 250hp @5600rpm, 258 torque @2000-4800 rpm. Gasoline direct injection. Dual Active Valve Control System, No optional All Weather Package Engine cover Stereo same
as 2.5 Premium- 6 speakers, HD radio, Bluetooth with hands-free
steering wheel controls, wireless audio streaming,
AM/FM HD radio, single CD MP3/WMA, pty/cat program
type/category radio station search function, USB, auxiliary jack, two
front 12v
outlets, iPod capable, roof antenna, MP3. |
2014 XT Touring turbo adds over XT Premium Model Code EFN 2.0XT Touring adds over 2.0XT Premium Leather interior all new Upgraded
stereo with voice activated Navigation/GPS: 6.1" LCD touch screen, 8 harman/kardon speakers, 440watt harman/kardon amplifier, voice activation, cell phone bluetooth, AM/FM HD radio, XM satellite radio (4 mos free All Access), single disc
CD, wireless audio streaming, USB, 3.5mm jack, XM satellite radio (subscription req), XM Nav traffic
(subscription req). iTunes tagging. new Aha smart phone
integration. The backup camera displays in the Navigation screen.
|
2014 SUBARU FORESTER STANDARD FEATURES subject to change, correction |
||||||
feature |
2.5i |
2.5i Premium |
2.5i Limited |
2.5i Touring |
2.0XT Premium |
2.0XT Touring |
All Wheel Drive with VDC stability and Traction Control |
S |
S |
S |
S |
S |
S |
X-mode with Hill Descent Control |
-- |
-- |
S |
S |
S |
S |
Manual transmission, 6 speed |
S |
S |
-- |
-- |
-- |
-- |
CVT transmission |
with Low mode only |
Paddle shifters- 6 and 8 speed, with Si Drive |
||||
Si Drive - driver controllable engine & power management, CVT control, 3 settings- I, S, S# |
-- |
-- |
-- |
-- |
S |
S |
All Weather Package (awp) with heated front seats, defrosting outside mirrors, front wiper deicers |
-- |
S with manual 0- with CVT |
S |
S |
-- |
S |
Cloth upholstery |
S |
S |
-- |
-- |
S, vinyl trimmed bolsters |
-- |
Leather trimmed upholstery, perforated |
-- |
-- |
S |
S |
-- leather shift knob only |
S |
Driver seat- manual height adjustable |
S |
-- |
-- |
-- |
-- |
-- |
Driver seat- 10 way power, with lumbar support |
-- |
S |
S |
S |
S |
S |
Passenger seat- manual front/back and recline adjustment. No height adjustment, no power, no lumbar support. |
S |
S |
S |
S |
S |
S |
Rear seats- fold down 60/40 split |
S |
S |
S |
S- one touch fold down from rear |
S |
S one touch fold down from rear |
Rear seats- fold down and recline back, with fold down armrest with 2 cupholders |
- |
S |
S |
S |
S |
S |
Power windows |
S |
S |
S |
S |
S |
S |
Power driver window |
auto down |
auto up/down |
auto up/down | auto up/down | auto up/down | auto up/down |
Power door locks (Touring models with optional keyless access have a gate lock button) |
S |
S |
S |
S |
S |
S |
Power outside mirrors, manual fold-in |
black |
body colored |
body colored | body colored | body colored | body colored |
Power outside mirrors, manual fold-in with integrated turn signals |
-- |
-- |
-- |
S |
-- |
S |
Power outside mirrors: heated, and/or dimming plus nighttime LED light: see optional packages below |
O |
O |
O |
O |
O |
O |
Cruise control |
S |
S |
S |
S |
S |
S |
Cruise control- Eyesight active cruise control with driver assist system | -- |
-- |
-- |
O- Driver Assist Technology Pkg | -- |
O- Driver Assist Technology Pkg |
model reminder |
2.5i |
2.5i Premium |
2.5i Limited |
2.5i Touring |
2.0XT Premium |
2.0XT Touring |
Lightly tinted glass, no windshield tint band |
S |
-- |
-- |
-- |
-- |
-- |
Dark tinted glass, no upper windshield tint band |
-- |
S |
S |
S |
S |
S |
Wipers, front - 4 variable intermittent speeds, plus low and high |
S |
S |
S |
S |
S |
S |
Wiper, rear, 2 speeds including intermittent |
S |
S |
S |
S |
S |
S |
Rear defroster |
S |
S |
S |
S |
S |
S |
Headlights- halogen, auto on/off with ignition key removal |
S |
S |
-- |
-- |
S |
-- |
Headlights- halogen, auto on/off with ignition key removal, and dusk-dawn auto setting |
-- |
-- |
S |
S |
S |
S |
HID headlights with automatic load sensing height adjustment, and LEDs |
-- |
-- |
-- |
O- Driver Assist Tech Pkg | -- |
O- Driver Assist Tech Pkg |
Fog lights |
O |
O |
S |
S |
O |
S chrome trim ring |
2 Map lights, dome light, cargo area light |
S |
S |
S |
S |
S |
S |
Keys- Keyless remote entry with immobilizer system and ignition disabling alarm |
S |
S |
S |
S |
S |
S |
Keys- Proximity key with push button start, immobilizer system ignition disabling alarm |
-- |
-- |
-- |
O- Driver Assist Technology Pkg | -- |
O- Driver Assist Technology Pkg |
Air conditioning- manual controls, 4 speed fan |
S |
S |
-- |
-- |
S |
-- |
Air conditioning, automatic climate control, 7 speed fan |
-- |
-- |
S, single zone climate control |
S, Dual zone climate control |
-- |
S, Dual zone climate control |
Cabin air filter |
S |
S |
S |
S |
S |
S |
Center console, with 2 cupholders, storage, power outlet, USB, aux jack, armrest |
S |
S |
S |
S |
S |
S |
Center armrest (front console) |
fixed position |
manual: fixed position CVT: slides forward |
slides forward |
slides forward | slides forward | slides forward |
Rear seat armrest with 2 cupholders |
-- |
S |
S |
S |
S |
S |
Cupholders- 2 in center console, 1 bottle holder in each door |
S |
S |
S |
S |
S |
S |
Sunvisors, 2, with pull-out extension, and mirrors (not illuminated) |
S |
S |
S |
S |
S |
S |
12v power outlets |
3- in center stack under heat controls, in center console, in cargo area. They only operate when car is on accessory or running |
|||||
Steering wheel- tilt and telescoping, with audio, handsfree bluetooth, and cruise control buttons |
S, vinyl wrapped |
S, vinyl wrapped |
S, leather wrapped | S, leather wrapped |
S, leather wrapped |
S, leather wrapped |
Center info display |
4.3" display with fuel economy readings, outside temp, |
Color LCD
display with back-up camera, fuel economy readings, outside
temperature, clock, audio and bluetooth info, climate control info, vehicle self-check and maintenance reminder, anniversary reminders, Limited and Touring models it include X-mode and hill descent info. |
||||
Instrument panel, electroluminescent |
-- |
-- |
-- |
S |
-- |
S |
Rear view back-up camera |
-- |
S |
S |
S |
S |
S |
Roof rack- fixed position crossbars |
O |
-- |
-- |
-- |
-- |
-- |
Roof rack roof rails- adjustable crossbars are optional, 150lb capacity |
-- |
S |
S |
S |
S |
S |
Moonroof, power, large panoramic size, with sunshade |
-- |
S with CVT only. Not available with manual |
S |
S |
S |
S |
Lower window and side rear glass trim strip |
black |
black |
chrome |
chrome |
chrome |
chrome |
Rear spoiler |
-- |
-- |
S |
S |
S |
S |
Carpeted floor mats |
S |
S |
S |
S |
S |
S |
Rear cargo luggage cover |
O |
O |
O |
O |
O |
O |
Rear cargo tray |
O |
O |
S |
S |
O |
S |
Rear bumper cover |
O |
O |
O |
O |
O |
O |
new for 2014 Power rear gate with automatic close and height memory. note- the memory height control instructions are 4 pages in the owner's manual! Hopefully next year, there will be a simple knob with low, medium and high height settings. |
-- |
-- |
S |
S |
-- |
S |
Tailpipe |
single |
single |
single with stainless tip |
dual with stainless tips |
||
Wheels |
17" stamped steel wheel |
17" alloy |
18" alloy |
|||
Tires |
all season |
|||||
model reminder |
2.5i |
Premium |
Limited |
Touring |
XT Premium |
XT Touring |
Stereo- am/fm, single CD with USB, aux jack, wireless audio streaming, 4 speakers, steering wheel controls |
S |
-- | -- |
-- |
-- |
-- |
Stereo- am/fm, HD radio, single CD, with USB, aux jack, wireless audio streaming, 6 speakers, steering wheel controls |
-- |
S |
S |
-- |
S |
-- |
Stereo- voice activated 6.1" Navigation GPS, am/fm,
HD radio, XM satellite radio (4 mos free All Access), single CD, with USB, aux
jack, wireless audio streaming, 6 speakers, steering wheel controls and new Aha connectivity |
-- |
O |
O |
-- |
O |
-- |
Stereo- voice activated 6.1"
Navigation GPS, with upgraded Harman/Kardon (H/K) 440 watt amp, am/fm HD radio, XM satellite radio (4 mos free All Access), single CD, 8 H/K speakers, with USB, aux jack, wireless audio streaming, steering wheel controls, and new Aha connectivity |
-- |
-- |
-- |
S |
-- |
S |
model |
2.5i |
2.5i Premium |
2.5i Limited |
2.5i Touring |
2.0XT Premium |
2.0XT Touring |
2014 SUBARU FORESTER INDIVIDUAL OPTIONS AND OPTION PACKAGES Major Option Packages are above Note: Prices are factory installed MSRP (suggested list price). Your actual price might be less. Always contact your local dealer. Sometimes options are not available due to vendor or supply issues. check out the 2014 Forester photo pages: exterior photos I interior photos I options and upgrade subject to change, updating. Comments, corrections welcomed | ||||||
model | 2.5i | 2.5i Premium | 2.5i Limited | 2.5i Touring | 2.0XT Premium | 2.0XT Touring |
model code |
EFA, EFB |
EFE, EFF |
EFI |
EFJ |
EFM |
EFN |
Popular Package #1
(FYL). Auto dimming rear view mirror with compass, outside dimming mirrors that also dim when the rear view mirror dims, with approach
LED lighting in the outside mirrors, rear bumper cover, rear seatback cargo net $567 | A | A | A | A | A | A |
Popular Package #2 (FYM). Auto dimming rear view mirror with compass and Homelink garage door opener, dimming outside mirrors that dim when the rear view mirror dims, with approach LED lighting in the outside mirrors, rear bumper cover, rear seatback cargo net $641 | A | A | A | A | A | A |
Protection Package #1 (FYN). Rear
bumper cover, luggage area cargo cover for manual rear gate, splash
guards, rubber all weather floor mats, rear seatback cargo net $548 available starting early April 2013 |
A |
A |
-- |
-- |
A |
-- |
Protection Package #2 (FYO).
Rear bumper cover, cargo net by rear seatback, luggage area cargo cover
for power rear gate, splash guards, rubber all weather floor mats, rear
seatback cargo net $548 available starting early April 2013 |
-- |
-- |
A |
A |
-- |
A |
Rugged Package #1 (FYP). Cross bar aero, rear bumper cover, luggage area cargo cover (manual gate), splash guards $620 | -- |
A |
-- |
-- |
A |
-- |
Rugged Package #2 (FYQ). Aero cross bars, rear bumper cover, luggage area cargo cover (manual gate), body colored side moldings, splash guards $620 | -- |
-- |
A |
A |
-- |
A |
Rugged Package #3 (FYR). Cross bar kit (fixed position), rear bumper cover, luggage area cargo cover (manual gate), splash guards $855 |
A |
-- |
-- |
-- |
-- |
-- |
Mirror Package #1 (FZ2). Auto dimming rear view mirror with compass, and exterior dimming outside mirrors that dim when the rear view mirror dims, with approach LED lighting in the outside mirrors $420 |
A |
A |
A |
A |
A |
A |
Mirror Package #2 (FZ3). Auto
dimming rear view mirror with compass and Homelink garage door opener,
with dimming outside side view mirrors that also dim when the rear view mirror dims, with approach LED lighting in the outside mirrors $494 |
A |
A |
A |
A |
A |
A |
Wheel arch moldings and splash guards (FZ4) $TBA late availability |
A |
A |
A |
A |
A |
A |
2014 SUBARU FORESTER INDIVIDUAL OPTIONS INTERIOR AND EXTERIOR OPTIONS Note: sometimes options are not available due to vendor or supply issues. Prices are factory installed MSRP (suggested list price). Your actual price might be less. Always contact your local dealer subject to change, updating. corrections welcomed |
||||||
... |
||||||
INTERIOR OPTIONS INTERIOR OPTIONS INTERIOR OPTIONS |
||||||
model |
2.5i |
2.5i Premium |
2.5i Limited |
2.5i Touring |
2.0XT Premium |
2.0XT Touring |
model code |
EFA, EFB |
EFE, EFF |
EFI |
EFJ |
EFM |
EFN |
Rubber all weather floor mats, (BGA) $72 |
A |
A |
A |
A |
A |
A |
Rear cargo tray (MGD) $75 |
A |
A |
S |
S |
A |
S |
Rear luggage area cargo cover (OGA manual gate, OGB power gate), $182 |
A |
A |
A |
A |
A |
A |
Auto dimming rear view mirror with compass (KGA) $198 Note- also available in mirror package above |
A |
A |
A |
A |
A |
A |
Auto dimming rear view mirror with compass, Homelink garage door opener (KGB) $272 Note- also available in the mirror package above |
A |
A |
A |
A |
A |
A |
Cargo net, rear (by gate) (MGC) $55 |
A |
A |
A |
A |
A |
A |
Cargo net, by rear seat back (MGA) $55 |
A |
A |
A |
A |
A |
A |
Cargo net, sides (MGB) $87 |
A |
A |
A |
A |
A |
A |
Remote engine start, CVT only, not available with manual transmission, (RGA) $438 na on Limited with keyless access pkg #30 (see below) |
A |
A |
A |
A |
A |
A |
Remote engine start on Limiteds with keyless access pkg #30, (RGB) $429 |
-- |
-- |
-- |
A req keyless access |
-- |
A req keyless access |
Metal pedals- manual trans (COD) clutch, brake, gas, footrest. $193 |
A |
A |
-- |
-- |
-- |
-- |
Metal pedals, CVT (COC) brake, gas, footrest $167. |
A |
A |
A |
A |
A |
A |
Front door sill plates (JGA) $36 |
A |
A |
A |
A |
A |
A |
Compartment separator, dog guard (MGE) $381, not for use with child seats requiring tethers |
A |
A |
A |
A |
A |
A |
110v, 100w power outlet (NGA) $409 |
A |
A |
A |
A |
A |
A |
Interior illumination kit, ambient light, (NEC) red or (NEB) blue $182 |
A |
A |
A |
A |
A |
A |
Security system upgrade, shock sensor, (RGC) $193 |
A |
A |
A |
A |
A |
A |
Leather shift knob, CVT model (JCB) $122 |
A |
A |
-- |
-- |
-- |
-- |
leather shift knob, manual trans only (JGB) $122 |
A |
A |
-- |
-- |
-- |
-- |
Leather/aluminum STI shift knob, manual, (JBA) $182 | A |
A |
-- |
-- |
-- |
-- |
STI black Duracon shift knob, manual (J8B) $92 |
A |
A |
-- |
-- |
-- |
-- |
stereo- tweeters (2) (DCF) |
A |
A |
A |
S |
A |
S |
stereo- upgraded speakers, 4, by Kicker. (DGA) $333 |
A |
A |
A |
S |
A |
S |
model reminder |
2.5 |
2.5 Premium |
2.5 Limited |
2.5 Touring |
2.0XT Premium |
2.0XT Touring |
. |
||||||
EXTERIOR OPTIONS EXTERIOR OPTIONS EXTERIOR OPTIONS Note: prices are factory installed MSRP (suggested list price). Your actual price might be less. Always contact your local dealer Sometimes options are not available due to vendor or supply issues. subject to change, updating. corrections welcomed |
||||||
model |
2.5i |
2.5i Premium |
2.5i Limited |
2.5i Touring |
2.0XT Premium |
2.0XT Touring |
model code |
EFA, EFB |
EFE, EFF |
EFI |
EFJ |
EFM |
EFN |
Rear bumper cover (PGE) $92 |
A |
A |
A |
A |
A |
A |
Body side moldings, body colored, $252 |
A |
A |
A |
A |
A |
A |
Wheel Arch Moldings- these have been canceled and will NOT be available soon |
-- |
-- |
-- |
-- |
-- |
-- |
Splash guards (QGM) $147 |
A |
A |
A |
A |
A |
A |
Tailpipe tip (QGN) $52 |
A, single tip |
A, single tip |
S, single tip |
S, single tip |
S, dual tips |
S, dual tips |
Fog light kit (QGK black interior, QGT gray interior, QGQ XT models) $381 |
A |
A |
S |
S |
A |
S with chrome trim ring |
Front hood protector (PGC) $TBA late availability |
A |
A |
A |
A |
A |
A |
Front hood applique (PGD) $TBA late availability |
A |
A |
A |
A |
A |
A |
Front bumper underguard (PGA) $202 na with front underspoiler |
A |
A |
A |
A |
-- |
-- |
Rear bumper underguard (PGB) $293 |
A |
A |
A |
A |
-- |
-- |
Alloy wheels, 16", includes TPMS monitors, (HGB) $863 |
A |
S, 17" |
S, 17" | S, 17" | S, 18" | S, 18" |

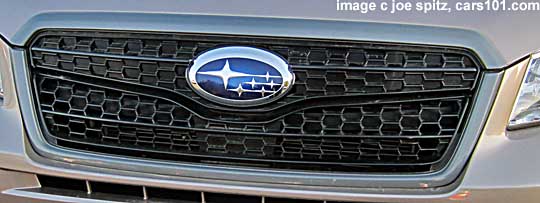

Sport mesh grill, gunmetal gray trim (PGF) $485 |
A |
A |
A |
A |
A |
A |
trailer hitch 1.25" size, (2.5L QGO; 2.0XT QGR) $622 wired, includes insert. hitch ball not included |
A |
A |
A |
A |
A |
A |
Roof rack- fixed position cross bars (UGB) $434 |
A |
-- |
-- |
-- |
-- |
-- |
Roof rack- aero cross bars (UGA) $199 |
-- |
A |
A |
A |
A |
A |
Wheel locks (4), $52 | A |
A |
A |
A |
A |
A |
Moonroof air deflector (QGL) $122 requires moonroof. |
-- |
A, CVT only |
A |
A |
A |
A |
model |
2.5i |
2.5i Premium |
2.5i Limited |
2.5i Touring |
2.0XT Premium |
2.0XT Touring |
2014 SUBARU FORESTER COLOR CHIPS its hard to get accurate colors so its best to see it in person for many photos of the colors, check out exterior photos I interior photos Information subject to change and updating Corrections, tips, comments welcomed |
|||
new Ice Silver is now available on the X models with either off-black or platinum cloth or leather |
new Jasmin Green |
new Burnished Bronze |
new on Forester Venetian Red Pearl |
Satin White Pearl |
Crystal Black Silica |
Dark Gray Metallic |
Marine Blue Pearl |
204 Forester Interiors subject to change correction for many more photos, check out exterior photos I interior photos |
|

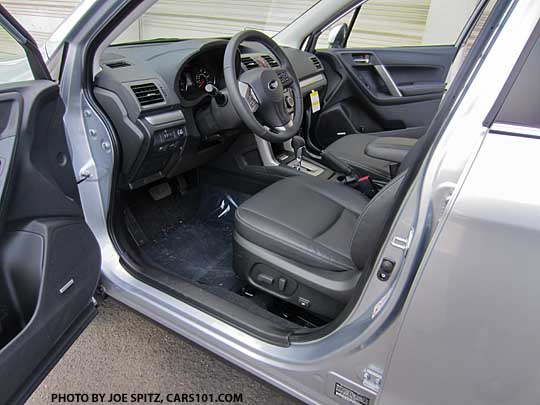

dark gray interior with black seat material. Premium CVT model with black cloth shown |
light gray interior with light gray seat material. Limited model with leather shown |
Forester XT Premium turbo comes with black cloth and vinyl side bolsters |
blank for now |
black cloth |
black perforated leather, on 2.5 Limited and Touring and all 2.0XT Touring models |
gray cloth |
light gray perforated leather on 2.5 Limited, Touring and XT Touring |

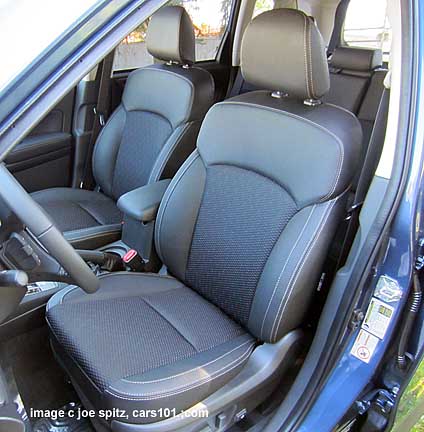

2014 XT Premium has black cloth with vinyl sport bolsters, gray stitching |
the XT Premium black cloth interior has vinyl trim with silver stitching |
2014 SUBARU FORESTER COLORS
many photos of the cars exterior photos I interior photos
Information subject to change and updating
Corrections, tips, comments welcomed |
|||||||
COLOR (color code) (part dept code) |
2.5i |
2.5i Premium |
2.5i Limited |
2.5i Touring |
2.0XT Premium |
2.0XT Touring |
|
Ice Silver Metallic- (ISM) (G1U) |
off-black cloth |
off-black cloth |
off-black leather |
off-black leather |
off-black cloth | off-black leather |
|
new Ice Silver Metallic (IS1) (G1U) |
platinum cloth | platinum cloth | platinum leather |
platinum cloth | -- |
-- |
|
new Burnished Bronze Met (BBM) (H4Q) |
off-black cloth |
off-black cloth | off-black leather |
off-black leather |
-- |
-- |
|
Crystal Black Silica (CBS) (D4S) |
off-black cloth | off-black cloth | off-black leather |
off-black leather |
off-black cloth | off-black leather | |
new to Forester Venetian Red (H2Q) |
platinum cloth |
platinum cloth | platinum leather |
platinum leather |
off-black cloth | off-black leather | |
new Jasmine Green (JGM (H5Q) |
platinum cloth | platinum cloth | platinum leather |
platinum leather |
-- |
-- |
|
Dark Gray Metallic (DGM) (61K) |
platinum cloth | platinum cloth | platinum leather |
platinum leather |
off-black cloth | off-black leather | |
Satin White Pearl (WHI) (37J) |
platinum cloth | platinum cloth | platinum leather |
platinum leather |
off-black cloth | off-black leather | |
Marine Blue Pearl (MBP) (F9H) |
platinum cloth | platinum cloth | platinum leather |
platinum leather |
off-black cloth | off-black leather |
Car and Driver speed test, 2.5i Touring CVT, June 2013 |
|
0–30 MPH | 3.3 sec |
0–60 MPH | 8.6 sec |
0-100 MPH | 25.1 sec |
0–110 MPH | 35.3 sec |
¼-Mile @ MPH | 16.7 sec @ 85 |
Rolling Start, 5–60 MPH | 8.9 sec |
Top Gear, 30–50 MPH | 4.4 sec |
Top Gear, 50–70 MPH | 5.8 sec |
Top Speed | 122 mph (drag ltd) |
speed test, 2014 Forester 2.5i manual transmission by TruckTrend.com, July 2013 | |
Engine | 2.5L/170-hp/174-lb-ft DOHC 16-valve |
Transmission | 6-speed manual |
Curb Weight(F/R) | 3263 lb (56/44%) |
0-60 MPH | 7.5 sec |
Quarter mile | 15.8 sec @ 85.5 mph |
Braking, 60-0 MPH | 118 ft |
Motor Trend, October 2013 SUV of the Year |
||
model | Subaru Forester 2.5i | Subaru Forester 2.0XT |
Engine | 2.5L/170-hp/174-lb-ft DOHC 16-valve flat-4 | 2.0L/250-hp/258-lb-ft turbo DOHC 16-valve flat-4 |
Transmission | 6-speed manual | cont. variable auto |
Power (SAE net) | 170 hp | 250 hp |
Torque (SAE net) | 174 lb-ft | 258 lb-ft |
Accel 0-60 mph | 7.5 sec | 6.2 sec |
Quarter mile | 15.8 sec @ 85.5 mph | 14.8 sec @ 95.8 mph |
Braking 60-0 mph | 118 ft | 111 ft |
MT figure eight | 28.6 sec @ 0.57 g (avg) | 27.8 sec @ 0.64 g (avg) |
