2010 Subaru Keyless Remote Entry

How to use and program your 2010 Subaru remote. Your dealer can easily do everything for you

This information is from the Subaru owner manuals. Some of the procedures here can be hard to do and your local dealer can easily do them with their computer.  Please contact your local dealer or refer to your owners manual for more information. Information here is subject to change, correction.

Please read- this unofficial independent Subaru research site by Joe Spitz is designed to help you learn about Subarus. It is not sponsored, authorized,  supported or
approved by Subaru or any dealer and is not connected to or affiliated with, any dealer. Always contact your local dealer. Inspect any vehicle prior to purchasing. Information subject to change, correction, updating.

Homepage  - Keyless for previous years.  Thanks for visiting. You are here http://www.cars101.com/subaru/keyless2010.html v 2.8.11


Outback, Legacy, Forester, Impreza, Tribeca
Your local dealer can help with all your remote and key needs.
all information here is subject to change and correction.

complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.

Electronic chirp when lock/unlock with remote - To turn off chirp or to turn back on
1. Sit in the driver’s seat and shut all doors and the rear gate.
2. Press the “UNLOCK”  power door lock switch.
3. Insert the key into the ignition switch.
4. Hold down the “UNLOCK”  switch, pull the key out and re-insert it into the ignition switch at least 5 times within 10 seconds after performing step 2.
5. Open and close the driver’s door within 10 seconds after performing step 4.
6. When completed the turn signal lights flash



New Battery
Replace the old battery with a new battery- Outback, Legacy and Tribeca CR1620 battery, Forester  and Impreza CR2025 battery-  or equivalent. Negative side up. After the battery is replaced, the transmitter must be synchronized with the system’s control unit. Press either the Lock or Unlock remote button 6 times to synchronize the unit


Programming remote
(to maintain your sanity your local dealer should do this for you with their computer)

1. Close all doors, trunk, gate
2. Open the driver’s door, sit in the driver’s seat, and close the door.
3. Perform the following steps within 45 seconds.
(1) Open and close the driver’s door once.
(2) Insert the key into the ignition switch, then turn it from the “LOCK” position to the “ON” position 10 times within 15 seconds.
NOTE:  When you complete step (2), an electronic tone will sound once. If you do not perform steps (1) and (2) within 45 seconds, an error will occur. An electronic tone will not sound. In this event, perform the whole procedure again beginning with part 1.
4. Open and close the door once within 15 seconds.
When part 4 of the procedure is completed, an electronic tone will sound for 30 seconds. If you do not perform the operations in part 4 within 15 seconds, an error
will occur and the electronic tone will not sound. In this event, perform the registration steps again beginning with part 3 of the procedure.
5. Before the electronic tone stops sounding, press the lock side of the power door lock switch the same number of times as the leftmost digit of the transmitter
code. For example, press the lock switch eight times if the leftmost digit of the code is 8.
NOTE . The electronic tone will stop sounding when you start entering the number.  If you do not start entering the number using the lock switch before the electronic tone stops sounding, an error will occur. In this event, perform the registration steps again beginning with part 3 of the procedure.
If the interval between one press of the switch and the next exceeds 5 seconds, an error will occur. In this event, perform the procedure again beginning with part 4. If an error occurs six times, perform the procedure again starting with part 3.
6. When you have finished entering the number, press the unlock side of the lock switch within 5 seconds.
NOTE . An electronic tone will sound.  If you press the unlock side of the lock switch when more than 5 seconds have passed, an error will occur. In this
event, perform the procedure again beginning with part 4. If an error occurs six times, perform the procedure again starting with part 3.
7. Perform parts 5 and 6 of the procedure for each of the remaining digits of the transmitter code beginning with the second digit (counting from the left) and
finishing with the eighth digit.
NOTE  When you finish entering the eighth digit, an electronic tone will sound for 30 seconds. If the interval between one press of the switch and the next exceeds 5
seconds, an error will occur. In this event, perform the procedure again beginning with part 4. If an error occurs six times, perform the procedure again starting with part 3.
8. Before the electronic tone stops sounding, use the power door lock switch to reenter the transmitter code beginning with the leftmost digit.
If you do not start entering the number using the lock switch before the electronic tone stops sounding, an error will occur. In this event, perform the procedure again beginning with part 3.
9. When you have finished entering the code a second time, an electronic tone will sound for 1 second to indicate completion of registration, provided the code entered the second time is identical to that entered the first time.
NOTE If the code entered the second time is not identical to the code entered the first time, an error will occur. In this event, perform the procedure again
beginning with part 5. If an error occurs five times, perform the procedure again starting with part 3.
10. If you wish to program another transmitter code into the system (up to 4 transmitter codes can be programmed into the system), perform the procedure beginning with part 4. When you have finished programming all of the necessary transmitter codes into the system, remove the key from the ignition switch.
11. Test every registered transmitter to confirm correct operation.



Alarm- Activating and Deactivating the alarm, Valet mode
(your dealer can do this for you)
To change the setting of your vehicle’s alarm system for activation or deactivation, do the following.
1. To Disarm the alarm, set Valet mode
2. Sit in the driver’s seat and shut all doors, gate, trunk
3. Turn the ignition switch to the “ON” position.
4. Hold down the REAR (UNLOCK) side of the driver’s power door locking switch and open the driver’s door within the following 1 second, and wait 10 seconds without releasing the switch.
The setting will then be changed.
If the system was previously activated the trip meter screen displays “AL oF” and the horn sounds twice, indicating that the system is now deactivated.
If the system was previously deactivated the trip meter screen displays “AL on” and the horn sounds once, indicating that the system is now activated.

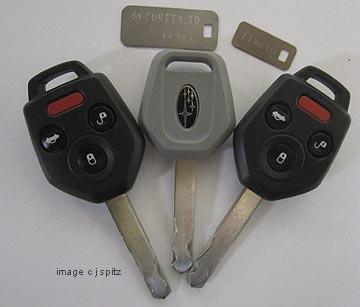

2010, 2011 Outback and Legacy keys
2010 and 2011 Outback and Legacy keys


Outback, Legacy, Tribea keys
