exterior photos |
|

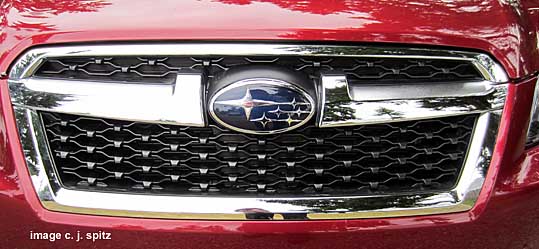

the new grill |

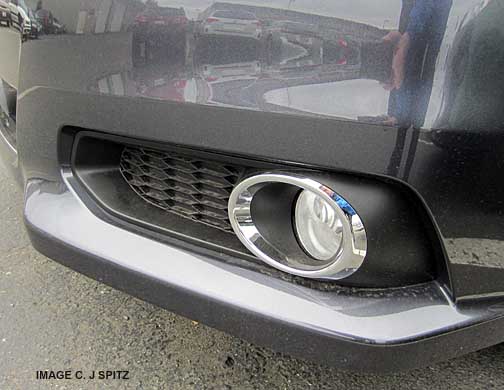

new fog lights have chrome trim ring on all Limiteds, and the new 2.5i Sport model available late 2012 |

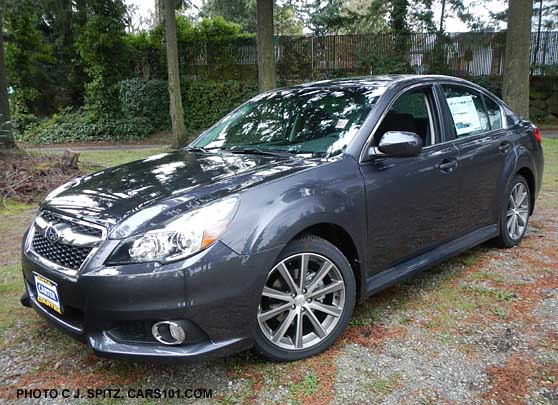

2013 Legacy 2.5 Sport package has 18" alloy wheels, moonroof, all weather pkg, fog lights with chrome trim, carbon fiber looking interior trim, and black cloth with silver stitching. Available starting December 2012 |

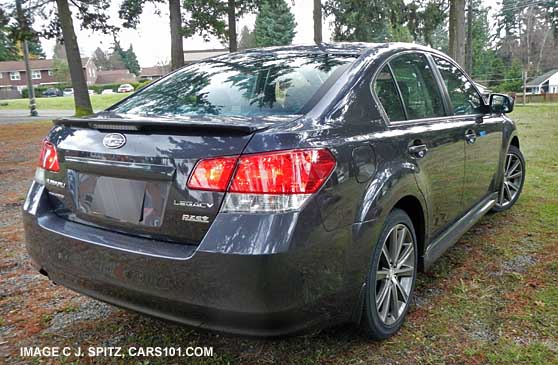

rear view of the new 2013 Legacy Sport package with 18" alloy wheels . This new model is new December 2012. This one has an optional rear spoiler. |

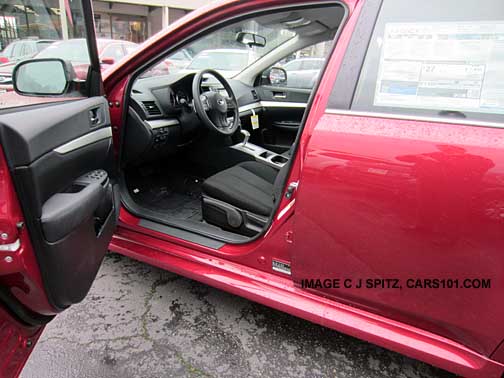

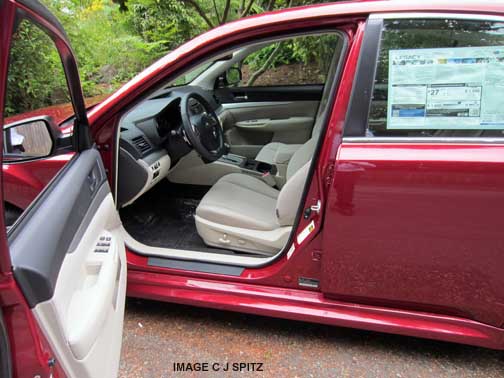

new Venetian Red Pearl is available with either beige interior with ivory cloth or leather, and gray interior with off-black cloth or leather |

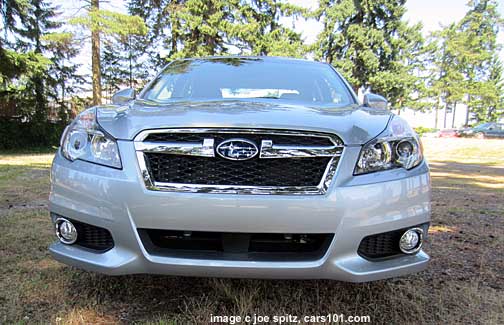

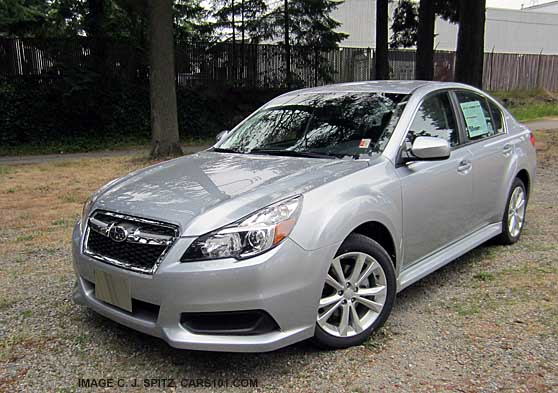

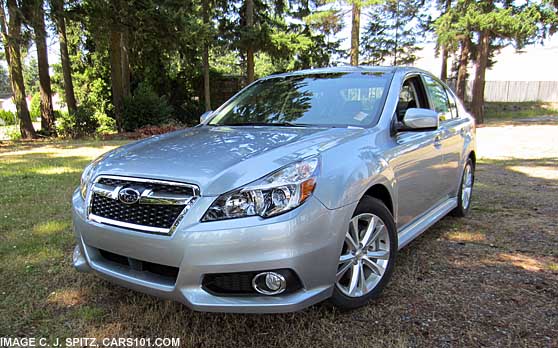

ice silver Premium (no fog lights) |

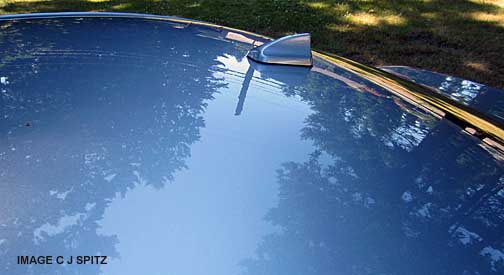

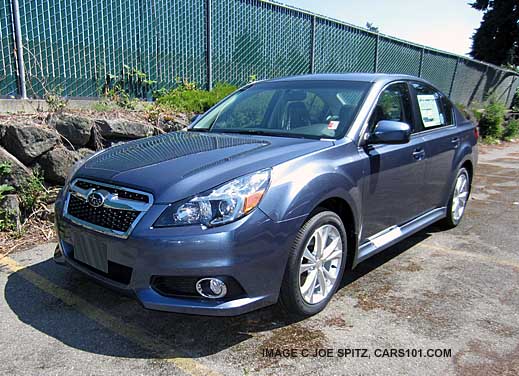

new- the roof top antenna is now body colored for 2013. twilight blue shown |
Legacy Limited - notice the fog lights with chrome trim ring |
graphite gray Limited |
Legacy Limited |

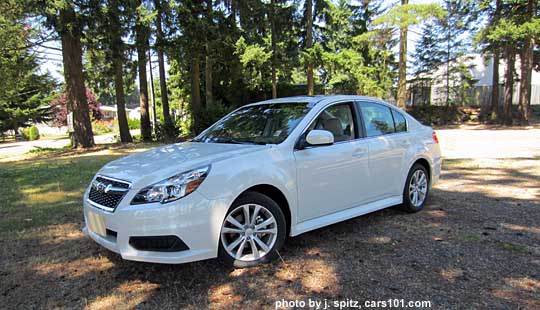

Premium, satin white pearl |

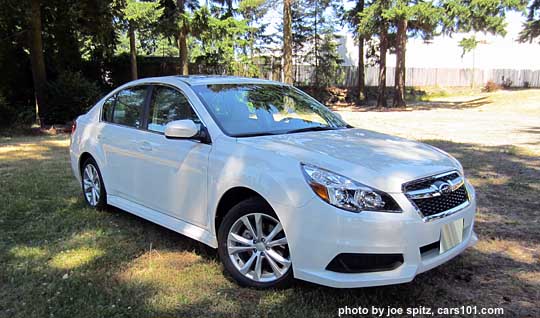

2013 satin white pearl Legacy Premium |

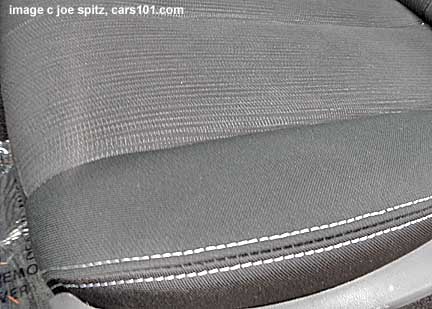

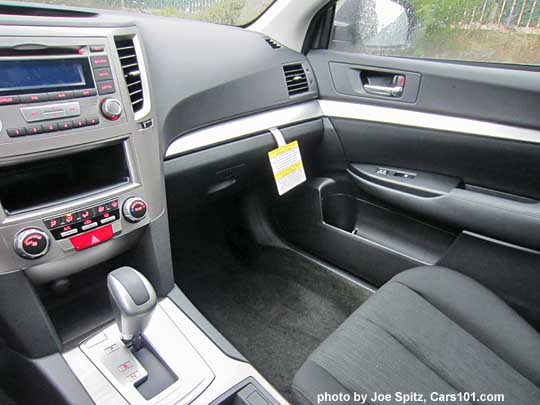

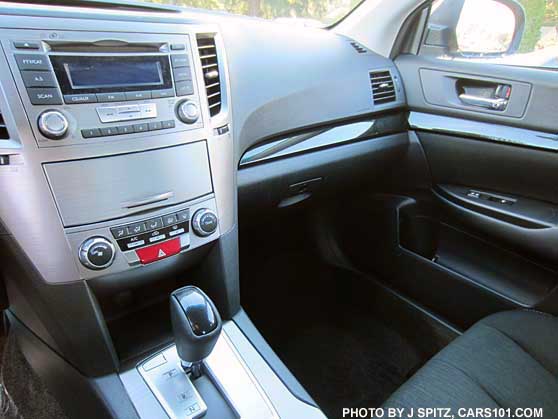

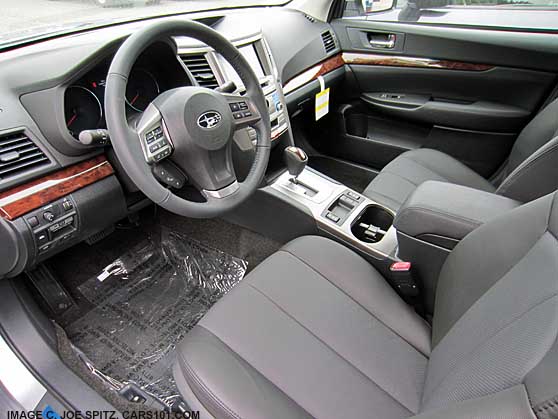

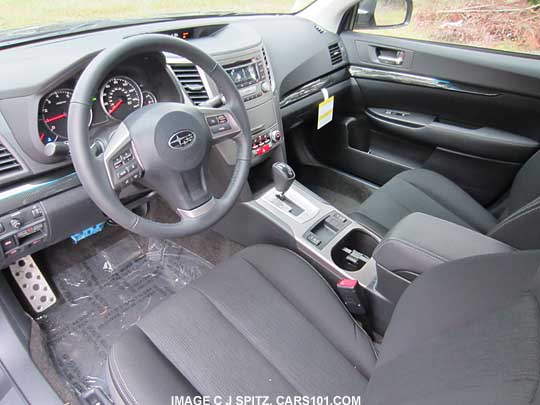

interior photos |
|

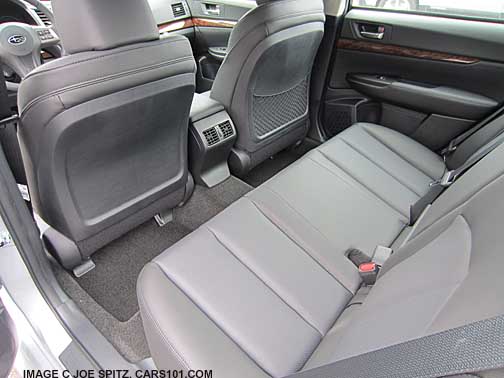

new for 2013- the Legacy Limited has new rear seat AC vents in the center rear console. Gray interior with off-black leather shown. The vents only blow cold or cool air. |

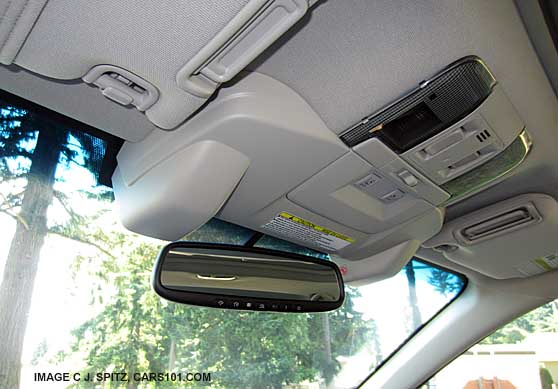

new for 2013 Eyesight driver assistance and active cruise control system, it's optional on Limited models only. Eyesight cars have three windshield washer squirters, with the middle one to clean in front of the cameras. |

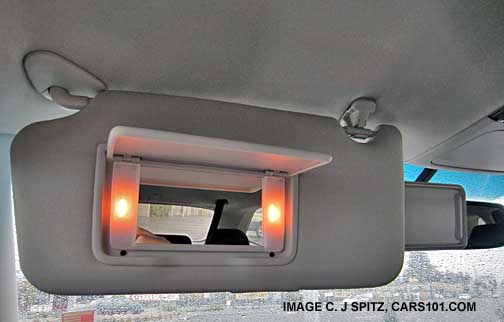

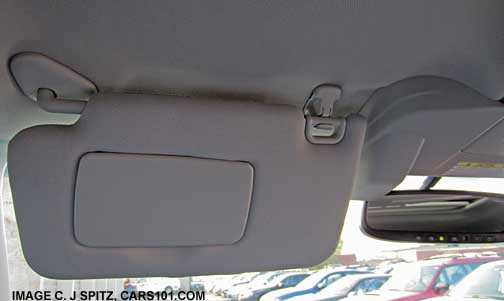

Outback and Legacy sunvisors are 15" except on cars with Eyesight (12.5"). All mirrors are lit, visors have side extension |
Outback and Legacy with Eyesight have smaller sunvisors (12.5" vs 15"). All have lit mirrors, and side extension. |
The 2013 Legacy Sport (new model starting 12/2012) has carbon fiber looking interior trim |
the new 2013 Legacy Sport has carbon fiber looking interior trim, last used in the discontinued 2012 Legacy GT. The Sport model is available starting December 2012 |

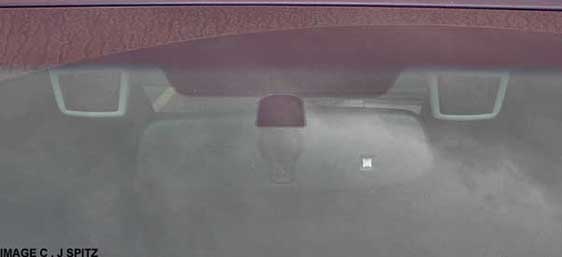

this photo shows the special windshield used on Eyesight models. The
wiper just clears the the passenger side camera. The sunblock and tint
band are both smaller than on other Outbacks and Legacys
|
|

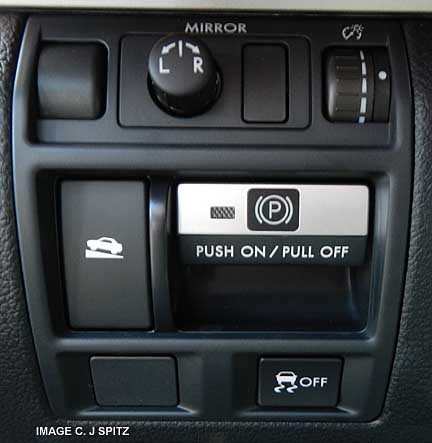

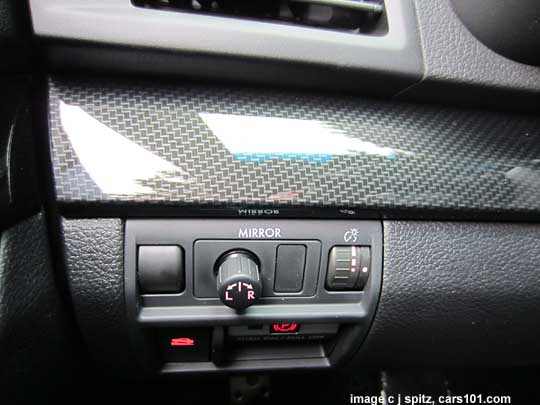

controls by driver's knee- outside mirrors, dash lighting, hill holder, parking brake, VDC |

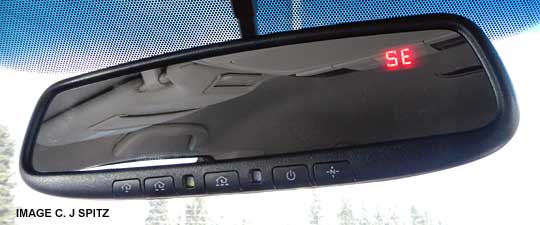

this optional auto dimming rear view mirror has both compass and homelink. There is no compass on the mirror that comes included in the Navigation package |

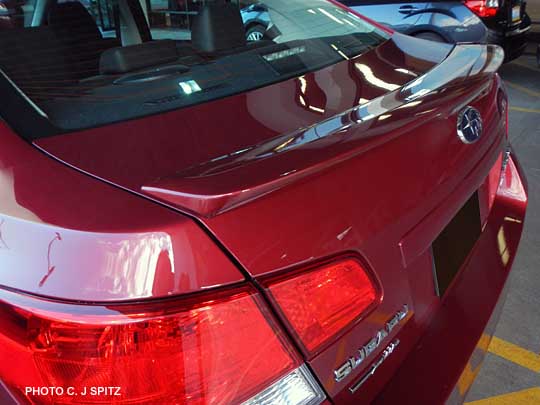

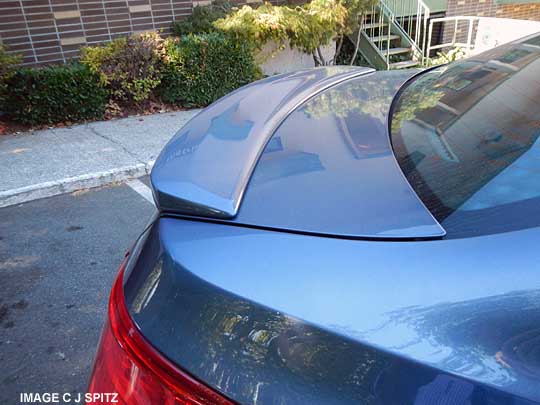

2013 Venetian Red Subaru Legacy with the optional rear spoiler |
twilight blue |

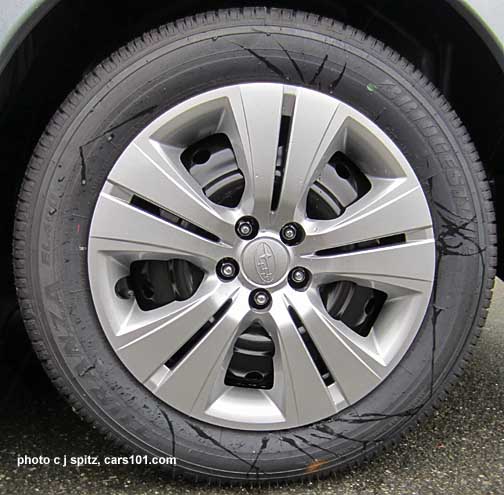

2.5i model's 16" steel wheel with plastic full wheel cover.It was raining, those are drips |

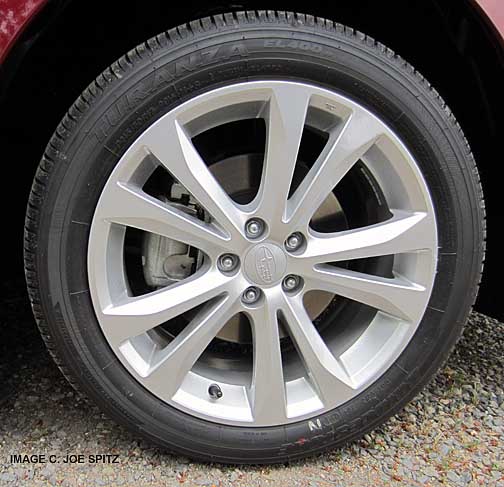

new for 2013 redesigned 17" alloy wheel on all 2013 Legacy Premium and Limiteds. Not on base 2.5i or Sport models |
18" 10 spoke gray alloy wheel on the Subaru Legacy Sport model available starting December 2012 |
blank |

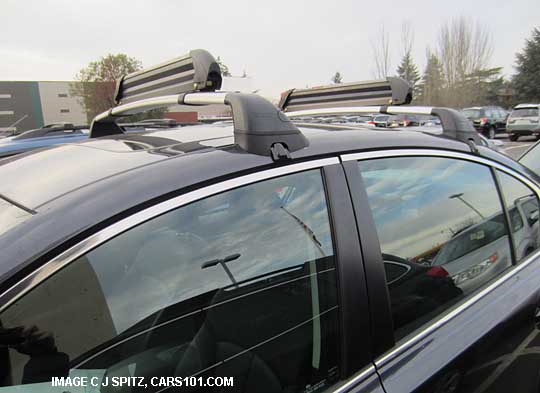

Legacy sedan with optional Subaru crossbars. They're dealer installed only (not from factory) and fit 2010, 2011, 2012, 2013 models. Shown with optional Subaru ski attachment. Most Yakima, Thule attachments will work |

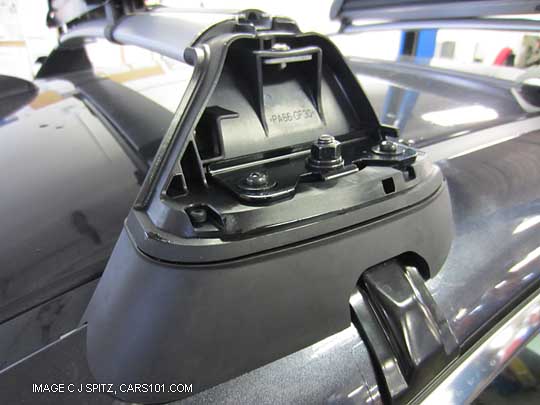

close-up of crossbar. Tighten the center nut to secure the crossbar, then install the cover. Notice the paint protector under the grip |
2013 MODELS with transmission and model code |
|
2.5L 4 cylinder engine |
3.6L 6 cylinder engine |
2.5i, manual transmission- DAA 2.5i, CVT- DAB 2.5i Premium, CVT- DAD 2.5i Sport, CVT - DAE late 2012 availability 2.5i Limited, CVT - DAF |
3.6R, 5 speed automatic- DAI 3.6R Limited, 5 speed automatic- DAK |
.TOP
2013 MAINTENANCE SCHEDULEsubject to change and correction see your local servicing dealer for full details and coverage on your specific car- |
the full maintenance schedule Break-in period for the first 1000 miles Don't race the engine, keep RPMs under 4,000 for the most part and vary the speeds with normal city/highway driving. 2.5L models- the first oil change is required by 7500 miles or 7.5 months. Its recommended to do it around 3months/3,000 miles. 3.6R models- the first oil change is required by 3months/3,000 miles. Oil new for 2013 2.5L engine: 0w-20 synthetic oil is required 3.6L engine- 5w-30 oil. Synthetic oil is recommended but not required Its required to replace the oil and filter at least every 7,500 miles or 7.5 months. With heavy stop and go, hard driving, or towing etc its recommended to replace every 3750 miles or 3.75 months Service schedule First oil/filter service- 2.5L models- the first oil change is required by 7500 miles or 7.5 months. Its recommended to do it around 3months/3,000 miles. First oil/filter service- 3.6L models- the first oil change is required by 3months/3,000 miles. Tire Rotations- tires should be rotated every 7500 or 7.5 months or so. Equal tread is required on all 4 tires. 7,500 miles/7.5 months-
oil/filter service, rotate tires. equal tread is required on all tires.
Radiator fluid is Super Coolant
long life. The first replacement is 11 years.
|
|
WARRANTY subject to change and correction see your local servicing dealer for full details and coverage on your specific car Roadside assistance phone number is on drivers window, also on 2 wallet cards included with the owners manual. Call 800 261.2155. good for 36months, 36000 miles. . |
Bumper-to-bumper: 3 year/36,000 miles, includes Wear Item warranty covering premature wear: brakes, clutch linings, remote batteries, wiper blades etc. Roadside assistance 3yr/36000 miles by the Cross Country Motor Club at 800 261-2155, break-down, lock-out, flat repair etc Powertrain: 5 year/ 60,000 miles Corrosion: 5 year/100,000 miles Emissions: Federal spec LEV (low emission vehicle) 3 years/36,000 miles plus 8 year/80,000 mile extended defect warranty covering Major Emission Control Components (catalytic converter, electronic emission control unit, diagnostic device) California spec PZEV (partial zero emission vehicle) sold and registered in CA, CT, NH, NY, MA, MS, RI, VT: 3 years/50,000 miles, plus 7 year/70,000 mile extended defect warranty with extensions to up to 15years/150,000 miles Note Warranties
do not cover wear or damage due to abuse, lack of maintenance or competitive
driving. Exclusions may apply, wear replacement may be one time.
|
STANDARD SAFETY FEATURES 2013 NHTSA crash test
5 STAR Overall, Frontal, Side and Rollover 12/22/12 IIHS crash test give the new Top Safety Pick+ rating to the 2013 Legacy and Outback built after August 2012, and 11 other cars.
-"IIHS rates vehicles good, acceptable, marginal, or poor based on performance in a moderate overlap frontal crash, small overlap frontal crash, side impact and rollover, plus evaluations of seat/head restraints for protection against neck injuries in rear impacts. From the IIHS, "Beginning with 2013 models built after August 2012, the side curtain airbags were reprogrammed to deploy in small overlap frontal crashes to improve occupant protection (note: information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on or near the driver door)." the crash test results To qualify for the 2013 Top Safety Pick+ award, vehicles must earn good ratings for occupant protection in at least 4 of 5 evaluations and no less than acceptable in the fifth test. To qualify for the 2013 Top Safety Pick award, vehicles must earn good ratings in the moderate overlap frontal test, side impact, rollover and rear tests, regardless of their rating in the small overlap frontal test. - Yes, Impreza and Crosstrek tiltable front headrests will fit a Legacy but they are not the same- the supports and headrest are not the same size it and could lead to very serious head/neck injury. Do not switch them. |
|
new for 2013 BOS- brake over ride system |
When gas and brake pedals are pushed at the same time, the brake pedal overrides the gas pedal and the car stops |
All Wheel Drive |
|
Stability Control, Traction Control |
|
Seatbelts |
Height adjustable shoulder harness anchor points (except center rear) |
Child Seat |
Child seat anchors hidden under flap |
Front Airbags |
Driver: detects distance of driver from steering wheel Passenger seat: detects weight and will turn off airbag if passenger is under 75#. This status is displayed by the trip computer |
Side Airbags |
|
Side Curtain airbags |
|
Headrests |
|
Crumple Zones |
|
5mph Impact Bumpers |
|
Re-inforcements |
dual front, single rear, all tied into a full perimeter protection system |
Brakes |
2.5L ventilated front discs, solid rear discs GT and 3.6R: ventilated front and rear discs |
DayTime Running lights (DRL) |
|
Auto-off headlights |
|
Childproof rear door locks |
|
Panic Alarm |
|
Event Data Recorder (EDR) |
EDR, Event Data Recorder information. In the event of an impact, the EDR will freeze data including how various systems were operating, for example if seatbelts were buckled, if the gas or brake pedals were pressed, and vehicle speed. No personal data is stored. To read data, special equipment is required. In addition to the vehicle manufacturer (Subaru), other parties such as law enforcement that have the equipment can read the information if they have access to the vehicle or EDR. Existing laws generally provide that information in an EDR is confidential and is the property of the owner of the motor vehicle. Information is accessed through the airbag system using a Subaru service computer. |
subject to change, frequent correction, updating. - |
|
Wheelbase: 108.3"
Overall Length 187.2" (2012 was 186.4") Width: 71.7" including outside mirrors folded-in, with outside mirrors out 81", Height: 59.3" Headroom front/rear no moonroof: 40.3"/37.5" Headroom front/rear with moonroof: 38.1/37.5" Legroom front/rear: 43.0"/37.8" |
Shoulder room front/rear
56.3/56.1
EPA Interior volume, no moonroof 103cf EPA Interior volume, with moonroof 100cf EPA Trunk Cargo volume 14.7cf Ground Clearance: 5.9" Track 2.5i: front/rear 61.6/62.0" Track 2.5i Sport 61/61.2 Track 3.6R: front/rear 61.6/62.0" |
Select only one package per car. You can't break up a package or select only certain components subject to change, correction, updating |
||
|
|
|
all models have package #01
|
|
standard equipment included with each car, no additional charge. |
2.5i manual- (model code DAA)
2.5i CVT- (model code DAB) |
|
there are no Option Packages on the 2.5i at this time |
2.5i Premium CVT- (model code DAD) all standard Premium features plus.... |
#02 |
All Weather Package (awp):
Dual mode heated front seats, defrosting outside mirrors, front wiper deicer
with hidden element.
List price $500 > the all weather package is standard on 2.5i Limited and 3.6R Limited |
#06 | All Weather Pkg (awp)
plus Moonroof, with moonroof sunshade, tilt up and slide back List price $1495 |
|
#09 | All Weather Pkg (awp),
Moonroof, Harmon Kardon audio with bluetooth and XM satellite radio.
Moonroof with sunshade, tilt up and slide back List price $2790 Plus Harman/Kardon 440 watt audio system which Includes a 4.3" LCD color display, USB, HD radio, XM radio free for 4 months. Its an AM/FM, single CD, 9 H/K speakers incl subwoofer and midrange. MP3, WMA, 3.5mm aux input jack. Bluetooth with steering wheel cell phone controls, Bluetooth wireless audio streaming. Plays R/RW discs, MP3. Bass, mid-range, and treble adjustments. XM satellite radio with 4 months free, new body colored roof mounted antenna, |
|
2.5i Sport CVT (model code DAE) new model available late 2012 |
#01 | new model available late 2012 there are no Option Packages on the 2.5i Sport. All Sport models include the CVT, All Weather Pkg, and Moonroof |
3.6R (model code DAI) |
#01 | there are no Option Packages on the 3.6R at this time |
2.5i Limited- (model code DAF)
3.6R Limited- (model code DAK) all standard Limited features plus... |
|
Moonroof, with sunshade,
tilt up and slide back, auto open/close. List price $995 |
replaced by pkg #18 1/2013 |
replaced by pkg #18 1/2013 7" Navigation with Moonroof with sunshade, tilt up and slide back, auto open/close. 7" Navigation/GPS system, Moonroof, back-up camera, auto dimming rear view mirror with Homelink garage door opener, (new for 2013- the dimming mirror in the Navigation pkg doesn't include the compass). List $2645 New Navigation system for 2013 voice activated, 7' LCD touchscreen, rear view back-up camera, bluetooth phone with contact downloading (works with most Droid, BB, iPhone), 2D and 3D map settings, with harman/kardon 440w, 9 speaker audio, XM NavTraffic® ( 4 months free), AHA system, auto dimming rear view mirror with homelink. new body colored roof mounted antenna, an SD card slot for map updates... Navigation comments: good screen resolution, nice map displays, audio sound controls are easy to use, voice commands and phone voice dialing is hard to use, and as with many Nav systems, some functions are unavailable when the car is moving. |
|
new #18 replaces pkg #08 1/2013 |
replaces pkg #08 1/2013 new with Aha internet/radio integration system, available early 2013 (note: Aha upgrade available on 2013 Legacy and outback with navigation built prior to January 18, 2013. Upgrade program runs April-December, 2013). 7" Navigation with new Aha stereo, with Moonroof with sunshade, tilt up and slide back, auto open/close. 7" Navigation/GPS system, Moonroof, back-up camera, auto dimming rear view mirror with Homelink garage door opener, (new for 2013- the dimming mirror in the Navigation pkg doesn't include the compass). Aha integrates your phone playlists online radio etc with the factory stereo List $2,745 New Navigation system for 2013 voice activated, 7' LCD touchscreen, rear view back-up camera, bluetooth phone with contact downloading (works with most Droid, BB, iPhone), 2D and 3D map settings, with harman/kardon 440w, 9 speaker audio, XM NavTraffic® ( 4 months free), AHA system, auto dimming rear view mirror with homelink. new body colored roof mounted antenna, an SD card slot for map updates... Aha Navigation comments: good screen resolution, nice map displays, audio sound controls are easy to use, voice commands and phone voice dialing is hard to use, and as with many Nav systems, some functions are unavailable when the car is moving. |
|
#20 replaced by pkg #28 1/2013 |
replaced by pkg #28 1/2013 Moonroof, 7" Navigation system, and new for 2013 Eyesight System List price $3940 New Navigation system for 2013 voice activated, 7' LCD touchscreen, rear view back-up camera, bluetooth phone with contact downloading (works with most Droid, BB, iPhone), 2D and 3D map settings, with harman/kardon 440w, 9 speaker audio, XM NavTraffic® ( 4 months free), AHA system, auto dimming rear view mirror with homelink. new body colored roof mounted antenna, an SD card slot for map updates... Navigation comments: good screen resolution, nice map displays, audio sound controls are easy to use, voice commands and phone voice dialing is hard to use, and as with many Nav systems, some functions are unavailable when the car is moving. > new for 2013 Eyesight driver assist system is an advance collision active warning system, with dual front facing cameras on either side of the the rear view mirror. Functions are adaptive cruise control, lane sway and departure warning, pre-collision braking with pedestrian/object detection and warning when traffic starts moving at a stop light. Eyesight cars have three windshield washer squirters, with the middle one to clean in front of the cameras. |
|
new #28 replaces pkg #20 1/2013 |
replaces pkg #20 1/2013 new with Aha internet/radio integration system, available early 2013 (note: Aha upgrade available on 2013 Legacy and outback with navigation built prior to January 18, 2013. Upgrade program runs April-December, 2013). Moonroof, 7" Navigation system with new Aha internet/radio integration system, and new for 2013 Eyesight System Aha integrates your phone playlists online radio etc with the factory stereo List price $4,040 New Navigation system for 2013 voice activated, 7' LCD touchscreen, rear view back-up camera, bluetooth phone with contact downloading (works with most Droid, BB, iPhone), 2D and 3D map settings, with harman/kardon 440w, 9 speaker audio, XM NavTraffic® ( 4 months free), AHA system, auto dimming rear view mirror with homelink. new body colored roof mounted antenna, an SD card slot for map updates... Navigation comments: good screen resolution, nice map displays, audio sound controls are easy to use, voice commands and phone voice dialing is hard to use, and as with many Nav systems, some functions are unavailable when the car is moving. > new for 2013 Eyesight driver assist system is an advance collision active warning system, with dual front facing cameras on either side of the the rear view mirror. Functions are adaptive cruise control, lane sway and departure warning, pre-collision braking with pedestrian/object detection and warning when traffic starts moving at a stop light. Eyesight cars have three windshield washer squirters, with the middle one to clean in front of the cameras. |
subject to change, correction this is a research site and your purchase price may vary due to your dealer's mark-up or discounts, rebates, incentives. always contact your dealer - |
|||||||||||||||||
Notes 1/10/13 Prices updated with new Aha audio integration system. It uses your phone to funnel content to the car. Standard on, and available only on, navigation models, the price increase is only $100 MSRP. Available for ordering now, with delivery starting February. Option Packages #08, #20 have been replaced by packages #18, #28, 6.13.12 Prices announced. Orders not yet available Cars expected July or maybe late June Destination- Legacy destination now $770 (up from $750.). Destination to Alaska $920. Prices and destination might vary in CT, HI, MA, ME, NH, NJ, NY, RI. VT. Where do you live, what state? PZEV emissions (partial zero emission vehicle) is required on 4 cylinder CVT models (codes DAB, DAD, DAE, DAF) in AZ, CA, CT, MA, MD, ME, NH, NJ, NY, OR, RI, PA, VT, WA.. Always include destination when discussing price or calculating payments. Prices here do not include any applicable tax or license fees Interest rates, rebates page subject to change and correction
|
|||||||||||||||||
|
|
. |
see full package descriptions above- |
||||||||||||||
. | #02 All Weather
Pkg
#04 Moonroof #06 All Weather Pkg, plus Moonroof #08 Navigation plus Moonroof (discontinued 1/2013) |
#09 All Weather pkg, Harmon/Kardon
audio, Moonroof #18 available 1/2013 Moonroof, Navigation, new Aha #20 Eyesight, Moonroof, Navigation (discontinued 1/2013) #28 available 1/2013 Eyesight, Moonroof, Navigation, new Aha |
|||||||||||||||
|
code |
|
|
|
|
#01
included |
#02
$500 |
#04
$995 |
#06
$1495 |
#08
$2645 |
#09 $2790 |
#18 $2,745 |
#20 $3940 |
#28 $4,040 |
|||
Legacy 2.5i manual 6speed |
|
|
|
|
|
<-- | - | - | - | - | - | - |
- |
- | |||
Legacy 2.5i, CVT |
|
|
|
|
|
<-- | - | - | - | - | - | - |
- |
- | |||
Legacy 2.5i, CVT, PZEV EMISSIONS |
|
|
|
|
|
<-- | - | - | - | - | - | - |
- |
- | |||
Legacy 2.5i Premium, CVT |
|
|
|
|
|
<-- | $23,765 |
- |
$24,760 | - |
$26,055 |
- |
- |
- |
|||
Legacy 2.5i Premium CVT, PZEV EMISSIONS |
|
|
|
|
|
<-- | $24,065 | - | $25,060 |
- |
$26,446 |
- |
- |
- |
|||
Legacy 2.5i Sport CVT- available late 2012 | DAE |
$24,495 |
$770 |
$25,265 |
. |
<-- |
S |
S |
- |
- |
- |
- |
- |
- |
|||
Legacy 2.5i Sport CVT, PZEV EMISSIONS available late 2012 |
DAE |
$24,795 |
$770 |
$25,565 |
. |
<-- |
S |
S |
- |
- |
- |
- |
- |
- |
|||
Legacy 2.5i Limited, CVT | DAF | $25,895 | $770 | $26,665 |
|
<-- | S | $27,660 | - |
$29,310 |
- |
$29,410 |
$30,605 |
$30,705 |
|||
Legacy 2.5i Limited CVT, PZEV EMISSIONS | DAF | $26,195 | $770 | $26,965 |
|
<-- |
S |
$27,960 | - |
$29,610 |
- |
$29,710 |
$30,905 |
$31,005 |
|||
Legacy 3.6R, 5 spd auto | DAI | $25,395 | $770 | $26,165 |
|
<-- | - | - | - | - | - | - |
- |
- | |||
Legacy 3.6R Limited - 5 spd auto | DAK | $28,895 | $770 | $29,665 |
|
<-- |
S |
$30,660 | - |
$32,310 |
- |
$32,310 |
$33,605 |
$33,705 |
|||
does your state require PZEV on the 2.5L CVT models? See above |
|
|
|
|
|
# 01
incl |
#02
|
#04 | #06 | #08 | #09 | #18 | #20 |
#28 |
2013 Legacy mechanical specifications and details subject to change and correction |
|||||||||
engine |
2.5L 4 cylinder This is an all new engine for the 2013 Legacy and Outback. It was first used in the 2011 Forester. |
3.6L 6 cylinder |
|||||||
model |
2.5i |
2.5i Premium. 2.5i Sport |
2.5i Limited |
3.6R |
3.6R Limited |
||||
model code |
manual- DAA , CVT- DAB |
CVT- Premium DAD,Sport DAE |
CVT- DAF |
automatic- DAI |
automatic- DAK |
||||
engine specifications |
This is an all new engine for the 2013 Outback and Legacy. It was first used in the 2011 Forester. 2.5L 4 cylinder Horizontally opposed Boxer engine. (engine code FB25) 152ci, 2498cc aluminum block and heads DOHC- double overhead cam Sequential multi-port fuel injection Electronic throttle control Bore x stroke: 94x90 Timing chain |
6
cylinder, 3.6L DOHC Boxer design (engine code Z36D)
221.5ci, 3630cc 24 valves aluminum block and heads Sequential multi-port fuel injection Electronic throttle control Bore x stroke: 92x91 DAVCS dual active variable valve control system, variable valve timing Camshaft timing chain (no replacement schedule) Composite resin intake manifold Sequential fuel injection Direct electronic distributorless ignition Speedometer to 160mph Redline 6400 rpm Compression 10.5:1 |
|||||||
Horsepower/torque |
new for 2013: horsepower 173@5600rpm, torque 174lb-ft@4100rpm (previous 2010-2012 models had 170hp@5600rpm, torque170@4000rpm) |
horsepower 256@6000rpm, torque 247lb-ft@4400rpm |
|||||||
Fuel Economy- city/highway/combined Regular gas, 87 octane all models capacity- 18.5 US gallon tank |
manual 21/28/24 CVT 24/32/27 (2010-2012 CVT was 24/20/26) |
CVT 24/32/27 |
CVT 24/32/27 | Automatic 5speed- 18/25/20mpg | |||||
Oil |
new for 2013 0w-20 synthetic oil required, Oil and oil filter capacity
5.5 US qt, 4.4 Imp qt
First and subsequent oil/filter replacement schedule- at least every 7500 mile/7.5 months |
5w-30 synthetic oil. 7500 mile/7.5 mo maximum replacement interval. First replacement req at 3mos/3000 miles, 2nd 7.5 mos/7500 miles |
|||||||
tune-up specs |
2.5L
4 cylinder Spark plugs: NGK SILZKAR7B11 Firing order 1-3-2-4 Ignition timing/idle (btdc) manual 16*, 650 rpm, automatic 16*, 675 rpm Idle speed/rpm: Manual trans
650, Automatic trans 675
Oil and oil filter capacity
5.5 US qt, 4.4 Imp qt
|
3.6l 6 cylinder Spark Plugs: NGK SILFR6C11 Plug Firing Order 1-6-3-2-5-4 Oil, oil filter capacity 8.5US qt Idle speed, parked, 700rpm Ignition timing 15* BTDC Oil- 5w-30, synthetic recommended Coolant- Replace at 11 years137,000 miles. |
|||||||
Transmission: full time all wheel drive (awd) with stability and traction control is standard on all models new CVT for 2013 Outback, Legacy: this is the 2nd generation CVT, previously used in the 2012 Impreza. its lighter, quieter, more responsive |
S- manual 6 speed O- CVT with paddle shifters and 6 gear-like settings |
CVT with paddle shifters and 6 gear-like settings is standard on Premium and Sport. new for 2013 no manual Premium is available |
CVT with paddle shifters and 6 gear like settings, no manual available |
automatic 5 speed, with paddle shifters. no manual is available |
|||||
All wheel drive system |
Manual transmission- 2.5i with Manual 6 speed transmission
Continuous All Wheel Drive system with VDC and Hill Holder symmetrical viscous coupling 50/50 front/back power split. CVT- 2.5i, Premium, Limited
with CVT (Continuously Variable Transmission)
|
Automatic 5 speed
transmission- VTD (Variable Torque
Distribution) traction control system has 45/55 performance oriented, front/rear
power. |
|||||||
Stability and
traction control: includes VDC Vehicle Dynamics Control electronic
stability control plus TCS traction control system |
VDC
is standard on all models. VDC vehicle dynamics
control, is an electronic stability control system that measures and monitors
steering wheel input, braking, vehicle angle etc and then applies individual
brakes and/or reduces engine power to counteract skids or slides to help
keep maintain driver control.
TCS traction control system electronically sensing spinning wheels and uses the brakes to slow the spinning wheel |
||||||||
gear ratios |
manual transmission: 1st gear 3.454, 2nd 1.947, 3rd 1.296, 4th 0.972, 5th 0.825, 6th 0.695 final 4.444 CVT in manual mode: 1st gear 3.581, 2nd 2.262, 3rd 1.658, 4th 1,208, 5th 0.885, 6th 0.618. final 3.70 CVT in automatic D mode continuously varies between 3.581-0.618 |
automatic 5 speed: 1st gear 3.540, 2nd 2.264, 3rd 1.471, 4th 1.000, 5th 0.834, final 3.083 |
|||||||
model reminder |
2.5i |
2.5i Premium, 2.5i Sport |
2.5i Limited |
3.6R |
3.6R Limited |
||||
emissions |
PZEV is Partial Zero Emission Vehicle. The
EPA says PZEV is the cleanest running gas car on today's market based on
emissions testing for carbon-containing compounds, oxides of nitrogen,
particulate matter, and other tailpipe nastiness.
What it does 1. A charcoal canister catches unburned gas left in the engine when it's turned off so it doesn't evaporate. 2. Fuel injectors close tighter when they're not in use. 3. It has a finer mesh in the catalytic converter, as well as optimized placement of precious metal. 4. The engine's electronic brain is set to run hotter at start up so the catalytic converter heats up faster. |
PZEV is not available or required on the 3.6L |
|||||||
Brakes new on all 2013 Outback and Legacy: brake override system (BOS). When gas and brake pedals are pushed at the same time, the brake overrides the gas and the car stops |
4 wheel disc,
4 channel anti-lock, low wear indicator, new Brake override system. Brake assist for maximum brake pressure Caliper- single piston front: 11.6 ventilated front disc rear: 11.3 solid rear disc Electric parking brake with auto release and hill holder functions | 4 wheel disc,
4 channel anti-lock, low wear indicator, new Brake override system. Brake assist for maximum brake pressure Caliper- single piston front: 12.4 ventilated front disc rear: 11.4 ventilated rear disc Electric parking brake with auto release and hill holder functions |
|||||||
Parking brake |
all
models use an Electric Parking Brake with Auto Release and Hill Holder.
Auto release function- wear seatbelt, step on brake pedal, put car in gear, lightly press gas pedal. The system makes a mild sound as it activates or releases the brake so you know its working. To use in as emergency brake tap or hold the brake button down but only in an serious emergency when you cannot normally brake! This will cause your rear wheels to lock so be very careful. The mechanical release for the electric brake if the battery is dead is under the car in front of the right rear wheel and it's an awkward process, so keep the battery charged. Dead battery brake release info |
||||||||
Hill Holder Brake system automatically activates the electric parking brake when stopped on a steep hill |
> new the Hill Holder function is now turned on when you restart the car if it was left on when the car was last turned off. Standard on all models. Especially useful with the manual transmission. Uses the electric parking brake. After the car is started, the system can be turned on by pressing the Hill Holder button by the driver's left knee (left of the parking brake button). A green light in the upper right dash comes on. When stopping on a hill 5% or steeper, either going forward up or backwards down a hill, the Hill Holder activates the electric parking brake and will briefly hold the car from rolling while the driver steps on the gas. Makes a mild sound as it activates or releases so you know its working Works going up or backwards down an incline. Note: if you are already stopped on an incline and did not press the Hill Holder button, press the Parking Brake - it works exactly the same. |
||||||||
Steering |
engine speed controlled power assisted rack and pinion, steering ratio 14.5:1 steering wheel turns lock-to-lock 2.9 turning circle, curb-to-curb 36.8' |
||||||||
Suspension |
new for 2013: All models get improved ride, handling
and steering, and less body sway, due to upgraded body structure with stiffer front strut mounting points
and rear frame rails, and upgraded suspension that includes a larger
rear sway stabilizer bar, slightly stiffer rear springs and bushings, and upgraded
steering. Front suspension- Independent, raised struts, coil springs, stabilizer bar, anti-dive geometry Rear suspension- independent, double wishbone, coil springs, stabilizer bar, anti-Lift geometry |
||||||||
wheels |
16" steel wheel, full wheel cover O: alloy wheels | Premium: 17" silver alloy, 5 split spoke Sport: 18" 10 spoke high luster gray alloys |
17" alloy, 5 split spoke
metallic finish |
17" alloy, 5 split spoke silver finish |
17" alloy, 5 split spoke
metallic finish |
||||
Tires |
Bridgestone Turanza EL400 205/60R16 91V all season |
Premium: Bridgestone Turanza EL400 215/50R17 90V all season Sport: 225/45 R18 91v all season | Bridgestone Turanza EL400 215/50R17 90V all season | Bridgestone Turanza EL400 225/50R17 93V all season |
|||||
Headlights | daytime running lights;
auto on/off headlights with ignition key insertion/removal. |
daytime running lights;
auto on/off headlights with ignition key insertion/removal. 'Auto' light sensing dusk-dawn on/off setting |
|||||||
Fog Lights |
0 |
Premium:0 Sport: S, chrome trimmed |
S, chrome trimmed |
0 |
S, chrome trimmed |
||||
Curb weight- new- all models weigh slightly less than 12s |
manual 3315 lbs CVT 3392 lbs |
Premium: CVT 3384 lbs Sport: TBA |
CVT 3427 lbs |
3496 lbs |
3545 lbs |
||||
Towing- |
Towing with the Legacy is not recommended and no trailer hitch is available from Subaru for the Legacy |
||||||||
model |
2.5i |
2.5i Premium, 2.5i Sport |
2.5i Limited |
3.6R |
3.6R Limited |
OVERVIEW AND SNAPSHOT Have a Subaru? Get a Badge of Ownership this is an unofficial, unauthorized website not approved or supported by SoA or any dealer. contact your local dealer subject to change, frequent correction, updating. tips welcomed |
|
Standard features on the 2013 Legacy 2.5i sedan Look
at these 2.5i details then scroll down because this is the standard model
Model codes: manual
6speed trans- DAA; automatic CVT trans mission with paddle shifters- DAB > new Engine-
2.5L (code FB25) 4 cylinder
boxer engine, DOHC, timing chain, more power with better economy. This
engine is new for the 2013 Legacy. It was first used in the 2011
Forester. > new redesigned front grill > new redesigned front bumper > new headlights with black lower surround > new CVT- 2nd generation CVT is lighter, quieter, more responsive > new upgraded seat cloth fabric with improved cushion and bolsters > new 2.5L engine: improved economy, more power. see specs above > new the Hill Holder function turns on if it was left on when the car was last turned off. > new fuel pump cutoff that detects when an airbag deploys to minimize fire danger after an accident > new upgraded suspension with larger rear sway bar and stiffer springs and bushings for improved handling and ride with body roll. > new stiffer chassis- front strut mounts and rear frame rails- reduce vibration, body roll, and improve handling, > new brake override system- when gas and brake pedals are both pressed, the brake overrides to stop the car New on 2013 2.5i Legacy > new steering wheel- now with bluetooth cell controls, plus audio and cruise control buttons > new audio includes handsfree cell phone bluetooth, steering wheel controls, wireless audio streaming, USB. Transmission
- 6 speed manual or optional CVT automatic with Paddle Shifters
Power locks
|
2.5i standard features, continued... Tachometer redline 6000 Illuminated ignition key ring Glass - lightly tinted (green) Telescope and Tilt steering wheel Steel Hood with gas struts Key lock cylinder to open the trunk Auto-on dusk-to-dawn headlights Auto-down driver power window 16" steel wheel with wheel cover Power windows, illuminated switches Variable speed front wipers, 4 speeds Tire Pressure Monitoring System, TPMS Alarm ignition disabling, uses remote entry Courtesy Lights- front doors, glovebox, trunk Fold down rear seats with armrest with cupholders Driver seat, Height adjustable driver's seat, manual Keys open- driver door, ignition, glovebox, and trunk Immobilizer Key, Laser cut, integrated remote one piece unit 3 spoke steering wheel with cruise control and audio controls Trip computer with outside temperature, instant and average fuel economy for resettable Trip Odometers A and B, distance to empty, clock Center console: cupholders, armrest with dual level storage, open front storage bin Cupholders- 2 front cupholders, removable center divider Cupholders- 2 rear armrest Cupholders- 1 in each door Door overhead assist handles Overhead Dome Light Vanity mirrors, illuminated Door handles, body colored Trunk grocery bags hooks (2) Brushed titanium trim by center console Carpeted floor mats, off black (all interiors) Aerodynamic body colored side ground effects Sun visors with extensions, vanity mirrors with lights Overhead console with sunglass holder and 2 map lights 12v Power Outlets- dashboard and center console, No cigarette lighter Bluetooth handsfree
cell phone bluetooth, steering wheel controls, wireless audio streaming.
Optional-
|
|
|
Overview and Snapshot subject to change, updating - |
|
2013 2.5i Premium CVT adds over 2.5i > gone there is no manual transmission Premium model for 2013. Everything the 2.5i has, plus .... see 2.5i standard features above > new CVT transmission with paddle shifters is now standard on the Premium. > new 17" silver alloy wheels (2012s were 16") > new leather wrapped shift knob Stainless steel single exhaust tip Body colored outside fold-in mirrors Power driver's seat, 10 way incl power lumbar Windshield Shade Band across upper windshield Center console front storage bin has a hinged cover Driver's power window auto UP as well as auto down All power window switches on all doors are illuminated Steering wheel- Leather wrapped with bluetooth, audio, cruise controls Bluetooth handsfree cell phone bluetooth, steering wheel controls, wireless audio streaming.
Stereo cell phone bluetooth with steering wheel controls, USB, and wireless audio streaming.
Option
Packages factory Option Packages
|
2.5i Sport CVT adds over the 2.5i Premium CVT model code- DAE
no manual is available new model available late 2012 The 2.5i Sport model has everything the 2.5i Premium has, plus... Power moonroof, tilt and slide, with sunshade All Weather Package- dual model heated front seats, defrosting outside mirrors and front wiper deicers 18" high luster silver alloy wheels (previously on the discontinued 2012 Legacy GT) 225/45 R 91v 18 all season tires Fog lights with chrome trim rings Alloy pedal covers Carbon fiber plastic dash trim (previously on the discontinued 2012 Legacy GT) |
Everything the 2.5i Premium has, plus.... > new fog lights now with chrome trim ring > new fin roof antenna now body colored > new woodgrain interior accent trim now darker > new rear seat AC ducts, in the back of the center console > new electroluminescent instrument panel gauges with red speedometer needle and white tachometer needles against black background. With new center color LCD display including ECO gauge, cruise control, Eyesight info (if equipped), and trip odometers. Gauges include speedometer, tachometer, fuel gauge, and new for 2013 coolant temperature gauge. Leather interior, perforated Aluminum front door sill plates Dark Woodgrain interior accents Shift knob with glossy, dark wood insert Power passenger seat, 4 way, front/back, power recline Climate Control, Single/Dual Front Zone, 6 speed fan, settings Lo - 61, 62 .. 89 - Hi 17" alloy wheels with 225/50R17 Bridgestone Turanza EL400 all season tires All Weather Package dual setting heated front seats, defrosting outside mirrors, front windshield wiper de-icer Bluetooth handsfree cell phone bluetooth, steering wheel controls, wireless audio streaming. NOTE see more to the right --->
|
2013 2.5i Limited, continued Stereo: Harman/Kardon (h/k) audio system includes 4.3" LCD color display, 440watt amplifier, AM/FM HD radio, single CD, wireless audio streaming, 9 H/K speakers. Pty/cat (program type/category radio station search function). Plays MP3/WMA, R/RW discs, MP3. Bass, mid-range, and treble adjustments, USB, 3.5mm input and 12v power outlet in the center console. Steering wheel with bluetooth, audio, cruise controls. XM satellite radio with 4 months free. The speakers include: 2 80mm mid-range in the top of the dashboard, 2 160mm woofers in the front doors, 2 2-way speakers in the rear doors with a 25mm tweeter and 100mm mid-range, 1 200mm subwoofer in the rear parcel shelf. New for 2013 the roof fin antenna is body colored. Option Packages factory Option Packages > Pkg #04 Moonroof > Pkg #08 Navigation system, Moonroof > new available early 2013 Pkg #18 Navigation system with new Aha internet/radio integration, moonroof > new Pkg #20 Eyesight driver assist system, with Navigation system, moonroof > new available early 2013 Pkg #28 Eyesight driver assist system, with Navigation system with new Aha internet/radio integration, moonroof (note: Aha upgrade available on 2013 Legacy and outback with navigation built prior to January 18, 2013. Upgrade program runs April-December, 2013). |
|
|
TOP-
all info subject to change, correction, update - |
|
3.6R adds over 2.5i model code- 5 speed automatic DDI Everything the 2.5i 4 cylinder has, plus... 3.6L 6 cylinder boxer engine,
DOHC, cam drive chain (not a belt)
Engine cover
> new for 3.6R Bluetooth handsfree
cell phone bluetooth, steering wheel controls, wireless audio streaming. |
3.6R Limited adds over 3.6R model code 5 speed automatic DAK Everything the 3.6R Premium has, plus... > new fog lights now
with chrome trim ring Leather interior, perforated
Option Packages
factory Option Packages
|
HD radio was first offered in the
2011 Forester Limited and Touring models.
The ‘HD’ in ‘HD Radio’ is
part of iBiquity Digital’s brand name for its digital AM and FM radio
technology.
It does not mean either
hybrid digital or high definition, it is simply the branding language for
this new technology.
HD Radio broadcasting is
free, there are no fees.
You can get digital AM and
FM stations, including HD2 and HD3 multicast channels.
HD Radio broadcasting is
your favorite local AM and FM stations broadcasting digitally, producing clean, sharp sound.
HD2 multicasting means more
FM channels and new programming available from local FM stations.
iTunes
Tagging lets you capture information about a song on
the radio and store it on your iPod by pushing the "Tag" button on the
HD Radio receiver. When your iPod is connected to iTunes, a list of tagged
songs will appear which can be previewed, purchased, and downloaded.
HD
radio FAQ I Check
station availability here
-
Information subject to change, correction - |
||||||
|
|
|
||||
2013 Feature | 2.5i | 2.5i Premium | 2.5i Sport new, available late 2012 |
2.5i Limited | 3.6R | 3.6R Limited |
|
|
|
DAE |
|
|
|
Interior |
|
|
cloth |
|
|
|
Dash trim |
|
|
carbin fiber design trim |
|
|
|
Wheels, tires | 16" steel, All Season tires |
|
18" high louster silver alloys |
|
|
|
Fog Lights- the on button is next to mirror control | 0 | 0 | S chrome trim ring |
S, new chrome trim ring |
|
S, new chrome trim ring |
Power windows- auto up/down
driver window
Power locks Power mirrors, fold-in Cruise control |
driver window auto down only |
|
S |
|
|
|
Steering wheel, tilt and
telescope. Vinyl wrapped with new for 2013 bluetooth controls, plus audio
and cruise control buttons |
|
|
-- |
|
|
|
Steering wheel, tilt and telescope. Leather wrapped with bluetooth, audio, and cruise control buttons |
|
|
S |
|
|
|
Air Conditioning- manual with 4 speed fan |
|
|
S |
|
|
|
new for 2013 Air Conditioning with new Rear seat AC ducts. Automatic
climate control, 6 speed fan, Dual front zones. |
|
|
-- |
|
|
|
Gauges: analog speedometer, tachometer, ECO and fuel gauge, |
S |
S |
S |
-- |
S |
-- |
Gauges: all new 3.5" center color LCD info display, electroluminescent speedometer, tachometer, fuel gauge, and includes a coolant temperature gauge. | -- |
-- |
-- |
S |
-- |
S |
All Weather Package (AWP)- heated front seats, defrosting outside mirrors, front wiper de-icer with hidden element |
|
|
S |
|
|
|
|
|
|
2.5i Sport |
|
|
|
Driver Seat- manual
height adj, no lumbar support |
|
|
-- |
|
|
|
Driver Seat- Power 10 Way with power lumbar support |
|
optional heated |
cloth, heated |
|
|
|
Passenger seat- Power 4 way (no lumbar adj) |
|
|
-- |
|
|
|
Memory driver seat- still not not available for 2013! |
|
|
-- |
|
|
|
Rear seats- fold flat, release is in the trunk |
|
|
S |
|
|
|
Trip Computer in upper console with outside temperature, clock, instant and average fuel economy for resettable Trip odometers A, B |
|
|
S |
|
|
|
Roof rack. Fixed position cross bars are available from your dealer local parts dept only (not from the factory). Part E3610AJ520 |
|
|
A |
|
|
|
Bluetooth with steering wheel controls |
|
|
S |
|
|
|
Stereo > A- single CD, AM/FM, 4 or 6 speakers, USB, aux plug, Bluetooth steering wheel controls, wireless audio streaming, console 12v power outlet. > B Stereo: Harman/Kardon (h/k) audio system with 4.3" LCD color display, 440watt amplifier, AM/FM HD radio, single CD, wireless audio streaming, 9 H/K speakers. Pty/cat (program type/category radio station search function). Plays MP3/WMA, R/RW discs, MP3. Bass, mid-range, and treble adjustments, USB, 3.5mm input and 12v power outlet in the center console. Steering wheel with bluetooth, audio, cruise controls. XM satellite radio with 4 months free. The speakers are: 2 80mm mid-range in the top of the dashboard, 2 160mm woofers in the front doors, 2 2-way speakers in the rear doors with a 25mm tweeter and 100mm mid-range, 1 200mm subwoofer in the rear parcel shelf. New for 2013 the roof fin antenna is body colored. |
|
B is optional with Pkg #09 |
A- 6 speakers |
|
|
|
Tinted windows |
|
|
-- |
|
|
|
Tinted windows with dark upper windshield band |
|
|
light tint |
|
|
|
Immobilizer keys, with alarm, 3 keys, 2 with remotes |
|
|
S |
|
|
|
Carpeted floor mats (all carpets are dark) |
|
|
S |
|
|
|
Courtesy lights- front door
lights on the underside of the front door, help at night.Glovebox light,
Trunk area light.
Note- the door lights are not the optional Puddle Lights |
|
|
S |
|
|
|
Trunk cargo tray |
|
|
0 |
|
|
|
Moonroof |
|
|
S |
|
|
|
subject to change, correction, updating |
|
|
2.5i Sport |
|
|
|
A available, S standard, -- not available scroll down for individual options Note: Factory Installed prices. Your purchase price might vary. Dealer installed options may be more due to parts and labor cost. contact your local dealer. subject to change, correction, updating |
||||||
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport new, available late 2012 |
|
|
|
|
|
|
DAE |
|
|
|
Popular Package 1 (OYB).
Auto dimming mirror with compass, Rubber floor mats, Rear bumper
paiint protector, Trunk cargo tray, Splash guards. $579.
na with Navigation Pkg which includes dimming mirror/compass already |
|
|
A |
|
|
|
Popular Package 2 (OYC).
Auto dimming mirror with compass and Homelink, Rubber floor mats,
Rear bumper top paint protector, Trunk cargo tray, Splash guards. $685 na with Navigation Pkg which includes dimming mirror/compass already |
|
|
A |
|
|
|
Protection Package #1 (OYN) Rubber floor mats, Rear bumper applique paint protector, Trunk cargo tray, Splash guards, Security system shock sensor alarm upgrade, Wheel locks. $575 |
|
|
A |
|
|
|
Utility Package 1 (OYP). Fog lights, Rear bumper applique paint protector, Splash guards $645 |
|
|
-- |
|
|
|
Illumination Package 1 (LK4).
Puddle lights, Fog lights $509 Not available with other Option Packages that include Fog lights Note- not available with Eyesight |
|
|
-- |
|
|
|
Illumination Package 2-
Side Sill Plates and Interior Illumination Kit. (LR9) Includes illuminated
front door sill plates with 'Subaru' illuminated on the front door
sills in soft blue light. Interior Illumination incl soft ambient light
in the footwells, around the cupholder, and the storage by the shift lever.
Very cool option and not distracting. $509
or get the Interior Illumination package alone, see options below Note- not available with Eyesight |
|
|
A |
|
|
|
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport |
|
|
|
A available, S standard, - not available scroll up for options packages Note: Factory Installed prices. Your purchase price might vary. Dealer installed options may be more due to parts and labor cost. contact your local dealer. -subject to change, correction |
||||||
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport |
|
|
|
|
|
|
DAE |
|
|
|
110 volt power outlet. 100 watts. #nba/nbb. 2 prong power outlet is in the back of the center console for charging laptops, cell phones etc. $335 |
|
|
A |
|
|
|
Auto dimming mirror with Compass, #kob, $198 na with Navigation |
|
|
A |
|
|
|
Auto dimming mirror with Homelink - standard with Navigation | -- |
-- |
A |
std with Nav |
-- |
std with Nav |
Auto dimming mirror with
compass and 3 Homelink garage door buttons, #kod, $284 note- na
with Nav which includes the mirror/homelink without compass |
|
|
A |
|
|
|
Security System alarm upgrade (shock sensor), #rob, $140 |
|
|
A |
|
|
|
Rubber all weather floor mats, 4, (carpeted mats are standard), #boa, $72 |
|
|
A |
|
|
|
Interior Illumination Package
(LR8) soft ambient light in the footwells, around the cup holder,
and the storage by the shift lever. $280 Note- not available with Eyesight |
|
|
A |
|
|
|
Trunk tray, #mog, $75 |
|
|
A |
|
|
|
Trunk cargo net set, #mbd, $72 |
|
|
A |
|
|
|
Remote Engine Start, #roc, $438, automatic trans only |
|
|
A |
|
|
|
Cigar lighter kit, #noc, $52 |
A |
A |
A |
A |
A |
A |
Rear view back-up camera- only available with Navigation |
-- |
-- |
-- |
A |
-- |
A |
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport |
|
|
|
Rear bumper applique- #qch. $92. Protects the top of the bumper from scratches in the paint |
|
|
A |
|
|
|
Roof rack fixed position cross bars available only from your dealer's parts dept only, not from the factory. 100lbs capacity |
|
|
A |
|
|
|
Body side moldings, body colored. $262 |
|
|
A |
|
|
|
Rear chrome trunk garnish
#qom/qon. $145. a good looking, subtle, chrome trim piece above the license plate |
|
|
A |
|
|
|
Side window moldings - help minimize rain dripping into the car when your windows are slightly open. Dark gray with chrome trim. Available only from your dealer's parts dept, not from the factory. $199 List, plus installation |
|
|
A |
|
|
|
Tail pipe tip #qoh, $52 |
|
|
A |
|
|
|
Trunk lip spoiler, $413 a body colored rear lip spoiler, with brake light |
|
|
A |
|
|
|
Splash Guards (black), #pod, $142 |
|
|
A |
|
|
|
Puddle Lights #qoc, a light under each door. very good for safety. $223 |
|
|
A |
|
|
|
Fog Lights, #qod, $411. the 'on' button is next to mirror control. |
|
|
S |
|
|
|
Front Hood Protector, #qof, $115 |
|
|
A |
|
|
|
Moonroof Air Deflector, #qog, #112 requires moonroof |
|
|
A |
|
|
|
Wheel locks $52 |
|
|
A |
|
|
|
Alloy wheels #h9a, 16" alloy wheels $733 |
|
|
S (18") |
|
|
|
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport |
|
|
|
Rear seat entertainment DVD player optional on all models, 2 rear seat headrest DVD monitors and players.. $1591. |
|
|
A |
|
|
|
Tweeters (2), #dob, $122 |
|
|
A |
|
|
|
Sirius Satellite radio, #doc, $466. To activate, get your ID by tuning to Sat station 000, then call 888-539-7474 |
|
|
A |
|
|
|
XM Satellite radio, #dod
$466 included with h/k audio, navigation.
To activate, get your ID by tuning to Sat station 000 then call 800-852-9696. |
|
|
A |
|
|
|
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport |
|
|
|
Leather shift knob #JBA, $159, automatic only |
|
|
A |
|
|
|
STI shift knob, #j8a, $182, manual trans only |
|
|
-- |
|
|
|
STI Duracon shift knob, #j8b, $92, manual trans only |
|
|
-- |
|
|
|
Metal pedals, automatic transmission, #coc, $167 |
|
|
S |
|
|
|
Metal pedals, manual transmission, #cod, $193 |
|
|
-- |
|
|
|
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport |
|
|
|
top 2013 LEGACY INTERIORS
Gray interior with off black cloth or leather Beige interior with warm ivory cloth or leather subject to change, correction |
|

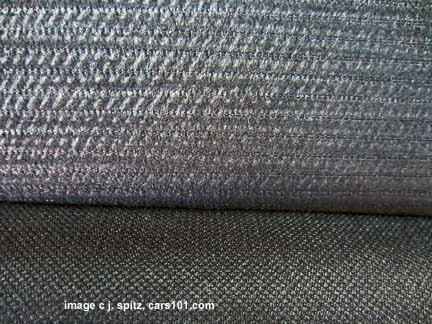

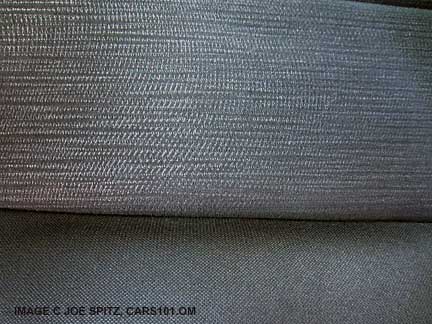

2.5i and Premium with off-black (dark gray) cloth and silver dash trim. 2.5i model shown - note the stereo, and no cover on the center console box below the stereo |

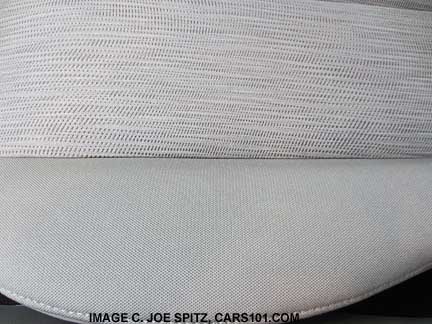

2.5i and Premium with ivory (beige) cloth seats and silver dash trim. Premium model shown - note the cover on the center console box below the stereo, and heated seats |
Limited model with gray interior with off-black (dark gray) leather and wood dash trim. This one has optional navigation. Carpeted floor mats, not shown, are standard and included on all models |
the new 2013 Subaru Legacy Sport model has dark carbon fiber looking dash trim, black cloth with silver stitching, medal pedals. The Sport is available starting December 2012 |
Venetian red with taupe (beige) interior. . Premium shown with power driver seat Venetian red and Twilight blue are both available with either beige or gray interiors. |
Venetian red with gray interior. 2.5 model shown with manual height adjustable seat Venetian red and Twilight blue are both available with either beige or gray interiors. |
2.5i and Premium off black (dark gray) cloth |
closeup of the off-black (really a dark gray) cloth on 2.5i and Premium models |
the ivory (beige) cloth interior on 2.5i and Premium models |
the new 2013 Legacy Sport model available Dec. 2012 has black (dark gray) striated cloth with silver stitching |
scroll down for model availability - |
|||
new for 2013 Twilight Blue Metallic with
either off black or warm ivory interior
|
with either off-black or warm ivory interior |
Deep Indigo Pearl with ivory interior |
Caramel Bronze Pearl with ivory interior |
satin white pearl with ivory interior |
Ice Silver Metallic off black interior |
Graphite Gray Metallic, off black interior |
crystal black silica, with ivory interior |
2013 LEGACY COLOR AND MODEL
AVAILABILITY
subject to change, correction, updating NEW COLORS FOR 2013 new 2.5i Sport model, available late 2012. All with black striated cloth, silver stitching Note- the new Twilight Blue and Venetian Red colors are available with either off-black or warm ivory interior. Its been a long time since Subaru has offered two interiors with the same color. Twilight Blue Metallic with off-black or warm ivory interior
Venetian Red Pearl with off-black or warm ivory interior GONE- NO LONGER AVAILABLE Sky Blue Metallic Ruby Red Pearl subject to change and correction
|
||||||
color |
Legacy 2.5i |
2.5i Premium |
2.5i Sport |
2.5i Limited |
3.6R |
3.6R Limited |
Caramel Bronze Pearl (CBP) | warm ivory cloth |
warm ivory cloth | -- |
warm ivory leather |
warm ivory cloth | warm ivory leather |
Crystal Black Silica (CBS) |
warm ivory cloth | warm ivory cloth | black striated cloth, silver stitching |
warm ivory leather |
warm ivory cloth | warm ivory leather |
Deep Indigo Pearl (DIP) |
warm ivory cloth | warm ivory cloth | -- |
warm ivory leather | warm ivory cloth | warm ivory leather |
Satin White Pearl (WHI) |
off black cloth |
off black cloth | black striated cloth, silver stitching | off black leather |
off black cloth | off black leather |
Graphite Gray Metallic (GG1) |
off black cloth | off black cloth | black striated cloth, silver stitching | off black leather | off black cloth | off black leather |
Ice Silver Metallic (ISM) |
off black cloth | off black cloth | black striated cloth, silver stitching | off black leather | off black cloth | off black leather |
new Twilight Blue Metallic (TBM) |
off black cloth | off black cloth | black striated cloth, silver stitching | off black leather | off black cloth | off black leather |
new Twilight Blue Metallic (TB1) | warm ivory cloth | warm ivory cloth | -- |
warm ivory leather | warm ivory cloth | warm ivory leather |
new Venetian Red Pearl (VRP) |
off black cloth | off black cloth | black striated cloth, silver stitching | off black leather | off black cloth | off black leather |
new Venetian Red Pearl (VR1) | warm ivory cloth | warm ivory cloth | -- |
warm ivory leather | warm ivory cloth | warm ivory leather |
a short list of some 2013 All Wheel Drive mid-sized and large sedans with their EPA MPG city/highway/combined rating Thinking of getting a new All Wheel Drive sedan? Here are some to consider.
subject to change, correctionEngine size and price was not considered, only fuel economy. Rating: city/highway/combined This isn't a complete list Sorted alphabetically. |
|
> Subaru Legacy-
2.5L manual 21/28/24, CVT 24/32/27 3.6R 18/25/20 Acura TL A 18/26/21, M 17/25/20 Audi A4 A 21/29, M 21/31 Audi A5 cabriolet quattro 24/31/26 Audi A6 2.0L quattro 20/30/24 Audi A6 3.0L quattro 18/27/22 Audi A7 quattro 18/28/21 BMW 528i xDrive 22/33/26 BMW 535i xDrive 21/30/24 BMW 535 Gran Turismo xDrive 18/26/21 BMW 550 Gran Turismo xdrive 16/24/19 BMW 550i xDrive 16/24/19 BMW 750Li XDrive 16/14/19 BMW 650 coupe X drive 15/20 Buick LaCrosse- 17/25/20 Cadillac ATS 2.0L 20/30/24 Cadillac ATS 3.6L 18/26/21 Cadillac CTS 3.0L 18/26/21 Cadillac CTS 3.6L 18/27/21 Cadillac XTS 17/26/20 Chrysler 300 5.7L 15/2318 Chrysler 300 3.6L 18/27/21 Dodge Charger 5.7L 15/23/18 Dodge Charger 3.6L 18/27/21 |
Ford Taurus- 18/26/21 Ford Fusion- 22/31/25 Infiniti G25x 18/25/20 Infiniti G37x coupe 18/25/20 Infinity M37x 17/24/20 Infinity M56x 16/23/18 Lamborghini Adventador 11/18/13 Lexus GS 350 19/26/21 Lincoln MKZ- 2.0L 22/31/25 Lincoln MKZ 3.7L 18/26/21 Lincoln MKS 3.5L 17/25/20 Lincoln MKS 3.7L 16/23/18/26/21 Lexus 460- 16/23 (2012) Lexus 460 L- 16/23 (2012) Mercedes C300 4matic 20/28/23 Mercedes E350 4matic 19/29/22 Mercedes E 550 4matic 16/26/20 Mercedes CL550 4matic 15/24/18 Mercedes CLS550 4matic16/25/19 Mercedes S550 4matic 15/24/18 Mercedes S350 Bluetec 4matic 21/31 Nissan GT-R 16/23/20 Suzuki Kizashi S- 23/30/25 Suzuki Kizashi- 22/29/25 Volvo S60 2.5L 20/29/23 Volvo S60 3.0L 18/25/21 Volvo S80 18/25/21 VW CC 4Motion 17/25/20 |
