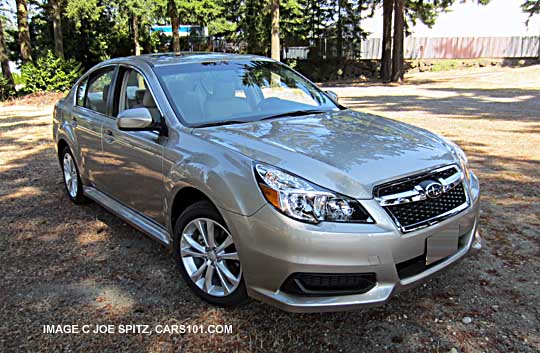

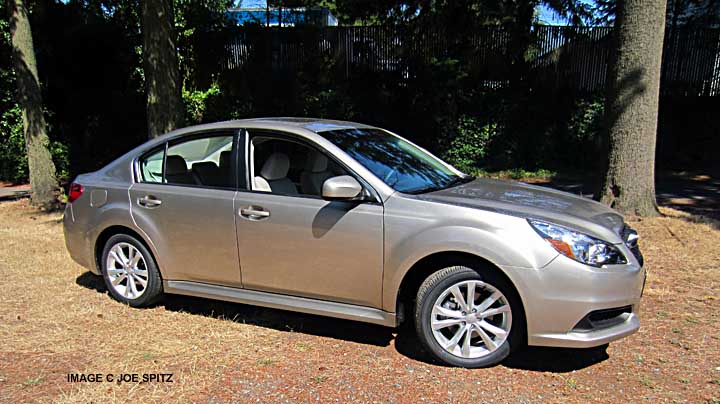

new color for 2014 tungsten metallic premium (no fog lights). This pale beige color can look silver in the shade.
-
 new color for 2014 tungsten metallic is a pale beige but can in the shade almost appears silver |

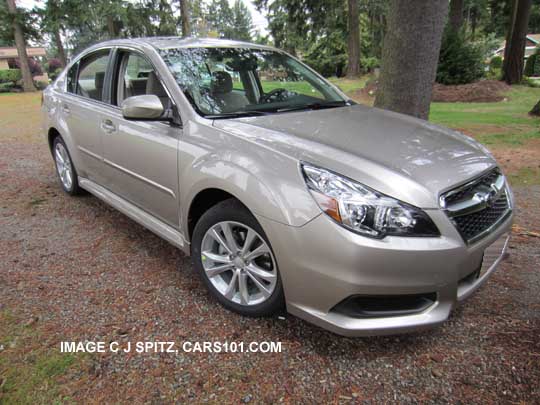

 tungsten metallic is a new color for 2014 - its a pale beige but can look silver depending the light |

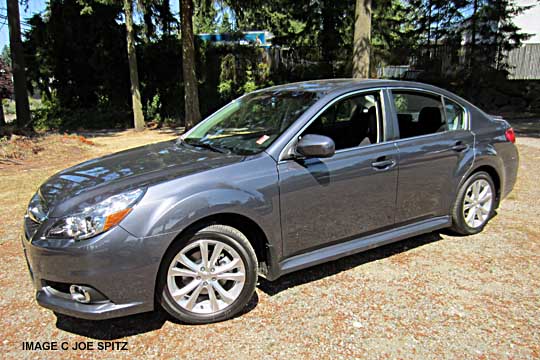

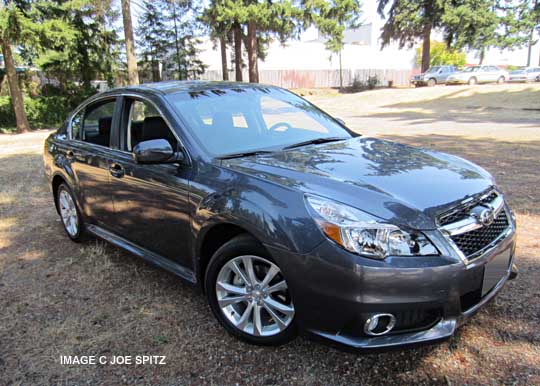

 new for 2014, carbide gray metallic is gray with lots of blue |
 carbide gray metallic is a new color for 2014. |

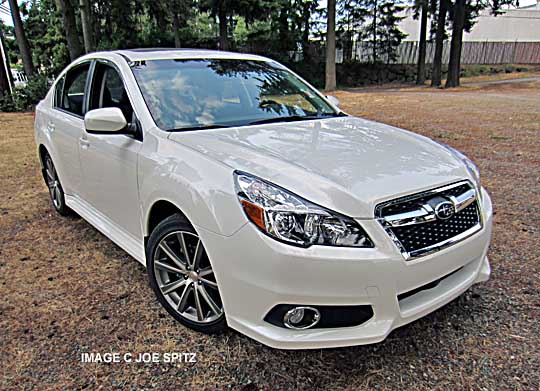

 only the Sport has 18" alloys. satin white shown |
 venetian red pearl 2014 Legacy Premium |

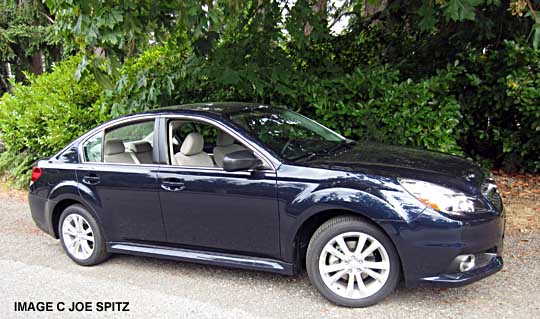

 base 2.5i, deep indigo, with new for 2014 alloy wheel/fog light package #21 1/16/14 Deep Indigo Pearl has been discontinued on 2014 Outback and Legacy |
 the base 2.5i model has unpainted mirrors. Deep indigo color shown with new for 2014 optional alloy wheel/fog light package #21 |

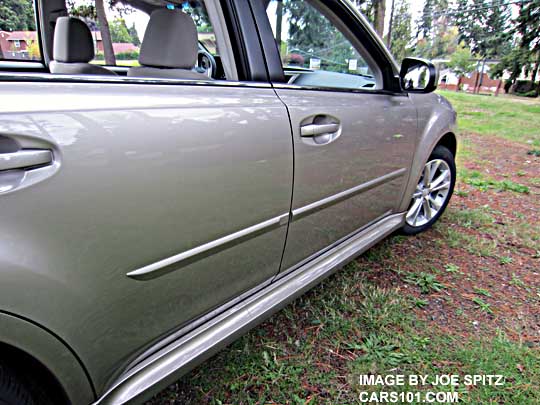

 optional body side moldings. tungsten metallic shown |
 tungsten metallic, with optional body side moldings |

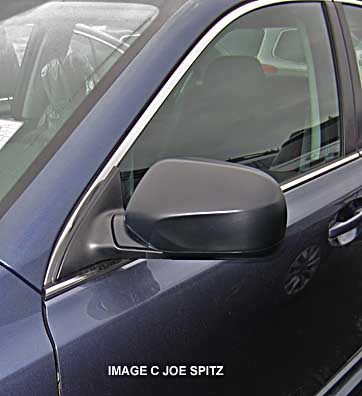

 the base 2.5i has unpainted black outside mirrors |

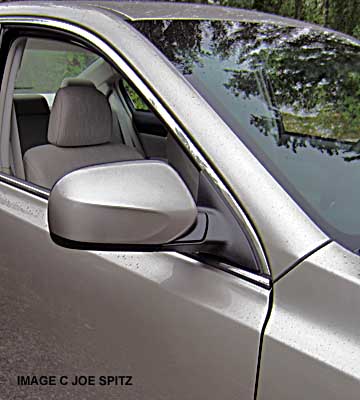

 all Premium, Sport, Limited models have body-colored painted outside mirrors |

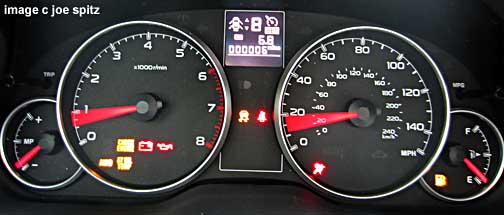

 2.5i and Premium instrument panel needles sweep when first turned on |
 2.5i and 3.6L Limited dash when on. The Limiteds have a coolant temperature gauge. Showing center LCD with elapsed time function on (via steering wheel iSet buttons) |
|||

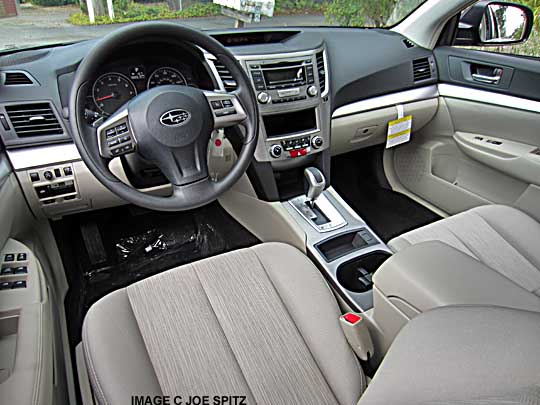

 2014 Legacy 2.5i CVT, warm ivory cloth with silver dash trim. Notice the open storage between the stereo and heater controls |
 the 2.5i Premium with optional Eyesight. The 2.5i and Premium have silver dash trim |
|||

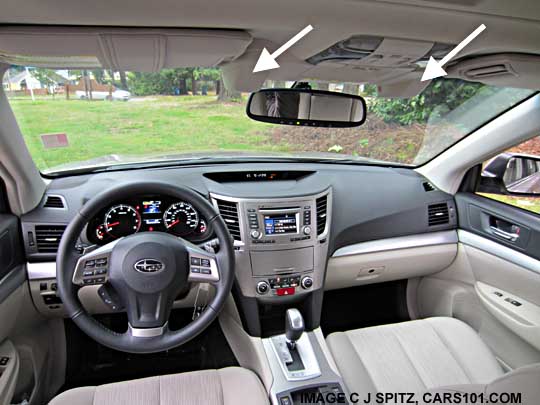

 Legacy Premium with optional Eyesight - notice the two white arrows pointing to the dual Eyesight cameras |
blank for now |
|||

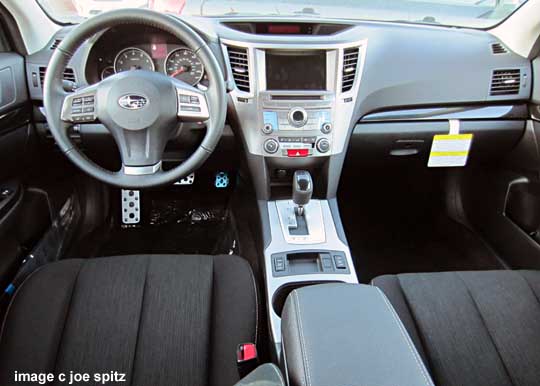

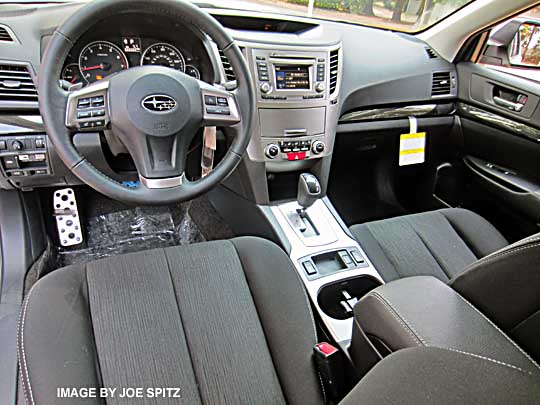

 2014 2.5i Sport model has black carbon-fiber like dash trim and off black cloth |
 Sport (notice black dash trim etc) with optional navigation |
|||

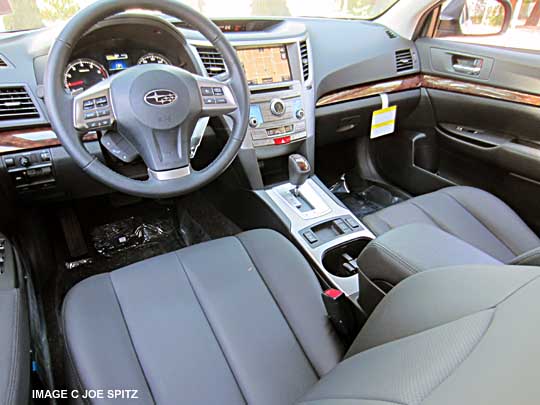

 2.5i Limited with optional navigation. All Limiteds have wood dash trim |

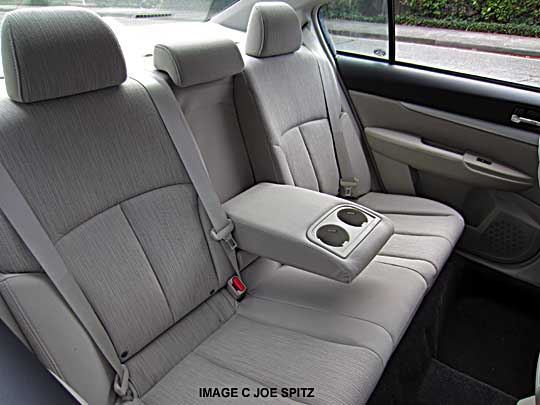

 2014 Subaru Legacy rear seat with armrest/cupholder. warm ivory beige cloth shown |
|||

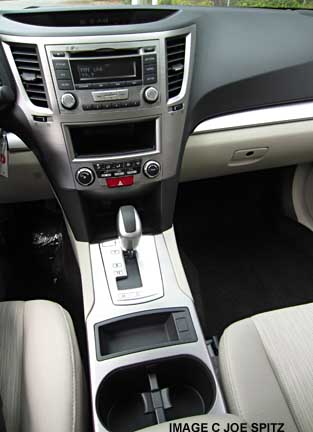

 the 2.5i base model center console's storage bin doesn't have a door. all other models do |

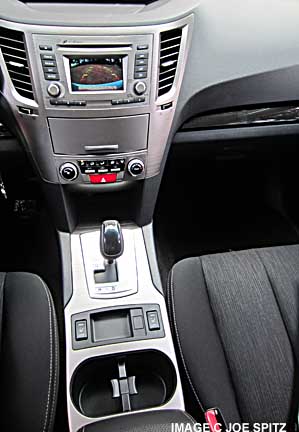

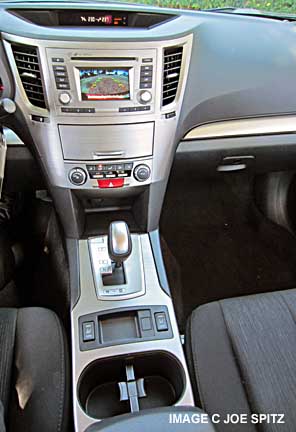

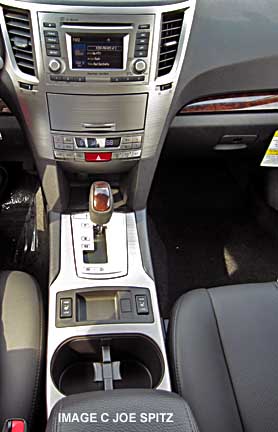

 Premium with silver dash trim, in reverse with the rear view camera showing in the audio screen |
|||
|
||||

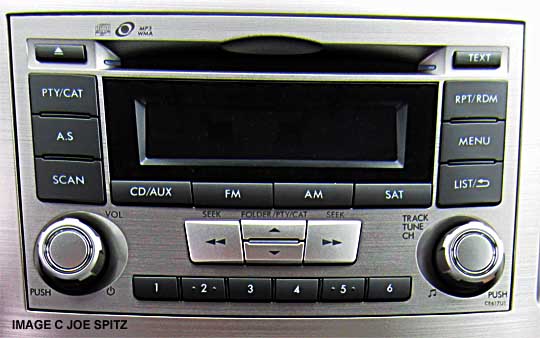

 2014 legacy 2.5i base model stereo |

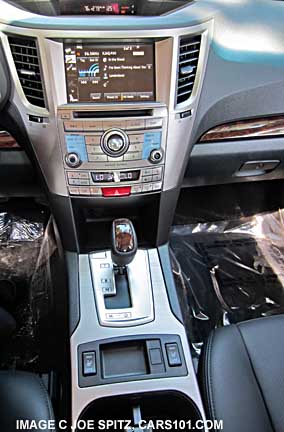

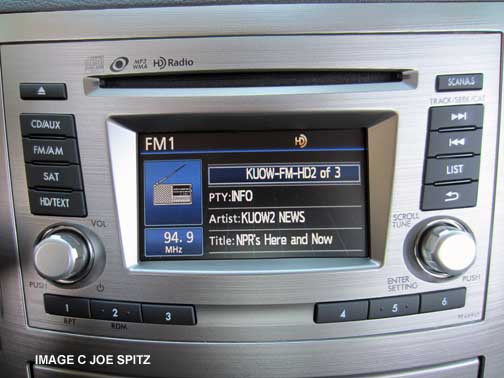

 new for 2014- Legacy premium gets an upgraded stereo with 4.3" display, HD and satellite radio. With the optional moonroof pkg, the backup camera displays in either this screen or the navigation screen |
|||

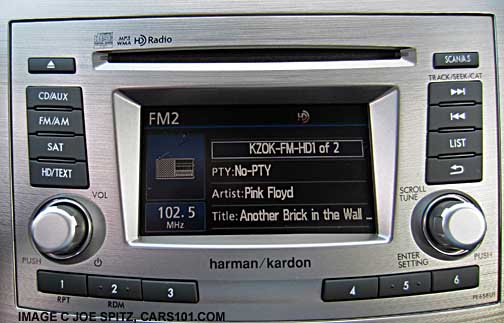

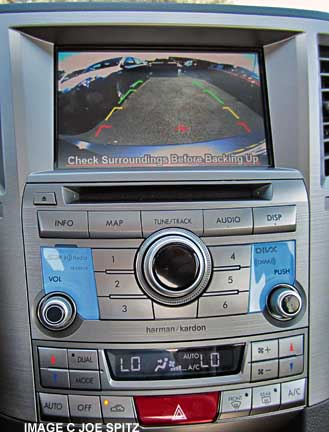

 The Limited has the harman/kardon upgraded stereo with 4.3" display screen. New for 2014 With the optional moonroof package, the back-up camera displays in this screen |
 Navigation on Limited with climate control |
|||

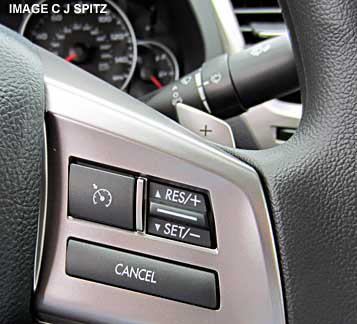

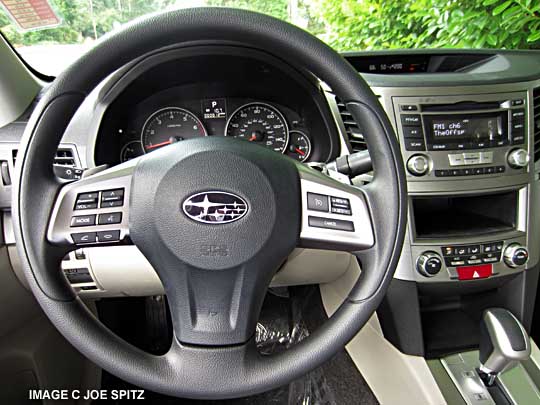

 base model 2.5i steering wheel |

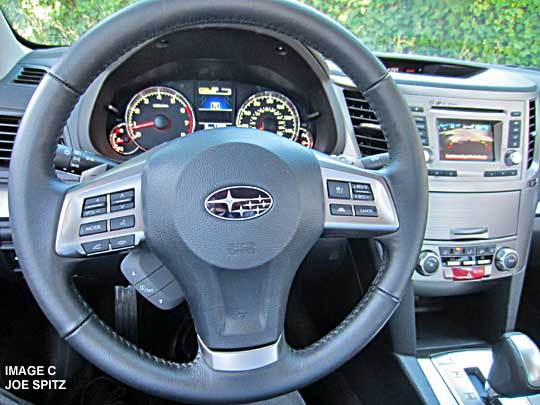

 2014 Legacy Premium leather wrapped steering wheel |
|||

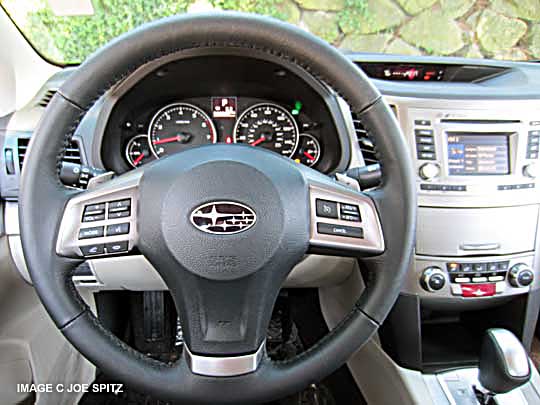

 2014 Legacy Premium steering wheel - with Eyesight iSet buttons on the left so this car has optional Eyesight |

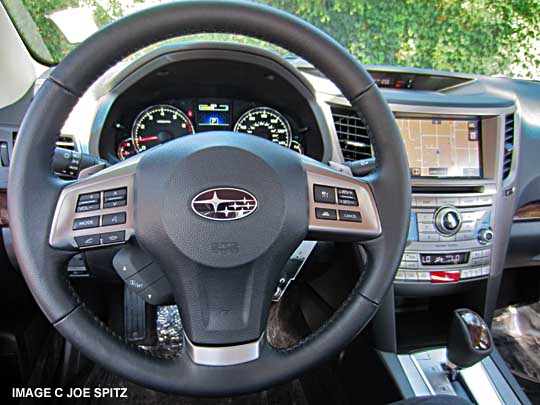

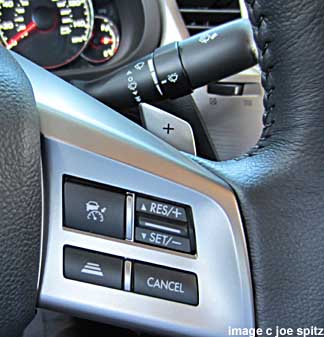

 2014 Legacy Limited steering wheel has standard iSet control buttons. Navigation GPS shown |
|||
|
||||

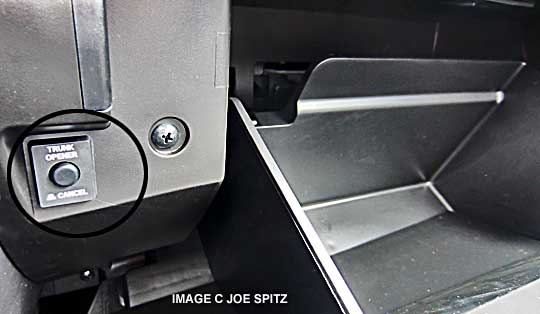

 the trunk opener button is above the driver's left knee, the disconnect button (circled) is in the glovebox |

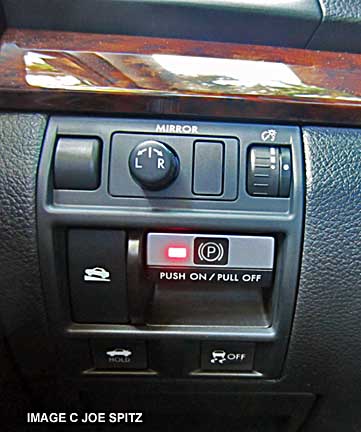

 controls by driver's left knee- mirror adjustment joystick, dash lights, power parking brake on/off, hill holder incline assist, trunk opener, VDC off. Limited shown with wood trim |
|||
|
2014 LEGACY MODELS |
|
| 2.5L 4 cylinder engine |
model code |
| 2.5i, manual transmission |
EAA |
| 2.5i, CVT transmission |
EAB |
| 2.5i Premium, CVT transmission |
EAD |
| 2.5i Sport, CVT transmission |
EAE |
| 2.5i Limited |
EAF |
| 3.6L 6 cylinder engine |
model code |
| 3.6R Limited |
EAK |
|
.top
2014 MAINTENANCE SCHEDULEsubject to change and correction see your local servicing dealer for full details and coverage on your specific car- |
|
the full maintenance schedule Break-in period for the first 1000 miles Don't race the engine, keep RPMs under 4,000 for the most part and vary the speeds with normal city/highway driving. 2.5L models- the first oil change is required by 7500 miles or 7.5 months. Its recommended to do it around 3months/3,000 miles. 3.6R models- the first oil change is required by 3months/3,000 miles. Oil 2.5L engine: 0w-20 synthetic oil is required 3.6L engine- 5w-30 oil. Synthetic oil is recommended but not required Its required to replace the oil and filter at least every 7,500 miles or 7.5 months. With heavy stop and go, hard driving, or towing etc its recommended to replace every 3750 miles or 3.75 months Service schedule First oil/filter service- 2.5L models- the first oil change is required by 7500 miles or 7.5 months. Its recommended to do it around 3months/3,000 miles. First oil/filter service- 3.6L models- the first oil change is required by 3months/3,000 miles. Tire Rotations- tires should be rotated every 7500 or 7.5 months or so. Equal tread is required on all 4 tires. 7,500 miles/7.5 months-
oil/filter service, rotate tires. equal tread is required on all tires.
Radiator fluid is Super Coolant
long life. The first replacement is 11 years.
|
|
|
|
WARRANTY subject to change and correction see your local servicing dealer for full details and coverage on your specific car  Roadside assistance phone number is on the driver's window, also on 2 wallet cards included with the owners manual. Call 800 261.2155. Its good for 36months, 36000 miles. . |
|
Bumper-to-Bumper warrtany: 3 year/36,000 miles, includes Wear Item warranty covering premature wear: brakes, clutch linings, remote batteries, wiper blades etc. Roadside assistance included for 3yr/36000 miles. Its through the Cross Country Motor Club, phone 800 261-2155. Includes break-down, lock-out, flat repair, lost key, etc Powertrain warrany: 5 year/ 60,000 miles Corrosion: 5 year/100,000 miles Emissions: Federal spec LEV (low emission vehicle) 3 years/36,000 miles plus 8 year/80,000 mile extended defect warranty covering Major Emission Control Components (catalytic converter, electronic emission control unit, diagnostic device) California spec PZEV (partial zero emission vehicle) sold and registered in CA, CT, DE,MA, ME, NJ, NY, OR, PA, RI, VT, WA: 3 years/50,000 miles, plus 7 year/70,000 mile extended defect warranty with extensions to up to 15years/150,000 miles Note Warranties
do not cover wear or damage due to abuse, lack of maintenance or competitive
driving. Exclusions may apply, wear replacement may be one time.
|
|
STANDARD SAFETY FEATURES 2014 NHTSA crash test 5 STAR Overall, Frontal, Side and Rollover Subaru's Mobile-It-Ease program helps modify vehicles for special needs drivers. More info here |
|
| BOS- brake over ride system |
When gas and brake pedals are pushed at the same time, the brake pedal overrides the gas pedal and the car stops |
| All Wheel Drive |
|
| Stability Control, Traction Control |
|
| Seatbelts |
Height adjustable shoulder harness anchor points (except center rear) |
| Child Seat |
Child seat anchors hidden under flap |
| Front Airbags |
Driver: detects distance of driver from steering wheel Passenger seat: detects weight and will turn off airbag if passenger is under 75#. This status is displayed by the trip computer |
| Side Airbags |
|
| Side Curtain airbags |
|
| Headrests |
|
| Crumple Zones |
|
| 5mph Impact Bumpers |
|
| Re-inforcements |
dual front, single rear, all tied into a full perimeter protection system |
| Brakes |
2.5L ventilated front discs, solid rear discs GT and 3.6R: ventilated front and rear discs |
| DayTime Running lights (DRL) |
|
| Auto-off headlights |
|
| Childproof rear door locks |
|
| Panic Alarm |
|
| Event Data Recorder (EDR) |
EDR, Event Data Recorder information. In the event of an impact, the EDR will freeze data including how various systems were operating, for example if seatbelts were buckled, if the gas or brake pedals were pressed, and vehicle speed. No personal data is stored. To read data, special equipment is required. In addition to the vehicle manufacturer (Subaru), other parties such as law enforcement that have the equipment can read the information if they have access to the vehicle or EDR. Existing laws generally provide that information in an EDR is confidential and is the property of the owner of the motor vehicle. Information is accessed through the airbag system using a Subaru service computer. |
|
subject to change, frequent correction, updating. - |
|
| Wheelbase: 108.3"
Overall Length 187.2" Width: 71.7" including outside mirrors folded-in, with outside mirrors folded out 81", Height: 59.3" Headroom front/rear no moonroof: 40.3"/37.5" Headroom front/rear with moonroof: 38.1/37.5" Legroom front/rear: 43.0"/37.8" |
Shoulder room front/rear
56.3/56.1
EPA Interior volume, no moonroof 103cf EPA Interior volume, with moonroof 100cf EPA Trunk Cargo volume 14.7cf Track 2.5i: front/rear 61.6/62.0" Track 2.5i Sport 61/61.2 Track 3.6R: front/rear 61.6/62.0" Ground Clearance: 5.9" |
|
Select only one package per car. You can't break up a package or select only certain components subject to change, correction, updating |
||
|
|
|
|
| 2.5i manual- (model code EAA)
|
|
standard |
| 2.5i CVT- (model code EAB) | #01 |
standard |
| #21 |
new package for 2014 Alloy Wheel Package includes 17" alloy wheels, and fog lights with chrome trim rings MSRP $300 |
|
2.5i Premium CVT- (model code EAD) |
#02 |
new for 2014 All Weather Package (awp) is standard on the Premium Dual mode heated front seats, defrosting outside mirrors, front wiper deicer with hidden element. |
| #04 | Moonroof, power moonroof tilts up, or slides back. with moonroof sunshade, auto dimming rear view mirror with Homelink garage door opener New for 2014 includes backup camera that displays in the 4.3" stereo screen List price $1445 |
|
| #39 | new package for Legacy Moonroof with backup camera, with Navigation/GPS/Aha Power moonroof tilts up, or slides back. with moonroof sunshade, auto dimming rear view mirror with Homelink garage door opener. with backup camera that displays in the navigation screen Navigation: voice activated, 7" LCD touchscreen, bluetooth phone with contact downloading (works with most Droid, BB, iPhone), 2D and 3D map settings, XM NavTraffic® ( 3 months free), Aha system, auto dimming rear view mirror with homelink, body colored roof mounted antenna. Navigation uses an SD card slot for map updates... MSRP $2745 |
|
| #41 |
new package for Legacy Moonroof with Eyesight drive assist system Moonroof with sunshade, tilt up or slide back, auto dimming rear view mirror with Homelink, backup camera (displays in stereo screen) Eyesight driver assist system is an advance collision warning system, with dual front facing cameras on either side of the the rear view mirror. Eyesight includes active cruise control, Lane sway, and pre-collision braking. Active cruise control that can be set to follow the lead car at one of three distances. Lane sway will buzz if the car drifts out of its lane. Pre-collision braking will activate the brakes in an object is detected in front of the car. Includes electroluminescent instrument panel with color LCD display. Eyesight cars have three windshield washer squirters, with the middle one to clean in front of the cameras. MSRP $2740 |
|
| 2.5i Sport CVT (model code EAE) |
#02 | All Weather Package (awp) is standard on the Sport Dual mode heated front seats, defrosting outside mirrors, front wiper deicer with hidden element. |
| #37 |
Navigation: voice
activated, 7" LCD touchscreen, bluetooth phone with contact downloading (works
with most Droid, BB, iPhone), 2D and 3D map settings, XM NavTraffic® ( 3 months free), Aha system, body colored roof mounted antenna. Navigation uses an SD card slot for
map updates...
MSRP $1300 |
|
| 2.5i Limited- (model code EAF) and 3.6R Limited- (model code EAK) |
|
Moonroof, with sunshade,
tilt up and slide back, auto open/close, auto dimming rear view mirror with Homelink garage door opener, backup camera MSRP price $1445 |
#39 |
7" Navigation/GPS/Aha, with Moonroof with sunshade, tilt up and slide back, auto dimming rear view mirror with Homelink garage door opener, backup camera 7" Navigation/GPS system, voice activated, 7' LCD touchscreen, with harman/kardon 440w, 9 speaker audio system, bluetooth phone with contact downloading (works with most Droid, BB, iPhone), 2D and 3D map settings, XM NavTraffic® ( 4 months free), AHA system, body colored roof mounted antenna, an SD card slot for map updates... Aha Aha integrates your phone playlists online radio etc with the factory stereo MSRP $2,745 |
|
| #43 | Moonroof with auto dimming rear view mirror with Homelink garage door opener, backup camera, 7" Navigation/GPS/Aha, and new for 2014 includes Eyesight System voice activated Navigation, 7' LCD touchscreen, with harman/kardon 440w, 9 speaker audio system, bluetooth phone with contact downloading (works with most Droid, BB, iPhone), 2D and 3D map settings, XM NavTraffic® ( 4 months free), AHA system, body colored roof mounted antenna, an SD card slot for map updates... Eyesight driver assist system is an advance collision warning system, with dual front facing cameras on either side of the the rear view mirror. Eyesight includes active cruise control, Lane sway, and pre-collision braking. Active cruise control that can be set to follow the lead car at one of three distances. Lane sway will buzz if the car drifts out of its lane. Pre-collision braking will activate the brakes in an object is detected in front of the car. Eyesight cars have three windshield washer squirters, with the middle one to clean in front of the cameras. MSRP $4040 |
|
|
subject to change, correction this is a research site and your purchase price may vary due to your dealer's mark-up or discounts, rebates, incentives. always contact your dealer - |
|||||||||||||||||
|
Notes 5/10/13 Prices announced. 5/3/13 Legacy and Outback factory orders are now accepted Cars expected July or maybe late June Destination- Legacy destination now $795 (up from $770.). Destination to Alaska $945. Prices and destination might vary in CT, HI, MA, ME, NH, NJ, NY, RI. VT. Where do you live, what state? PZEV emissions (partial zero emission vehicle) is required on 4 cylinder CVT models (codes EAB, EAD, EAE, EAF) in CA, CT, MA, MD, ME, NH, NJ, NY, OR, RI, PA, VT, WA. Always include destination when discussing price or calculating payments. Prices here do not include any applicable tax or license fees Interest rates, rebates page subject to change and correction
|
|||||||||||||||||
|
CA, CT, MA, MD, ME, NH, NJ, NY, OR, RI, PA, VT, WA. |
|
. |
see full package descriptions above- |
||||||||||||||
| . | #02 All Weather
Pkg
#04 Moonroof, backup camera, dimming mirror #21 Alloy wheel/fog light package #37 Navigation/Gps/Aha |
#39 Moonroof, backup camera, dimming mirror, Navigation/Gps/Aha #41 Moonroof, backup camera, dimming mirror, Eyesight #43 Moonroof, backup camera, dimming mirror, Navigation/Gps/Aha, Eyesight |
|||||||||||||||
|
|
code |
|
|
|
|
#01 |
#02 |
#04
$1445 |
#21 $300 |
#37
$1300 |
#39 $2745 |
#41 $2,740 |
#43 $4040 |
- |
|||
| Legacy 2.5i manual 6speed |
|
|
$795 |
|
|
S |
- | - | - | - | - | - |
- |
- | |||
| Legacy 2.5i, CVT |
|
|
$795 |
|
|
S |
- | - |
$22,390 |
- | - | - |
- |
- | |||
| Legacy 2.5i, CVT, PZEV EMISSIONS |
|
|
$795 |
|
|
S |
- | - |
$22,690 |
- | - | - |
- |
- | |||
| Legacy 2.5i Premium, CVT |
|
|
$795 |
|
|
S |
S |
$25,535 |
- |
- |
$26,835 |
$26,830 |
- |
- |
|||
| Legacy 2.5i Premium CVT, PZEV EMISSIONS |
|
|
$795 |
|
|
S |
S |
$25,835 |
- |
- |
$27,135 |
$27,130 |
- |
- |
|||
| Legacy 2.5i Sport CVT- | EAE |
$25,245 |
$795 | $26,040 |
. |
S |
S |
S |
- |
$27,340 |
- |
- |
- |
- |
|||
| Legacy 2.5i Sport CVT, PZEV EMISSIONS |
EAE |
$25,545 |
$795 | $26,340 |
. |
S |
S |
S |
- |
$27,640 |
- |
- |
- |
- |
|||
| Legacy 2.5i Limited, CVT | EAF | $25,895 | $795 | $26,690 |
|
S |
S | $28,135 | - |
- |
$29,435 |
- |
$30,730 |
- |
|||
| Legacy 2.5i Limited CVT, PZEV EMISSIONS | EAF | $26,195 | $795 | $26,990 |
|
S |
S |
$28,435 | - |
- |
$29,735 |
- |
$31,030 |
- |
|||
| Legacy 3.6R Limited - 5 spd auto | EAK | $28,895 | $795 | $29,690 |
|
S |
S |
$31,135 | - |
- |
$32,435 |
- |
$33,730 |
- |
|||
|
|
|
|
|
|
|
# 01 |
#02
|
#04 | #21 | #37 | #39 | #41 | #43 |
- |
|||
|
2014 Legacy mechanical specifications and details subject to change and correction |
||||||
| engine |
2.5L 4 cylinder This is an all new engine for the 2013 Legacy and Outback. It was first used in the 2011 Forester. |
3.6L 6 cylinder |
||||
| model |
2.5i |
2.5i Premium, 2.5i Sport |
2.5i Limited |
3.6R Limited |
||
| model code |
manual- EAA , CVT- EAB |
CVT- Premium EAD, Sport DAE |
CVT- 3AF |
5 speed automatic- EAK |
||
| engine specifications |
This is the second year for this engine in the Legacy and Outback models. It was first used in the 2011 Forester. 2.5L 4 cylinder Horizontally opposed Boxer engine. Engine code FB25 152ci, 2498cc aluminum block and heads DOHC- double overhead cam Sequential multi-port fuel injection Electronic throttle control Compression 10.01 Bore x stroke: 94x90 Composite resin intake manifold Sequential fuel injection Camshaft Timing chain (no timing belt to replace) |
6
cylinder, 3.6L DOHC Boxer Engine code EZ36D 221.5ci, 3630cc 24 valves aluminum block and heads Sequential multi-port fuel injection Electronic throttle control Bore x stroke: 92x91 DAVCS dual active variable valve control system, v Variable valve timing Camshaft timing chain (no replacement schedule) Composite resin intake manifold Sequential fuel injection Direct electronic distributorless ignition Speedometer to 160mph Redline 6400 rpm Compression 10.5:1 |
||||
| Horsepower/torque |
Horsepower 173@5600rpm, torque 174lb-ft@4100rpm (previous 2010-2012 models had 170hp@5600rpm, torque170@4000rpm) |
horsepower 256@6000rpm, torque 247lb-ft@4400rpm |
||||
| Fuel Economy- city/highway/combined Regular gas, 87 octane all models capacity- 18.5 US gallon tank |
manual 21/28/24 CVT 24/32/27 (2010-2012 CVT was 24/20/26) |
CVT 24/32/27 |
CVT 24/32/27 | Automatic 5speed- 18/25/20mpg | ||
| Oil |
0w-20 synthetic oil required, Oil and oil filter capacity
5.5 US qt, 4.4 Imp qt
First and subsequent oil/filter replacement schedule- at least every 7500 mile/7.5 months |
5w-30 synthetic oil. 7500 mile/7.5 mo maximum replacement interval. First replacement req at 3mos/3000 miles, 2nd replacement at 7.5 mos/7500 miles |
||||
| tune-up specs |
2.5L
4 cylinder Spark plugs: NGK SILZKAR7B11 Firing order 1-3-2-4 Ignition timing/idle (btdc) manual 16*, 650 rpm, automatic 16*, 675 rpm Idle speed/rpm: Manual trans 650, Automatic trans 675 Generator/Battery 12V-90A, manual 48AH, Automatic 52AH Oil and oil filter capacity 5.1 US qt, 4.4 Imp qt Oil- synthetic required, 0w-20 Coolant- Replace at 11 years137,000 miles. manual 8.0 US qts, automatic 7.9 US qts. |
3.6L 6 cylinder Spark Plugs: NGK SILFR6C11 Plug Firing Order 1-6-3-2-5-4 Oil, oil filter capacity 8.5US qt Idle speed, parked, 700rpm Ignition timing 15* BTDC Oil- 5w-30, synthetic recommended oil and filter capacity 6.9 US qts Coolant- Replace at 11 years137,000 miles. 6.9 US qts |
||||
| Transmission: full time all wheel drive (awd) with stability and traction control is standard on all models Outback, Legacy: this is the second year for this 2nd generation CVT |
S- manual 6 speed transmission O- CVT with paddle shifters and 6 gear-like settings |
CVT with paddle shifters and 6 gear-like settings is standard on Premium and Sport. no manual Premium is available |
CVT with paddle shifters and 6 gear like settings, no manual available |
automatic 5 speed, with paddle shifters. no manual is available |
||
| All Wheel Drive system (awd) |
Manual transmission- 2.5i with Manual 6 speed transmission
Continuous All Wheel Drive system viscous coupling 50/50 front/back power split. With VDC stability control and Traction Control System (TCS) CVT - 2.5i, Premium, Limited with CVT (Continuously Variable Transmission) Active All Wheel Drive system Electronically controlled, primarily front wheel wheel but constantly monitoring and varying the front/back power split. With VDC stability control and Traction Control System (TCS)
|
Automatic 5 speed
transmission- VTD (Variable Torque
Distribution) traction control system has 45/55 performance oriented, front/rear
power split. |
||||
| VDC, TCS VDC Vehicle Dynamics Control electronic stability control plus TCS traction control system |
VDC
is standard on all models. VDC vehicle dynamics
control, is an electronic stability control system that measures and monitors
steering wheel input, braking, vehicle angle etc and then applies individual
brakes and/or reduces engine power to counteract skids or slides to help
keep maintain driver control.
TCS traction control system electronically sensing spinning wheels and uses the brakes to slow the spinning wheel |
|||||
| gear ratios |
manual transmission: 1st gear 3.454, 2nd 1.947, 3rd 1.296, 4th 0.972, 5th 0.825, 6th 0.695 final 4. CVT in manual mode: 1st gear 3.581, 2nd 2.262, 3rd 1.658, 4th 1,208, 5th 0.885, 6th 0.618. final 3.70 CVT in automatic D mode continuously varies between 3.581-0.618 |
automatic 5 speed: 1st gear 3.540, 2nd 2.264, 3rd 1.471, 4th 1.000, 5th 0.834, final 3.083 |
||||
| model reminder |
2.5i |
2.5i Premium, 2.5i Sport |
2.5i Limited |
3.6R Limited |
||
| emissions |
CVTs are required to have PZEV emissions when sold in CA, CT, MA, MD, ME, NH, NJ, NY, OR, RI, PA, VT, WA. here is a brief, simple summary. PZEV is Partial Zero Emission Vehicle. The EPA says PZEV is the cleanest running gas car on today's market based on emissions testing for carbon-containing compounds, oxides of nitrogen, particulate matter, and other tailpipe nastiness. What it does 1. A charcoal canister catches unburned gas left in the engine when it's turned off so it doesn't evaporate. 2. Fuel injectors close tighter when they're not in use. 3. It has a finer mesh in the catalytic converter, as well as optimized placement of precious metal. 4. The engine's electronic brain is set to run hotter at start up so the catalytic converter heats up faster. |
PZEV is not available or required on the 3.6L |
||||
| Brakes: brake override system (BOS). When gas and
brake pedals are pushed at the same time, the brake overrides the gas and the
car stops (new on 2013 models) |
4 wheel disc,
4 channel anti-lock, low wear indicator, Brake override system. Brake assist for maximum brake pressure Caliper- single piston front: 11.6 ventilated front disc rear: 11.3 solid rear disc Electric parking brake with auto release and hill holder functions | 4 wheel disc,
4 channel anti-lock, low wear indicator, Brake override system. Brake assist for maximum brake pressure Caliper- single piston front: 12.4 ventilated front disc rear: 11.4 ventilated rear disc Electric parking brake with auto release, hill holder |
||||
| Parking brake |
All
models use an Electric Parking Brake with Auto Release and Hill Holder.
The electric parking brake with first used on the 2010 model. Auto release function- wear seatbelt, step on brake pedal, put car in gear, lightly press gas pedal and the parking brake will release automatically. The system makes a mild sound as it activates or releases the brake so you know its working. To use in as emergency brake tap or hold the brake button down but only in an serious emergency when you cannot normally brake! This will cause your rear wheels to lock so be very careful. The mechanical release for the electric brake if the battery is dead is under the car in front of the right rear wheel and it's an awkward process, so keep the battery charged. Dead battery brake release info |
|||||
Hill Holder Brake system automatically activates the electric parking brake when stopped on a steep hill |
The Hill Holder function is now turned on when you restart the car if it was left on when the car was last turned off. Standard on all models. Especially useful with the manual transmission. Uses the electric parking brake. After the car is started, the system can be turned on by pressing the Hill Holder button by the driver's left knee (left of the parking brake button). A green light in the upper right dash comes on. When stopping on a hill 5% or steeper, either going forward up or backwards down a hill, the Hill Holder activates the electric parking brake and will briefly hold the car from rolling while the driver steps on the gas. Makes a mild sound as it activates or releases so you know its working Works going up or backwards down an incline. Note: if you are already stopped on an incline and did not press the Hill Holder button, press the Parking Brake - it works exactly the same. |
|||||
| Steering |
engine speed controlled power assisted rack and pinion, steering ratio 14.5:1 steering wheel turns lock-to-lock 2.9 turning circle, curb-to-curb 36.8' |
|||||
| Suspension |
new for 2013: All models get improved ride, handling
and steering, and less body sway, due to upgraded body structure with stiffer front strut mounting points
and rear frame rails, and upgraded suspension that includes a larger
rear sway stabilizer bar, slightly stiffer rear springs and bushings, and upgraded
steering. Front suspension- Independent, raised struts, coil springs, stabilizer bar, anti-dive geometry Rear suspension- independent, double wishbone, coil springs, stabilizer bar, anti-Lift geometry |
|||||
| wheels |
16x6" steel wheel, full wheel cover O: alloy wheel, 17x7" 5 split spoke | Premium: 17x7 1/2" silver alloy, 5 split spoke Sport: 18x7/12" 10 spoke high luster gray alloys |
17x7 1/2" alloy, 5 split spoke
metallic finish |
17x7 1/2" alloy, 5 split spoke silver finish |
||
| Tires |
Bridgestone Turanza EL400 205/60R16 91V all season |
Premium: Bridgestone Turanza EL400 215/50R17 90V all season Sport: 225/45 R18 91v all season | Bridgestone Turanza EL400 215/50R17 90V all season | Bridgestone Turanza EL400 225/50R17 93V all season |
||
| Headlights | daytime running lights;
auto on/off headlights with ignition key insertion/removal. |
daytime running lights;
auto on/off headlights with ignition key insertion/removal. 'Auto' light sensing dusk-dawn on/off setting |
||||
| Fog Lights |
0 |
Premium:0 Sport: S, chrome trimmed |
S, chrome trimmed |
0 |
||
| Curb weight | manual 3315 lbs CVT 3392 lbs |
Premium: CVT 3384 lbs Sport: TBA |
CVT 3427 lbs |
3496 lbs |
||
| Towing- |
Towing with the Legacy is not recommended and no trailer hitch is available from Subaru for the Legacy. Emergency Towing:
a flatbed is always preferred. Never tow with on 2 wheels on the ground. |
|||||
| model |
2.5i |
2.5i Premium, 2.5i Sport |
2.5i Limited |
3.6R Limited |
||
|
this is an unofficial, unauthorized research website, and isn't approved or supported by SoA or any dealer. contact your local dealer subject to change, frequent correction, updating. tips welcomed |
|
|
Standard features on the 2014 Legacy 2.5i sedan| Model codes: EAA manual 6 speed trans; CVT with paddle shifters- EAB Look at these 2.5i details then scroll down because this is the standard model All other models will at least have these features plus their model upgrades. This is the only Legacy available with a manual transmission Engine- 2.5L 4 cylinder boxer engine (code FB25). DOHC, timing chain, more power with better economy. This engine is new for the 2013 Legacy. This is the 2nd year for this engine in the Legacy. > Transmission- 2nd generation CVT (optional on this base model 2.5i). This is the 2nd year for this 2nd generation CVT transmission in the Legacy new on all of last year's 2013 Legacys > redesigned front grill > redesigned front bumper > headlights with black lower surround > CVT- 2nd generation CVT is lighter, quieter, more responsive > upgraded seat cloth fabric with improved cushion and bolsters > 2.5L engine: improved economy, more power. see specs above > the Hill Holder function turns on if it was left on when the car was last turned off. > fuel pump cutoff that detects when an airbag deploys to minimize fire danger after an accident > upgraded suspension with larger rear sway bar and stiffer springs and bushings for improved handling and ride with body roll. > stiffer chassis- front strut mounts and rear frame rails- reduce vibration, body roll, and improve handling, > brake override system- when gas and brake pedals are both pressed, the brake overrides to stop the car New on last year's 2013 2.5i Legacy > steering wheel- now with bluetooth cell controls, plus audio and cruise control buttons > audio includes handsfree cell phone bluetooth, steering wheel controls, wireless audio streaming, USB. Transmission - 6 speed manual or optional CVT automatic with Paddle Shifters All Wheel Drive with VDC stability control, traction control, and Hill Holder Brake override system (BOS) (new on 2013 model) Safety brake pedals Child seat LATCH system Child trunk safety release 5 MPH impact bumpers Airbags: Front, Side and Rear curtain airbags 5 seatbelts, shoulder harnesses (height adjustable), headrests Anti-lock disc brakes with Brake Assist and Electronic Brake-force distribution Electronic parking brake with auto release (wear seatbelt, car in Drive, press gas). Makes a mild groaning sound as it activates and releases so you know its working.) Also is the hill holder that prevents the car rolling down a hill when stopped.. Power locks Air Filtration Rear defroster Power mirrors, fold-in Cruise control Air Conditioning Tires- all season Single exhaust tip Hill Holder system, uses electric parking brake 18.5 gallon fuel tank Speedometer 150mph 65/35 fold flat rear seats |
2.5i standard features, continued... Tachometer redline 6000 Illuminated ignition key ring Glass - lightly tinted (green) Telescope and Tilt steering wheel Steel Hood with gas struts Key lock cylinder to open the trunk Auto-on dusk-to-dawn headlights Auto-down driver power window 16" steel wheel with wheel cover Power windows, illuminated switches Variable speed front wipers, 4 speeds Tire Pressure Monitoring System, TPMS Alarm ignition disabling, uses remote entry Courtesy Lights- front doors, glovebox, trunk Fold down rear seats with armrest with cupholders Driver seat, Height adjustable driver's seat, manual Keys open- driver door, ignition, glovebox, and trunk Immobilizer Key, Laser cut, integrated remote one piece unit 3 spoke steering wheel with cruise control and audio controls Trip computer with outside temperature, instant and average fuel economy for resettable Trip Odometers A and B, distance to empty, clock Center console: cupholders, armrest with dual level storage, open front storage bin Cupholders- 2 front cupholders, removable center divider Cupholders- 2 rear armrest Cupholders- 1 in each door Door overhead assist handles Overhead Dome Light Vanity mirrors, illuminated Door handles, body colored Trunk grocery bags hooks (2) Brushed titanium trim by center console Carpeted floor mats, off black (all interiors) Aerodynamic body colored side ground effects Sun visors with extensions, vanity mirrors with lights Overhead console with sunglass holder and 2 map lights 12v Power Outlets- dashboard and center console No cigarette lighter Bluetooth handsfree cell phone bluetooth, steering wheel controls, wireless audio streaming. Stereo cell phone bluetooth with steering wheel controls, USB, and wireless audio streaming. 4 speakers, AM/FM, single CD, MP3/WMA R/RW discs, MP3, wireless audio streaming, with bass, mid-range, and treble adjustments, pty/cat (program type/category radio station search function), USB, 3.5mm auxiliary plug and 12v power outlet in the center console. Steering wheel mounted controls for cell phone, audio volume, channel and mode. Pre-wired for XM or Sirius Satellite radio Optional- CVT automatic transmission new package available on CVT model: package #21 17" alloy wheels, fog lights with chrome trim ring |
|
|
|
|
subject to change, updating - |
|
|
2.5i Premium CVT adds over 2.5i Model code: EAD
No manual transmission Premium is availableEverything the 2.5i has, plus .... see 2.5i standard features above new for 2014 upgraded stereo on Premium includes HD, Satellite new for 2014 All Weather Package is now standard, with heated front seats, defrosting outside mirrors, front wiper de-icers CVT transmission with paddle shifters is standard on the Premium. 17" silver alloy wheels Stainless steel single exhaust tip Body colored outside fold-in mirrors Overhead console with ambient light Leather wrapped shift knob, steering wheel Power driver's seat, 10 way incl power lumbar Windshield Shade Band across upper windshield Center console front storage bin has a hinged cover Driver's power window auto UP as well as auto down All power window switches on all doors are illuminated Steering wheel- Leather wrapped with bluetooth, audio, cruise controls Bluetooth handsfree cell phone bluetooth, steering wheel controls, wireless audio streaming. all new Stereo for the 2014 Premium 4.3" LCD color display, 6 speakers, AM/FM HD radio, XM/Sirius satellite radio, single CD, wireless audio streaming, Pty/cat (program type/category radio station search function). Plays MP3/WMA, R/RW discs, MP3. Bass, mid-range, and treble adjustments, USB, 3.5mm input and 12v power outlet in the center console. Steering wheel with bluetooth, audio, cruise controls. XM/Sirius satellite radio with 4 months free. Roof fin antenna is body colored. Option Packages factory Option Packages Pkg #04- Moonroof pkg new for 2014 Pkg #39- Moonroof pkg, Navigation Pkg new for 2014 Pkg #41- Moonroof pkg, Eyesight Pkg |
2.5i Sport CVT adds over the 2.5i Premium CVT model code- EAE
no manual is available. The Sport model was first introduced December 2012Moonroof package, with tilt and slide moonroof with sunshade New for the 2014- the moonroof package now includes the auto dimming rear view mirror with homelink, and backup camera. Alloy pedal covers 225/45 R 91v 18 all season tires Fog lights with chrome trim rings Black cloth interior with silver stitching 18" high luster silver alloy wheels (previously on the 2012 Legacy GT) Carbon fiber plastic dash trim (previously on the discontinued 2012 Legacy GT) Option Packages factory Option Packages new for 2014 Sport Pkg #37- Navigation Pkg |
|
2014 2.5i AND 3.6R LIMITED OVERVIEW AND SNAPSHOT
subject to change, updating |
|
2014 2.5i Limited adds over 2.5i Premium model code automatic CVT- EAF Everything the 2.5i Premium has, plus.... Leather interior, perforated Aluminum front door sill plates Dark Woodgrain interior accents fog lights now with chrome trim ring Shift knob with glossy, dark wood insert Rear seat AC ducts, in the back of the center console Power passenger seat, 4 way, front/back, power recline Climate Control, Single/Dual Front Zone, 6 speed fan, settings Lo - 61, 62 .. 89 - Hi Electroluminescent instrument panel gauges with red speedometer needle and white tachometer needles against black background. With (new on the 2013 model) center color LCD display including ECO gauge, cruise control, Eyesight info (if equipped), and trip odometers. Gauges include speedometer, tachometer, fuel gauge, and (new on 2013 Legacy) coolant temperature gauge. Stereo: Harman/Kardon (h/k) audio system includes 4.3" LCD color display, 440watt amplifier, AM/FM HD radio, single CD, wireless audio streaming, 9 H/K upgraded speakers. Pty/cat (program type/category radio station search function). Plays MP3/WMA, R/RW discs, MP3. Bass, mid-range, and treble adjustments, USB, 3.5mm input and 12v power outlet in the center console. Steering wheel with bluetooth, audio, cruise controls. XM satellite radio with 4 months All Access free. The speakers include: 2 80mm mid-range in the top of the dashboard, 2 160mm woofers in the front doors, 2 2-way speakers in the rear doors with a 25mm tweeter and 100mm mid-range, 1 200mm subwoofer in the rear parcel shelf. The roof fin antenna is body colored (new for 2013 Legacy). Option Packages factory Option Packages > Pkg #04 Moonroof Pkg > Pkg #39 Moonroof Pkg, Navigation Pkg > Pkg #43 moonroof Pkg, Navigation Pkg, Eyesight driver assist system |
2014 3.6R Limited adds over 2.5i Limited model code 5 speed
automatic EAK
Everything the 2.5i Limited has, plus... 3.6L 6 cylinder boxer engine, DOHC. Note: the R is reportedly the code for a 6cyl DOHC engine. Horsepower 256hp@6,000rpm, torque 247@4400rpm Automatic 5 speed transmission, with Paddle Shifters. IVTD all wheel drive (variable torque distribution). EPA city/highway18/25mpg, combined 21mpg Engine cover
Speedometer 160 MPH Tachometer redline 6500 Dual exhaust tips, chromed Option Packages
factory Option Packages
> Pkg #04 Moonroof Pkg
> Pkg #39 Moonroof Pkg, Navigation Pkg > Pkg #43 moonroof Pkg, Navigation Pkg, Eyesight driver assist system |
|
|
|
|
Information subject to change, correction - |
|||||
|
|
|
3.6L 6 cylinder engine |
|||
| 2013 Feature | 2.5i | 2.5i Premium | 2.5i Sport new, available late 2012 |
2.5i Limited | 3.6R Limited |
|
|
|
|
EAE |
|
|
| Interior |
|
|
cloth |
|
|
| Dash trim |
|
|
carbon fiber design trim |
|
|
| Wheels, tires | 16" steel, All Season tires |
|
18" high luster silver alloys |
|
17" alloy, all season tires |
| Fog Lights- the on button is next to mirror control | 0, also Pkg #21 on CVT model |
0 |
S chrome trim ring |
S, chrome trim ring |
S, chrome trim ring |
| Power windows- auto up and down
driver window
Power locks Power mirrors, fold-in Cruise control |
driver window is auto down only |
|
S |
|
|
| Steering wheel, tilt and
telescope. Vinyl wrapped bluetooth controls, plus audio
and cruise control buttons |
|
|
-- |
|
|
| Steering wheel, tilt and telescope. Leather wrapped with bluetooth, audio, and cruise control buttons |
|
|
S |
|
|
| Air Conditioning- manual with 4 speed fan |
|
|
S |
|
|
| Air Conditioning with Rear seat AC ducts. Automatic
climate control, 6 speed fan, Dual front zones. |
|
|
-- |
|
|
| Gauges: analog speedometer, tachometer, ECO and fuel gauge, |
S |
S |
S |
-- |
-- |
| Gauges:3.5" center color LCD info display, electroluminescent
speedometer, tachometer, fuel gauge, and includes a coolant temperature gauge.Elapsed time on/off with iSet buttons |
-- |
0 with Eyesight Pkg #43 |
-- |
S |
S |
| All Weather Package (AWP)- heated front seats, defrosting outside mirrors, front wiper de-icer with hidden element |
|
|
S |
|
|
|
|
|
|
2.5i Sport |
|
|
| Driver Seat- manual
height adj, no lumbar support |
|
|
-- |
|
|
| Driver Seat- Power 10 Way with power lumbar support |
|
|
cloth, heated |
|
|
| Passenger seat- Power 4 way (no lumbar adj) |
|
|
-- |
|
|
| Memory driver seat- still not not available on the 2014 Legacy! |
|
|
-- |
|
|
| Rear seats- fold flat, release is in the trunk |
|
|
S |
|
|
| Trip Computer in upper console with outside temperature, clock, instant and average fuel economy for resettable Trip odometers A, B |
|
|
S |
|
|
| Roof rack. Fixed position cross bars are available from your dealer local parts dept only (not from the factory). Part E3610AJ520 |
|
|
A |
|
|
| Bluetooth with steering wheel controls |
|
|
S |
|
|
| Stereo > 2.5i- AM/FM radio, single CD, 4 speakers, USB, aux plug, Bluetooth steering wheel controls, wireless audio streaming, steering wheel with bluetooth, audio, cruise controls, console 12v power outlet. > 2.5i Premium and Sport new for 2014 Premium 4.3" LCD color display, 6 speakers AM/FM HD radio, Sirius/XM satellite radio (4 mo free), single CD, wireless audio streaming, Pty/cat (program type/category radio station search function). Plays MP3/WMA, R/RW discs, MP3. Bass, mid-range, and treble adjustments, USB, 3.5mm input and 12v power outlet in the center console. Steering wheel with bluetooth, audio, cruise controls. Roof fin antenna is body colored. > 2.5i and 3.6R Limited: Harman/Kardon (h/k) audio system with 4.3" LCD color display, 440watt amplifier, AM/FM HD radio, Sirius/XM satellite radio (4 mo All Access free), single CD, wireless audio streaming, 9 upgraded H/K speakers. Pty/cat (program type/category radio station search function). Plays MP3/WMA, R/RW discs, MP3. Bass, mid-range, and treble adjustments, USB, 3.5mm input and 12v power outlet in the center console. Steering wheel with bluetooth, audio, cruise controls. The speakers are: 2 80mm mid-range in the top of the dashboard, 2 160mm woofers in the front doors, 2 2-way speakers in the rear doors with a 25mm tweeter and 100mm mid-range, 1 200mm subwoofer in the rear parcel shelf. The roof fin antenna is body colored. |
|||||
| Tinted windows |
|
|
-- |
|
|
| Tinted windows with dark upper windshield band |
|
|
light tint |
|
|
| Immobilizer keys, with alarm, 3 keys, 2 with remote |
|
|
S |
|
|
| Carpeted floor mats (all carpets are dark) |
|
|
S |
|
|
| Courtesy lights- front door
lights on the underside of the front door, help at night.Glovebox light,
Trunk area light.
Note- the door lights are not the optional Puddle Lights |
|
|
S |
|
|
| Trunk cargo tray |
|
|
0 |
|
|
| Moonroof (see option package) |
|
|
S |
|
|
|
subject to change, correction, updating |
|
|
2.5i Sport |
|
|
|
A available, S standard, -- not available scroll down for individual options Note: Factory Installed prices. Your purchase price might vary. Dealer installed options may be more due to parts and labor cost. contact your local dealer. subject to change, correction, updating |
|||||
|
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport |
|
|
|
|
|
|
EAE |
|
|
| Popular Package 1 (OYB).
Auto dimming mirror with compass, Rubber floor mats, Rear bumper
paint protector, Trunk cargo tray, Splash guards. $579.
na with any Moonroof, Navigation Pkg, the dimming mirror is included |
|
|
A |
|
|
| Popular Package 2 (OYC).
Auto dimming mirror with compass and Homelink, Rubber floor mats,
Rear bumper top paint protector, Trunk cargo tray, Splash guards. $685 na with any Moonroof or Navigation Pkg, the auto dimming mirror is included |
|
|
-- |
|
|
| Illumination Package 2-
Side Sill Plates and Interior Illumination Kit. (LR9) Includes illuminated
front door sill plates with 'Subaru' illuminated on the front door
sills in soft blue light. Interior Illumination incl soft ambient light
in the footwells, around the cupholder, and the storage by the shift lever.
Very cool option and not distracting. $509
or get the Interior Illumination package alone, see options below Note- not available with Eyesight |
|
|
A |
|
|
|
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport |
|
|
|
A available, S standard, - not available scroll up for options packages Note: Factory Installed prices. Your purchase price might vary. Dealer installed options may be more due to parts and labor cost. contact your local dealer. -subject to change, correction |
|||||
|
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport |
|
|
|
|
|
|
EAE |
|
|
| 110 volt power outlet. 100 watts. #nba/nbb. 2 prong power outlet is in the back of the center console for charging laptops, cell phones etc. $335 |
|
|
A |
|
|
| Auto dimming mirror with Compass, #kob, $198 na with Navigation |
|
|
- |
|
|
| Auto dimming mirror with Homelink - standard with all Moonroof, Navigation and Eyesight packages |
-- |
included with all packages |
S |
included with all packages |
includes with all packages |
| Auto dimming mirror with
compass and 3 Homelink garage door buttons, #kod, $284 note- na with Moonroof or Nav which includes the mirror/homelink without compass |
|
|
A |
|
|
| Security System alarm upgrade (shock sensor), #rob, $140 |
|
|
A |
|
|
| Rubber all weather floor mats, 4, (carpeted mats are standard), #boa, $72 |
|
|
A |
|
|
| Interior Illumination Package
(LR8) soft ambient light in the footwells, around the cup holder,
and the storage by the shift lever. $330 Note- not available with Eyesight |
|
|
A |
|
|
| Illuminated side sill plates (LR2). $364. na with Eyesight |
A |
A |
A |
A |
A |
| Trunk tray, #mog, $75 |
|
|
A |
|
|
| Trunk cargo net set, #mbd, $72 |
|
|
A |
|
|
| Remote Engine Start, #roc, $438, automatic trans only |
|
|
A |
|
|
| Cigar lighter kit, #noc, $52 |
A |
A |
A |
A |
A |
| Rear view back-up camera- new for 2014 included with all moonroof pkgs |
-- |
incl with moonroof pkgs |
new for 2014 S |
incl with moonroof pkgs | incl with moonroof pkgs |
|
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport |
|
|
| Rear bumper applique- #qch. $92. Protects the top of the bumper from scratches in the paint |
|
|
A |
|
|
| Roof rack fixed position cross bars available only from your dealer's parts dept only, not from the factory. 100lbs capacity |
|
|
A |
|
|
| Body side moldings, body colored. $262 |
|
|
A |
|
|
| Rear chrome trunk garnish
#qom/qon. $145. a good looking, subtle, chrome trim piece above the license plate |
|
|
A |
|
|
| Side window moldings - help minimize rain dripping into the car when your windows are slightly open. Dark gray with chrome trim. Available only from your dealer's parts dept, not from the factory. $199 List, plus installation |
|
|
A |
|
|
| Tail pipe tip #qoh, $52 |
|
|
S |
|
|
| Trunk lip spoiler, $413 a body colored rear lip spoiler, with brake light |
|
|
A |
|
|
| Splash Guards (black), #pod, $142 |
|
|
A |
|
|
| Puddle Lights #qoc, a light under each door. very good for safety. $244 |
|
|
A |
|
|
| Fog Lights, #qod, $411. the 'on' button is next to mirror control. |
|
|
S |
|
|
| Front Hood Protector, #qof, $115 |
|
|
A |
|
|
| Moonroof Air Deflector, #qog, #112 requires moonroof |
|
|
A |
|
|
| Wheel locks $52 |
|
|
A |
|
|
| Alloy wheels #h9a, 16" alloy wheels $733 na with package #21 on CVT model EAB- 17" alloys, fog lights |
|
|
S (18") |
|
|
|
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport |
|
|
| Rear seat entertainment DVD player optional on
all models, 2 rear seat headrest DVD monitors and players.. 11/2/13 port installed price reduced Was $1609, now for cloth interior $899, leather interior $999 |
|
|
A |
|
|
| Tweeters (2), #dob, $122 |
|
|
S |
|
|
| Sirius Satellite radio, #doc, $466. To activate, get your ID by tuning to Sat station 000, then call 888-539-7474 |
|
|
S |
|
|
| XM Satellite radio, #dod
$466 included with h/k audio, navigation.
To activate, get your ID by tuning to Sat station 000 then call 800-852-9696. |
|
|
S |
|
|
|
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport |
|
|
| Leather shift knob #JBA, $159, automatic only |
|
|
S |
|
|
| STI shift knob, #j8a, $182, manual trans only |
|
|
-- |
|
|
| STI Duracon shift knob, #j8b, $92, manual trans only |
|
|
-- |
|
|
| Metal pedals, automatic transmission, #coc, $167 |
|
|
S |
|
|
| Metal pedals, manual transmission, #cod, $193 |
|
|
-- |
|
|
|
with option code & factory installed list price. subject to change, correction |
|
|
2.5i Sport |
|
|
|
scroll down for model availability 1/16/14 Deep Indigo Pearl has been discontinued on 2014 Outback and Legacy |
|||
 new for 2014 - Carbide Gray Metallic with black material |
 new for 2014 Tungsten Metallic with ivory interior |
 Deep Indigo Pearl with ivory interior |
 Twilight Blue Metallic with
either off black or warm ivory interior |
 satin white pearl with ivory interior |
 Ice Silver Metallic off black interior |
 with either off-black or warm ivory interior |
 crystal black silica, with ivory interior |
|
2014 LEGACY COLOR AND MODEL
AVAILABILITY
subject to change, correction, updating NEW COLORS FOR 2014 all new Tungsten Metallic and Carbide Gray Metallic. Carbide Gray replaces Graphite Gray. Gone: Graphite Gray and Caramel Bronze subject to change and correction
|
|||||
| color (color code, order code) |
Legacy 2.5i |
2.5i Premium |
2.5i Sport |
2.5i Limited |
3.6R Limited |
| Crystal Black Silica (CBS, D4S) |
ivory striated cloth |
ivory striated cloth | black striated cloth, silver stitching |
warm ivory leather |
warm ivory leather |
| Deep Indigo Pearl (DIP, G5U0) |
ivory striated cloth | ivory striated cloth | -- |
warm ivory leather | warm ivory leather |
| Satin White Pearl (WHI, 37J) |
ivory striated cloth |
ivory striated cloth | lack striated cloth, silver stitching | warm ivory leather |
warm ivory leather |
| new Carbide Gray Metallic (GG3, K6U) |
black striated cloth | black striated cloth | black striated cloth, silver stitching | off black leather | off black leather |
| Ice Silver Metallic (ISM, G1U) |
black striated cloth | black striated cloth | black striated cloth, silver stitching | off black leather | off black leather |
| Twilight Blue Metallic (TBM, H1Q) |
black striated cloth | black striated cloth | black striated cloth, silver stitching | off black leather | off black leather |
| Twilight Blue Metallic (TB1 H1Q) | warm ivory cloth | warm ivory cloth | -- |
warm ivory leather | warm ivory leather |
| new Tungsten Metallic (TGM, K7U) |
ivory striated cloth | ivory striated cloth | -- |
warm ivory leather |
warm ivory leather |
| Venetian Red Pearl (VRP, H2Q) |
black striated cloth | black striated cloth | black striated cloth, silver stitching | off black leather | off black leather |
| Venetian Red Pearl (VR1, H2Q) | warm ivory cloth | warm ivory cloth | -- |
warm ivory leather | warm ivory leather |
