On this page: 2007 Outback
looking for?  2008 Outback, 2007 Outback photos 07 Legacy 2.5i, GT,  06 Outback?
This unofficial page by Joe Spitz who is solely responsible for all and any content
New for 07 - warranty, maintenance - Model Overview and updates
Wagon features 2.5i Basic - 2.5i, 2.5i LL Bean 2.5i Limited, 2.5i Limited LL Bean
XT Limited 4dcylinder turbo  - 6 cylinder LL Bean wagon
Sedan features2.5i Limited Sedan - LL Bean sedan
 Prices I maintenance, warranty I dimensions I safety features I engine and mechanical specifications
standard features I options  I instrument panel warning lights colors I speed tests, articles, links

Other Pages
 2007 photos I Navigation System I News, Reviews and Articles I photos 2006, 2005 I is the Outback a truck
****

New model: Outback Basic with 16" stamped steel wheels instead of 17" alloys on the 2.5i. Champaign Gold shown

2007 Outback 2.5i LL Bean, 4 cylinder with navigation

new model for 2007, late availability: Outback 2.5i LL Bean with Navigation is a 4 cylinder with taupe cloth (diamond gray shown though it looks black). Also available with leather etc in the 2.5i Limited LL Bean. Note the gray LL Bean alloys

all text, formatting, photos © J. Spitz; unauthorized copying prohibited
you are here http://www.cars101.com/subaru/outback/outback2007.html v  7.30.09

PLEASE READ - this unofficial independent Subaru research site is designed to help you learn about Subarus. It is not sponsored, authorized,  supported or approved of by Subaru or any dealer and is not connected to, or affiliated with, any dealer. Always contact your local dealer. Inspect any car prior to purchasing. Information always subject to change, correction.





What's New For 07 Outback with updates
subject to change, correction

Updates

Navigation v2. DVDs are available from Kenwood early 2007.

12/9/08 New accessories: iPod interface controls your iPod and iPhone through the factory stereo. Also recharges it except for 4th generation Nano and 2ndGen iPhone. Works on all Legacy and Outback 2009-2008-2007 without Satellite radio.
SPT turbo heat shield 2009-8-7-6-5 Legacy GT and Outback XT turbos. Helps keeps the turbo warm, retain heat.

2/15/2007 Crash test results Safety crash test Legacy and Outback: NHTSA the National Highway Traffic Safety Administration announced that 24 2007 passenger vehicles, including the Subaru Legacy and Outback, received five stars in front and side crash tests, the highest government rating under the agency’s New Car Assessment Program. the full report

12/21/06 2 new 4 cylinder LL Bean models announced with Navigation: 2.5i LL Bean and 2.5i Limited LL Bean. Available late January to Feb.
7/18/06: 07s start arriving
7/13/06 prices, options, specs updated.

Here and Gone- what's changed for 2007

gone SE model dropped
gone VDC Limited model dropped
gone 3.0R 6 cylinder cloth model dropped
gone XT turbo base cloth model dropped. All 2007 XTs are now Limited.
gone 2.5i Limited with 5spd manual transmission dropped. All 2007 2.5i Limited are automatic transmission.

No factory Bluetooth is available on any model

new Price drop on all models.
new model: the low priced Outback Basic 2.5i
new model:  4 cylinder 2.5i LL Bean with Navigation. Available late January to Feb. 2007
new model 4 cylinder 2.5i Limited LL Bean with Navigation. Available late January to Feb. 2007

new colors
new Pre-wired for optional Remote Start
new DRL daytime running light 'on' indicator
new interior cloth colors: Charcoal Tweed or Warm Ivory Tweed
new Tire Pressure Monitoring TPMS on all models except Basic 2.5i model.

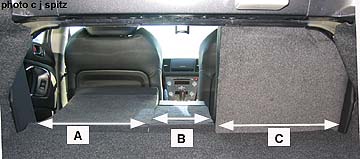

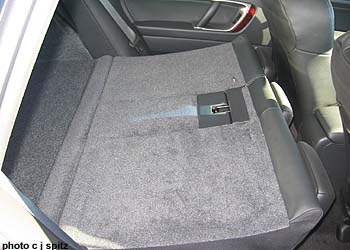

new Fold down 3 way rear seats, with locks for security,  now on sedans Wagon seats always fold down.
new Horsepower and torque figures on turbos and 6 cylinders has changed due only to a change in test methods

new Stereo: CD now plays MP3, all models
new Stereo: iPod center console auxilliary plug, all models
new Stereo: now pre-wired for XM Satellite radio, all models
new Stereo: SRSLabs WOW stereo system for certain models. The WOW system provides "...an immersive 3D stereo experience. The natural and spacious 3D sound field allows for superb sound from any listening position – eliminating the sweet spot.  SRS WOW also shapes a maximized bass response using sculpted filters and driver physics to go beyond the low-frequency limitations of speakers, resulting in big bass without the need for a subwoofer. In addition, SRS WOW electronically elevates the sound image to an optimal ear level without physically moving the speakers from the base of the door panels and creates a phantom center speaker”  from www.srslabs.com

new SI Drive (Subaru Intelligent), on turbo XT models. The knob on the center console provides 3 driver selectable engine throttle response modes: 'Intelligent' mode for a balance of economy and power, 'Sport' mode provides more acceleration, 'Super Sport' mode provides most responsive throttle.
new VDC (vehicle dynamic control)  all wheel drive traction control system on Limited XT and LL Bean models. This is the first year the VDC system has been offered on anything other than the Outback VDC and Tribeca models. VDC stability traction control system measures variables such as steering input, braking and vehicle angle, and applies individual brakes and/or reduces engine power to counteract skids or slides to help keep you in control.


The Outback is classed as a light truck for CAFE fuel economy reasons. 'Cafe' stands Corporate Average Fuel Economy. This doesn't affect safety, economy or mean the car will tip over or be unsafe like a SUV. Many other vehicles are classed this way including Honda CRV, Dodge minivan, Toyota Rav4, Chrysler PT Cruiser, Honda Odyssey, Honda Element, Cadillac ESV, Chrysler Pacifica etc etc. Here is the official statement from Subaru.

top



overview
What is the Legacy and Outback?
The Legacy is a line of cars with 2 models: Legacy and Outback. These share the same wagon or sedan body.
Made by Subaru (Fuji Heavy Industries of Japan) in Lafayette, Indiana.

2007 models based on the Legacy platform (excludes Tribeca)

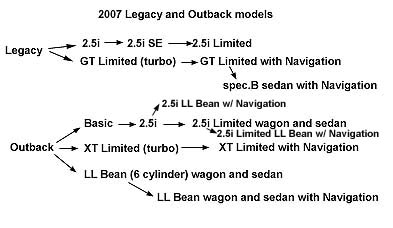

2007 Legacy and Outback model line-up

top
start warranty, maintenance


MAINTENANCE SCHEDULE


Break-in period  for the first 1000 miles
Don't race the engine, keep RPMs under 4,000 for the most part and vary the speeds with normal city/highway driving. Don't use the cruise control or go at one steady speed for a long time. Avoid hard starts and stops.

1st oil change: 3months/3,000 miles.
3,750 mile oil changes, or at every 7,500 miles under very easy driving conditions
7,500 miles: rotate tires
15,000 miles: check hoses, belts, brakes etc
30,000, 60,000, 90,000 miles: 15k service plus replace all fluids, filters, spark plugs
Timing belt: replace at 105,000 miles
Timing chain on 6 cyls should not need replacement



WARRANTY


Bumper-to-bumper: 3 year/36,000 miles. Includes Wear Item warranty covering pre-mature wear: brakes, clutch linings, remote batteries, wiper blades etc.
Roadside assistance 3yr/36000 miles by the Cross Country Motor Club at 800 261-2155, break-down, lock-out, flat repair etc
Powertrain: 5 year/ 60,000 miles
Corrosion: 5 year/100,000 miles
Note Warranties do not cover wear or damage due to abuse, lack of maintenance or competitive driving. Exclusions may apply, wear replacement may be one time.

top

2007 Overview
full specs below
subject to change and correction

Navigation system is optional on XT Limited, LL Bean sedan and wagon. Navigation v2. DVDs are available from Kenwood in early 2007

Kenwood 7" touch screen. Includes 2 discs for East and West US, and should include Canada. Verbal directions in English or French language, male or female voice, has local highlights such as restaurants, gas stations, hospitals and etc, uses yellow pages for phone and address look-up (no white pages). Computer is located under driver's seat. May not work with GPS in Alaska.

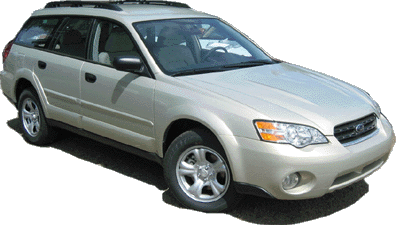

2007 Outback Basic standard features
are you looking for Legacy?

new model for 2007
new MP3 player
new 16" steel wheels
new Pre-wired for Remote Start
new Aux plug in center console
new Stereo: now pre-wired for XM Satellite radio, all models
No factory Bluetooth is available on any model

All wheel drive (awd)
2.5L 4cylinder boxer engine now with 175hp
i-active Valve Lift system
Anti-lock disc brakes, with EBD, 4 disc brakes
Airbags: Front, advanced dual stage
Airbags: Front side
Airbags: Front and Rear Side Curtain
overhead passenger airbag on/off, seatbelt warning light
5 seatbelts & headrests
Power Windows, auto down drivers, illuminated
Power Locks
Power mirrors
Keyless remote
Alarm system with ignition disable
Immobilizer chipped key
16" steel wheels
air filtration
Air conditioning
Cruise control

 continued: Outback Basic standard features

Rear Spoiler
CD player, single disc, MP3, R/RW (Panasonic)
6 speakers, 2 in front door, 1 in rear
Trip Computer with clock, instant and average economy, outside temp,
elapsed time etc.  The ET elapsed time setting works when the
ignition key is very briefly paused on the 'on' setting and may not
work if the key is turned too quickly.
4 beam halogen headlights, auto on-off with ignition, with green light upper right instrument panel indicating headlights are on
Day Time Running lights are on when headlights are off, with new for 2007 'DRL'  indicator light lower right instrument panel
Fog lights, with green 'on' indicator light lower left instrument panel
Front wipers: Variable speed intermittent
Rear wiper, 2 speed, auto-on in reverse with auto trans
Rear defroster with rear wiper de-icer
Alloy wheels 16"
Fold flat rear seats- wagon, one touch
Roof rails
Dual vanity mirrors
Dual map lights
Rear cargo light
Door courtesy puddle lights
Center console power outlet
Wood Trim by center console with taupe interior
or Brushed Silver Trim with grey interior
dashboard illumination and daybright on/off control combined

2007 Outback Basic has 16 stamped wheels
New model for 07: Outback Basic has a 16" stamped wheel
2007 Outback 2.5i has 17 alloy wheel with tire pressure monitoring
2007 Outback 2.5i has a 17" 7 spoke alloy with tire pressure monitoring

 more wheel photos...

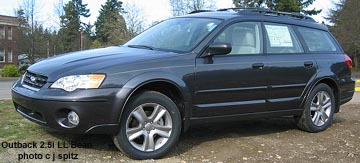

2007 Outback 2.5i LL Bean, 4 cylinder with navigation
new model for 2007: Outback 2.5i LL Bean with Navigation is a 4cylinder with taupe cloth (diamond gray shown).
Also available with leather etc in the 2.5i Limited LL Bean.
front wiper de-icer
front wiper de-icer heats the lower windshield


more photos...

Outback 2.5i and 2.5i Limited features
Outback 2.5i adds over Basic model
everything the Basic has, plus...
(this is the same as a 2006 2.5i)

new for this model TPMS Tire Pressure Monitoring
  This low tire pressure dashboard light turns on when a tire's pressure drops and the car is going over 20mph

17" alloy wheels
Limited Slip rear axle
Cargo area power outlet
Power driver's seat, 8 way
Roof rails with cross bars
Rear cargo cover, with a gate attachment
All Weather Package: heated front seats with 4 settings, Power heated mirrors, and front wiper de-icer.


new model announced 12/21/06, available starting late January
2007 Outback 2.5i LL Bean adds over 2.5i

all standard 2.5i 4 cylinder features with standard 4speed automatic Sportshift transmission

Includes: Navigation system
LL Bean embroidered floor mats
LL Bean rear emblem on rear gate
LL Bean gray alloy wheels
Automatic dual zone climate control
SRSLabs WOW stereo system, upgraded CD changer, 6 disc, MP3, auz stereo input


2007 Outback 2.5i Limited adds over 2.5i
everything the 2.5i has, plus..
wagon and sedan

now standard: Automatic Sportshift 4spd transmission (no manual available)
new SRSLabs WOW stereo system, upgraded CD changer, 6 disc, MP3, auz stereo input

Leather interior, including 3 spoke leather wrapped steering wheel, parking brake and shifter handle

Windshield shade band
Woodgrain interior trim panel
Climate control, dual zone front, 6spd fan
Body colored door handles, outside mirrors
Dual pane power glass sunroof with auto open/close (deletes sunglass holder)




new model announced 12/21/06, available starting late January
2007 Outback 2.5i Limited LL Bean adds over 2.5i
everything the 2.5i Limited 4 cylinder has, plus..

all standard 2.5i Limited 4 cylinder features with standard 4speed automatic Sportshift transmission Plus:
LL Bean Two-tone perforated dark taupe Leather trimmed upholstery, taupe bolsters

Includes: Navigation system
Rear seat armrest
LL Bean gray alloy wheels
Power front passenger seat
LL Bean embroidered floor mats
LL Bean rear emblem on rear gate
Automatic dual zone climate control
SRSLabs WOW stereo system, upgraded CD changer, 6 disc, MP3, auz stereo input


XT turbo features
Outback XT Limited turbo adds over 2.5i
everything the 2.5i has, plus...

The 6 cylinder LL Bean and 4 cylinder XT turbo models are top of the Line now that the 6 cylinder VDC model has been dropped.

Engine: 2.5L 4 cylinder Turbo with 243horsepower with active valve contro, premium fuel recommended.
Note: the horsepower rating system changed but not the power!  Previously rated at 250.

new for this model VDC all wheel drive. This is the first year the VDC (vehicle dynamic control) system has been offered on anything other than the Outback VDC and Tribeca models. VDC stability traction control system measures variables such as steering input, braking and vehicle angle, and applies individual brakes and/or reduces engine power to counteract skids or slides to help keep you in control. VTD (variable torque distribution) varies the power front back, the standard is rear wheel performance balanced at 45/55 front-rear. VDC warning light This VDC dashboard light comes on when the VDC system has been activated, or turned off

new SI Drive, Subaru Intelligent Drive, (turbo models only). The knob on the center console provides 3 drive modes:
'Intelligent' mode provides a balance of power and economy. 'Sport' mode provides more acceleration. 'Super Sport' mode with most acceleration, throttle response.

Heavy duty manual transmissionor optional 5spd Sportshift automatic transmission
Intercooler with functional hood scoop
Rear seat armrest
Aluminum door sill plates
Dual Pane power sunroof
Leather interior, perforated
Turn Signals in outside mirrors
17" alloy wheels with semi-low profile tires
Performance 1 piece Sport Bucket seats
Power passenger seat, 4 way, w/ lumbar support
Sport gauges with ElectroLuminescent needles
Momo SportShift steering wheel, transmission controls

Optional: Navigation system
Navigation v2. DVDs are available from Kenwood in early 2007

2007 Legacy GT spec.B SI Drive knob
SI Drive controls throttle response on turbos



2007 6 Cylinder features
LL Bean wagon adds over 2.5i Limited
everything the 2.5i Limited wagon has, plus..

subject to change and correction

The 6 cylinder LL Bean and 4 cylinder XT turbo models are top of the Line now that the 6 cylinder VDC model has been dropped.

3.0L H6 cylinder engine, 243hp, with active valve control, premium fuel is recommended but not required.
Note: the horsepower rating system changed but not the power!  Previously rated at 250.

standard Automatic 5spd SportShift transmission

new for this model VDC all wheel drive. This is the first year the VDC (vehicle dynamic control) system has been offered on anything other than the Outback VDC and Tribeca models. VDC stability traction control system measures variables such as steering input, braking and vehicle angle, and applies individual brakes and/or reduces engine power to counteract skids or slides to help keep you in control.
VTD (variable torque distribution) varies the power front back, the standard is rear wheel performance balanced at 45/55 front-rear.

Rear seat armrest
LL Bean floor mats
Front bumper underguard
Aluminum sill plate covers
Turn Signals in the outside mirrors
Auto dimming rear view mirrror/compass
Beige cargo tray (matches interior color)
LL Bean perforated leather, with small logo
Upgraded 17" wheels,  gray LL Bean design
Power Passenger seat, 4 way, lumbar support
Dual pane power sunroofs with auto open/close
Momo wood/leather steering wheel, stereo controls

Optional: Navigation system. Navigation v2. DVDs are available from Kenwood in early 2007



Outback SEDAN features
Outback SEDAN 2.5i Limited 4cylinder
everything the 2.5i Limited has, plus..
Note: the 2.5i Limited is a Legacy sedan and not on this Outback page.

new 3 way fold-down rear seat, lockable for security, see photos below

standard Automatic 4speed Sportshift transmission
Fog Lights
17"  7 spoke alloys
Body side cladding
Limited slip rear axle
Heavy duty raised suspension
Aerodynamic side ground effects
TPMS tire pressure montoring system

Outback LL Bean SEDAN adds over Outback 2.5i sedan above
everything the Outback 2.5i Limited sedan above has, plus....

3.0L H6 cylinder engine, 243hp, active valve control
standard Automatic 5 speed SportShift  transmission

new for this model: VDC all wheel drive. This is the first year the VDC (vehicle dynamic control) system has been offered on anything other than the Outback VDC and Tribeca models. VDC stability traction control system measures variables such as steering input, braking and vehicle angle, and applies individual brakes and/or reduces engine power to counteract skids or slides to help keep you in control.
VTD (variable torque distribution) varies the power front back, the standard is rear wheel performance balanced at 45/55 front-rear.

Front bumper underguard
Aluminum sill plate covers
LL Bean Perforated Leather
Upgraded 17" wheels, LL Bean design
Auto dimming rear view mirror with compass
Power Passenger seat, 4way, lumbar support
Outside heated mirrors with integrated turn signals
3 spoke Momo wood/leather steering wheel with stereo controls

Optional Navigation System, Navigation v2. DVDs are available from Kenwood in early 2007

prices
2007 OUTBACK PRICES
subject to change, correction V 12/22/06
Interest rates, rebates
Notes
Price and specs announced July 12, 2006
Price drop on most models!

Destination  $625
Alaska residents add +$150 to destination to $775

All states use Federal (Fed) pricing EXCEPT Residents of CA, CT, NH, NY, MA, MS, RI, VT You have California Spec Ultra/Partial Zero Emission Vehicles. Use Ca spec pricing on Legacy 2.5i models.

2007 Outback Wagons
code
base MSRP
dest
total MSRP

base invoice
dest
total invoice
Outback 2.5i Basic, manual transmission
check if you're Ca or Fed spec above
7DA Fed: $21,995
Ca: $22,195
$625 Fed: $22,620
Ca: $22,820

Fed: $20,720
Ca: $20,925
$625 Fed: $21,345
Ca: $21,550
Outback 2.5i Basic, automatic transmission
check if you're Ca or Fed spec above
7DB Fed: $22,995
Ca: $23,195
$625 Fed: $23,620
Ca: $23,820

Fed: $21,632
Ca: $21,837
$625 Fed: $22,257
Ca: $22,462
Outback 2.5i, manual transmission
check if you're Ca or Fed spec above
7DC Fed: $23,595
Ca: $ 23,795
$625 Fed: $24,220
Ca: $24,420

Fed: $22,188
Ca: $22,395
$625 Fed: $22,813
Ca: $23,020
Outback 2.5i, automatic transmission
check if you're Ca or Fed spec above
7DD Fed: $24,595
Ca: $24,795
$625 Fed: $25,220
Ca: $25,420

Fed: $23,100
Ca: $23,307
$625 Fed: $23,725
Ca: $23,932
Outback 2.5i LL Bean w/ Navigation, automatic transmission, available early 2007
check if you're Ca or Fed spec above
7DK Fed: 26,295
Ca:26,495
$625 Fed: $26,920
Ca: $27,120
. Fed:24,659
Ca:$24,868
$625 Fed: $25,284
Ca:25,493
Outback 2.5i Limited, automatic transmission
check if you're Ca or Fed spec above
7DE Fed: $27,395
Ca: $27,595
$625 Fed: $28,020
Ca: $28,220

Fed: $25,620
Ca: $25,802
$625 Fed: $26,245
Ca: $26,427
Outback 2.5i Limited LL Bean w/ Navigation, automatic transmission, available early 2007
check if you're Ca or Fed spec above
7DL Fed: $28,995
Ca: $29,145
$625 Fed:$29,620
Ca: $29,820
. Fed: $27.085
Ca: $27,267
$625 Fed:$27,710
Ca: $27,892
Outback XT Limited turbo, manual transmission 7DH $30,995 $625 $31,620
$28,795 $625 $29,420
Outback XT Limited turbo, automatic transmission 7DI $32,195 $625 $32,820
$29,889 $625 $30,514
Outback XT Limited turbo, automatic transmission with Navigation 7DJ $34,195 $625 $34,820
$31,712 $625 $32,337
Outback 3.0R LL Bean 6 cylinder 7DM $31,495 $625 $32,120
$29,350 $625 $29,975
Outback 3.0R LL Bean 6 cylinder with Navigation 7DN $33,495 $625 $34,120
$31,172 $625 $31,797
Outback Sedans
. . . . . . . .
Outback 2.5i Limited 4 cylinder sedan, automatic transmission
check if you're Ca or Fed spec above
7CA Fed: $26,395
Ca: $26,595
$625 Fed: $27,020
Ca: 27,220$

Fed: $24,712
Ca:$24,918
$625 Fed: $25,337
Ca: $25,543
Outback 3.0R LL Bean 6 cylinder sedan, automatic transmission  7CB $30,295 $625 $30,920
$28,258 $625 $28,883
Outback 3.0R LL Bean 6 cylinder sedan, automatic transmission with Navigation 7CC $32,295 $625 $32,920
$30,081 $625 $30,706
model
subject to change, correction
code
base MSRP
dest
total MSRP

base invoice
dest
total Invoice
end prices
top
Maintenance, warranty
MAINTENANCE SCHEDULE
WARRANTIES
Break-in period: vary speed for 1000 miles
1st oil change 3months/3,000 miles.
3,750 oil change interval or 7,500 interval under easy driving conditions
7,500 miles or so: rotate tires
15,000 miles: check hoses, belts, brakes etc

every 30,000 miles: 4 cylinder: replace spark plugs, all fluids, filters etc
every 30,000 miles 4cylinder turbo & H6: replace all fluids, filters
every 60,000 4 cylinder turbo and H6: replace spark plugs, all fluids, filters
105,000 miles: timing belt except on 6 cyl which has a timing chain

Bumper-to-bumper: 3year/36000 miles
Includes:
Roadside assistance: lock-out, flats, out of gas etc. Call 800-261-2155
Certain adjustments
Does not cover wear or damage due to abuse etc

Powertrain: 5 year/ 60,000 miles: Covers internally lubricated parts, engine and drivetrain.
Corrosion: 5 year/100,000 miles

end maintenance, warranty
top
dimensions
2007 Outback Dimensions
scroll down for cargo area and trunk measurements
subject to change, correction
model
Outback Basic
 Outback 2.5i
Outback 2.5i Limited
Outback XT Limited
Outback LL Bean
Outback sedan
Dimensions Wheelbase:  105.1"
Overall Length:  188.7"
Width:  69.7, 78.4 including mirrors
Height:  63.2 including roof rails and cross bars
Headroom front/rear: 40.5/39.1"
Headroom with sunroof front/rear  38.7/37.1"
Seat height from ground, driver's, hand measured and not exact,  22-24"
Legroom front/rear: 44.1/33.9
EPA Interior volume 97.4cf
EPA Cargo volume 33.5cf
EPA Cargo volume with sunroof  32.1cf
EPA Cargo volume with seats flat and sunroof  61.7cf
EPA cargo volume with seats flat and NO sunroof  66.2cf
Track:  front/rear 58.9/58.7
Wheelbase: 105.1
Overall Length:  186.2
Width:  69.7
Height: 59.1
Headroom F/R: 37.5/36.5
Legroom F/R: 44.1/33.9
EPA Interior vol 93.1cf
EPA Cargo trunk vol 11.4
Track: F/R 58.9/58.7
Turning circle
35.4ft,  turns lock-to-lock 3.2
Ground Clearance  8.4" 8.4" 8.4" 8.7 8.4" 8.4"
Angle of approach 18.7* 18.7* 18.3* 18.3* 18.3* 18.3*
Breakover angle 19.7* 19.7* 19.7* 19.7* 19.7* 19.7*
Angle of departure 22.0* 22.0* 22.0* 22.0* 22.0* 22.0*
model
Basic
2.5i
2.5i Limited
XT limited
LL Bean
Outback sedan

start wagon and sedan cargo measurements

Outback WAGON MEASURMENTS
2007 -  2006 - 2005
subject to change, correction
measurements 05 Legacy Outback cargo

2007, 2006, 2005 Wagon, hand measurements
subject to change, correction

A: 39" wide lower gate opening
B: 43" wide mid-gate opening
C: 48" wide top of wheel wells
D: 42.25" wide between wheel wells
E: 33.50 " height opening at gate
F: 29-31" interior height depending on where you measure
G: 43" length with seat folded up
H: 73" length with seat folded flat

more dimensions below

Wagon's storage bin above spare tire (hand measured)
A: 24" wide
B: 24.25" long
C: 3.75" deep


wagon spare tire compartment with temporary tire
end wagon
start sedan measurements
2007 OUTBACK SEDAN TRUNK MEASUREMENTS
new for 2007 rear seat folds flat 3 ways, lockable for security

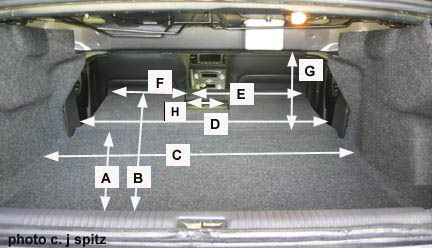

OVERALL 2007 TRUNK DIMENSIONS
Legacy and Outback sedan
hand measured

2007 legacy spec.B trunk measurements

A cargo floor length with seat upright 40"
B cargo floor length to top of seat with seat folded down 67"
C trunk width 42"
D width of opening from trunk 41"
E width of right (passenger) side 16", as shown 25" incl. 9" center section
F  width of rear seat left (driver) side 16"
G height of opening from trunk 13"
H width of center armest fold-down section 9"
2007 trunk 3 part fold down rear seats
left, center armrest, right, lockable for security, hand measured
2007 Legacy, Outback sedan 3 way fold down rear seat
A left (driver) side 16"
B center armest pass through 9"
C right (passenger) side 16"

********************************

center armrest folded down (9"), locking push-button folds the seat

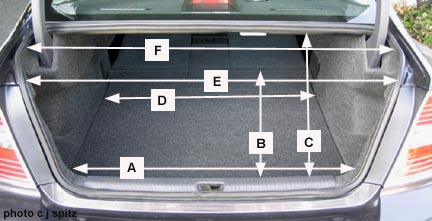

2007 LEGACY AND OUTBACK SEDAN TRUNK OPENING DIMENSIONS
hand measured

2007 Legacy trunk measurements

A width at base opening 18"
B cargo floor length to seat base 40"
C trunk opening height 16"
D floor width at wheel well 42"
E trunk opening at middle top 33"
F trunk opening at top 40"

all 3 sections flat 41"



END dimensions

top
safety
2007 OUTBACK SAFETY
subject to change, correction

2006 Outback overhead airbag on-off warning light
passenger airbag on-off light and seatbelt lights in overhead display

 2006 Legacy is a double best pick in both front and side Crash Testsfrom the IIHS.org

feature Basic  2.5i and 2.5i Limited
wagon and sedan
XT Limited turbo  LL Bean wagon and sedan
All Wheel Drive
S
S
S
S
Traction Control
na
na
yes, VDC all wheel drive
yes, VDC all wheel drive
Tire Pressure Monitor
na
new for 07 S
new for 07 S
S
Turn Signals in the outside mirrors
na
na
S
S
Panic Alarm
Standard,  uses remote key fob
Seatbelts
5 passenger, all with full shoulder harness and lap belts
with Height adjustable shoulder harness anchor points  (except center rear)
Child Seats
LATCH system - lower anchor and tether for children
Front Airbags, advanced Standard dual front airbags with Dual Stage Deployment.
Driver airbag detects distance of driver from steering wheel and deploys accordingly.
Passenger seat detects occupant weight and will turn off airbag if passenger is under app 75-80 pounds!!
Passenger airbag status is displayed by the trip computer, see photo above
Side Airbags, Front
Standard
Front Side Curtain Airbags
Standard
Rear Side Curtain airbags
Standard
Headrests
5 headrests
Crumple Zones
Front and Rear
5mph Impact Bumpers
Front and Rear
Re-inforcments
Ring-Shaped reinforcement safety structure
dual front door beams, single rear door beams all tied into a full perimeter protection system
Brakes
4 wheel, 4 channel anti-lock power disc brakes
Auto on-off headlights
headlights are on-off with the ignition, with green light indicator upper right inst. panel. When off, the Daytime Running Lights are on,
DayTime Running lights
Standard, when the headlights are off the DayTime Running lights are on, with new for 2007 'DRL'  instrument panel indicator
Childproof rear door locks
Standard
model reminder
Basic
2.5I,  2.5i Limited
wagon and sedan
Outback XT Limited
3.0R LL Bean wgn
end safety
top
mechanicals
2007 OUTBACK MECHANICALS
subject to change, correction
model
4 cylinder models
3.0R 6 cylinder models
feature
subject to change, correction
Basic, 2.5i 2.5i Limited
wagon and sedan
XT Limited turbo LL Bean wagon and  sedan
Engine 4 cylinder 2.5L SOHC Boxer design
16 valve,
i-active Valve Lift system
Aluminum block and head
Aluminum intake manifold
Cast iron cylinder liners
5 main bearings
Sequential multi-port injection
Distributorless ignition
Platinum spark plugs
NGK FR5AP-11
firing order 1-3-2-4
Compression 10.0
Idle speed: manual 650rpm,
auto 4spd 700rpm
4 cylinder 2.5L DOHC Boxer design
Turbocharged, Intercooled
new SI drive
16 valve,
Aluminum block and heads,
AVCS active variable valve control system
Composite resin intake manifold
Cast iron cylinder liners
5 main bearings
Semi-closed design
Iridium spark plugs
NGK SILFR6A
Firing order 1-3-2-4
Compression: 8.4
Maximum Boost: 13.5psi
Idle speed: 750rpm
6 cylinder, 3.0L DOHC
Boxer design, 24 valve
Aluminum block and heads
Composite resin intake manifold
AVCS active variable valve control system
AVLS active valve lift system
Sequential fuel injection
Direct electronic distributorless ignition
Compression 10.7
Idle speed: 650rpm
Spark plugs Platinum NGK ILFR6B
Firing order 1-6-3-2-5-4
Horsepower 175@6000rpm, torque 169lbft@4400rpm 243@6000rpm, torque 241@3600rpm
change from 06 is due to change in test standards only
245@6,600rpm, torque 215@4200rpm
change from 06 is due to change in test standards only
Transmission Standard 5spd manual
Optional 4spd Automatic electronic SportShift

Note: manual not available on 2.5i Limited wagon or sedan

Standard 5spd manual, reinforced dual mass flywheel
Optional 5spd automatic electronic SportShift with steering wheel controls
Automatic 5spd, electronic SportShift
All Wheel Drive system
Manual transmission
symmetrical all wheel drive, viscous coupling 50/50 power split,  Limited Slip rear axle symmetrical all wheel drive, viscous coupling 50/50 power split,  limited slip rear axle
no manual available
Gear Ratios, manual Manual 5spd
1- 3.454
2- 2.062
3- 1.448
4- 1.088
5- 0.871
final 4.111
Manual 5spd
1- 3.166
2- 1.882
3- 1.296
4- 0.972
 5- 0.738
final 4.444
no manual available
model reminder
subject to change, correction
Basic, 2.5i, Limited wagon and sedan
XT Limited turbo
LL Bean wagon and sedan
All Wheel Drive system Automatic transmission Optional on Basic and 2.5i, the 4spd automatic Sportshift is electronically controlled, constantly varying, front bias with Limited Slip rear axle

Automatic is standard on all 07 Outback 2.5i Limiteds

new for these models
VDC all wheel drive. VDC stability traction control system measures variables such as steering input, braking and vehicle angle, and applies individual brakes and/or reduces engine power to counteract skids or slides to help keep you in control.
VTD (variable torque distribution) varies the power front back, the standard is rear wheel performance balanced at 45/55 front-rear.
Gear Ratios, automatic Automatic 4spd Sportshift
1- 2.785
2- 1.545
3-1.000
4-0.694
final 4.444
Automatic 5spd Sportshift
1- 3.540
2- 2.264
3- 1.471
4- 1.000
5- 0.834
final 3.272
model reminder
Basic,  2.5i
2.5i Limited wagon and sedan
XT Limited turbo
LL Bean wagon and sedan
Fuel type
Fuel economy city/highway
Fuel tank 16.9 US gal.
Low fuel light comes on with appr 2.5 US gallons left
Regular unleaded gas
Economy manual 23/28
Economy auto trans 22/28
Premium Unleaded 91 octane required
Economy manual 21/27
Economy auto 5spd 20/26
Premium Unleaded 91 octane recommended but not required
Economy: automatic 5spd trans 19/26
Steering
Power rack & pinion with engine speed sensing variable assist
Turning circle of the car 35.4ft; Steering Wheel Turns, lock-to-lock 3.2, Steering ratio 16.5:1
Brakes 4 wheel disc, 4 channel anti-lock, low wear indicator

front: 11.5 x.94 ventilated twin caliper piston
rear: 10.6 x .39 solid disc, single caliper piston

4 wheel disc, 4 channel anti-lock, low wear indicator

front: 11.5 x 1.18 ventilated disc, twin caliper piston

rear: 10.6 solid disc, single caliper piston

4 wheel disc, 4 channel anti-lock
front: 11.5 x.94 ventilated twin caliper piston
rear: 10.6 x .39 solid disc, single caliper piston
low wear indicator
Curb weight
manual/automatic, US pounds
3330/3375
3430 automatic only
3535/3605
3610 automatic only
Wheels:
Basic: 16" steel wheel
All others: 17" aluminum alloy
Basic steel wheel 16x6.5jj, offset 48 (1.89)
2.5i 17x7jj, offset 48 (1.89)
17x7jj
offset 48 (1.89)
Silver 17x7" 5 spoke
offset 48 (1.89)
Gray colored 17x7" 5 spoke,
offset 48 (1.89)
Tires Basic 225/60 R16 97H
2.5i 225/55 R17 95V
225/55 R17 95V high performance all season
Suspension
Front: Macpherson strut. Rear: multi-link
Towing capacity
trailer brakes suggested for trailers over 1300 pounds
2700#
2700#
2700#
3000#
Headlights, auto-off with ignition
 4 beam
4 beam
4 beam
4 beam
Fog Lights S
S
S S
model
subject to change, correction
Basic,  2.5i wagon
Outback 2.5i Limited
wagon and sedan
Outback XT Limited
Outback 6 cylinder LL Bean wagon and sedan
mechanicals
top
features
2007 Outback
STANDARD FEATURES
S- standard, NA- not available, 0- option
subject to change and correction
model / option
subject to change, correction
Basic
Outback 2.5i
2.5i Limited
wagon and sedan
XT Limited turbo
LL Bean wagon and sedan
SI drive (see above)
na
na
na
S
na
Power driver seat, 8 way with lumbar support
na
S
S
S
S
Power Passenger seat, 4 way with lumbar support
na
na
na
S
S
Leather seating surfaces
na
na
S
S
S
perforated, taupe 2 tone
Performance design front seats
na
na
na
S
na
2 tone leather, perforated trim, small embossed logo
na
na
na
na
S
Sunroof: large dual pane glass with wind-block, auto open-close, with sunshade na na S S S
Air conditioning, 4 speed fan, manual controls
S
S
na
na
na
Climate Control air conditioning with automatic controls, Dual front temperature zones, 6 speed fan
na
na
S
S
S
Turn Signals in the outside mirrors, body-colored, fold in
na
na
na
S
S
Tire Pressure Monitor System TPMS
na
S
S
S
S
S- standard, na- not available, 0- option
subject to change, correction
Basic
2.5i
2.5i Limited wagon and sedan
XT Limited
LL Bean wagon and sedan
Body Colored Door handles, outside mirrors
na
na
S
S
S
Windshield upper shade band
na
na
S
S
S
Woodgrain accents with taupe interior,
Brushed silver accents with grey interior
S
S
S
S
S
Trip Computer: Instant and average fuel economy, elapsed time, DTE,
ouside temp..
Resets w/ trip odometer
S
S
S
S
S
Rear Cargo plug (wagon) inside left storage
0
S
S
S
S
Rear cargo tray
color matches interior
0
S
S
S
S
Steering wheel
vinyl wrapped
vinyl wrapped
leather wrapped
Leather Momo designed, with optional automatic SportShift shift controls
Mahogany wood and leather, Momo designed,
with audio controls
Auto Dimming rear view mirror w/ compass
0
0
0
0
S
Homelink Garage door system, accepts 3 codes for opening garage, interior or exterior lighting etc
0
requires auto dimming mirror with compass
0
Immobilizer key
S
S
S
S
S
Air Filtration
S
S
S
S
S
model
Basic
2.5i
2.5i Limited wagon, sedan
XT Limited
LLBean wagon, sedan
Stereo systems (Panasonic)
single CD am/fm, 100watt, 6 speakers, MP3, Bass, treble, midrange adjustments, auxiliary input plug, prewired for XM satellite radio
 new for 07 SRS WOW sound enhancement.
6 disc CD changer/am/fm, 100watt, 6 speakers, MP3.
Bass, treble, midrange adjustments, auxiliary input plug, prewired for XM satellite radio
Fold down rear seats
S on all models including new for 2007 sedan 3 way, lockable, fold down seat
Rear seat armrest
na
na
S on sedan
S
S
Rear Spoiler
S
S
S
0 on sedan
S
S
0 on sedan
Aluminum sill plate covers
gate
gate
gate
front & rear doors, gate
front & rear doors, gate
Front Bumper underguard
0
0
0
o
S
Overhead map lights
S
S
S
na
S
Overhead map lights and 2 sunglass holders
S
S
na with sunroof
na with sunroof
na with sunroof
OUTBACK
Basic
2.5I
2.5i Limited wagon, sedan
XT Limited
LL Bean wagon, sedan
features
top
options
OPTIONS 2007 Outback
subject to change, correction

NOTE: Prices are factory or port installed options.
Dealer installed prices may be higher due to part and labor costs. Please contact your local dealer.

Packaged Options
Outback Basic
 2.5i
2.5i Limited
wagon and sedan
XT Limited
LL Bean
wagon and sedan
Popular Equipment Group 1A/B
Auto Dimming Mirror/Compass and Security System Shock Sensor $304 ($198)
0
0
0
0
na
mirror std
see below
Popular Equipment Group 1C/D: Auto Dimming Mirror/Compass
plus Homelink, and Security System Shock Sensor $381 ($248)
0
0
0
0
na
mirror std
see below
Popular Equipment Group 4, LL Bean only: Auto Dimming Mirror/Compass with Homelink Upgrade, and Security System Shock Sensor $198 ($129)
na
na
na
na
0
Popular Equip Group 2: Center pop-up armrest extension, rear cargo net $214 ($139)
0
0
0- wagon only
na- sedan
0
0- wagon
na- sedan
Cargo Area Convenience Group wagon only
Cargo Nets: Rear, Seatback, left & right Side, Cargo Area Spotlight
$212  ($135)
 0
0
0- wagon only
na- sedan
0
0- wagon
na- sedan
Outdoor Recreation Group 1: Heavy Duty roof cargo basket, Fork mounted Bike attachment with front wheel holder $525 ($316), Wagon only
0
0
0- wagon
na- sedan
0
0- wagon
na- sedan
Bike Carrier Group: Round HD cross bars, fork mounted bike attachment $498 ($293) Wagon only
0
0
0- wagon
na- sedan
0
0- wagon
na- sedan
Individual Options
Performance 0ptions
Roofrack Accessories
subject to change, correction
Basic
2.5i
2.5i Limited
wagon and sedan
XT Limited
LL Bean
wagon and sedan
Navigation System, see prices above, factory installed only
na
na
na
0
0
Luggage Cover $165 ($108)
0
S
S
S
S
Cargo Area plastic no-slip tray, with raised lip, $75 ($46)
0
S
S
S
S
Rear Gate Board, Cargo cover, wagon only $237 ($154)
0
S
S
S
S
Splash Guards, granite gray colored $166 ($108)
Black $106 ($69)
0
S
S
S
S
Remote Engine Start, automatic transmssion only $442 ($288)
0
0
0
0
0
Security System Shock Sensor $121 ($79)
0
0
0
0
0
Auto Dimming Mirror/Compass $183 ($119)
0
0
0
0
S
Auto Dimming Mirror/Compass plus Homelink $260 ($169)
0
0
0
0
na
Auto Dimming Mirror/Compass plus Homelink,
LL Bean upgrade $75 ($49)
na
na
na
na
0
Front Armrest, center, pop-up  $163 ($106)
0
0
0
0
0
XM Radio Satellite kit  $456 ($342)
0
0
0
0
0
Stereo Subwoofer/Amplifier $287 ($186)
0
0
0
0
na with Navigation
0
na with Navigation
No factory Bluetooth is available on any model
na
na
na
na
na
Front Hood Deflector  $85 ($45) not installed
0
0
0
0
0
Front Bumper Underguard $145 ($94)
0
0
0
0
S
Rubber Floor mats $55  ($33)
0
0
0
0
0
Rear Dome/reading light $85 ($56)
na
na
0
0
0
Wheel locks  $42 ($28), not installed
0
0
0
0
0
Cargo Area Spotlight, wagon only, a handheld light uses front, console, and rear cargo power outlets: $45 ($26)
na
0
0- wagon
na- sedan
0
0- wagon
na- sedan
Cargo net, wagon only, rear $51 ($33)
0
0
0- wagon
na- sedan
0
0- wagon
na- sedan
Cargo nets, wagon only, rear sides (2) $68 ($45)
0
0
0- wagon
na- sedan
0
0- wagon
na- sedan
Cargo net, wagon only, rear seatback $48 ($31)
0
0
0- wagon
na- sedan
0
0- wagon
na- sedan
Cargo net, sedan $64 ($41)
0
na
na- wagon
0- sedan
na
na- wagon
0- sedan
Trailer Hitch $353 ($229) 1.5", includes receiver
0
0
0- wagon
na- sedan
0
0- wagon
na- sedan
model
subject to change, correction
Basic
2.5i
2.5i Limited
wagon, sedan
 XT Limited
LLBean wagon and sedan
Rear Spoiler- sedan only $389 ($292)
standard on wagons
na
na
na- wagon
0- sedan
na
na- wagon
0- sedan
Moonroof air deflector $91 ($59)
na
na
na- wagon
0- sedan
na
na- wagon
0- sedan
Roof Rack,  cross bar kit
0
S
S
S
S
Roof Rack HD Cross Bar set- round $179 ($111) wagon only flat bars are standard,
0
0
0
0
0
Roof Rack wagon only, Ski Attachment 6 pair $140  ($82)
0
0
0
0
0
Roof Rack wagon only, HD Cargo basket $335 ($208)
0
0
0
0
0
Roof Rack Bike Attachment, Fork mounted. 1 bike $115 ($91); wagon only. 2 bikes $310 ($182). Requires HD cross bars
0
0
0
0
0
Performance Short Throw STi Shifter $374 ($243). manual trans only
0
0
0
0
na
Performance Shift Knob, Momo, Manual trans $102  ($66)
0
0
0
0
na
Performance Shift Knob, Momo, Automatic transmission  $117 ($76)
0
0
0
0
0
Metal Pedal pads, auto trans only, $145 ($94)
0
na
na
na
0
Performance STi Strut Tower Brace, aluminum, dealer part only not factory installed or shipped #ST2050021000
0
0 0 0 0
Performance  Rear Differential Protector, dealer part only. not factory installed or shipped.
0
0
0
0
0
model
subject to change, correction
Basic
 2.5i
2.5i Limited wagon and sedan
XT Limited
LL Bean wagon and sedan
options
top

 instrument panel warning lights
DRL indicates that the Daytime Running Lights are on when the headlights are off.
 Low fuel light comes on with app 2.6 US gallons left.
Low tire pressure light TPMS- steady illumination when a tire is low, flashes there's a problem with the system. Take to mechanic.
VDC off light comes on when you have temporarily disabled the VDC system (button is lower left dashboard) or when there's a problem with the system. Take to mechanic.
AWD light (AWD = all wheel drive) flashes if the vehicle is driven with mismatched or low tires which is always bad on an all-wheel-drive.
Indicates the transmission fluid is too hot. Slow down and avoid hard driving, hills, stop-go traffic etc. Take to mechanic.
Indicates that there is a problem. Or a loose gas cap. Anyway, slow down and take to mechanic.

colors
2007 OUTBACK COLORS
subject to change, correction
color - model
Basic
2.5i
2.5i LLBean wagon
2.5i Limited
2.5i Limited LLBean wagon
2.5i Limited sedan
XT Limited
3.0R LL Bean
wagon
Perforated 2tone Dark Taupe leather, Taupe leather bolsters
3.0R LL Bean sedan
Obsidian Black Pearl
gray cloth
gray cloth
--
gray leather
LL Bean taupe leather
gray leather
charcoal leather
Perforated 2tone Dark Taupe leather, Taupe leather bolsters
Diamond Gray Metallic
--
--
taupe cloth
gray leather
--
--
charcoal leather
--
--
Champaign Gold Opal
taupe cloth
taupe cloth
taupe cloth
taupe leather
LL Bean taupe leather
taupe leather
taupe leather
Perforated 2tone Dark Taupe leather, Taupe leather bolsters
Willow Green Opal with Moss Green Metallic accent
--
taupe cloth
--
--
LL Bean taupe leather
--
--
Perforated 2tone Dark Taupe leather, Taupe leather bolsters
--
Newport Blue Pearl
with Granite Gray Opal accent
taupe cloth
avail starting 1/07
--
--
--
LL Bean taupe leather
--
--
Perforated 2tone Dark Taupe leather, Taupe leather bolsters
--
Newport Blue Pearl
--
taupe cloth
--
taupe leather
--
taupe leather
taupe leather
--
LL Bean leather
Brilliant Silver metallic
--
--
--
--
--
gray leather
--
--
LL Bean leather
Brilliant Silver metallic
with Granite Gray Opal accent
gray cloth
gray cloth
--
gray leather
LL Bean taupe leather
--
charcoal leather
Perforated 2tone Dark Taupe leather, Taupe leather bolsters
--
Satin White Pearl
--
taupe cloth
--
taupe leather
LL Bean taupe leather
taupe leather
taupe leather
Perforated 2tone
Dark Taupe leather, Taupe leather bolsters
model
Basic
2.5i
2.5i LL Bean wagon
2.5i Limited
2.5i Limited LL Bean wagon
2.5i Limited
sedan
XT Limited
LL Bean wagon
LL Bean sedan
end colors
starts speed specs

10/52005 Kelly Blue Book rates the Outback best Resale Value wagon


Ratings by car magazines, enthusiasts etc. Know of others that should be here?
Outback XT with automatic 5spd SportShift
Car and Driver, July 2004

Zero to 30 mph: 2.7
40 mph:  3.9
50 mph:  5.3
60 mph:  7.1
70 mph:  9.4
80 mph:  11.8
90 mph:  14.8
100 mph: 19.2
110 mph: 24.7
120 mph:  32.0
Street start, 5–60 mph: 7.8
Top-gear acceleration, 30–50 mph: 3.4
50–70 mph:4.7
Standing 1/4-mile: 15.6 sec @ 92 mph
Top speed (governor limited): 130 mph
BRAKING
70–0 mph @ impending lockup: 204 ft
HANDLING
Roadholding, 300-ft-dia skidpad: 0.74 g
INTERIOR SOUND LEVEL
Idle:  44 dBA
Full-throttle acceleration: 71 dBA
70-mph cruising: 67 dBA
DRIVETRAIN
Transmission: 5-speed auto, manumatic shifting
Final-drive ratio: 3.6:1
4-wheel-drive system: full time with automatically locking center differential
Gear Ratio, Mph/1000 rpm,  Max test speed
I, 3.54, 6.1, 39 mph (6500 rpm)
II, 2.26, 9.5, 62 mph (6500 rpm)
III, 1.47, 14.6, 95 mph (6500 rpm)
IV , 1.00, 21.4, 130 mph (6100 rpm)
V, 0.83, 25.7, 130 mph (5100 rpm)


2005 Legacy GT with automatic 5spd SportShift
See Legacy page for more
from edmunds.com


Performance:
0 - 30 (sec):  2.6
0 - 45 (sec):  4.6
0 - 60 (sec):  7.0
0 - 75 (sec):  10.6
1/4 Mile (sec @ mph): 15.45 @ 91.55
30 - 0 (ft):  31.97
60 - 0 (ft):  133.89
Slalom (mph):  63.9


from modernracer.com
2005 Legacy GT with 5spd SportShift automatic

Top speed : 130 mph(electronically limited)
0-60 mph : 6.1 sec.(estimated)
0-¼ mile : 14.2 sec @ 98.0 mph(estimated)
60-0 braking distance : 125 ft(estimated)
200 ft skidpad : 0.85 g(estimated)


This is an 100% unofficial page by Joe Spitz who is solely responsible for all information.
Information subject to change and correction, not responsible for typos, errors, omissions.

Tips, comments welcomed.Discounted Subaru sales in Seattle, Wa. Contact

homepage
Many thanks,
Joe

top
