On this page: 2009 Outback
site best viewed with small font.
Looking for 2010 or 2008 Outback, 2009 Legacy sedans?

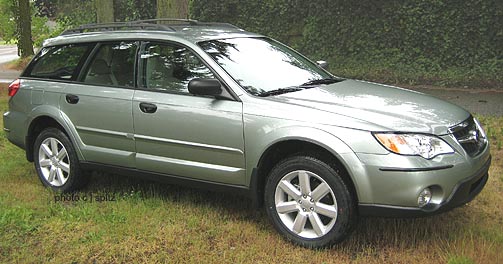

2009 2.5i SE. New color for 2009 Outback, Seacrest Green, a very pale silvery green.

On this page
What's New for 2009 & Updates  -  PZEV emissions - Harman Kardan stereo - Navigation GPS
2009 Outback line-up  I Overview of the models: Outback  I  2.5i SE, 2.5i Limited  I XT Limited turbo  I  3.0R Limited
Prices I Maintenance, Factory Warranty IDimensions I Safety Features I Engine and Mechanical Specifications
Standard Features I Options  I Instrument Panel warning lights Colors I speed tests, articles, links

Other Pages 2009 Outback photos I Navigation System I News, Reviews, Articles I Turbo maintenance requirements I 2010 Outback?

****

Please read - this unofficial independent Subaru research site by Joe Spitz is designed to help you learn about Subarus. It is not sponsored, authorized,  supported or approved of by Subaru or any dealer and is not connected to, or affiliated with, any dealer. Always contact your local dealer. Inspect any car prior to purchasing. Information always subject to change, correction.
****

Buying in Seattle, the greater Northwest, Alaska, Hawaii....
Contact Joe Spitz, internet sales, Seattle, Wa.  Shipping available. Used sales to Canada.  Contact

thanks for dropping by. you are here http://www.cars101.com/subaru/outback/outback2009.html v  5.16.16
all text, formatting, photos © J. Spitz; unauthorized copying prohibited. Comments, corrections, tips welcomed
An unofficial, unauthorized page by Joe Spitz who is soley responsible for all content. Information subject to change, correction.



photos
PZEV partial zero emission vehicle
PZEV (partial zero emission vehicle) required in CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, WA.  Deep Bronze shown.
click for Harman Kardan info

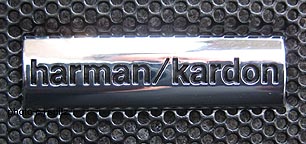

harman/kardon stereo logo on tweeters
XT turbo

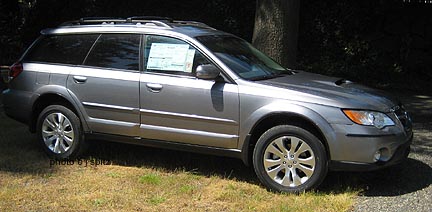

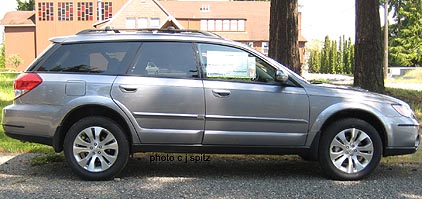

Outback XT has a turbo-charged engine. Quartz Silver shown

3.0R logo on right rear. Seacrest green shown
3.0R (6 cylinder) logo is on right rear. Seacrest green shown

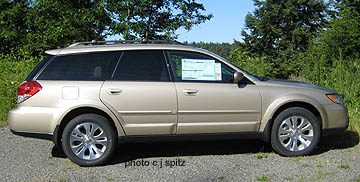

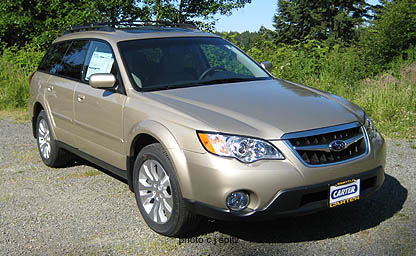

Harvest gold 2.5i Limited with dark tinted windows and turbo design alloy wheels

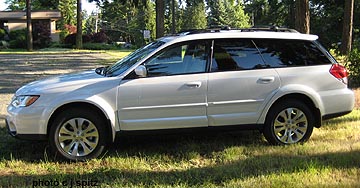

09 white 2.5i Limited with dark tinted windows. Now with turbo design alloys

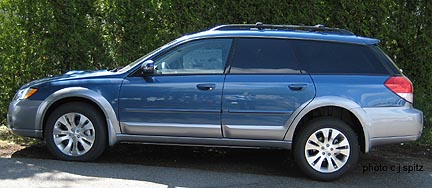

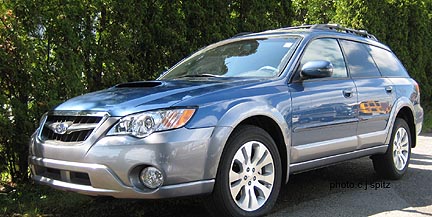

Newport Blue wirh Quartz Silver accent, XT Limited shown (notice the hood scoop)

Quartz Silver XT Limited, notice the dark tinted windows

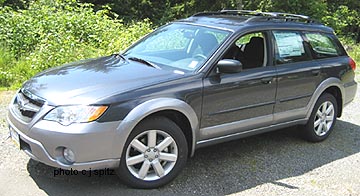

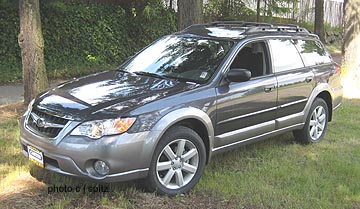

Diamond Gray with Quartz Silver accent, 2.5i shown
Diamond Gray with Quartz Silver accent, 2.5i shown with 17" 7 spoke alloys
2009 Subaru 2.5i Outback diamond gray shown
Diamond Gray with Quartz Silver accent, 2.5i shown with standard tinted windows

Quartz Silver XT Limited, notice the dark tinted windows

09 white 2.5i Limited with dark tinted windows. Now with turbo design alloys for 09.

Newport Blue wirh Quartz Silver accent, XT Limited shown with dark tinted windows

2.5i Limited, harvest gold, has dark tinted windows, turbo design alloy wheels, painted mirrors
new 2008 Subaru Outback front grill
Outback front grill

top

front wiper de-icer
The front wiper de-icer heats up the lower windshield.
All 09 models except Outback 2.5i.
new for 09: off back carpet with warm ivory interior

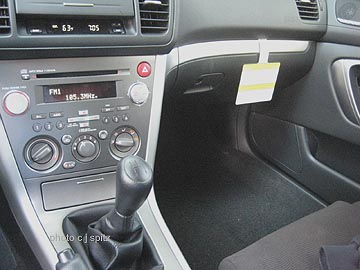

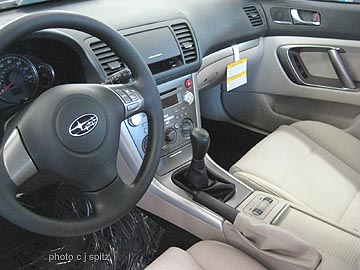

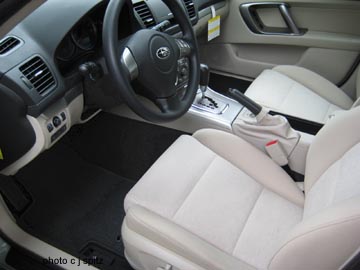

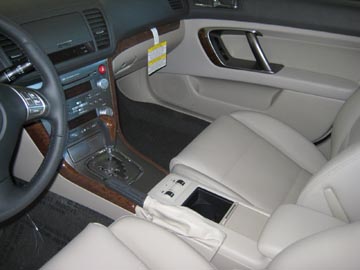

new for 2009: off black carpet on all models. Shown warm ivory interior. 2.5i SE shown

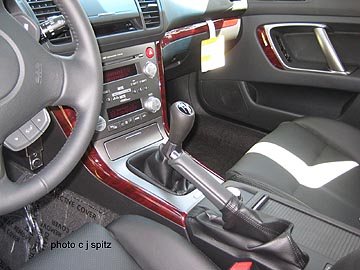

Limited with dark gray interior has chestnut woodgrain trim

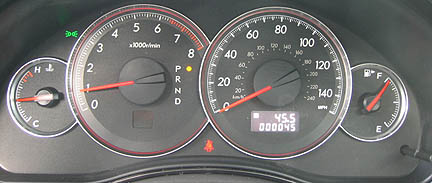

2008 speedometer in both miles and kilometers
instrument cluster used on 2.5i, SE, Limited

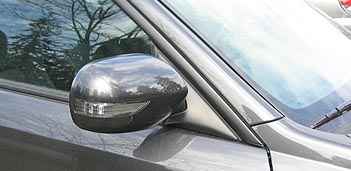

Outside mirror with integrated turn signals, defrsoting, on XT and  3.0R Lmited
(diamond gray XT shown)
new for 2009 Subaru remote entry
new redesigned remotes for 09s are smaller than 08!
You get 2 key remotes and 1 valet key. The larger metal tag has the Immobilizer security access code and the smaller one has the key code. All keys are Immobilizer.
Dealer site for  lost Immobilizer codes https://subarudealers.locksmithsdrm.com

The remote buttons are lock (alarm on), unlock (alarm off), tailgate unlock, and panic.
'Finder' or locator mode: firmly press the lock button 3x and the horn will then honk with every subsequent push so you can locate the car in the parking lot.


back of the new for 09 redesigned smaller remote
top

steering wheel on 2009 2.5i and SE, with cruise controls
steering wheel on 2009 2.5i and SE, with cruise controls on right spoke. All wheels telescope, tilt. See telescoping photos below
2009 Limited steering wheel with audio and cruise controls
2009 Limited leather steering wheel with audio and cruise controls.
All wheels telescope, tilt. See telescoping photos below
XT turbo steering wheel
XT and 3.0R Limited leather steering wheel with SI drive, Info display controls, audio, and cruise controls. The SI Drive 'sport sharp' button is on the lower right side. All wheels telescope, tilt. See photos below
many more 09 Outback photos
subaru outback xt with LOVECAR license plate
Outback XT with LOVECAR license plate

Outback models for 2009


top
What's New For 09 Outback
subject to change, correction, updates

Updates and News
the 2009 model is the final year for the current version Outback. The 2010 Outback will be completely redesigned.

3/8 2010 Outback All new and redesigned 2010 Outback due Summer 2009. First showing will be at the NY Int't Auto Show in April. Expected to be slightly larger.

3/17/09 Alarm security upgrade price drops, iPod price increases

12/9/08  iPod-iPhone interface, control and play your iPod and iPhone through the factory stereo. Also recharges it except for 4th generation Nano and 2ndGen iPhone. Works on all Legacy and Outback 2007-2008-2009 without Satellite radio. Available factory or dealer installed.
SPT turbo heat shield fits  2005 through 2009 Legacy GT and Outback XT turbos. Helps keeps the turbo warmer, retain heat for faster response.

11/18/08  Harmon Kardan stereo speed sensing control - the new for 09 HK stereo in the Outback and Legacy SE, Limited, XT, and 3.0R models has a subtle automatic Speed Sensitive Automatic Volume Control (SSVC). This proprietary HK technology is more focused on low voice frequency and down as opposed to high frequency speed related noise like tire whine. The volume changes may be very subtle. There are no adjustments or settings that the user can control or set.

September 16, 2008- Destination price increase. Destination on cars arriving at dealers in late September 2008 will be $695 (up $30, from $665). Alaska will be $845. Cars at dealers before the increase will be $30 less than prices here, with a $665 destination.

July 2008, Brochure and Website errors - The 2009 Outback brochure incorrectly indicates the 2.5i SE has a CD changer, the correct stereo is a single disc CD.
 Incline Assist - The website may indicate the 09 Outback has 'incline assist' (previously called hill holder). That's incorrect, the 09 Outback doesn't have incline assist.

Cars expected mid June
5/30/08 Prices announced .

2008 Crash tests, 5 star results from NHTSA

new model names
new 2.5i, replaces 2008 Outback
new 2.5i SE, replaces 2008 2.5i
new 3.0R Limited, replaces 2008 LL Bean.
new 2.5i Limited, combines features of the 2008 2.5i Limited and 2.5i Limited LL Bean.
new 2.5i Limited with Navigation, replaces 2.5i Limited LL Bean

Gone The LL Bean name has been dropped from all models.
Gone 2.5i LL Bean model.
Gone 2.5i Limited LL Bean, replaced by 2.5i Limited with optional Navigation
Gone 3.0R LL Bean, replaced by 3.0R Limited
Gone wood and leather steering wheel and auto mdimming mirror/compass from the 3.0R

new New dark interior carpet. All interior carpets are off black (dark gray) with matching floor mats. Replaces the light color carpeting.
new All models now have VDC vehicle dynamic control (electronic stability control).
new Tinted windows, dark tint. This is a first for the Outback. On 2.5i Limited, XT, and 3.0R models. Otherwise they have the standard tint.
new 2.5i Limited alloy wheel now the same one that has been on the XT and 3.0R models
new Stereo: SE and above models get new Harmon Kardon Premium audio, 440 watt, 9 speakers, 7 channel amp/equalizer, speed sensing volume control.
new Color: Seacrest Green, very light silvery green that was previously available on 06 Tribeca
new Keyless remote is smaller (yes!)

Emissions: 2.5L 4 cylinder models are available in either Fed or Ca spec.
PZEV (partial zero emission vehicle) required in CA, CT, NH, NY, MA, MS, RI, VT, WA, OR
Federal Emission Specification: Certified low emission LEV2 for sale in all states except CA, CT, NH, NY, MA, MS, RI, VT, WA, OR

What is PZEV, a brief, simple summary
The EPA says a PZEV is the cleanest running gas car on today's market based on emissions testing for carbon-containing compounds, oxides of nitrogen, particulate matter, and other tailpipe nastiness. It is required in CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, and WA
1. A charcoal cannister catches unburned gas left in the engine when it's turned off so it doesn't just evaporate.
2. Fuel injectors that close tighter when they're not in use.
3. A finer mesh in the catalytic converter, as well as optimized placement of its precious metal.
4.  The engine's electronic brain is tuned to run the hot at start up to help the catalytic converter heat up so it can start doing its job faster.


PZEV section of the Monroney window sticker required in CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, WA

VDC is now standard on all models
VDC vehicle dynamics control, is a stability and traction skid control system that measures and monitors variables such as steering wheel input, braking, and vehicle angle, and then applies individual brakes and/or reduces engine power to counteract skids or slides to help keep maintain driver control.
TCS Traction Control System. TCS senses a loss of of traction and applies the brakes to the slipping wheel(s) to maintain vehicle motion.
VTD Variable Torque Distribution on XT turbo and 3.0R 6 cylinder 5speed automatic transmissions only. VTD traction control system has 45/55 performance oriented, front/rear power split with Limited Slip rear axle.

The Outback is classed as a light truck by Subaru for CAFE fuel economy reasons. 'Cafe' stands Corporate Average Fuel Economy. This doesn't affect safety, economy or mean the car will tip over or be unsafe like a SUV. Many other vehicles are classed this way including Honda CRV, Dodge minivan, Toyota Rav4, Chrysler PT Cruiser, Honda Odyssey, Honda Element, Cadillac ESV, Chrysler Pacifica etc etc. Here is the official statement from Subaru.
Because is it considered a truck, prvacy tinted glass is legal in states that only allow it on trucks (some states allow dark tint on all vehicles).

subject to change, correction, updates



top
Harman Kardan Premium stereo on 2009 Outback 2.5i SE, Limited, XT and 3.0R
Harman Kardan Premium audio
subject to change and correction, photo c. SoA
top

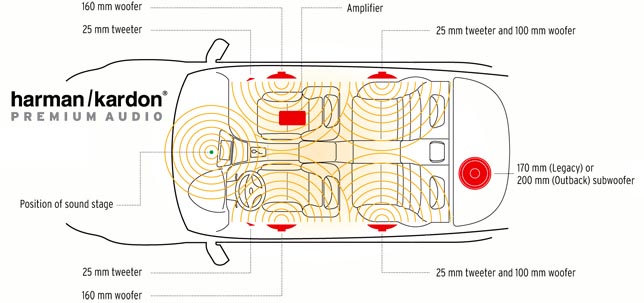

2009 Outback Harman Kardon specs
440-watt 9-speaker Harman Kardon audio system with Speed-Sensitive Auto Volume Control (SVC)
11/18/08 the automatic Speed-Sensitive Auto Volume Control (SSVC) is proprietary HK technology and is more focused on low voice frequency and down as opposed to high frequency speed related noise like tire whine. The volume changes may be very subtle. There are no adjustments or settings that the user can control or set.

8-channel Harman Kardon amplifier (under passenger seat) with Digital Signal Processing (DSP)

Front Speakers
Two 25 mm Metal-Matrix DiaphragmTM (MMD®) tweeters
Two 160 mm Metal-Matrix Diaphragm cone woofers with neodymium magnet structure

Rear Speakers
Two 25 mm Metal-Matrix Diaphragm tweeters
Two 100 mm Metal-Matrix Diaphragm cone woofers
with neodymium magnet structure
One 200 mm cargo-area dual-voice-coil (DVC)
Subwoofer speaker in rear cargo area

(Legacy system is 385 watts, 7-channel amp,
170 mm rear-shelf subwoofer speaker)

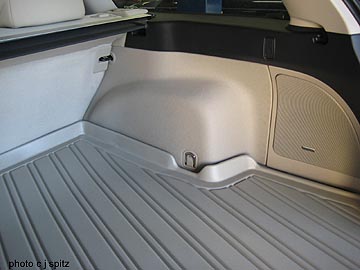

rear subwoofer speaker, warm ivory shown

harman kardan tweeter
harman kardan tweeter

top
2009 Outback Navigation system
 2.5i Limited (code 9DH), 3.0R Limited (9DV), and XT Limited (9DL)
subject to change, correction, updates
Kenwood 7" touch screen. Includes two discs, one  for US East, and one for US West and Canada. Verbal directions in English or French language, male or female voice, has local highlights such as restaurants, gas stations, hospitals and etc, uses yellow pages for phone and address look-up (no white pages). Computer is located under driver's seat. May not work with GPS in Alaska.
Learn more Navigation system
Disc updates are available only from store.kenwoodusa.com
top

overview

the 2009 model line
2.5L 4 cylinder
with all wheel drive and VDC electronic stability control

Outback 2.5i (was Outback)
model code 9DA, 9DB
Outback 2.5i SE (replaces 2.5i)
model code 9DC, 9DD
Outback 2.5i Limited, leather, sunroof
model code 9DG
Outback 2.5i Limited, Navigation, leather, sunroof
model code 9DH

2.5L turbo 4 cylinder
with all wheel drive and VDC electronic stability control

XT Limited manual transmission, leather, sunroof.
model code 9DJ
XT Limited automatic transmission, leather, sunroof
model code 9DK
XT Limited auto transmission, Navigation, leather, sunroof  model code 9DL

3.0L 6 cylinder
with all wheel drive and VDC electronic stability control

Outback 3.0R Limited, leather, sunroof, privacy glass
model code 9DU
Outback 3.0R Limited Navigation, leather, sunroof, privacy glass, model code 9DV

top
2009 Outback 2.5i standard features
subject to change, correction, updates

Fed: Federal Emission Specification: Certified low emission LEV2 for sale in all states except CA, CT, NH, NY, MA, MS, RI, VT
PZEV: (partial zero emission vehicle) required in CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, WA.
Note: Californic PZEV spec cars may be sold in Fed states as available.


2009 Outback 2.5i standard features
model code 9DA (manual), 9DB (automatic)
looking for Legacy?

new Outback 2.5i replaces 2008 Outback (same car, new name).
new Off black carpeting and floor mats with all colors
new VDC (vehicle dynamics control) is now standard on all models.

2.5L 4 cylinder engine, 170 horsepower @60000rpm, torque170@4400rpm
All Wheel Drive (awd) with VDC
Mi-active Valve Lift system
Manual 5 speed transmission, (Automatic 4 speed SportShift is optional)
Heavy duty raised suspension
Anti-lock disc brakes, with EBD, 4 wheel disc brakes
Airbags: Front driver and passenger, advanced dual stage, occupant detecting
Airbags: Front side driver and passenger
Airbags: Front and Rear Side Curtain
Overhead passenger airbag on/off and seatbelt warning lights
5 seatbelts & headrests
Power Windows, auto down drivers, illuminated
Power Locks
Power Mirrors, black
Power Steering
Air conditioning with air filtration
Tinted windows (standard tint)
Air filtration system
Key and Remote entry, integrated in one piece.
Engine Immobilizer anti-theft system
Alarm, ignition disabling alarm sytem (impact sensor is an upgrade)
Telecope, Tilt steering wheel
Cupholders, 4: 2 front, 2 back
TPMS Tire Pressure Monitoring

 continued: Outback standard features


Cruise control with steering wheel controls
16" steel wheels with full wheel covers
Pre-wired for Remote StartRear Spoiler
Trip Computer includes Clock, Instant and Average economy for trip odoemeters,
Outside temperature guage, elapsed time (ET), miles to empty (DTE).
4 beam halogen headlights, auto on-off with ignition, with green on upper right of the instrument panel indicating when headlights are on
Day Time Running lights, on when headlights are off
Front wipers: Variable speed intermittent
Rear wiper, 2 speed, auto-on in reverse with auto trans
Rear defroster with rear wiper de-icer
Fold flat rear seats, 60/40 split
Roof rails, raised
Dual vanity mirrors
Dual map lights
Rear cargo light
Steel hood
Rear bumper step pad, integrated
Cargo tie hooks (4)
Door courtesy lights (1 in each door),
Power Outlets- dashboard and center console power outlet. No cigarette lighter outlet
Dashboard illumination and daybright on/off control combined
Brushed Silver Trim

Stereo: AM/FM/CD single disc. Plays, MP3, R/RW, auxilliary input in center console. 6 speakers, 2 in each front door, 1 in rear door. 100 watt, by Panasonic. Auxiliiary input plug in center console. Pre-wired for either XM or Sirius satellite radio.


top
2009 Outback 2.5i SE and 2.5i Limited
standard equipment features
subject to change, correction, updates
2.5i SE adds over the 2.5i
model codes 9DC (manual), 9DD (automatic)
everything the Outback 2.5i has, plus...

new 2.5i SE replaces the 2008 2.5i (same car, new name)
new 440-watt 9-speaker Harman Kardon audio system

All Weather Package with heated front seats with 4 settings,
heated outside mirrors (power), and front wiper de-icer.

Limited Slip rear axle

Fog Lights
Splash guards
Rear cargo area tray
17" alloy wheels, 7 spoke
Power driver's seat, 8 way
Cross bars for the roof rails
Cargo area 12v power outlet. No cigarette lighter outlet
Rear cargo cover, with a gate attachment

Stereo: AM/FM/ single disc CD player. Plays MP3, R/RW discs. Aux input in center console. Pre-wired for XM or Sirius satellite radio. Panasonic.
new Harman Kardon audio system, 440-watt, 9-speaker, 8 channel amp/equalizer, subwoofer under front passenger seat, subtle speed sensitive volume control.

2.5i Limited adds over the 2.5i
model code 9DG
everything the 2.5i SE has, plus...

new Dark privacy tinted glass (2.5i and SE have standard tint)
new Power Passenger seat, 4 way
new Passenger seat lumbar support
new 2.5i Limited alloy wheels now the same 'turbo design' that has been on the 08 XT and 3.0R LL Bean models
new Audio controls on steering wheel (also has cruise controls)

Automatic Sportshift 4spd transmission (no manual available)
Leather interior, 3 spoke leather wrapped steering wheel, parking brake, shift knob

Woodgrain shift knob
Woodgrain patterned interior trim
Windshield dark shade band across top of windshield
Climate control, dual zone front, 6speed fan, auto and manual functions
Body colored door handles
Body colored outside mirrors
Rear seat center fold down armrest
17" 'turbo design' alloy wheels that have been on the XTs
Steering wheel, leather wrapped, with Audio Control and Cruise Controls
Dual pane power glass sunroof with auto open/close, hand measured 23"W, 30"  (deletes sunglass holder)

Stereo: AM/FM/ 6 disc CD changer. Plays MP3, R/RW discs. Auxilliary input in center console. Pre-wired for XM or Sirius satellite radio. Panasonic.
new Harman Kardon audio system, 440-watt, 9-speaker, 8 channel amp/equalizer, subwoofer under front passenger seat, subtle speed sensitive volume control.

Optional Navigation System  (model code 9DH), Kenwood 7" touch screen, GPS
Disc updates only available from store.kenwoodusa.com


top
2009 Outback XT Limited Turbo adds over 2.5i Limited
everything the 2.5i Limited has, plus...
subject to change, correction
XT Limited, manual transmission, model code 9DJ
XT Limited, automatic 5 speed Sportshift, model code 9DK
XT Limited, automatic 5 speed Sportshift, with Navigation, model code 9DL
XT Limited adds over the 2.5i Limited
check 2.5i Limited features above

Notes: this model is available is available in all states. There is no PZEV.
Oil and filter change interval at east every 3,750 miles.

Turbo 2.5L 4 cylinder with 243 horsepower. Active valve control.
Premium fuel required.

SI Drive: Subaru Intelligent Drive, on turbo and 3.0R 6 cylinder models only. Provides 3 drive modes: 'Intelligent' provides a balance of economy and power, 'Sport' provides more acceleration, 'Sport Sharp' the most acceleration and fastest throttle response. Includes steering wheel control to flip between Sport Sharp and your previous setting.

Heavy duty manual transmission (optional 5spd automatic)
Intercooler with functional hood scoop
Aluminum front door sill plates
Aluminum rear gate sill plate
Steering wheel, 3 spoke leather wrapped, with SI Drive, Info display controls, Audio and Cruise Controls
Perforated Leather interior
Turn Signals in outside mirrors
17" alloy wheels with semi-low profile tires

XT adds over 2.5i Limited, cont'd

Performance design 1 piece Sport Bucket seats
Power passenger seat, 4 way, w/ lumbar support
Sport Gauges with ElectroLuminescent needles

Optional5 speed automatic SportShift transmission (model code 9DK) with VTD (variable torque distribution) with optional automatic transmission varies the power 45/55 front/ back, for better pefromance.

OptionalNavigation System  (model code 9DL), automatic transmission required, not available with manual transmission.
Disc updates only available from store.kenwoodusa.com

Turbo engine requires 3,750 mile oil and filter change interval

Stereo: AM/FM/ 6 disc CD changer. Plays MP3, R/RW discs. Auxilliary input in center console. Pre-wired for XM or Sirius satellite radio.  Panasonic.
new Harman Kardon audio system, 440-watt, 9-speaker, 8 channel amp/equalizer, subwoofer under front passenger seat, speed sensitive volume control.

 top
2009 3.0R Limited adds over 2.5i Limited
everything the 2.5i Limited wagon has, plus..
subject to change and correction
3.0R Limited, model code 9DU
3.0R Limited with Navigation, model code 9DV
3.0R Limited adds over 2.5i Limited
(check 2.5i Limited features above)

Engine: 3.0L H6 cylinder engine, 245hp, with active valve control.
Premium fuel recommended for best performance, but not required.
Transmission: Automatic 5spd SportShift transmission.
VTD (variable torque distribution) all wheel drive: varies the power front back, the standard is rear wheel performance balanced at 45/55 front-rear.

SI Drive: Subaru Intelligent Drive, on turbo and 3.0R 6 cylinder models only. Provides 3 drive modes: 'Intelligent' provides a balance of economy and power, 'Sport' provides more acceleration, 'Sport Sharp' the most acceleration and fastest throttle response. Includes steering wheel control to flip between Sport Sharp and your previous setting.

3.0R adds over 2.5i Limited, cont'd

Steering wheel, 3 spoke leather wrapped, with SI Drive, Info display controls, Audio and Cruise Controls
Sport gauges with Electro Luminescent needles
Aluminum front door sill plate covers
Aluminum rear gate sill plate cover
Turn Signals in the outside mirrors

Stereo: AM/FM/ 6 disc CD changer, MP3, R/RW. Auxilliary input in center console.
Pre-wired for either XM or Sirius satellite radio. Panasonic.
new Harman Kardon audio system, 440-watt, 9-speaker, 8 channel amp/equalizer, subwoofer under front passenger seat, speed sensitive volume control.

Optional Navigation System Disc updates only available at store.kenwoodusa.com

top
prices

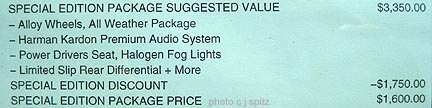

SE section of the Monroney window sticker on a 2.5i SE.

2009 OUTBACK PRICES
subject to change, correction, v 9.16.08
Interest rates, rebates
Notes
September 16, 2008 Destination price increase. Destination on cars arriving at dealers in late September 2008 will be $695 (up $30, from $665). Alaska will be $845. Cars at dealers before the increase will be $30 less than prices here, with a $665 destination.
July 2008 Price update, invoice increase $25 effective on cars arriving late July, 2008. Does not effect MSRP. These prices already include that increase.
May 30, 2008 2009 Prices announced May 30, 2008.  Destination up $20, now $665 (from $645)
Alaska residents add +$150 to destination to $815

PZEV (partial zero emission vehicle) required in CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, WA
All States use Federal (Fed) pricing except residents of CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, WA

Always include destination when discussing price or calculating payments. This is a unofficial research site and your purchase price may vary due to rebates, incentives, your dealer's mark-up or discounts, and of course any options

2009 Outback
Note starting late Sept. 08, destination on  cars delivered to dealers starting late Sept 08 raised $30 to $695 (Ak $845). Cars at dealers before late September 08 will still have the $665 destination ($815) and are $30 less than prices here.

Your purchase price may vary due to rebates, dealer discounts and/or mark-ups.
Always include destination when discussing price or calculating payments.

model
code
base MSRP
dest
total MSRP
Always include destination when discussing price
.
base dealer
invoice
dest
total dealer
invoice
Always include
destination when
discussing price.
Outback 2.5i, manual transmission
replaces 2008 Outback
PZEV required in CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, WA
Fed for all other states
9DA
Fed: $22,295,
PZEV: $22,495
$695 Fed: $22,990
PZEV: $23,190
. Fed: $21,020
PZEV: $21,226
$695
Fed: $21,715
PZEV: $21,921
Outback 2.5i, automatic Sportshift transmission
replaces 2008 Outback
PZEV required CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, WA
Fed for all other states
9DB
Fed: $23,295
PZEV: $23,495
$695 Fed: $23,990
PZEV: $24,190
. Fed: $21,932
PZEV: $22,138
$695
Fed: $22,627
PZEV: $22,833
Outback 2.5i SE, manual transmission.
SE is a new name, replaces the 2008 Outback 2.5i.
PZEV required in CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, WA
Fed for all other states
9DC
Fed: $23,895
PZEV: $ 24,095
$695
Fed: $24,590
PZEV: $24,790
.
Fed: $22,488
PZEV: $22,695
$695
Fed: $23,193
PZEV: $23,390
Outback 2.5i SE, automatic Sportshift transmission
SE is a new name, replaces the 2008 Outback 2.5i.
PZEV required in CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, WA
Fed for all other states
9DD
Fed: $24,895
PZEV: $25,095
$695
Fed: $25,590
PZEV: $25,790
.
Fed: $23,400
PZEV: $23,607
$695
Fed: $24,095
PZEV: $24,302
Outback 2.5i Limited, automatic Sportshift transmission
PZEV required in CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, WA
Fed for all other states
9DG
Fed:$28,295
PZEV: $28,495
$695
Fed: $28,990
PZEV: $29,190
.
Fed: $26,470
PZEV: $26,675
$695
Fed: 27,165
PZEV: $27,370
Outback 2.5i Limited with Navigation, automatic Sportshift transmission
PZEV required in CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, WA
Fed for all other states
9DH
Fed: $30,295
PZEV: $30,495
$695
Fed:$30.990
PZEV: $31,190
..
Fed: $28,300
PZEV: $28,506
$695
Fed:$28,995
PZEV: $29,201
Outback XT Limited Turbo, manual transmission
9DJ
$31,595
$695
$32,290
.
$29,367
$695
$30,062
Outback XT Limited Turbo, automatic 5speed Sportshift transmission
9DK
$32,795
$695
$33,490
.
$30,461
$695
$31,156
Outback XT Limited Turbo with Navigation, automatic 5 speed Sportshift transmission
9DL
$34,795
$695
$35,490
.
$32,284
$695
$32,979
Outback 3.0R Limited (6 cylinder), automatic 5speed Sportshift transmission
replaces 2008 Outback 3.0R LL Bean
9DU
$32,095
$695
$32,790
.
$29,924
$695
$30,629
Outback 3.0R Limited (6 cylinder) with Navigation,
automatic 5speed Sportshift transmission
replaces 2008 Outback 3.0R LL Bean with navigation
9DV
$34,095
$695
$34,790
.
$31,746
$695
$32,441
model

Note starting late Sept. 08, destination on  cars delivered to dealers starting late Sept 08 raised $30 to $695 (Ak $845). Cars at dealers before late September 08 will still have the $665 destination ($815) and are $30 less than prices here.

Your purchase price may vary due to rebates, dealer discounts and/or mark-ups
Always include destination when discussing price or calculating payments.
subject to change, correction

code
base MSRP
dest
total MSRP
.
base dealer
invoice
dest
total Invoice
Always include
destination when
discussing price
end prices
top
Maintenance, warranty
MAINTENANCE SCHEDULE
Break-in period  for the first 1000 miles
Don't race the engine, keep RPMs under 4,000 for the most part and vary the speeds with normal city/highway driving. Don't use the cruise control or go at one steady speed for a long time. Avoid hard starts and stops.

1st oil change all models recommended at 3 mos or 3000 miles whichever comes first. Required on turbo and 6 cylinders. 2.5L required at 7,500 miles or 7 mos.
Oil Changes: 3,750 mile oil changes, or at every 7,500 miles under very easy driving conditions
Turbo oil changes require 3,750 oil and filter change interval required.
7,500 miles: rotate tires
15,000 miles: check hoses, belts, brakes etc. Replace air filtration.
30,000, 60,000, 90,000 miles: 15k service plus replace fluids, filters, spark plugs
Radiator fkluid is Super Coolant, with over 10 year replacement schedule.
Timing belt, 4cylinder: replace at 105,000 miles or months, whichever comes first.
Timing chain,  6 cylinder: no replacement needed

WARRANTY
subject to change and correction
see your local servicing dealer for full details and coverage on your specific car
Bumper-to-bumper: 3 year/36,000 miles. Includes Wear Item warranty covering pre-mature wear: brakes, clutch linings, remote batteries, wiper blades etc.
Roadside assistance 3yr/36000 miles by the Cross Country Motor Club at 800 261-2155, break-down, lock-out, flat repair etc
Powertrain: 5 year/ 60,000 miles
Corrosion: 5 year/100,000 miles
Emissions:
Federal spec LEV (low emission vehicle) 3 years/36,000 miles plus 8 year/80,000 mile extended defect warranty covering Major Emission Control Components (catalytic converter, electronic emission control unit, diagnostic device)
California spec PZEV (partial zero emission vehicle) sold and registered in CA, CT, NH, NY, MA, MS, RI, VT: 3 years/50,000 miles, plus 7 year/70,000 mile extended defect warranty with extensions to up to 15years/150,000 miles

Note Warranties do not cover wear or damage due to abuse, lack of maintenance or competitive driving. Exclusions may apply, wear replacement may be one time.

see your local servicing dealer for full details and coverage on your specific car
end maintenance, warranty
top
dimensions
Outback Dimensions 2009
(also 2008, 2007, 2006, 2005)
scroll down for cargo area measurements
subject to change, correction
model
2.5i
 2.5i SE
2.5i Limited
XT Limited
3.0R
Dimensions
Wheelbase:  105.1"
Overall Length:  189.0"
Width:  69.7, 78.4 including mirrors
Height:  63.2 including roof rails and cross bars (61.6" without crossbars
Headroom front/rear: 40.5/39.1"
Headroom with sunroof front/rear  38.7/37.1"
Seat height from ground, driver's, hand measured and not exact,  22-24"
Legroom front/rear: 44.1/33.9
EPA Interior volume 97.4cf
EPA Cargo volume 33.5cf
EPA Cargo volume with sunroof  32.1cf
EPA Cargo volume with seats flat and sunroof  61.7cf
EPA cargo volume with seats flat and NO sunroof  65.4cf
Track:  front/rear 58.9"/58.7"
Turning circle
35.4ft,  turns lock-to-lock 3.2
Ground Clearance  8.5" 8.4" 8.4" 8.7" 8.5"
Angle of approach 18.7* 18.7* 18.3* 18.3* 18.3*
Breakover angle 19.7* 19.7* 19.7* 19.7* 19.7*
Angle of departure 22.0* 22.0* 22.0* 22.0* 22.0*
model
2.5i
2.5i SE
2.5i Limited
XT limited
3.0R

start wagon cargo measurements
top
Outback Wagon
MEASURMENTS
subject to change, correction

telescoping steering wheel, moves from 7" to 8.75" as shown (hand measured). The wheel also tilts.
front seat travel, Subaru Outbackfront seat travel, Subaru Outback
Driver's seat distance from gas pedal: 15.5"- 24" (hand measured on 2.5i with power seat)
measurements 05 Legacy Outback cargo

2009, 2008, 2007, 2006, 2005 Wagon, hand measurements
subject to change, correction

A: 39" wide lower gate opening
B: 43" wide mid-gate opening
C: 48" wide top of wheel wells
D: 42.25" wide between wheel wells
E: 33.50 " height opening at gate
F: 29-31" interior height depending on where you measure
G: 43" length with seat folded up
H: 73" length with seat folded flat

more dimensions below


Wagon's storage bin above spare tire (hand measured)
A: 24" wide
B: 24.25" long
C: 3.75" deep


spare tire compartment with temporary tire

2006, 2005 Outback Sunroof
large 2 part sunroof, hand measured interior opening 23"W, 30"

END wagon dimensions
top
safety
2009 OUTBACK SAFETY
subject to change, correction

 safety section of the 2009 window sticker
2006 Outback overhead airbag on-off warning light
passenger airbag on-off light
and seatbelt light in overhead display
August: 2008 Crash tests, 5 star results from NHTSA
feature
2.5i
2.5i SE, 2.5i Limited
XT Limited
3.0R Limited
All Wheel Drive
S
S
S
S
Traction and Stability Control,
VDC all wheel drive
S
S
S
S
VTD all wheel drive, 44/55 power split
na
na
S
S
Tire Pressure Monitor System (TPMS)
S
S
S
S
Turn Signals in the outside mirrors
na
na
S
S
Panic Alarm
Standard,  uses remote key fob
Seatbelts
5 passenger, all with full shoulder harness and lap belts
with Height adjustable shoulder harness anchor points  (except center rear)
Child Seats
LATCH system - lower anchor and tether for children. Child seat anchors now hidden under flap (see photo page).
Front Airbags, advanced Standard dual front airbags with Dual Stage Deployment.
Driver airbag detects distance of driver from steering wheel and deploys accordingly.
Passenger seat detects occupant weight and will turn off airbag if passenger is under app 75-80 pounds!!
Passenger airbag status is displayed by the trip computer, see photo above
Side Airbags, Front
Standard
Front Side Curtain Airbags
Standard
Rear Side Curtain airbags
Standard
Headrests
5 headrests
Crumple Zones
Front and Rear
5mph Impact Bumpers
Front and Rear
Reinforcements
Ring-Shaped reinforcement safety structure
Dual front door beams, single rear door beams all tied into a full perimeter protection system
Brakes
4 wheel, 4 channel anti-lock power disc brakes
Auto on-off headlights
headlights are on-off with the ignition, with green light indicator upper right instrument panel.
When off, the Daytime Running Lights are on.
DayTime Running lights
Standard, when the headlights are off the DayTime Running lights are on
Side visible turn signals
Headlights and taillights have large turn signals easily visible from the sides.
Outback 3.0R and XT Limited have turn signals in the mirrors too.
Childproof rear door locks
Standard
model reminder
2.5i
2.5i SE, 2.5i Limited
XT Limited
3.0R Limited
end safety
top
mechanicals
2009 OUTBACK
MECHANICALS
subject to change, correction, updating
engine
4 cylinder
4 cylinder Turbo
3.0R 6 cylinder
feature
subject to change, correction
2.5i 2.5i SE 2.5i Limited XT Limited 3.0R Limited
Engine 4 cylinder 2.5L SOHC Boxer design
16 valve,
i-active Valve Lift system
Aluminum block and head
Aluminum intake manifold
Cast iron cylinder liners
5 main bearings
Sequential multi-port injection
Distributorless ignition
Platinum spark plugs
NGK FR5AP-11
firing order 1-3-2-4
Compression 10.0
Idle speed: manual 650rpm, auto 4spd 700rpm
4 cylinder 2.5L DOHC Boxer design
Turbocharged, Intercooled
SI drive
16 valves
Aluminum block and heads,
AVCS active variable valve control system
Composite resin intake manifold
Cast iron cylinder liners
5 main bearings
Semi-closed design
Iridium spark plugs
NGK SILFR6A
Firing order 1-3-2-4
Compression: 8.4
Maximum Boost: 13.5psi
Idle speed: 750rpm
Turbo requires 3,750 oil service
6 cylinder, 3.0L DOHC
Boxer design, 24 valve
Aluminum block and heads
Composite resin intake manifold
SI drive
AVCS active variable valve control system
AVLS active valve lift system
Sequential fuel injection
Direct electronic distributorless ignition
Compression 10.7
Idle speed: 650rpm
Iridium Spark plugs, NGK ILFR6B
Firing order 1-6-3-2-5-4
Horsepower and torque
170hp@6000rpm, torque170@4400rpm
243hp@6000rpm, torque 241@3600rpm 245hp@6,600rpm,
torque 215@4200rpm
Transmission Standard 5spd manual
Optional 4spd Automatic electronic SportShift

Note: manual not available on 2.5i Limited

Standard 5spd manual, reinforced dual mass flywheel, SI Drive with new steering wheel control
Optional 5spd automatic electronic SportShift with SI Drive with new steering wheel control
Automatic 5spd
electronic SportShift,
SI Drive with steering wheel controls
Manual transmission
All Wheel Drive system with VDC
symmetrical all wheel drive, viscous coupling 50/50 power split,
symmetrical all wheel drive, viscous coupling 50/50 power split
no manual available
Gear Ratios, manual
scroll down for automatic
Manual 5spd
1- 3.454
2- 2.062
3- 1.448
4- 1.088
5- 0.825
final 4.111
Manual 5spd
1- 3.166
2- 1.882
3- 1.296
4- 0.972
 5- 0.738
final 4.444
no manual available
model reminder
subject to change, correction, updating
2.5i
 2.5i SE
2.5i Limited
XT Limited turbo
3.0R Limited
Automatic transmission
All Wheel Drive system with VDC
Automatic is optional on 2.5i and SE
Standard on 2.5i Limited
Standard: 5speed manual w/ VDC, and VTD
Optional: 5speed Automatic Sportshift  VDC, VTD
Standard automatic 5speed with VDC and VTD
All Wheel Drive Systems. All Subarus are all wheel drive. Systems vary by model but VDC stability skid control with traction control and all wheel drive is standard on all models

VDC with traction control system (TCS) is standard on all 09 Outbacks

2.5i, 2.5i SE,  Manual transmission: Continuous All Wheel Drive with VDC, symmetrical viscous coupling 50/50 front/back power split.
2.5i, 2.5i SE,  Automatic 4spd Sportshift: electronically controlled all wheel drive with VDC, constantly varying front/back power split, front bias 90/10 front/back power split.
Limited Slip  2.5i SE has a Limited Slip rear axle, 2.5i does not.

XT turbo with manual transmission Continuous All Wheel Drive, symmetrical viscous coupling 50/50 power split,  Limited Slip rear axle, with VDC and traction control.

XT and 3.0R Limited with automatic 5 speed transmission  VDC, TCS, VTD.

VDC is now standard on all models
VDC vehicle dynamics control, is a stability and traction skid control system that measures and monitors steering wheel input, braking, vehicle angle etc and then applies individual brakes and/or reduces engine power to counteract skids or slides to help keep maintain driver control.
TCS Traction Control System. TCS senses spinning wheels and applies the brakes to maintain traction.
VTD Variable Torque Distribution on XT turbo and 3.0R 6 cylinder 5 speed automatic tranmissions only. VTD traction control system has 45/55 performance oriented, front/rear power split.

Gear Ratios, automatic Automatic 4spd Sportshift
2.5i, SE, Limited
1- 2.785
2- 1.545
3-1.000
4-0.694
final 4.444
Automatic 5spd Sportshift
Turbo. 3.0R
1- 3.540
2- 2.264
3- 1.471
4- 1.000
5- 0.834
final 3.272
model reminder
subject to change, correction, updating
2.5i
2.5i SE
2.5i Limited
XT Limited turbo
3.0R Limited
Fuel Economy statement Starting with 2008 models, EPA fuel economy estimates more accurately reflect our current stop-and-go traffic and commute driving patterns, faster speeds and acceleration, air conditioner use, and colder outside temperatures. MPG estimates will also be adjusted to account for factors that are difficult to replicate in a laboratory, such as wind and road surface resistance.More from the EPA
Fuel type and Economy (city/highway).
*****
Fuel tank size:16.9 US gal.
Low fuel light at app. 2.5 US gallons left
Regular unleaded gas
Manual 5spd 20/26
Automatic 4spd SportShift  20/26
Premium Unleaded 91 octane required
Manual 5spd 18/24
Automatic 5spd SportShift 18/24
Premium is recommended but not required
Automatic 5spd SportShift 17/24
Steering
Power rack & pinion with engine speed sensing variable assist
Turning circle of the car 35.4ft; Steering Wheel Turns, lock-to-lock 3.2, Steering ratio 16.5:1
Brakes 4 wheel disc, 4 channel anti-lock, low wear indicator

front: 11.5 x.94 ventilated twin caliper piston
rear: 10.6 x .39 solid disc, single caliper piston

4 wheel disc, 4 channel anti-lock, low wear indicator

front: 11.5 x 1.18 ventilated disc, twin caliper piston

rear: 10.6 solid disc, single caliper piston

4 wheel disc, 4 channel anti-lock, low wear indicator

front: 11.5 x.94 ventilated twin caliper piston
rear: 10.6 x .39 solid disc, single caliper piston

Curb weight
manual/automatic, US pounds
3357/3402
3365/3415
3481 automatic only
3546/3616
3631 automatic only
Wheels:
2.5i: 16" steel wheel
All others: 17" aluminum alloy
2.5i: 16" steel wheel 16x6.5jj, offset 48 (1.89) 2.5i SE 17x7jj, offset 48 (1.89)
7 spoke alloy
2.5i Limited: 17x7jj
5 spoke  alloy
offset 48 (1.89)
17x7" 5 spoke alloy
offset 48 (1.89)
17x7" alloy
offset 48 (1.89)
Tires
225/60 R16 97H
225/55 R17 95V
2.5i Limited, XT, 3.0R: 225/55 R17 95V M&S all season
Suspension
Front: Macpherson strut.
Rear: multi-link
Towing capacity; trailer brakes suggested for trailers over 1300 pounds
2700#
2700
2700#
2700#
3000#
Headlights, auto-off with ignition
 4 beam
 4 beam
4 beam
4 beam
4 beam
Fog Lights 0 S
S
S S
model
subject to change, correction, updating
2.5i
2.5i SE
2.5i Limited
XT Limited
3.0R Limited
mechanicals
top
features
2009 Outback
STANDARD FEATURES
S- standard, NA- not available, 0- option
subject to change, correction, updating
model / option
subject to change, correction, updating
2.5i
2.5i SE
2.5i Limited
XT Limited turbo
3.0R Limited
model codes
9DA, 9DB
9DC, 9DD
9DG, 9DH
9DJ, 9DK, 9DL
9DU, 9DV
SI drive (see above) Sport# button on steering wheel
na
na
na
S
S
Navigation System, see prices above, factory installed only. Kenwood 7", touch-screen. The Nav disks go under the driver's seat, so subwoofer/amp is not an option.
na
na
0
0
0
Power windows (driver's express down),
Power door locks,
Power mirrors
S
S
S
S
S
Variable front wipers, rear 2 speed wiper with rear defroster
S
S
S
S
S
All Weather Package: heated front seats with 4 settings, defrosting outside mirrors, heated front wiper de-icer
na
S
S
S
S
Keyless entry, key fob redesigned for 09
S
S
S
S
S
Immobilizer key with Alarm
(ignition disabling alarm with flashing red light)
S
S
S
S
S
Manual height adjustable driver seat
S
na
na
na
na
Power driver seat, 8 way with lumbar support
na
S
S
S
S
Power passenger seat, 4 way with lumbar support
na
na
S
S
S
Leather seating surfaces
na
na
S
S
perforated
S
perforated
Performance design front seats
na
na
na
S
na
Sunroof: large power dual pane glass with wind-block, auto open close, cloth sunshade. hand measured interior opening 23"w X 30" na na S S S
Air conditioning, 4 speed fan, manual controls
S
S
na
na
na
Air Conditioning, Climate Control with automatic setting, Dual front temperature zones, 6 speed fan
na
na
S
S
S
Turn Signals in the outside mirrors, body-colored, fold in
na
na
na
S
S
Tire Pressure Monitor System TPMS
S
S
S
S
S
S- standard, na- not available, 0- option
subject to change, correction, updating
2.5i
2.5i SE
2.5i Limited
XT Limited
3.0R Limited
Body Colored Door handles, outside mirrors
na
na
S
S
S
Windshield upper shade band
na
na
S
S
S
Trip Computer: Instant and average fuel economy (resets w/ trip odometer), elapsed time, DTE, Outside temperature guage
S
S
S
S
S
Power Outlets- dashboard, center console, rear cargo area.
No cigarette lighter outlet
S
no rear outlet
S
S
S
S
Rear cargo tray, color matches interior
0
S
S
S
S
Rear cargo cover with rear gate board
0
S
S
S
S
Steering wheel type
vinyl wrapped
vinyl wrapped with cruise control
leather wrapped with cuise and audio control
Leather Momo design, with cruise, audio and SI Drive controls
Auto Dimming rear view mirror w/ compass
0
0
0
0
0
Auto Dimming rear view mirror w/ compass and Homelink Garage door system, accepts 3 codes for opening garage, interior or exterior lighting etc.
0
0
Air Filtration, dust- pollen. replace every 12-24 months
S
S
S
S
S
model
subject to change, correction, updating
2.5i
2.5i SE
2.5i Limited
XT Limited
3.0R Limited
Stereo: 2.5i 2.5i only.
AM/FM/ single CD player. 100watt, 6 speakers, MP3. Bass, treble, midrange adjustments. Auxiliary input in center console. Prewired for XM or Sirius satellite radio.  Panasonic
new 12/08 iPod-iPhone interface. Play and control your iPod-iPhone through the factory radio. na w Sat radio
Stereo : 2.5i SE 2.5i SE only
AM/FM/ single CD player.  MP3, R/RW. Auxiliary input in center console. Pre-wired for XM or Sirius satellite radio. Panasonic.
new  Harman Kardon audio system, 440-watt, 9-speaker, 8 channel amp/equalizer, subwoofer under front passenger seat, speed sensitive volume control.
Note- the brochure may incorrectly indicate the 2.5i SE has a CD changer- it does not.
new 12/08 iPod-iPhone interface. Play and control your iPod-iPhone through the factory radio. na w Sat radio
Stereo: 2.5i Limited, XT Limited, 3.0R Limited 2.5i Limited, XT Limited, 3.0R Limited
AM/FM/ 6 disc CD changer.  MP3, R/RW.  Aux input in center console. Pre-wired for XM or Sirius satellite radio. Panasonic,
new  Harman Kardon audio system, 440-watt, 9-speaker, 8 channel amp/equalizer, subwoofer under front passenger seat, speed sensitive volume control.
new 12/08 iPod-iPhone interface. Play and control your iPod-iPhone through the factory radio. na w Sat radio
Bluetooth- not available Factory bluetooth is na on any 09 Outback
na
na
na
na
na
Fold down rear seats, 60/40 split
S
Rear seat fold down armrest
na
na
S
S
S
Rear bumper cover, integrated
S
S
S
S
S
Rear seat armrest
na
na
S
S
S
Rear Spoiler
S
S
S
S
S
Aluminum front door and rear gate sill plate covers
na
na
na
front & rear doors, gate
front & rear doors, gate
Front Bumper underguard
0
0
0
0
0
Overhead map lights
S
S
S
S
S
Overhead map lights and 2 sunglass holders
S
S
na with sunroof
na with sunroof
na with sunroof
Outback
subject to change, correction, updating
2.5i
2.5i SE
2.5i Limited
XT Limited
3.0R Limited
features
top
options
OPTIONS
2009 Outback
How To Read: List price (invoice)

NOTE: Prices are factory or port installed. Dealer installed prices may be higher due to part and labor costs. Please contact your local dealer.
subject to change, correction, updating

Packaged Options
List price (invoice)
2.5i
2.5i SE
2.5i Limited
XT Limited
3.0R Limited
model codes
9DA (manual),
9DB (auto)
9DC (manual),
9DD (auto)
9DG,
9DH (navigation)
9DJ (manual),
9DK (auto),
9DL (navigation)
9DU,
9DV (navigation)
Popular Equipment Group 1-A: (code 6LF),
Auto Dimming Mirror/Compass and Security System Shock Sensor $304 ($198)
New-  lower price effective on cars mid March 2009 $270 ($175)
0
--
--
--
--
Popular Equipment Group 1-C: (code L9Y),
Auto Dimming Mirror/Compass plus Homelink garage door opener, and Security System Shock Sensor $400 ($260)
New-  lower price effective on cars mid March 2009-  $365 ($237)
--
0
0
0
0
Popular Equip Group 2-A/B: (code 9LH), Center pop-up armrest extension, rear cargo net $214 ($139)
0
0
0
0
0
Popular Equip Group 2-D: (code L8K), Fog lamp Kit, Splash Guards (black)  $356 ($231)
0
--
--
--
--
Cargo Area Convenience Group (code L98),
Cargo Nets: Rear, Seatback, left side & right sde;
All Weather flooor mats $222  ($142)
0
0
0
0
0
Covenience Group 2, (code L8I ), Auto dimming mirror/compass, Rear Dome reading light $268 ($175)
--
--
0
0
--
2009 Individual Options, Performance 0ptions, Roofrack Accessories
List price (invoice)
subject to change, correction, updating
2.5i
2.5i SE
2.5i Limited
XT Limited
3.0R Limited
model codes
9DA (manual),
9DB (auto)
9DC (manual),
9DD (auto)
9DG,
9DH (navigation)
9DJ (manual),
9DK (auto),
9DL (navigation)
9DU, 9DV (navigation)
Luggage Cargo Cover and Rear Gate Board,  $237 ($154)
0
S
S
S
S
Cargo Area Tray, plastic no-slip tray with raised lip, $75 ($46)
0
S
S
S
S
Splash Guards, black, monotone Outbacks only, $106 ($69)
0
S
S
S
S
Splash Guards, Quartz Silver, 2 tone Outbacks only, $166 ($108)
0
S
S
S
S
Remote Engine Start, automatic transmssion only, $442 ($288)
0 9DB
0 9DD
0
0 9DK, 9DL
0
Security System Shock Sensor (code R6G) $121 ($79)
New-  lower price effective on cars mid March 2009- $87 ($56)
0
--
--
--
--
Security System Shock Sensor (code R9B), $140 ($91)
New-  lower price effective on cars mid March 2009-  $105 ($68)
--
0
0
0
0
Auto Dimming Mirror/Compass $183 ($119)
0
0
0
0
0
Auto Dimming Mirror/Compass plus Homelink $260 ($169)
0
0
0
0
0
new 12/9/08  iPod-iPhone interface code E9C, control and play your iPod and iPhone through the factory stereo. Also recharges it except for 4th generation Nano and 2ndGen iPhone. Works on all Legacy and Outback 2007-2008-2009 without Satellite radio
$223 ($145)New price effective on cars mid March 2009-  $239 ($155)
A
A
A
A
A
 model  -List price (invoice)
2.5i
2.5i SE
2.5i Limited
XT Limited
3.0R Limited
Center Armrest, pop-up  $163 ($106)
0
0
0
0
0
XM Satellite Radio  kit  $456 ($342). Activate by getting the XM Radio ID. Power on the radio and tune it to Channel 0. The radio will display an eight-digit XM Radio ID. Activate service by visiting http://oemrefresh.xmradio.com or call XM Listener Care toll-free at 1-800-852-XMXM (9696). (Prompts: #1, #1, #1, speak the eight-digit Radio ID). That’s it. Keep the radio on and within 30 minutes it will begin receiving XM service.
0
0
0
0
0
Sirius Satellite Radio kit, $456 ($342)
To activate SIRIUS, find the 12-digit SIRIUS ID by selecting the SAT button and tuning to channel 0. Make sure the vehicle is outdoors under the open sky. Then call SIRIUS at 1-888-539-SIRIUS (7474). The SIRIUS representative will ask you for the SIRIUS ID and credit debit card information. Or activate online http://home.sirius.com.
0
0
0
0
0
Stereo Subwoofer/Amplifier $287 ($186) (na with Harmon Kardan)
0
--
--
--
--
Front Hood Protector  $85 ($45) not installed
0
0
0
0
0
Front Bumper Underguard  $217 ($141)
0
0
0
0
0
Rubber Floor mats $55  ($33)
0
0
0
0
0
Rear Dome/reading light $85 ($56)
--
--
0
0
0
Wheel locks  $42 ($28), not installed
0
0
0
0
0
Cargo Area Spotlight, Handheld light for front, center console, or rear cargo power outlet: $45 ($26)
--
no rear power socket
0
0
0
0
Cargo net, rear $51 ($33)
0
0
0
0
0
Cargo nets, rear sides set of 2 $68 ($45)
0
0
0
0
0
Cargo net, rear seatback $48 ($31)
0
0
0
0
0
Trailer Hitch $353 ($229) 1.5" receiver, includes wiring and insert
0
0
0
0
0
model - List price (invoice)
subject to change, correction
2.5i
2.5i SE
2.5i Limited
 XT Limited
3.0R Limited
models
9DA (manual),
9DB (auto)
9DC (manual),
9DD (auto)
9DG,
9DH (navigation)
9DJ (manual),
9DK (auto),
9DL (navigation)
9DU, 9DV (navigation)
Rear Spoiler (included)
S
S
S
S
S
Fog Lamp kit $250 ($162)
0
S
S
S
S
Roof Rack,  cross bar kit. $190 ($111)
0
S
S
S
S
Roof Rack HD Round Cross Bar set- $179 ($111)
0
0
0
0
0
Performance Short Throw STi Shifter $374 ($243). manual transmission only
0, 9DA
0, 9DC
--
0, 9DJ
--
Performance Momo Shift Knob, manual transmission $102  ($66)
0, 9DA
0, 9DC
--
0, 9DJ
--
Performance Momo Shift Knob, automatic transmission $117 ($76)
0, 9DB
0, 9DD
0
0 9DK, 9DL
0
Metal Pedal pads, manual trans only, $187 ($122)
0, 9DA
0, 9DC
--
0, 9DJ
--
Metal Pedal pads, automatic trans only, $163 ($106)
0, 9DB
0, 9DD
0
0, 9DK, 9DL
0
Performance STi Strut Tower Brace, aluminum
dealer part only not factory installed or shipped #ST2050021000
0
0 0 0 0
model
subject to change, correction, updating
2.5i
2.5i SE
2.5i Limited
XT Limited
3.0R Limited
options
top

accessories
2009 Outback
accessories and parts
suggested list prices do not include installation
subject to change, correction
Bike attachment, hitch mounted E3610AS940, Suggested List $229
Roof cargo carrier E361SAG200, Suggested List $335
Extended roof cargo carrier E361SAG300, Suggested List $425
Kayak carrier, E361SXA200, Suggested List $147
Ski attachment, 6 pairs, E3610AS790, Suggested List $125
Bike attachment, dual, roof mounted, E361SAG400, Suggested List $251
Roof cargo basket, E3610AS990, Suggested List $129
Heavy duty roof cargo basket, E361SSA200, Suggested List $319
Fork mounted bike carrier, E361SSA100, Suggested List $139
Dog guard compartment separator, with moonroof, F551SAG500,
Suggested List $239
Dog guard compartment separator, without moonroof, F551SAG600, Suggested List $239
Ash tray (fits cupholder)  J2070YA000, Suggested List $24.95
Slimline license plate frame, stainless DOA342L120, Suggested List $28.95
Slimline license plate frame, black, SOA342L105, Suggested List $25.95
Polished Stainless Subaru license plate frame, SOA342L127,
Suggested List $34.95
Performance Guage pack, XT only, not available with Navigation, H5010AG000, Suggested List $775
new 12/08 SPT turbo heat shield 2005-6-7-8-9 Legacy GT and Outback XT turbos. Helps keeps the turbo warm, retain heat.
Side Sill plate, STI,  E1010AG010, Suggested List $289
SPT battery hold down, gray, SOA3881000, Suggested List $39.95
SPT battery hold down, blue, SOA3881030, Suggested List $39.95
SPT oil filler cap, SOA3881010, Suggested List $39.95
SPT oil filler cap, blue, SOA3881040, Suggested List $39.95
Bumper moldings, E7710AS108, Suggested List $60
Battery warmer, J6010FS000, Suggested List $29.95
Engine block heater, A0910AS100, Suggested List $29.95
Subaru valve stem caps, SOA342L128
Subaru key fob, SOA342L129, Suggested List $9.95
Severe Weather companion kit,  SOA868V9500, Suggested List $39.95
Car Cover, M0010AS010, Suggested List $99.95
Car Cover bag, M0010AS020, Suggested List $9.95
Cooler/warmer (plugs into power outlet), Suggested List $131.79

suggested list prices do not include installation
subject to change, correction

top

 instrument panel warning lights
Low fuel light comes on with app 2 - 3 US gallons left.
Low tire pressure light TPMS- steady illumination when a tire is low, flashes there's a problem with the system. Take to mechanic.
VDC off light comes on when you have temporarily disabled the VDC system (button is lower left dashboard) or when there's a problem with the system. Take to mechanic.
AWD light (AWD = all wheel drive) flashes if the vehicle is driven with mismatched or low tires which is always bad on an all-wheel-drive.
Indicates the transmission fluid is too hot. Slow down and avoid hard driving, hills, stop-go traffic etc. Take to mechanic.
Indicates that there is a problem. Or a loose gas cap. Anyway, slow down and take to mechanic.

colors

2009 OUTBACK COLORS
subject to change, correction

it's hard to get accurate color representation


quartz silver metallic
diamond gray with quartz silver available on 08 Outback LL Bean
diamond gray (dark gray), quartz silver accent
Subaru B9 Tribeca Obsidian Black color chip

satin white pearl

harvest gold metallic
new on 09 Outback, Legacy: seacrest green, a very pale silvery green
a very pale (silvery) green

deep bronze metallic

newport blue pearl with quartz silver trim
Interior Trim Coordination
new for 09 models; off black carpets on all models
subject to change, correction
Elm Wood trim with taupe leather interior
close-up of Elm Wood trim
with warm ivory leather interior
Chestnut Wood trim with gray leather interior
close-up of Chestnut Wood trim
with off black leather interior

close-up of titanium trim
with off black cloth interior

close-up of titanium trim
with warm ivory cloth interior

warm ivory cloth with titanium trim. 2.5i shown with heated seats. Off black carpet and floor mats is standard.

dark gray cloth with titanium trim

off black leather interior with chestnut woodgrain trim

Limited with warm ivory leather with elmwood woodgrain trim,
and off black carpet and floor mats
Color
all with off black carpets and floor mats
Outback 2.5i
Outback 2.5i SE
Outback 2.5i Limited,
Limited with Navigation
Outback 3.0R Limited,
Limited with Navigation
Outback XT Limited,
Limited with Navigation
model codes
9DA, 9DB
9CC, 9DD
9DG, 9DH
9DU, 9DV
9DJ, 9DK, 9DL
Obsidian Black Pearl (code BLK)
off black cloth
off black cloth
off black leather
off black leather
--
Diamond Gray Metallic with Quartz Silver Metallic trim (code DGI)
off black cloth
off black cloth
 off black leather
off black leather
off black leather
Harvest Gold Metallic (code GL1)
 warm ivory cloth
warm ivory cloth
 warm ivory leather
warm ivory leather
--
Deep Bronze Metallic (code GL3)
 warm ivory cloth
warm ivory cloth
 warm ivory leather
warm ivory leather
warm ivory leather
new Seacrest Green Metallic (code GXV)
warm ivory cloth
warm ivory cloth
warm ivory Leather
warm ivory leather
--
Newport Blue Pearl with Quartz Silver trim
(code NB3)
off black cloth
off black cloth
off black leather
off black leather
off black leather
Quartz Silver Metallic (code SLQ)
off black cloth
off black cloth
off black leather
off black leather
off black leather
Satin White Pearl (code WH1)
warm ivory cloth
 warm ivory cloth
warm ivory leather
warm ivory leather
 warm ivory leather
model
Outback 2.5i
2.5i SE
2.5i Limited
3.0R Limited
XT Limited
end colors
starts speed specs


Ratings by car magazines, enthusiasts etc. Know of others that should be here?
Outback XT with automatic 5spd SportShift
Car and Driver, July 2004

Zero to 30 mph: 2.7
40 mph:  3.9
50 mph:  5.3
60 mph:  7.1
70 mph:  9.4
80 mph:  11.8
90 mph:  14.8
100 mph: 19.2
110 mph: 24.7
120 mph:  32.0
Street start, 5–60 mph: 7.8
Top-gear acceleration, 30–50 mph: 3.4
50–70 mph:4.7
Standing 1/4-mile: 15.6 sec @ 92 mph
Top speed (governor limited): 130 mph
BRAKING
70–0 mph @ impending lockup: 204 ft
HANDLING
Roadholding, 300-ft-dia skidpad: 0.74 g
INTERIOR SOUND LEVEL
Idle:  44 dBA
Full-throttle acceleration: 71 dBA
70-mph cruising: 67 dBA
DRIVETRAIN
Transmission: 5-speed auto, manumatic shifting
Final-drive ratio: 3.6:1
4-wheel-drive system: full time with automatically locking center differential
Gear Ratio, Mph/1000 rpm,  Max test speed
I, 3.54, 6.1, 39 mph (6500 rpm)
II, 2.26, 9.5, 62 mph (6500 rpm)
III, 1.47, 14.6, 95 mph (6500 rpm)
IV , 1.00, 21.4, 130 mph (6100 rpm)
V, 0.83, 25.7, 130 mph (5100 rpm)


2005 Legacy GT with automatic 5spd SportShift
See Legacy page for more
from edmunds.com


Performance:
0 - 30 (sec):  2.6
0 - 45 (sec):  4.6
0 - 60 (sec):  7.0
0 - 75 (sec):  10.6
1/4 Mile (sec @ mph): 15.45 @ 91.55
30 - 0 (ft):  31.97
60 - 0 (ft):  133.89
Slalom (mph):  63.9


from modernracer.com
2005 Legacy GT with 5spd SportShift automatic

Top speed : 130 mph(electronically limited)
0-60 mph : 6.1 sec.(estimated)
0-¼ mile : 14.2 sec @ 98.0 mph(estimated)
60-0 braking distance : 125 ft(estimated)
200 ft skidpad : 0.85 g(estimated)


This is an 100% unofficial page by Joe Spitz who is soley responsible for all information.
All information is subject to change, correction and updating.
Not responsible for typos, errors, omissions.

Tips, comments welcomed.Discounted Subaru sales in Seattle, Wa. Contact

homepage
Many thanks,
Joe

top
