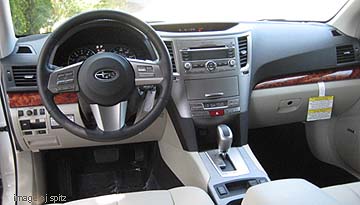

Limited (clue- the woodtrim)
|
Premium- (clue- the door
cover above the heater control)
|

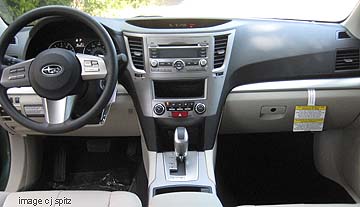

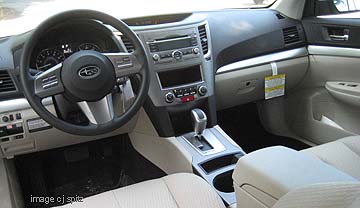

2.5i (clue- no door on storage
above heater control)
|

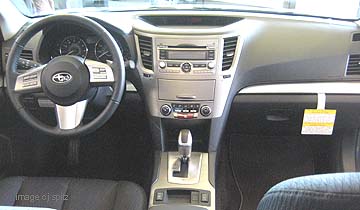

2.5i (clue- no door on storage
above heater control)
|
Limited with navigation,
gray leather
|
|

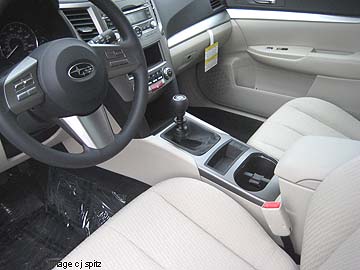

2010 Outback manual transmission,
ivory shown
|

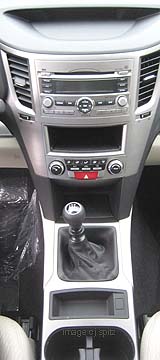

2010 Outback manual transmission,
ivory shown
|
Controls, lower left of dashboard.
The top center knob is the mirror joystick, the (right) roller switch is
the dash dimmer, the car on the angle slope (center) is the Hill Holder
'on' button, the electronic parking brake button, the
lower left is the trunk release, and the lower right is VDC off button |
Rear visibility is good even
with headrests in place. Correctly adjusted outside mirrors can really
help eliminate blind spots. |
front door, gray cloth with
brushed silver trim
|
front seat, gray leather
Limited shown
|
front passenger door, Limited
with wood trim
|
rear seat legroom with front
seat back
|

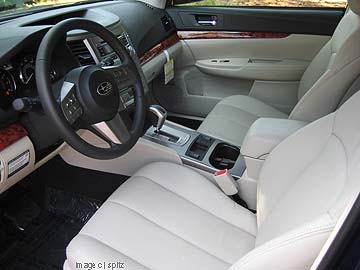

Outback 2010 rear seat-
Ivory interior Limited shown -note the woodtrim.
|
|
|
|

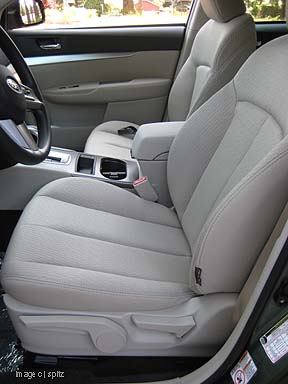

2.5i front seat has manual
seat height adjustment
|
manual seat lever to pump
or ratchet the seat up or down
|
front door aluminum sill
plate with 'Subaru'. Available illuminated even, a very fun option. see
page
#2
|

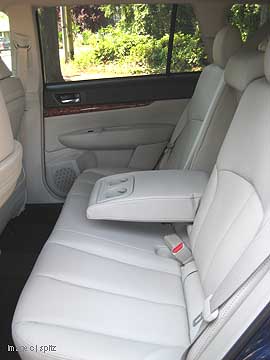

rear seats with armrest,
cupholders
|
rear seat legroom with front
seat all the way back. Note the passenger seatbacks cargo net
|
| |
|
new for 10, each rear seat
reclines
|
60/40 split folding rear
seats
|
to adjust the recline angle
or fold the rear seats down, pull up the handle by the seatbelt but be
careful and don't lean in because the seat springs forward and can smack
your head...
|
to recline back or fold
flat pull this handle but be careful because the seat really springs forward
|

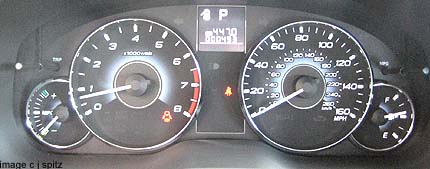

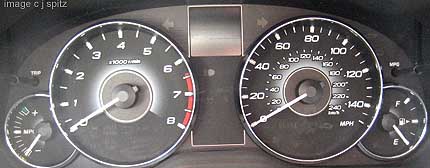

2.5 L 4 cylinder Legacy,
Outback Instrument display with speedometer to 150, tach redline 6400rpm
|
Outback and Legacy GT and
3.6R instrument display- speedometer to 160mph, tach redline 6500rpm
|
2.5L 4 cyl- 2.5i,
Premium, Limited speedometer to 150mph
|
GT and 3.6R speedometer
to 160mph
|
2010 Outback, Legacy tachometer
redline 6400rpm
|
GT and 3.6R tachometer to
6500rpm
|
close-up of the warning
lights (aka 'dummy' or 'idiot' lightss) that come on when the engine
is started -
top row from left- VDC off,
check engine, battery light, oil light, open door,
bottom row from left- AWD
all wheel drive, Auto trans oil, TPMS (tire pressure monitor)
|

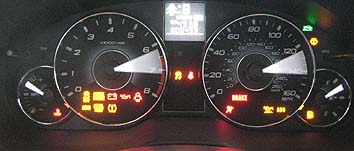

instrument display showing
start-up guage sweep, Outback, legacy 3.6R and GT shown
|
center display, automatic
CVT in D for drive
|
center display, automatic
CVT manual mode, in 1st gear
|
rear seat LATCH child seat
anchor, beneath the LATCH symbol
|

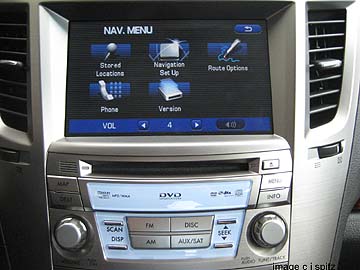

Navigation with CD. Cool
blue lighting
|
Limited has dual zone climate
control (set for 1 or 2 zones), shown with storage door open
|

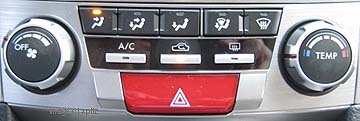

close up of standard ac
and heater with 4 speed fan on 2.5i and Premium
|
center console with side-by-side
cupholders, hi/low heated seats (part of All Weather Pkg),
Sportshift auto transmission
|
the center console cupholder
has a removeable divider.
cupholder with center divider
removed
|
Limited shown with Navigation
|
high/low heated seat buttons,
part of all weather pkg
|
Limited console- ivory with
dark carpets - heated seats, climate control, storage door, CD changer
|
Limited interior with wood
trim- Ivory shown
|
front center console armrest
opened to the upper tray. Stroage is below the tray.
|
front center console armrest
opened to the storage below the upper tray. Limikted with gray leather
shown.
|
Limited with Navigation
shown, dual front zone climate control, CD changer
|
the console armrest has
power socket, aux plug and USB with opt Naviagtion or Media Hub Pkg
|
the blue light indicates
a cold engine
|
|
|
|
glovebox with owner manual.
|
gas door opener on floor
by driver seat
|
new for 10- headlights with
new standard and auto on/off settings
|
new wiper control stalk
has 4 interval speed settings (previous models had 8)
|
navigation includes back-up
camera and bluetooth
|
|
power driver seat with power
lumbar support
|
hood release (upper left),
and gas and brake pedals
|
Overhead console, map lights,
with sunroof controls, the little dot is the ambient light
|
map lights and sunglass
or garage door holder in the overhead console, without sunroof shown
|
driver door power lock and
window buttons, shown- ivory with driver window auto up/down function available
on Premium and Limited models
|
interior of the sunroof
with sunshade closed, ivory shown
|
center armrest underside
has a storage slot for parking passes etc
|
|
