2012 Subaru WRX and STI Research website with specs, details, photos, options, prices, upgrades and much more

this is an unofficial website by Joe Spitz designed to help you learn all about these fine cars. Expect updates, and corrections welcomed.

looking for the  2013 or the 2011 WRX and STI, or  the 2012 Impreza 2.5i, Premium, and Outback Sport?
.
ON THIS PAGE

Photos - Updates models, what's new  maintenance, warranty I safety features  I option packages 2012 prices   WRX  features  I STI  features  dimensions and measurements  option packages  I individual options  performance & fun accessories  colors  I  find a car the STI convertible
 -
Related pages:  2012 WRX photos,  STI photos,   Options and Upgrade photos  I Navigation screenshots Monroney window stickers  I Maintenance schedule

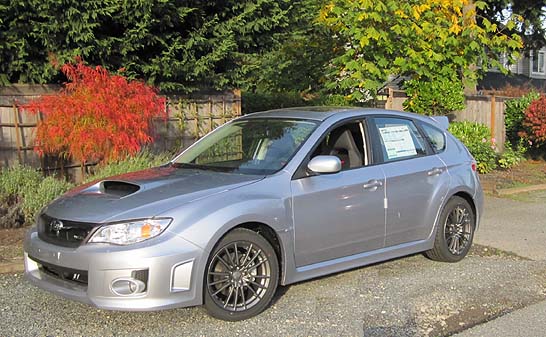

2012 WRX 5 door hatchback, ice silver shown
2012 WRX 5 door. Notice the headlights have the new for 2012 silver interior surround (replaces black)
-
Buying a Subaru in the NW?  I've been selling Subarus since 1996 at a Seattle area Subaru dealer. contact
always subject to change, correction.  comments, corrections, welcomed. All photographs, text, formatting © joe spitz :: unauthorized reproduction prohibited
thanks for visiting. please tell friends about the site.  you are here http://www.cars101.com/subaru/wrxsti/wrxsti2012.html  v   4.3.13
-

Please read- cars101.com is an unofficial independent Subaru research site by Joe Spitz designed to help you learn about Subarus. It is not sponsored, authorized,  supported or approved by Subaru or any dealer and is not connected to or affiliated with any dealer. Always contact your local dealer. Inspect any vehicle prior to purchasing. Information subject to change, correction.

LINKS: Homepage Interest Rates, Rebates Payment calculator Maintenance schedule Warranty, towing Keyless and alarm Subaru speak terms Alaska-Hawaiiout of state buyers Shippers car  transporters    I   dealer list   I   Sitemap much more I  I  Crash tests Hwy safety, nhtsa.gov,iihs.org


top-
HERE ARE A FEW  PHOTOS
more 2012 WRX photos (page 1),  STI photos (page 3), Options and Upgrades (page 2),  Monroney window stickers
-

Since the 2012 Impreza has been redesigned,  the 2012 WRX and STI are not considered Imprezas anymore according to Subaru.
But it still says Impreza on the back on the cars and also on the window stickers.
-
2012 WRX with new silver headlights,
2012 WRX 5 door. new for 2012 Ice Silver color
-
new for 2012 Subaru WRX and STI silver interior headlight surround
new for 2012 WRX and STI headlights have silver interior surround, replaces black

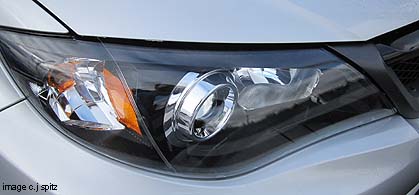

2011 WRX STI headlight with black inner surround
discontinued- 2011 model headlight with black inner surround.

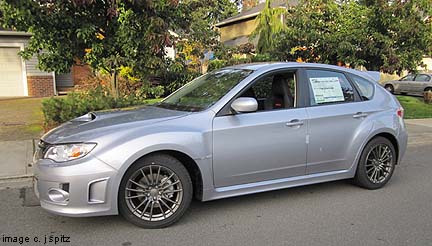

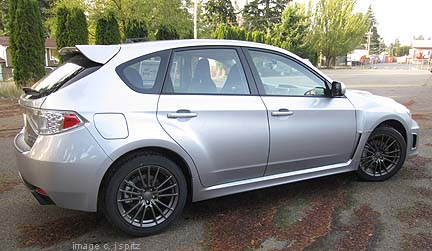

side view, 2012 subaru wrx

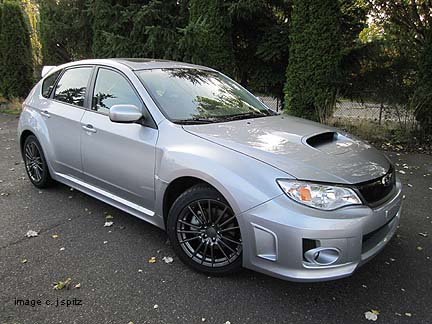

2012 5 door, ice silver
wrx, 2012 ice silver
2012 5 door, ice silver
5 door 2012 subaru wrx
Ice silver 5 door

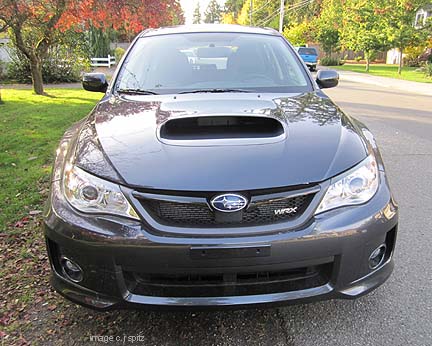

front grill, 2012 subaru wrx
dark gray 2012

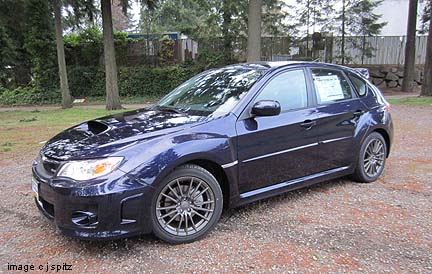

5 door wrx, plasma blue pearl
2012 WRX  5 door, plasma blue

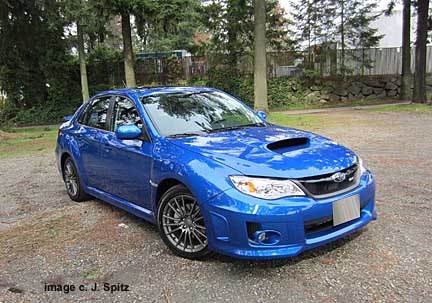

2012 subaru wr blue wrx 4 door sedan
Limited sedan, front view
, with BBS alloys
Subaru 2012 wrx sedan 4 door

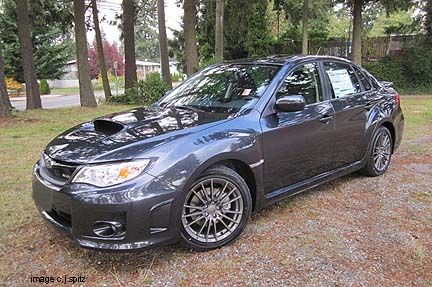

2012 WRX 4 door sedan, dark gray

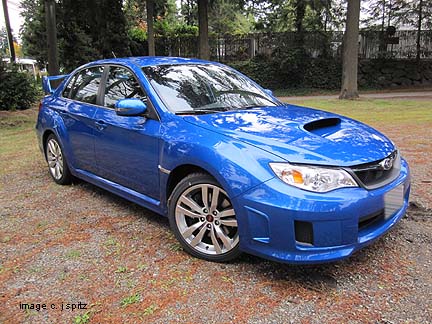

wrx sti 4 door sedan, 2012 model
rally blue STI 4 door with new for 2012 redesigned silver luster alloy wheels and silver headlight surrounds
-
more 2012 WRX photos (page 1),  STI photos (page 3),  Options and Upgrades (page 2),  Monroney window stickers
-

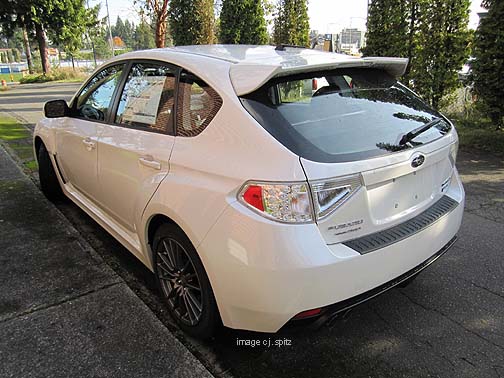

wrx 5 door, satin white pearl
WRX 5 door, rear view, with optional rear bumper cover, 2011 shown
-

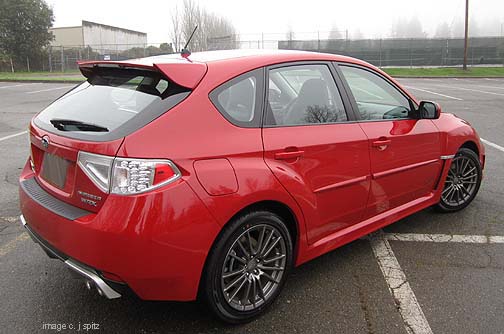

2011 WRX wagon lightning red optional body side moldings, rear bumper cover, exhaust finishers
WRX 5 door, 2011 Lightning red shown. Optional body side moldings, rear bumper cover, exhaust finishers
-
    WHEELS
subaru wrx alloy wheel
all WRXs have this 17" gunmetal alloy
new alloy wheel on 2012 Subaru STI 4 door sedan
this new redesigned 5 split-spoke alloy wheel is only on the 2012 STI 4dr
STI BBS alloy wheel
18" BBS alloy- STI 5 door and STI Limited sedan

2012 WRX with navigation
2012 WRX with new touchscreen navigation gps system for 2012

2012 impreza sti dashboard rev alarm
All STIs have a rev alarm. Shown in this photo set to beep at 4100rpm, with the red dot light (above) on indicating revs above 4100.  Its easy set/change by tapping the odometer button and cycling through the options
blank for now
-
many more 2012
 WRX photos (page 1),  STI photos (page 3),  Options and Upgrades (page 2),  Monroney window stickers

-


    About the Subaru Impreza
    subject to change, correction

top

UPDATES and NEWS
all information subject to update and correction. thank you.



4/3 Navigation map upgrade available. You can download the latest Q3 2012 data from Nokia/Navteq
If you have factory navigation (excluding Forester with Tom-Tom) on

2012-2013 Forester, Impreza, and WRX/STI,
2013 Legacy, Outback, BRZ, and Crosstrek, and
2014 Forester,
you can purchase the latest mapset  Q3 2012 from Navteq for 149.99 + tax.
You need the original SD card that came with the navigation, and a windows computer with a SD-HC card reader. Be sure to remove the SD card from the navigation only after the pushing and confirming the Remove SD button in the Info screen.
You will need a registered account with the download website, where you'll also get all the details and info, at https://subaru-na.naviextras.com/shop/portal
The windows computer will need a copy of the toolbox. Its at https://subaru-na.naviextras.com/shop/portal/downloads
Questions, support, SD card questions https://subaru-na.naviextras.com/shop/portal/support or call Navteq at 888-628-6277


7/28/12 2013 prices and features announced. 2013 WRX and STI page

4/20/2012-  updated 4/24- 2012 Impreza, WRX and STI sold order cut-off date is Monday April 23 Tuesday 4/24, 4pm

12/10/11 Will the next WRX please stand up.. 2013 WRX 2.0L turbo coming
'Subaru has confirmed that the next-generation Subaru WRX, due as a 2013 model, will be powered by a turbocharged version of the new FA direct-injection, 2.0-liter flat-four that debuted in the BRZ sports car. There’s no word from Subaru on what will be under the next STI’s hood, but it’ll almost certainly be a more powerful iteration of the WRX’s 2.0-liter.
The current WRX features a 265-hp, turbocharged 2.5-liter flat four, and despite the lower displacement, we don’t expect the next car’s output to be any lower. As for the next STI, we already know it will pack at least 300 hp. Both cars will move to a dedicated platform when they are redesigned instead of being modified Imprezas as they have been in the past. Happily, the muscular duo is expected to weigh less than the current models. If you’re wondering whether the turbocharged 2.0-liter will show up in the BRZ or its Scion FR-S twin, you’re not alone. Subaru says it won’t, but we don’t believe them." from Car and Driver
11/18/11 2012 WRX and STI brochures now at dealers. 10 pages.
11/2/11 cars start arriving and factory orders accepted
10/7/11-  2012 Forester and WRX STI prices and specs announced.
The cars are expected to start arriving in early November
The 2012 WRX and STI are no longer considered Imprezas since the 2012 Impreza is all new (note- it still says Impreza on the back of the cars)

....  it continues....
the year-by-year changes, some for better, some for worse, finally came together in 2011 in a fantastic package and it continues for 2012.
an aggressive look
healthy but not too loud exhaust growl
tighter handling with upgraded suspension/wider stance

2012 models include

> WRX
4 door sedan: WRX, WRX Premium, WRX Limited
5door hatchback: WRX, WRX Premium,  WRX Limited
> STI
 4 door sedan: STI, STI Limited
5 door hatchback: STI (5 door comes with BBS alloys and fog lights)

NEW
The 2012 WRX and STI is no longer considered part of the Impreza family since the 12 Imprezas are all new and the WRX and STI are not following that redesign.

All STI 4 doors- get redesigned silver alloy wheel
All models- Headlight surround bezels now silver, replacing black
All 4 doors- Trunk trim on 4 door now body colored, was satin finish
All WRX- Center console panel on WRX is now gray, replacing silver
Plasma Blue Pearl now available on all models (previously only on STI 4 door)

Maybe Next Year  things that would be good to have

#1 Who wants summer tires? Put all season tires back on the cars. If you intend to race the car you'll probably want different tires anyway
Tire pressure monitors should be self registering so a technician isn't required each time one swaps wheels/monitors
Keep the rubber rear bumper cover on 5 doors- don't switch to the thin clear vinyl/mylar one like on other models
The All Weather Package should include the rear cargo/trunk tray and the all weather rubber floor mats
Power driver seat on Limited models

ideas, comments, suggestions?


top
start maintenance, warranty
Subject to change, correction.
-
RECOMMENDED MAINTENANCE
-

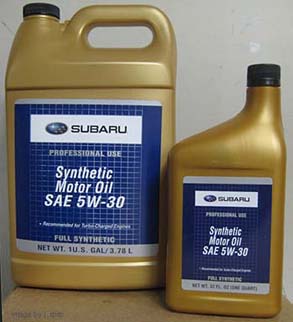

gallon and quart container Subaru synthetic oil, new July 2010
.
the full maintenance schedule

Subaru Synthetic 5w-30 Oil required for all 2012 turbo engines.  recommended for 2010 and prior turbo engines
Note: the warranty maintenance owner's booklet may have incorrectly omitted the recommended 105,000 mile 2.5L timing belt replacement.

New Car 1000 mile break-in period
keep RPMs under 4000, vary speeds, avoid hard starts/stops

Oil Change
requires Synthetic 5w-30 oil
1st oil change  by 7500 miles or 7.5 months
Subsequent oil change: required at leaset every 7500 or 7.5 months.

Tire rotation 7,500 miles
15,000 mile service- minor service: inspect all fluids and engine air filter, replace oil/filter, rotate tires, replace cabin air filter
30,000 mile service- replace brake fluid, engine air filter, and cabin air filter. Inspect all hoses, belts, brakes pads
60,000 mile service- repeat 30,000 service plus spark plug replacement
90,000 mile service: repeat 30,000 mile service.
Timing belt- replace at 105,000 miles.
Coolant- Subaru Super Coolant. The first replacement is 11 years.


mmM
M
-WARRANTIES
does not cover wear or damage due to competitive driving

Bumper-to-bumper: 3 year/36,000 mile
Roadside assistance: 3 year/36,000 mile
Service adjustment (may be performed one time), 3year/36,000
Wear Item Warranty, 3year/36,000 mile, brake pads, clutch disc lining, wiper blades, remote battery.
Powertrain: 5 year/ 60,000 mile
Corrosion: 5 year/100,000 mile. 70% of the body is double sided galvanized steel
Wear and adjustment: 12 month/12,000 mile

full  warranty, towing page



start safety
top
2012 SAFETY, all WRX and STI models
subject to change, correction.
.


child seat anchors
LATCH sytem with lower child seat anchors and upper tethers. anchor shown
standard front and side airbags, and rear curtain airbags
standard front airbags, side airbags, and rear curtain airbags
Airbags
Front Airbags, dual front advanced airbags detects driver's seat position and passenger weight and seat position to control airbag deployment
Side Airbags: front driver and passenger side airbags
Curtain Airbags: front and rear side curtain
Side Curtain Airbags, front and rear driver and passenger

VDC (vehicle dynamics control) electronic stability control with off button
Brakes: anti-lock disc brakes with EBD electronic brake force distribution
Collapsible Foot Pedals: reduce risk to feet in accidents
Brakes: EBD, electronic brake force distribution varies front/rear brake power
Brakes: low-wear indicators on disc brakes
Note the WRX and STI have summer tires
Brake Assist, boosts the brake power when the driver cannot depress the brake pedal strongly and the brake power is insufficient. Brake assist generates the brake power according to the speed at which the driver depresses the brake pedal.
Note: When you depress the brake pedal strongly or suddenly, the following may occur. However, even though these occur, they do not indicate any malfunctions, and the brake assist system is operating properly. 1) You might feel that the brake pedal is applied by lighter force and generates a greater braking force. 2) You might hear clicking (knocking) sounds around brake pedal.
Tire Pressure Monitoring System (TPMS).


3 point lap and shoulder belts with Height Adjustable outboard shoulder harness for all (5) occupants.
Internal Trunk Release, sedan, emergency inside-trunk release
LATCH Child seat Tethers and Uniform Mounting Clips
Childproof rear door locks and windows.
Daytime running lights
Crumple zones: front and rear
Drop-down motor mounts
Re-inforced door beams: Dual front, single rear
A Pillar beam
5-mph impact-absorbing bumpers

Summer tire and what it means tires designed for warmer temperatures and high stress use and are not good in inclement weather. The rubber compound does not maintain elasticity in cold weather. This means the grip level of the tire is less in cold temperatures even on dry pavement. In the cold a summer tire becomes unpredictable and feels slippery when cornering no matter what the weather. This problem is compounded in wet or snowy conditions.


start models, brief overview of what's new
top


.
What's New for 2012
A brief summary, scroll down for all the details
there are very few changes on the 2012 WRX and STI
subject to change, correction, updating
New on the 2012 WRX
> WRX MODELS
The 2012 WRX and STI are no longer an Impreza.
4 door sedan: WRX, WRX Premium, WRX Limited
5door hatchback: WRX, WRX Premium, WRX Limited

Plasma Blue Peal now available on all models
Chrome trunk trim garnish now body colored, 4 door only

New on the 2012 STI
> STI MODELS
The 2012 WRX and STI are no longer an Impreza.
4 door sedan: STI,  STI Limited
5 door hatchback: STI
STI sedan gets redesigned 18" alloy wheels
Plasma Blue Peal now available on all models
Chrome trunk trim garnish now body colored, 4 door only
top
start option packages
scroll down for  prices

.
OPTION PACKAGES
2012 WRX and STI 4 and 5 door sedan and wagon
subject to change, correction, updating
Factory installed Option Packages

#01- standard package included with each model at no charge..
#10 Navigation Package, STI models.  New 6.1" touch screen LCD Navigation/GPS, voice activated controls, AM/FM/ plus HD radio, single disc CD, 6 speaker, MP3/WMA, USB port, Aux input 3.5mm, SMS messaging capability, hands-free cell phone Bluetooth with steering wheel controls, contact download, and voice commands, wireless audio streaming,  iPod capable with iTunes tagging, XM Satellite radio with XM NavTraffic (subscription req), roof antenna $1000

#14 Navigation Package, WRX models.  New  6.1" touch screen LCD Navigation/GPS, voice activated controls, AM/FM/ plus HD radio, single disc CD, 6 speaker, MP3, USB port, Aux input 3.5mm, SMS messaging capability, hands-free cell phone Bluetooth with steering wheel controls, contact download, and voice commands, Wireless audio streaming,  iPod capable with iTunes tagging, XM Satellite radio with XM NavTraffic (subscription req), roof antenna $1000

This is an unofficial, independent, unauthorized research site and your purchase price may vary due to rebates and incentives, dealer mark-up or discounts, and options.
Always contact your local dealer.  All info subject to change correction

-
WRX 4 door sedan option packages
WRX 5 door wagon option packages
4 door sedan
code
Option Packages available
pkg #01 incl with every car
5 door wagon
code
Option Packages available
pkg #01 incl with every car
WRX sedan
CWN
#01- standard with car.
no optional packages
WRX wagon
CXN
#01- standard with car.
no other packages
WRX Premium sedan
CWO
#01- standard with car
#14 Navigation, HD and XM radio, List $1000
WRX Premium wagon
CXO
#01- standard with car.
#14 Navigation, HD and XM radio, List $1000
WRX Limited sedan
CWP
#01- standard with car.
#14 Navigation, HD and XM radio, List $1000
WRX Limited wagon
CXP
#01- standard with car.
#14 Navigation, HD and XM radio, List $1000
-
STI 4 door sedan option packages
STI  5 door wagon option packages
model
code
Option Packages available
pkg #01 incl with every car
model
code
Option Packages available
pkg #01 incl with every car
STI - 4 door sedan CWV #01- standard with car.
#10 Navigation, HD and XM, List price $1000
STI 5 door wagon
CXV
#01- standard with car.
#10 Navigation, HD and XM List price $1000
STI Limited 4 door sedan CWW #01- standard with car.
#14 Navigation, HD and XM, List price $1000
 -
-
-

top
end option packages
start prices

.
2012 PRICES - WRX AND STI
-

Notes and updates
subject to change, correction, updating

10.6.11 prices announced.
Cars expected starting November 2011. Orders accepted 10.6.11
> All WRX and STI prices increased $100.
> Destination increased $25 to $750.  Alaska destination is $900. May vary in CT, HI, MA, ME, NH, NY, NJ, RI, VT

> Interest Rates, rebates page

Important Note  this independent Subaru research site is designed to help you learn about Subarus. It is unofficial and not sponsored, authorized, supported, or approved by Subaru or any dealer. These are research figures only and your actual purchase price may be higher or lower due to incentives, dealer mark-up or discounts, and options. Always contact your local dealer which is me if you're buying in Seattle. All information and prices subject to change, correction, updating

-
2012 WRX
your purchase price may vary due to rebates, incentives, dealer markup or discounts,
and options.Subject to change, correction
model
code
MSRP $750 destination
available option package- see above
List Price including
optional package
WRX 4 door sedan
CWN
$25,595 +$750 = $26,345
-
-
WRX Premium 4 door sedan
CW0
$28,095 +$750 = $28,845 #14, Navigation, HD and XM radio, $1000
$29,845
WRX Limited 4 door sedan
CWP
$29,095 +$750 = $29,845 #14, Navigation, HD and XM radio, $1000
$30,845
WRX 5 door hatchback
CXN
$25,595 +$750 = $26,345
-
-
WRX Premium 5 door hatchback
CXO
$28,095 +$750 = $28,845 #14, Navigation, HD and XM radio, $1000
$29,845
WRX Limited 5 door hatchback
CXP
$29,095 +$750 = $29,845 #14, Navigation, HD and XM radion, $1000
$30,845
2012 STI
your purchase price may vary due to rebates, incentives, dealer
markup or discounts, and options. subject to change,correction
model
code
MSRP
$750 destination
available option package
List Price including
option package
STI 4 door sedan
CWV
$34,095 +$750 = $34,845
-
-
STI Limited, 4 door sedan
CWW
$37,445 +$750 = $38,195 #10, Navigation, HD and XM radio, $1000
$39,195
STI , 5 door hatchback
CXV
$36,095 +$750 = $36,845 #10, Navigation, HD and XM radio, $1000
$37,845


end prices
top
start standard features
.
2012 WRX STANDARD FEATURES
START HERE...

expect frequent updates. subject to change, correction. corrections welcomed.

-
Standard Features on the 2012 WRX
4 door sedan and 5 door wagon
model codes- 4 door CWN, 5 door CXN

New- All models- Headlight surround bezel is now silver, replacing black
New- All 4 doors- Trunk trim on 4 doors now body colored, was satin finish

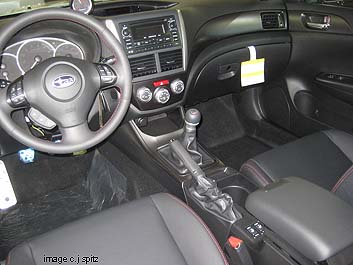

New- All WRX- Center console panel on WRX is now gray, replacing silver

2.5L intercooled turbo, DOHC, 16 valve, H4 cylinder,
265hp@6000rpm, 244 ft torque@4000rpm
All Wheel Drive
VDC electronic stability control plus Traction Control, with 'off' button.
Tires- low profile 235/45R 91W 17" Summer Performance dry road tires so you may want to buy All Season tires.
Wheels- 17"x8 gunmetal gray 15 spoke alloys
Subaru Super Engine Coolant- 3yr inspection, 11 year replacement cycle
Subaru Synthetic 5w-30 Oilrequired for all turbo engines.

Anti-lock, 4 wheel disc brakes with EDB, electronic brake force distribution
Airbags: front airbags, occupant sensing
Airbags: side airbags
Airbags: side curtain airbags, front and rear
Daytime running lights
Speedometer to 150mph (numbered to 140, STI is to 160mph)
Wide-body design
STI-type flared front fenders with badge
Power locks
Power windows, auto up/down feature
Power mirrors, body colored
Cruise control
Automatic Climate Control Heating and Air Conditioning
Steering wheel, leather wrapped, with audio, bluetooth, and cruise controls
Brake Assist  boosts braking when driver does not depress pedal strongly enough
Pre-wired for XM or Sirius Satellite radio (Sirius incl w navigation)
Incline Start Assist uses VDC, prevents rollback when starting on a hill
Headlights auto-off when ignition key removed
Headlights with dark bezel surrounds
Bottle holders in front and rear door panels
Tire Pressure Monitoring System (TPMS).
Double-wishbone rear suspension
16.9 US gallon fuel tank
LED Lit center console storage
Electroluminescent guages
Roof mounted antenna
Mesh front grill, glossy black horizontal bar, WRX logo
Quad exhuast with stainless tips
Laser cut keys (3 supplied)
Air filtration system, replace paper filter yearly
Alarm Security system w/ ignition disable.
Remote Keyless entry (2), with Finder Mode- press lock more than 3 times
Body Colored folding outside mirrors
Sport designed dash gauges
Sport tuned suspension

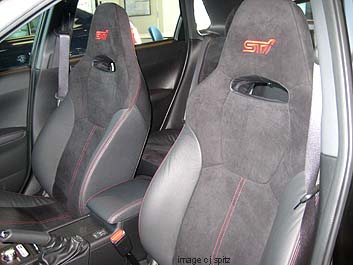

Performance design front bucket seats with integrated headrests
Alloy gas, brake, clutch pedal covers, includes footrest

-
con't-  standard 2012 features con't on WRX 4 door sedan and 5 door wagon

Immobilizer anti-theft system
Off black cloth with red stitching
Cupholders: 2 fixed size in the center console, 1 bottle holder in each door (4)
Center console, 2 cupholders, open storage with raised lip
Rear bumper has integrated lower air diffuser with grill, exhaust surrounds
Leather shift knob
Leather parking brake handle.
Leather wrapped steering wheel with red stitching
Outside temperature gauge
Dual resettable trip odometers, with fuel computer
Carpeted floor mats
Dual overhead map lights
Map pocket on rear of passenger seat
Fold down rear seats on sedan and wagon

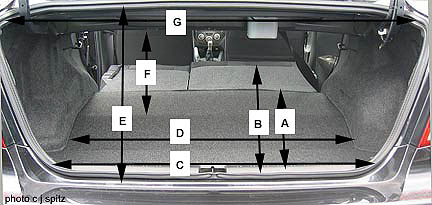

Storage tray under rear floor in truck or cargo area
Interior lights: red illuminated ignition key ring, console front storage (blue light), glovebox, 2 overhead map and 1 dome light, rear cargo or trunk light
Roof rack cross bar mounting points

Aero package with side ground effects, rear bumper under spoiler, front bumper under spoiler.

Stereo AM/FM/single disc CD, MP3/WMA, 6 upgraded speakers, pty/cat (program type/category radio station search function),  hands free Bluetooth cell phone with steering wheel control, bluetooth audio streaming, USB port, auxilliary input, iPod control capability. 3 FM bands, 1 AM band.
Prewired for XM or Sirius. HD radio is only available with optional navigation which is not offered on this mode.l

4 door sedan gets
new for 2012 sedan- body colored trunk trim replaces satin trim
Red tail light lens
rear lower accent grill
Quad chrome tipped exhausts
Lower window trim- chromed
Note- rear spoiler not available on base WRX sedan

5 door wagon gets
Single Rear diffuser

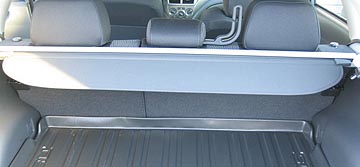

retractable cargo cover
STI large rear gate spoiler

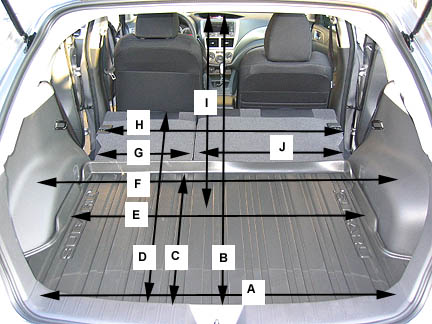

Cargo area tie-down hooks
LED taillights with clear lens
Single exhuast chrome tipped
Lower window trim- black

NEW FOR 2012- OPTION PACKAGE
none available on base WRX

request a free Subaru 'Badge of Ownership'  Here's my webpage with photos of the badges and links.

-
.
2012 WRX Premium adds over the WRX
model code- 4 door CWO, 5 door CXO
subject to change, correction, updating
.
2012 WRX Limited adds over the Premium
model code-  4 door CWP, 5 door CXP
subject to change, correction, updating

everything the WRX  has (see above) has
PLUS.....

Fog lights
Power glass sunroof
Rear spoiler (sedan only)
All Weather Package: Hi/Lo Heated Front Seats, Heated Outside Mirrors and Front Windshield Wiper De-icer (on with rear defroster button)

Stereo AM/FM/single disc CD, MP3/WMA, 6 upgraded speakers, pty/cat (program type/category radio station search function),  hands free Bluetooth cell phone with steering wheel control, bluetooth audio streaming, USB port, auxilliary input, iPod control capability. 3 FM bands, 1 AM band.
Prewired for XM or Sirius. HD radio is only available with optional navigation.

OPTION PACKAGE
pkg #14 Navigation with HD and XM radio



everything the WRX Premium  has has
PLUS.....

Leather trimmed interior, Carbon Black leather (leather seating surfaces, matching vinyl trim)
HID headlights with power hi/lo adjustments

Stereo AM/FM/single disc CD, MP3/WMA, 6 upgraded speakers, pty/cat (program type/category radio station search function),  hands free Bluetooth cell phone with steering wheel control, bluetooth audio streaming, USB port, auxilliary input, iPod control capability. 3 FM bands, 1 AM band.
Prewired for XM or Sirius. HD radio is only available with optional navigation.

OPTION PACKAGE
pkg #14 Navigation with HD and XM radio


top
end  WRX standard features
start STI standard features
.
2012 STI standard equipment
4 door sedan and 5 door wagon
subject to updating, change, correction. corrections welcomed.

2012 STI standard equipment
4 door model code CWV
5 door wagon,  model code CXV- this is the only 5 door STI

Features/prices announced 10.6.11

New- all models, Headlight surround bezel is now silver, replacing black
New,  4 door model only redesigned silver 18" alloys
New, 4 door model only trunk trim now body colored, was satin finish

Standard STI features..
2.5L DOHC intercooled high boost engine
Electronic Throttle Control
SI Drive (Subaru Intellegent) 3 modes: Intelligent (I), Sport (S), Sport Sharp (S#)
VDC, Vehicle Dynamics Control with 3 modes:  Normal, Traction, Off.
Transmission Shift Up indicator light in Intelligent mode.

Multi-mode DCCD Driver Controlled Center Differential with nine settings, including three auto modes and six manual modes. The 3 auto modes are Auto, Auto Minus shifts torque to the rear for high-friction surfaces, and Auto Plus shifts torque to the front for low-friction surfaces. Manual mode varies front/back power split up to 50/50.

All Weather Package: Hi/Lo Heated Front Seats, Heated Outside Mirrors and Front Windshield Wiper De-icer (on with rear defroster button)

Incline Start Assist similar to hill holder, uses VDC,  to minimize rollback when starting on a hill
Short Throw Shifter (note- there is an optional shorter throw shifter as well)
Power steering, quick ratio
6 speed manual transmission
Limited-slip front differential, Helical type
Limited-slip rear differentail, Torsen type
Speedometer to 160mph (WRX is to 150mph)
Tire Pressure Monitoring (TPMS)
18x 8.5" 5 spoke aluminum alloys
245/40R 18 93W Dunlop SP Sport 600 summer tire
BBS alloys, silver, only on STI 5 door, and 4 door Limited
SuperSport 4 channel anti-lock brakes, Brembo
Ultra-low expansion brake hoses
Aluminum alloy front door sill plates
STI Electroluminescent guages
Power adjustable HID headlight hi/lo angle
Power windows, power locks, power mirrors
Driver's window auto up/down with pinch protection
Steering wheel, leather wrapped, with audio, Bluetooth, and cruise controls.
Tilt and Telescoping steering wheel
Climate Control AC
60/40 split-folding rear seat
Leather wrapped Momo steering wheel, audio, cruise control switches
Sport-tuned performance suspension
Double-wishbone rear suspension
Suspension front/rear sway bars  21/19mm. Pillow-ball front bushings


more standard STI features...

Forged aluminum-alloy lower A-arms, front supension
Chrome inner door handle
Quad-outlet sport tailpipes
Aluminum alloy pedal covers
Aluminum front door sill plates
Fuel consumption meter
STI designed instruments
Front fender engine compartment heat vents
Dark-tinted upper windshield band
Tinted glass
Tinted windshield band
Large rear gate spoiler
Rear bumper (single) diffuser. Not the same as on WRX.
Interior Lights: red illuminated ignition key ring, red footwell lighting, red back-lit STI logo in front console raised lip, console front storage (red light), glovebox, 2 overhead map and 1 dome light, rear cargo light
Headlights: HID low beam headlights with power aiming, halogen high beams
Fog lights, standard on 5 door, and 4 door Limited
Tailights: LED
Hood scoop with internal diffuser
Incline start assist to help prevent roll back
Cupholders, 2 rear in center console (not in WRX)
Cupholders, 2 front with sliding cover, removeable/reverseable divider
Cupholder, Bottle holder in door panels
Center console with 6" deep recessed storage with raised lip and STI logo, under the climate control. Raised lip with illuminated STI logo (not on WRX).
Rev alarm, adjustable, see image above

STEREO
AM/FM/single disc CD, MP3/WMA,  6 upgraded speakers, pty/cat (program type/category radio station search function), hands free Bluetooth phone with steering wheel controls, bluetooth audio streaming, USB port, auxilliary input, iPod control capability, prewired for XM/Sirius. HD is only available with navigation

4 door has
Large rear spoiler
Fog light covers but no fog lights. (fog lights are standard on Limited sedan)

5 door has
Fog lights
BBS forged alloys- silver, 9 split-spoke

Option Package
pkg #10 Navigation with HD and XM radio

Request a free Subaru 'Badge of Ownership'  Here's my webpage with photos of the badges and links.

information always subject to updating, change, correction.

.
STI Limited sedan adds over the STI
model code CWW.  There is no Limited 5 door
subject to change, correction, updating. corrections welcomed.

STI Limited sedan adds over the STI
model code CWW - note, there is no Limited 5 door

everything the standard STI sedan has, PLUS.....

Fog Lights (standard on 5 door)
18" BBS alloys, silver 9 split-spoke (standard on 5 door)
Power moonroof (no sunroof is available on 5 door)
Leather trimmed interior (not available on 5 door)

Option Package
pkg #10 Navigation with HD and XM radio


this is blank
end standard features


top
HD Radio
Digital radio broadcast signal for improved clarity

HD radio was first offered in the 2011 Forester Limited and Touring models.
The ‘HD’ in ‘HD Radio’ is part of iBiquity Digital’s brand name for its digital AM and FM radio technology.
It does not mean either hybrid digital or high definition, it is simply the branding language for this new technology.
HD Radio broadcasting is free, there are no subscription fees.
You can get digital AM and FM stations, including HD2 and HD3 multicast channels.
HD Radio broadcasting is your favorite local AM and FM stations broadcasting digitally, producing radically improved sound.
Very clear. AM radio sounds like FM, and FM radio sounds like a CD.
Unwanted pops, hisses and dropouts are a thing of the past with an HD Radio receiver."
HD2 multicasting means more FM channels and new programming available from local FM stations, which you can only hear on your new HD Radio receiver.
Across the country, local FM stations are offering a wide variety of new formats on their HD2 channels: reggae, blues, classic jazz, future country, new alternative, deep tracks, bluegrass and local artists.
The service includes iTunes Tagging. iTunes Tagging lets you capture information about a song on the radio and store it on your iPod by pushing the "Tag" button on the HD Radio receiver. When your iPod is connected to iTunes, a list of tagged songs will appear which can be previewed, purchased, and downloaded.

HD radio FAQ I Check station availability here

top
start dimensions

.
2012 WRX DIMENSIONS
Subject to change, correction, updating
.
2012 Model
WRX  4 door sedan
WRX  5 door wagon
STI 4 door sedan
STI
5 door wagon
Curb weight
WRX 3,208
Prm 3,241, Ltd 3252
WRX 3,208, Prm 3,241, Ltd 3252
STI 3,384; Ltd 3,417
3,373
Overall Length
180.3"
173.8"
180.3"
173.8"
Wheelbase
103.3"
103.3"
103.3"
103.3"
Width
70.7" (was 68.5")
70.7" (was 68.5")
70.7"
70.7"
Track front/rear
60.2"/60.6""
60.2"/60.6""
60.2"/60.6""
60.2"/60.6""
Height, overall, without roof rack
58.1"
58.1"
57.9"
57.9"
Ground clearance
6.1"
6.1"
5.9"
5.9"
Interior Headroom front/rear
front/rear with moonroof
40.3/37.6"
39.3/37.5"
40.3/37.6"
39.3/37.4"
40.3/37.6"
40.3/37.6"
Interior Legroom front/rear
43.5/33.5"
43.5/33.5"
43.5/33.5"
43.5/33.5"
Cargo Volume
11.3cf trunk
rear seat up 19cf; rear seat down: 44.4cf
rear seat up 19cf; rear seat down: 44.4cf
rear seat up: 19cf
rear seat down: 44.4cf
EPA interior volume
94.6cf
94.6cf
93.2cf
94.4cf
Driver seat height, from ground to middle of seat
surface (not of bolster). Hand measured. Manual adjustment.
18-21"
18-21"
18-21"
18-21"
2012 model
subject to change, correction
WRX 4 door sedan
WRX 5 door wagon
STI 4 door sedan
STI
5 door wagon




23 3/8" from front of the brake pedal to front of driver seat.
Hand measured, seat in the lowest position. (Outback Sport shown)
Tilt and telescoping steering wheel


WRX and STI - telescoping steering wheel goes from  6 1/2" -- 7 7/8" (2008 shown)



.
Measurements-  WRX and STI
5 door wagon cargo area measurements
Outback Sport shown, all 5 door models are the same
measurements are by hand, subject to change, correction.
5 door cargo area hand measurements

A: hatch gate bottom width: 36.5"
B: hatch gate bottom to top height: 31"
C: cargo floor length, seats folded up (cargo tray) 31.5"
D: cargo floor length, seats folded down: 56"
E: cargo floor width at wheel wells (cargo tray): 42"
F: cargo width on top of wheel wells" 48"
G: rear driver side seat width: 16.5"
H: rear seat width: 55"
I: cargo floor to roof height: 26.5"
J: rear passenger side seat width: 25.5"


Retractable cargo cover (not shown): width 47"

cover cover
5 door standard retractable cargo cover: width 47"
rear seat folded flat, wagon
5 door wagon rear seat folded flat, 55" from side to side
.
4 door sedan trunk measurements
measurements by hand and subject to change, correction
2008 TRUNK MEASUREMENTS
trunk measurements.
the white box in the top, off center, is the center shoulder harness base
4 door sedan trunk hand measurements

A: floor to back of seats, up 38.5"
B: floor to top of back seats, folded down 62.5"
C: width of trunk opening at bottom 31"
D: floor width at wheel wells 42.5"
E: height of trunk opening 17"
F: height of trunk interior 19.50"
G: width of trunk opening at top, by hinges 43.25"

Split folding rear seat measurments
rear drivers side, seat width: 16.75"
rear passenger side, seat width: 25.5"


4 door sedan. Ths is the pull strap to fold the rear seats down.
It unhooks to tuck into the trunk for security, to 'lock' the seats from being folded.
trunk opening measurements
sedan, looking into the car from the trunk with rear seats folded flat
Width of opening at floor: 42.5"
Height of opening: 12"

trunk storage bin, spare is underneath

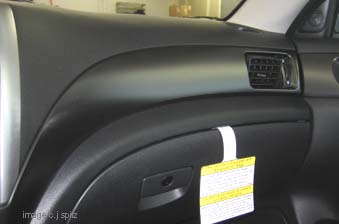

glove box hand measurements (air filtration visible behind)
A:8", B: 13 3/8", C: 41/2"
end dimensions
top

.
2012 WRX AND STi  MECHANICAL AND STANDARD FEATURES
S = standard, 0=optional

subject to change, correction, updating.
corrections welcomed.

2012 model
WRX, WRX Premium, WRX Limited
sedan, wagon
STI 4 door sedan, 5 door wagon
STI Limited 4 door sedan
2012 model codes
sedan CWN, CWO, CWP; wagon CXN, CXO, CXP
sedan  CWV, Limited CWW; wagon  CXV
Engine Turbocharged- 265hp
2.5L boxer DOHC, 4 cylinder, 16 valves
Active Valve Control System
Aluminum Alloy Block and heads
Semi-closed deck
5 main bearings
Cast iron cylinder liners
Composite resin intake manifold
Sequential multi-port fuel injection
Compression 8.4:1
Max boost pressure 14.2psi
Bore: 99.5x79mm, 3.92x3.11
Redline 6500 rpm,
Speedometer to 150 (numbered to 140)
Hood scoop air intake with Intercooler
Subaru Super Coolant
Oil, filter svc required every 3,750 miles.
5W-30 Synthetic oil required
Turbocharged- 305hp
2.5L boxer DOHC, 4 cylinder, 16 valves
Dual active valve control system
Sequential multi-port fuel injection
Alum alloy intake manifold
Cast iron exhaust manifolds
Reinforced cast aluminum block, cast iron cylinder liners,  Semi-closed deck design,
Five main bearings.
Bore: 99.5x79mm, 3.92x3.11
Compression 8.2:1
Max boost pressure 14.7psi
Hood scoop air intake intercooler
6700 rpm redline
Speedometer to 160mph
Subaru Super Coolant.
Oil, filter svc requiredevery 3,750 miles
5W-30  Synthetic oil required
Horsepower, Torque 265hp@6,000rpm, Torque: ft lbs 244@4,000rpm 305hp@6000rpm, Torque: ft lbs 290@4000rpm

All wheel drive, WRX, STI
'Continuous' all wheel drive, mechanically controlled 50/50 front/back power split

VDC (vehicle dyanmics control) electronic stability control with off button.
TCS (traction control system) all speed traction control senses slipping wheels and  applies brake to the wheels (s) to help maintain vehicle motion

VDC (vehicle dyanmics control) electronic stability control with normal, with Traction and off modes (use VDC button)

DCCD Driver Controlled Center Differential with 9 settings, incl three auto modes and six manual ones.
The 3 DCCD modes are 'Auto' for center differential lock-up controlled by the Transmission Control Module, The 3 auto modes are Auto, Auto Minus shifts torque to the rear for high-friction surfaces, and Auto Plus shifts torque to the front for low-friction surfaces.

DCCD manual modes vary rear/front power up to 50/50 split.
The 6 settings are rear/front: 59/41, 57.2/42.8, 55.4/44.6, 53.6/46.4, 51.8/48.2, 50/50.

Compression, Boost
Compression 8.4:1,  max boost: 14.2 psi
Compression: 8.2:1; maximum boost 14.7 PSI
Emissions
50 state standard LEV2, Certified Low Emission Vehicle
Valves AVCS (Active Valve Control System) variable valve timing, DOHC belt drive, 16 valves DAVCS (Dual Active Valve Control System) variable valve timing, DOHC belt drive, 16 valves
Tune up specs* Direct ignition Iridium spark plugs, #NGK SILFR6A
Firing order 1-3-2-4
ignition timing at idle- 12* +/- 10* BTDC
idle rpm at park: 700 +/- 100
Oil and filter change capacity 4.4 qts
Subaru Super 10 year Coolant
Direct ignition Iridium spark plugs, #NGK SILFR6A
Firing order 1-3-2-4
ignition timing at idle- 17* +/- 10* BTDC
idle rpm at park: 700 +/- 100
Oil and filter change capacity 4.4 qts
Subaru Super 10 year Coolant
Fuel
16.9 US gallon
Premium 91 octane
Premium 91 octane is acceptable
Premium 93 octane preferred if available
Battery
12V,  48ah
12V, 48ah
Emissions Certified 50 state LEV II (low emission vehicle)
2012 model
subject to change, correction, updating
WRX, WRX Premium, Limited
4 door sedan, 5 door wagon
STI 4 door sedan, 5 door wagon
STI Limited 4 door sedan
Axle Differentials
viscous locking center differential
2 limited-slip differentials: front helical; rear Torsen.

Multi-mode DCCD Driver Controlled Center Differential with nine settings, including three auto modes and six manual ones.The 3 DCCD modes are 'Auto' for center differential lock-up controlled by the Transmission Control Module, Auto Minus for rear torque for high friction surfaces, and Auto Plus for more front torque for low friction surfaces.
DCCD manual modes vary rear/front power up to 50/50 split.
The 6 settings are rear/front: 59/41, 57.2/42.8, 55.4/44.6, 53.6/46.4, 51.8/48.2, 50/50.

Economy city/highway
16.9 US gal capacity
Manual 5 speed: 18/25
Premium Fuel 91 octane
Manual 6 speed: 17/23
Premium Fuel 91 octane (93 octane if available)
Gear ratios WRX: 5 speed manual; 1st 3.166, 2nd 1.882, 3rd 1.296, 4th 0.972, 5th 0.738, final 3.900 STI:  6 speed manual 1st 3.636, 2nd 2.235, 3rd 1.521, 4th, 1.137, 5th 0.971, 6th 0.756
Front final gear ratio: 3.9
Rear final gear ratio: 3.545
Shift up indicator light in Intelligent mode
Incline start assist
S; uses VDC to prevent rollback when starting on a hill, manual transmission only
Brake hardware Front: 11.6" vented disc, dual caliper front pistons
Rear: 11.3" solid disc, single caliper rear piston
front: 13.0" ventilated disc,4-piston front calipers
rear: 12.6 ventilated disc twin-piston rear calipers
Ultra-low expansion brake hoses
Brakes: Anti-lock 4 channel, 4 sensor, anti-lock
EBD; electronic brake force distribution
Disc brake wear indicators.

Brake Assist assists with maximum braking when detecting fast pedal pressure.

Brembo SuperSport 4 channel anti-lock brakes with g-sensor

Brake Assist assists with maximum braking when detecting fast pedal pressure.


Steering
engine speed sensing, variable assist rack-and-pinion.
Quick Ratio: 15:1.
Leather Momo WRX steering wheel with Subaru logo
engine speed sensing, variable assist rack-and-pinion.
quick ratio 15.0:1
Leather Momo STI steering wheel with STI logo
Turning radius
Lock-to-lock: 2.8 turns, Turning circle curb to curb 36.1 ft
wall to wall 38.7
Lock-to-lock: 2.8 turns, Turning circle curb to curb: 36.1
wall to wall 38.7
Wheels 15 spoke alloy, 17x8jj,  offset 53 (2.09) STI:  alloy: 18"x 8.5" jj offset 55 (2.17);
(only 5 door and 4dr Limited have BBS silver alloys)
Tires:
Chains- tire chains cannot be used due to clearance. If you do lots of winter driving, consider a set of snow or ice tires.
235/45R17 94W summer performance 245/40R18 93W Dunlop SP Sport 600 summer tire
Tire Pressure Monitoring System (TPMS). Detects app 25% drop in tire pressure so expect seasonal changes. Needs to be re-synced whenever tires or wheels are replaced.
S
S
Towing Towing a trailer- is not recommmended with an Impreza and no factory trailer hitch is available. Unofficially, if you are going to tow with an Impreza anyway, check and maintain all fluids and tune-up specs, and keep weight and speeds down, and of course have a reputable hitch installer install it on your car. Warranties might be affected by towing.

Towing the car- a flatbed is always recommended when towing your Subaru. A manual transmission can be towed with all wheels on the ground behind a tow truck or motorhome for example, but never with just 2 wheels on the ground.
An automatic can be towed with all 4 wheels on the ground in an emergency for a short distance (under 31 miles) at very slow speed (under 20mph). A flatbed is strongly preferred.

2012 model
subject to change, correction, updating
WRX, Premium, Limited
4 door, 5 door
STI 4 door sedan, 5 door wagon
STI Limited 4 door sedan
Suspension:
sport tuned independent suspension
WRX Sport tuning
Front: MacPherson type struts, steel lower L arms
Rear: double wishbone
Stabilizer barts Front/Rear 21mm/16mm
Upper strut mount: STI type
High- Performanced Sport-tuned performance suspension
front/rear sway bars 21/19mm
Pillow-ball front bushing
Front: forged aluminum alloy lower L-arms, inverted struts, cross member stiffener, STI designed components
Rear: Double-wishbone, STI designed components
Stabilizer bars, front/rear- 21mm/16mm
Headlights- Auto off headlight now with ignition key removal.

Parking lights can be turned back on after key has been removed, lights-on warning buzz

Dark surround bezel
Low beam: Projector beam halogen.

Limited: HID low beam headlight with power adjustable hi/lo aiming

High beam: multi reflector halogen

Dark surround bezel
Low beam: HID with power adjustable hi/lo aiming
High beam: multi reflector halogen
Daytime Running Lights
Standard, all models
Projector Beam Fog lights
(off when headlight high beams on)
0 on WRX; S on Premium, Limiteds
0 on 4 door; S on 5 door and 4 door Limited
Exhaust 4 door: Quad exhaust, stainless tips
5 door: quad exhuast (no tips)
quad exhaust, stainless tips
Hood hood scoop, undercover insulator, hood struts
S
S
2012 model
subject to change, correction, updating
WRX
STI
Aero ground effects: front lip spoiler, rear spoiler, side and rear ground effects
S
S
Rear Spoiler 4 door: Optional on WRX, Standard on Premium, Limited
5 door: standard STI type spoiler
S, all models
4 door gets large spoiler
Rear lower center accent grill
standard on 4 doors only
standard on 4 doors only
Rear diffuser,  5 door wagon only
single rear diffuser standard on 5door
Single rear diffuser
Lower window trim 4 door sedan- chromed
5 door hatchback- black
4 door sedan- chromed
5 door hatchback- black
Front fender engine compartment heat vent, behind front wheels
na
S
Roof Rack, easy on-off, fixed position.
0
0
Navigation GPS system Option pkg #14, incl Bluetooth. Factory installed Sirius Radio with roof antenna. Touch-screen.. Option pkg #10incl Bluetooth. Touch-screen..
Gauges

(new 6/2011- optional boost gauge)

Electroluminescent lighting
Center tachometer sport design guage cluster
Full needle sweep and trim ring illumination on start-up
STI designed instruments
Electroluminescent lighting
Center tachometer sport design guage cluster with SI Drive and DCCD information
Full needle sweep and trim ring illumination on start-up
Rev alarm, with optional buzzer, adjust by tapping odometer button (see image above)
Seats Performance design one piece front buckets with fixed headrests.
Manual height adjustable driver seat
Rear seats fold flat, all models

Premium: heated seats

Performance design one piece front sport buckets with fixed headrests with STI logo.
Manual height adjustable driver seat
Black leather trimmed seats, gray Alcantara inserts, center armest, door panel armrest. Gray stitching.
All Weather Pkg: heated front seats and outside mirrors, front wiper de-icer
na on WRX
S on Premium and Limited
S, new for 2011
Cupholders 2 fixed position in center console
bottle holder in each door panel (4)
2 in center console with removeable/reverseable cup divider and sliding cover,
2 in rear console (optional in WRX)
bottle holder in each door panel (4)
Center console storage under armrest with aux plug and power socket with space for CDs; 2 fixed position cupholders; recessed open storage (6" deep) under climate control with raised lip storage under armrest with aux plug and power socket;
2 cupholders with sliding cover and removeable/reverseable divider; 2 rear cupholders at back of console (optional in WRX);
Recessed storage (6" deep) under climate control with raised lip and illuminated STI logo.
Interior illumination Lights in: glovebox, front center console storage (blue), overhead map and dome lights, rear cargo
0- interior footwell lights
Lights in: glovebox, front center console storage (red), overhead map and dome lights, rear cargo
S- red interior footwell lights
S- lit STI logo in center console
Power outlets, 12v dashboard and center console no cigarette lighter power outlet
S
S
2012  model
subject to change, correction, updating.
tips welcomed
WRX, WRX Premium, WRX Limited
sedan, wagon
STI 4 door sedan, 5 door wagon
STI Limited 4 door sedan

top
end standard features
start Option Packages

.
2012 WRX Option Packages

Prices are factory installed prices. Your purchase price may vary due to rebates or other incentives, dealer mark-up or discount. Dealer installed prices may be higher due to labor and part costs

A 'available, '--'  not available, 'tba' to be announced
subject to update, change, correction

model
WRX 4 door sedan
WRX 5 door wagon
STI 4 door sdn, 5 door wgn
2012 Option Packages with suggested List Price
your purchase price may vary due to rebates, incentives, markup, and discounts.
sedan WRX
sedan WRX Premium
sedan WRX Limited
wagon WRX
wagon WRX Premium
wagon WRX Limited
sedan STI
sedan STI Limited wagon STI
model codes
CWN
CWO
CWP
CXN
CXO
CXP
CWV
CWW
CXV
Popular Equipment Group 1 (IYN). Auto dimming rear view mirror with compass and Homelink, rear bumper cover, cargo tray, Cargo net by rear gate, Wheel locks, $513
--
--
--
A
A
A
A
A
A
Popular Equipment Group 2 (IYO). Auto dimming rear view mirror with compass and Homelink, center console pop-up armrest, cargo tray, side cargo nets (2), Wheel locks, $611
A
A
A
--
--
--
--
--
--
Popular Equipment Group 3 (IYP). Auto dimming rear view mirror with compass and Homelink, cargo tray, side cargo nets (2), Wheel locks, $457
--
--
--
--
--
--
A
A
--
model reminder
prices are suggested list.
subject to change, correction, updating
WRX sedan
WRX Premium sedan
WRX Limited sedan
WRX wagon
WRX Premium wagon
WRX Limited wgn
STI sedan
STI Limited sedan
STI wagon
Sport Performance 1a: STI short throw shifter 5 speed, STI leather aluminum shift knob $535
A
A
A
A
A
A
--
--
--
Sport Performance 1b: STI short throw shifter 6 speed, STI leather aluminum shift knob $635
--
--
--
--
--
--
A
A
A
SPT Exhaust Package, 5 door WRX and STI only, SPT Catback Exhaust Plus Exhaust Tips. 'tuned by STP' silver or black decal  $1,327.
Low restriction, deep sound but not loud, reportedly slight power gain.
An excellent upgrade, see images above
--
--
--
A
A
A
--
--
A
2012 option packages with suggested list.
your purchase price may vary due to rebates, markup, and discounts. Subject to change, correction, updates
sedan WRX
sedan WRX Premium
sedan WRX Limited
5 door
wagon WRX
5 door wagon WRX Premium
5 door wagon WRX Limited
sedan STI 4 dr
sedan STI Limited 4dr
wagon STI 5door
end packages
top
start individual options
.
2012 WRX Individual Options

Prices are factory installed sluugested List price. Your purchase price may vary due to rebates or other incentives, dealer mark-up or discount. Dealer installed prices may be higher due to labor and part costs

 A 'available, '--'  not available, 'tba' to be announced

subject to updating, change, correction. corrections  welcomed.

Individual Options with suggested List price. Your purchase price may vary due to rebates, incentives, markup or discounts.
sedan WRX
sedan WRX Premium
sedan WRX Limited
wagon WRX
wagon WRX Premium
wagon WRX LImited
STI sedan
STI Limited sedan
STI wagon
model code
CWN
CWO
CWP
CWN
CXO
CSP
CWV
CWW
CXV
Side window rain deflectors. Fits 2008 and newer. Dealer installed only. Dealer installed only
A
A
A
A
A
A
A
A
A
Fog Lights, body colored surround, $387
A
S
S
A
S
S
A
S
S
Power Outlet. 110v, 100w 2 prong power outlet like at home. No more car chargers for cell phones, laptops etc. In back of center console so na on STI (rear cupholder). $314
A
A
A
A
A
A
na
na
na
Rear Spoiler, body colored $388
A
S
S
S
S
S
S
S
--
Roof Rack Carrier Base Kit cross bars. Quick on-off,  fixed position $229
A
A
A
A
A
A
A
A
A
Side Cargo Nets, set of 2, $55, sedan only
A
A
A
--
--
--
A
--
--
Cargo Net, Rear Verticle, by gate, $40 wagon only
--
--
--
A
A
A
--
--
A
Cargo Net, Rear, by seatback $40, wagon only
--
--
--
A
A
A
--
--
A
Remote Engine Start- not available, automatic transmission only
--
--
--
--
--
--
--
--
--
Auto Dimming rear view mirror with compass $195
A
A
A
A
A
A
A
A
A
Auto Dimming rear view mirror with compass and Homelink $280
A
A
A
A
A
A
A
A
A
Armrest, Center console pop-up extension, $154
A
A
A
A
A
A
--
--
--
model reminder
Subject to change, correction, updating
WRX
sedan
WRX sedan Premium
WRX sedan  Limited
WRX wagon
WRX wagon Premium
WRX Limited wagon
STI sedan
STI Limited sedan
STI wagon
Interior Illumination kit- either blue or red footwell lights. $88
A
A
A
A
A
A
S
S
S
Cargo Tray $71, wagon
--
--
--
A
A
A
--
A
A
Cargo Tray $71, sedan
A
A
A
--
--
--
A
A
--
Rear seat cupholders $88
A
A
A
A
A
A
S
S
S
Rear Bumper cover step pad $71 wagon only
--
--
--
A
A
A
--
--
A
Security System Shock Sensor impact alarm upgrade $112
A
A
A
A
A
A
A
A
A
Splash Guards not available
--
--
--
--
--
--
--
--
--
Bodyside Molding, body colored, $206
A
A
A
A
A
A
A
A
A
Wheel Locks, $51
A
A
A
A
A
A
A
A
A
All Weather rubber floor mats $69
A
A
A
A
A
A
A
 A
A
Moonroof Air Deflector $106
--
A
A
--
A
A
A
A
--
2011 Performance and Stereo
Prices are suggested List
subject to change, correction, updating
sedan
CWN
sedan Premium
CWO
sedan WRX Limited- CWP
WRX wagon
CXN
WRX Premium wgn
CXO
WRX Limited wgn CXP
STI sedan
CWV
STI Limited sedan- CWW
STI wagon-
CXV
SPT carbon fiber trunk trim replaces the chrome strip above the rear license.  $131.
A
A
A
--
--
--
A
A
--
SPT turbo boost gauge. Displays engine vacuum  pressure in HG and PSI. The dial is red lit when the car is on. $335
A
A
A
A
A
A
A
A
A
STI Exhaust Tip Finshers, wagon only $226
--
--
--
A
A
A
--
--
A
WRX Short shifter, 5 speed, $355- WRX only
A
A
A
A
A
A
--
--
--
STI Short shifter, 6 speed $455- STI only
--
--
--
--
--
--
A
A
A
SPT Catback Exhaust- 2.5" low restriction exhuast has a deeper sound but not loud, reportedly slight power gain. A good upgrade $1,067
A
A
A
A
A
A
--
--
A
WRX 5 speed leather and aluminum shift knob, $180
A
A
A
A
A
A
--
--
--
STI leather and aluminum shift knob, 6 spd, $180
--
--
--
--
--
--
A
A
A
WRX black duracon shift knob, 5 speed manual, $91
A
A
A
A
A
A
--
--
--
STI black duracon shift knob, 6 speed manual $91
--
--
--
--
--
--
A
A
A
Momo shift knob, manual $103
A
A
A
A
A
A
--
--
--
Stereo: Sirius Satellite, $427. 3 mos free. To activate, get your ID by tuning to Sat station 000, then call  888 539-7474- standard with Navigation (except STI)
A
A
A
A
A
A
A
A
A
Stereo: XM Satellite, $427  To activate, get your ID by tuning to Sat station 000, then call 800 967-2346, (in Canada 877-438-9677). na with Nav.
A
A
A
A
A
A
A
A
A
Stereo Subwoofer/amp $315, fits under driver seat. Not available with Nav. The factory won't install both the underseat and Kicker subwoofers
A
A
A
A
A
A
A
raq Nav
A
req Nav
A
req Nav
Stereo Subwoofer speaker. Kicker 10", powered, 100w stereo subwoofer. Fits in the cargo area (5 door) or trunk (4 door). $543. Puts out.
Not available from the factory with the underseat subwoofer, seatback cargo net, or cargo tray $453
A
A
A
A
A
A
A
A
A
note: Prices are suggested List and your purchase price may vary due to rebates, incentives, markup or discounts.
Subject to change, correction, updating
sedan WRX
sedan WRX Premium
sedan WRX Limited
wagon WRX
wagon WRX Premium
wagon WRX Limited
STI sedan
STI Limited sedan
STI wagon
end individual options
Subject to change, correction.
top
Performance parts and fun accessories. List prices, Part only.
Some items might be available installed on a new car from the factory, or by the dealer.
new carbon fiber trunk #J101SFG100 (factory installed);  front and rear side sill plates #E101SFG000, and B pillar trim #J101SFG110 pieces with SPT logo (no factory inst)
SPT Catback Exhaust,  updated 12/2010- now available for 4door as well as  5 door WRX, STI only. Low restriction, deeper sounding exhaust but not loud, List price $999
Footwell illumination kit, adds a blue or red glow in the front footwells! Blue H201SS000, Red H201SSC100. Available port installed
Chrome Sport Grill, a JDM look. #J1010FG040. installed as a part for all 08/09 Imprezas,  or port installed
SPT turbo boost guage. Fits all 08-11 Impreza turbos, and 09-11 Forester turbo. Displays engine vacuum as in HG and PSI. The dial is red lit when the car is on. #H501SFG500, $239. Avilable as a part, or port installed. Available 6/2011
STI Coil Springs for 09/08 STIs. Pint colored. Lowers height 10mm, stiffen ride. Part only, not port installed. #s B2010FG200/300,
STI front lip spoiler, for WRX E2410FG110, $445; 25GT  E2410FG100 $395; STI  E2410FG120 $475
Valve stem caps: $14.95 STI SOA342L114 $14,95; Subaru  SOA342L128;
SPT front strut tower brace, all models SOA8431130 $229.95
SPT lower chasis brace, all models, SOA8431120 $199.95
SPT oil filler cap,  $39.95, Blue  SOA3861040 or Gray  SOA3881010
SPT battery hold down, $39.95, blue SOA3991030, or gray SOA3881000
License plate frames: WRX polished stainless SOA342L106 $28.95; WRX matte black SOA342L107 $32.95; STI  polished stainless SOA342L112 $34.95;
SPT polished stainless SOA342L121 $34.95;
Ashtay with holder, all models,  92172AG040 and F60190FG010, $32
Block heater, A0910AS100 $39.95
Battery warmer, J6010FS000, $29.95
Rear corner bumper moldings. E77110AS108 $60
Car cover, 4 dr M001SFG500, 5dr  M001SFG800 $79.95
Key chains $9.95, STI SOA342L115; SPT SOA342L116, WRX SOA342L117
top

colors- scroll down



.
interior photos
2011 WRX logo on Limited
WRX logo, shown on the Limited gray leather

 It's hard to get accurate colors, so it's always best to look at a car with that color (even if not the same model)

2011 WRX cloth, carbon black witrh red stitching
2011 WRX seat cushion cloth,
carbon black with red stitching

WRX, cloth
2011 WRX front seat, Limited leather shown
WRXs have a one piece perfomance bucket seat.
Limited with leather shown

cloth interior
2011 Subaru WRX interior, Limited shown
2011 WRX interior, Limited shown with leather
2011 Subaru WRX dashboard trim
WRX dashboard trim
new WRX Limited carbon black leather
Carbon Black Leather with red stiching,
WRX Limited, and STI Limited (sedan).
Leather seating surface with matching vinyl trim

STI leather trimmed seats, black alcantara seating surfaces, carbon black leather bolsters, red stitching

STI leather trimmed seats, black alcantara seating surfaces, carbon black leather bolsters, red stitching

STI leather trimmed seats, black alcantara seating surfaces, carbon black leather bolsters, red stitching

start 2012 colors and chips
top


2012 COLOR CHIPS
 It's hard to get accurate colors, so it's always best to look at a car with that color (even if not the same model)

obsidian black pearl

New for 2012- Ice Silver.
subaru forester dark gray metallic
dark gray metallic
Plasma Blue Pearl
 Plasma Blue Pearl
color- Subaru WRX, STI-  Lighning Red
lightning red

satin white pearl
Subaru color- WR Blue, world rally blue
WR Blue
--

2012 COLOR AVAILABILTY BY MODEL

-top
.
2012 WRX and STI
.
INTERIOR MATERIALS
.
WRX-  carbon black checkered cloth
STI - black Alcantara with carbon black leather bolsters
WRX Limited, STI Limited - carbon black leather seating surface with matching vinyl trim
.
'A' available, '--'  not available
subject to update, change, correction
COLOR (code)
sedan WRX
sedan WRX Premium
sedan WRX Limited
wagon WRX
wagon WRX Premium
wagon WRX Limited
STI sedan
STI Limited sedan
STI wagon
model code
CWN
CWO
CWP
CXV
CXO
CXP
CWV
CWW
CXV
Obisidian Black Pearl (blk)
A
A
A
leather
A
A
A
leather
A
A
A
New Ice Silver Met. (ism)
A
A
A
leather
A
A
A
leather
A
A
A
Dark Gray Metallic (dgm)
A
A
A
leather
A
A
A
leather
A
A
A
Lightning Red (rlg)
A
A
A
leather
A
A
A
leather
A
A
A
Satin White Pearl (whi)
A
A
A
leather
A
A
A
leather
A
A
A
WR Blue Mica (blu)
A
A
 A
leather
A
A
A
leather
A
A
A
Plasma Blue Pearl (pbp)
New- A
New- A
New- A
New- A
New- A
New- A
A
A
A
color (code)
sedan WRX
sedan WRX Premium
sedan Limited
wagon WRX
wagon WRX Premium
wagon WRX Limited
STI sedan
STI  Limited sd
STI wagon
end WRX, start STI
end colors
top


How to get a car
inventory, dealer trade, ordering

Inventory -   Dealers are offered cars for inventory a month or so in advance. The quantity can vary from month to month. Most cars will have a  extra options or upgrades and usually these are features that are popular in the area.  Some, but only a few, will not have any extras at all. Cars in stock are available for immediate purchase and dealers might be more motivated to move them.

"Dealer trade" or "locate". This is when a dealer looks for a vehicle in another dealer's inventory and then trades cars, ie swaps cars, with that dealer.
This means the requesting dealer has to have a car the other dealer will accept back in trade.
There are many people at the dealerships and at Subaru involved in the process.
The vehicle is usually driven from the other location. This can take place within days if a vehicle is already in stock someplace.

Pre-sell, incoming: You wait for a vehicle the dealer already has incoming in their system.

Order:
If you really want a specific vehicle, you can order it. Subaru requires customer information and a deposit.
Once ordered Subaru will give an expected delivery Month.
Within 2-5 weeks, there will be date, an ETA, an estimated time of arrival.  This is not a promise the car will there on a specific day or week and the frequently changes. Your dealer can watch for updates.

Orders are filled as the right model, tranmission, and color is available, on a first order in, first filled  basis.
Usually a vehicle arrives at a dealer within 5-10 weeks (typically 7-8), but delays can happen at any point along the assembly and shipping process, so be patient.
If you are requesting a popular car with a waiting list, or an uncommon car,  it can take longer.

If a certain individual option or accessory is not available for installation, the car will still be sent to the dealer. The accessory can then be added by the dealer but the cost might change.
The dealer wants you to get your car as quickly as you want to get it!


top
coming soon
Magazine articles and reviews, speed tests etc
many more reviews and articles at http://www.cars101.com/subaru/news.html.



* fine print: These web pages are 100% unofficial and may contain errors, gossip, chit-chat.
always check with your authorized dealer, parts and warranty people, mechanic, insurance agent and etc before making any decisions.
Always have any used car inspected and always test drive any car before buying.

Not responsible for any errors, typos, omissions or any problems or issues that might arise from use of this page.
All content subject to change, correction. Corrections, tips, comments welcomed

all formatting, text etc and photos c j. spitz, unauthorized reproduction prohibited

Buying a Subaru in Seattle?
contact

Joe Spitz

top
